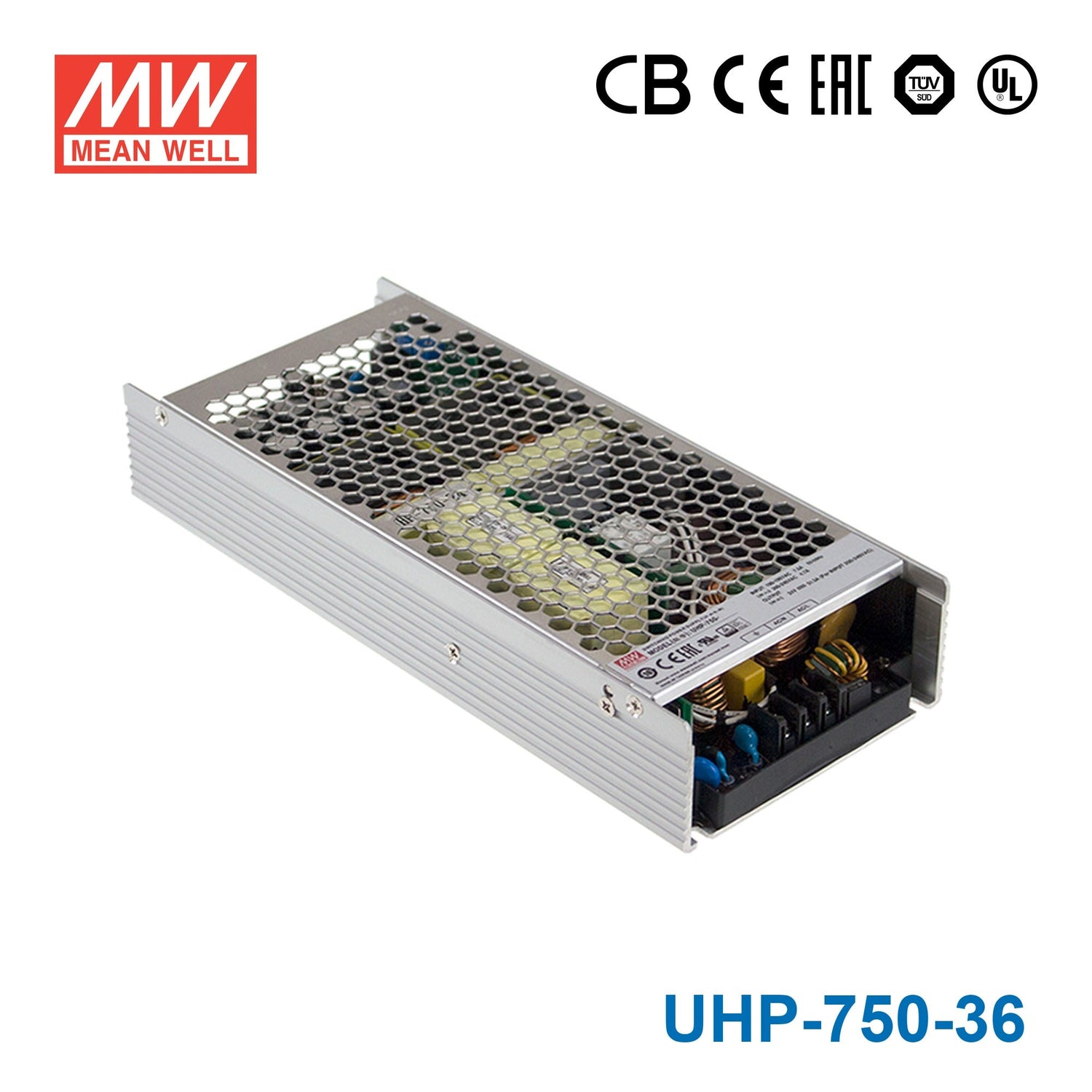

Mean Well UHP-750-36 Power Supply 752.4W 36V
Description
Description
Features
| Slim and Low profile (41mm) |
| Fanless and conduction-cooled design |
| Withstand 300VAC surge input for 5 seconds |
| Built-in active PFC function |
| -30~+70℃ working temperature |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| DC OK relay contact |
| Operating altitude up to 5000 meter |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC 127~370VDC |
| AC inrush current | Cold start :20A/115VAC 40A/230VAC |
| Overload protection | 105~125% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| Over voltage protection | 12V:14.5~16V, 24V:29~33V, 36V:43. 5~49V, 48V:59~66V Protection type :Shut down O/P voltage, re-power on to recover |
| Over temperature protection | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down |
| Setup, rise, hold up time | 1000ms, 50ms/230VAC/115VAC at full load; 12ms/115VAC, 230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC |
| Working temperature | -30~+70℃ (Refer to Derating Curve) |
| Safety standards | UL62368-1, TUV EN62368-1, EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1 |
| EMC standards | EN55032 (CISPR32) Class B ;EN61000-3-2, 3; EN61000-4-2, 3, 4, 6, 8, 11, EN61000-6-2 |
| Dimension (LxWxH) | 237×100×41mm |
| Packing | 1.4Kg; 10pcs/15Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating752.4 Watt
-
Output Voltage36 Volt
-
Rated Current20.9 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.33 in
-
Width3.94 in
-
Height1.61 in
-
Weight3.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-750-36 for 36V industrial automation equipment?
Yes, it is a constant voltage 36V supply rated for 752.4W and 20.9A, which fits 36V equipment designed around a fixed DC bus. The connected load needs to stay within 20.9A and 752.4W.
Is this model appropriate for 36V motion, actuator, or control systems in machinery?
It can be appropriate where the machinery uses a 36V constant voltage architecture and the total demand does not exceed 20.9A or 752.4W. The wide 90-264VAC input range may also help in equipment intended for varied AC input conditions.
Can the UHP-750-36 support 36V embedded or industrial computing platforms?
It can support 36V embedded or industrial electronics that require constant voltage and fit within 20.9A and 752.4W. The fanless design may be helpful in applications where lower acoustic noise or reduced moving parts are preferred.
Is the UHP-750-36 a good fit for compact 36V equipment cabinets?
It is well suited to compact cabinets from a mechanical standpoint because the housing is 237.0 × 100.0 × 41.0 mm and weighs 1.4 kg. Electrically, it provides a constant 36V output with up to 20.9A available.
Can this power supply be used outdoors or in unconditioned industrial spaces?
The specified operating temperature range is -30°C to +70°C, so it is rated for wide indoor temperature conditions. No IP rating is listed in the provided specs, so outdoor exposure or washdown suitability is not established here.
How does the UHP-750-36 compare with other 36V UHP models?
The listed 36V models are UHP-200-36 at 201.6W and 5.6A, UHP-200R-36 at 201.6W and 5.6A, UHP-350-36 at 351W and 9.75A, UHP-350R-36 at 351W and 9.75A, UHP-500-36 at 500.4W and 13.9A, UHP-500R-36 at 500.4W and 13.9A, UHP-750-36 at 752.4W and 20.9A, UHP-1000-36 at 1008W and 28A, and UHP-2500-36 at 2498.4W and 69.4A. This model sits above the 500.4W class and below the 1008W and 2498.4W options.
