Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

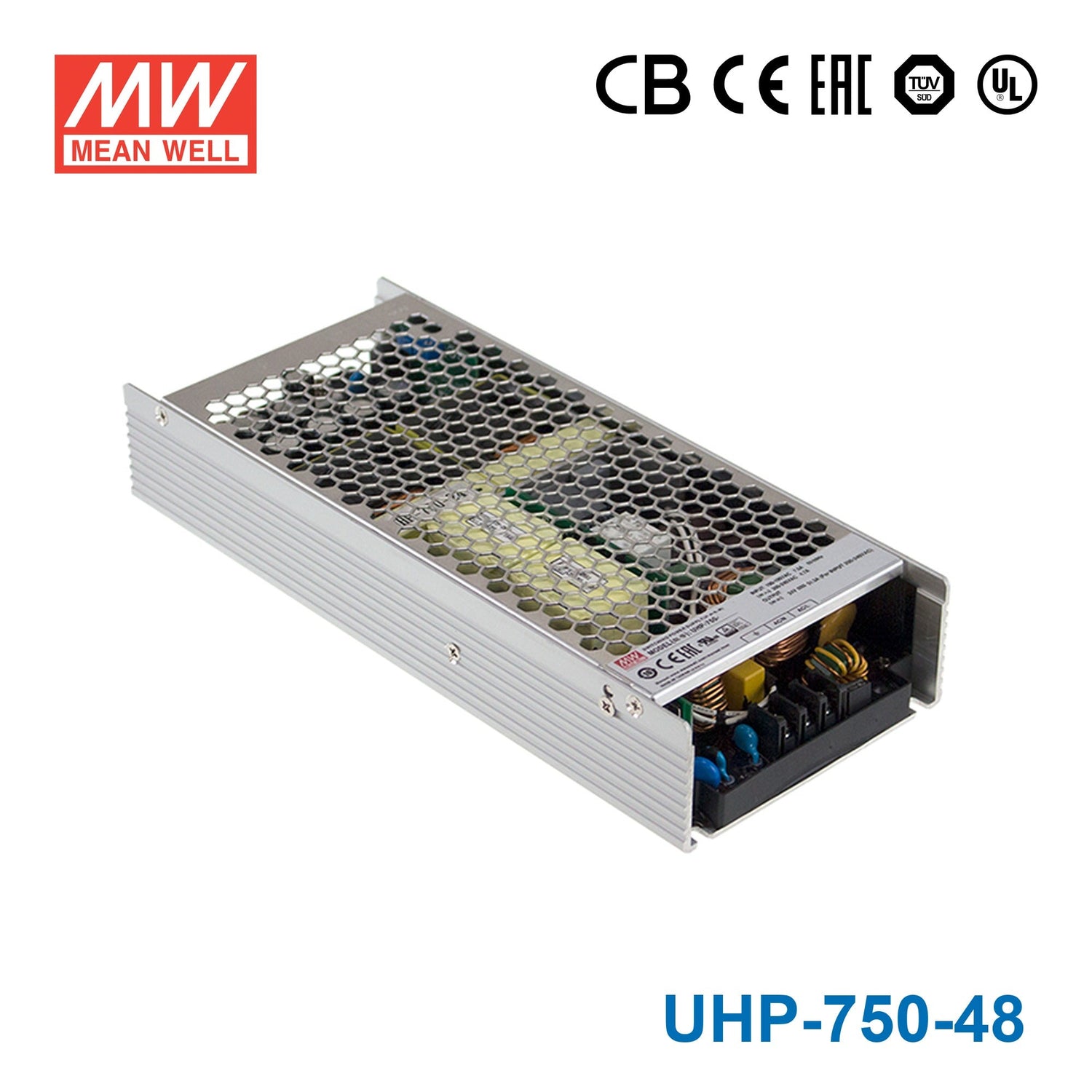

Mean Well UHP-750-48 Power Supply 753.6W 48V

slim and low profile, fanless design

SKU:

UHP-750-48

Model

200W 48V

$54.50 USD

SKU: UHP-200-48

350W 48V

$75.33 USD

SKU: UHP-350-48

500W 48V

$106.64 USD

SKU: UHP-500-48

750W 48V

$220.63 USD

SKU: UHP-750-48

1000W 48V

$290.70 USD

SKU: UHP-1000-48

1500W 48V

$436.87 USD

SKU: UHP-1500-48

2500W 48V

$649.48 USD

SKU: UHP-2500-48

Product variants

$220.63 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Slim and Low profile (41mm)

Fanless and conduction-cooled design

Withstand 300VAC surge input for 5 seconds

Built-in active PFC function

-30~+70℃ working temperature

Protections: Short circuit / Overload / Over voltage / Over temperature

DC OK relay contact

Operating altitude up to 5000 meter

LED indicator for power on

3 years warranty

General Specification

AC input voltage range	90~264VAC 127~370VDC
AC inrush current	Cold start :20A/115VAC 40A/230VAC
Overload protection	105~125% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over voltage protection	12V:14.5~16V, 24V:29~33V, 36V:43. 5~49V, 48V:59~66V Protection type :Shut down O/P voltage, re-power on to recover
Over temperature protection	Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
Setup, rise, hold up time	1000ms, 50ms/230VAC/115VAC at full load; 12ms/115VAC, 230VAC
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC
Working temperature	-30~+70℃ (Refer to Derating Curve)
Safety standards	UL62368-1, TUV EN62368-1, EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1
EMC standards	EN55032 (CISPR32) Class B ;EN61000-3-2, 3; EN61000-4-2, 3, 4, 6, 8, 11, EN61000-6-2
Dimension (LxWxH)	237×100×41mm
Packing	1.4Kg; 10pcs/15Kg

Specifications

Brand

Mean Well
Series

UHP Series
Power Rating

753.6 Watt
Output Voltage

48 Volt
Rated Current

15.7 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

9.33 in
Width

3.94 in
Height

1.61 in
Weight

3.09 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the Mean Well UHP-750-48 for a 48V industrial automation system?

Yes, this model is a 48V constant voltage power supply rated for 753.6W and 15.7A, which fits 48V industrial automation equipment that needs a regulated DC output. Its slim low-profile form factor, fanless design, and 90-264VAC input also make it suitable for control panels and automation cabinets where space and airflow are limited.

Is the UHP-750-48 suitable for 48V embedded or industrial IT equipment?

It can be a fit for embedded or industrial IT systems that require a 48V constant voltage source and draw within 15.7A or 753.6W. The fanless design helps in quieter enclosed equipment, and the 90-264VAC input supports use across common AC mains ranges.

Can this power supply run a 48V system with a higher continuous load?

It is intended for 48V constant voltage loads up to 15.7A and 753.6W. If your system needs more than that, this model is undersized and you would need a higher-capacity option in the same series.

Is the Mean Well UHP-750-48 good for indoor or outdoor use?

The provided specs list an operating temperature range of -30°C to +70°C, so it is designed to handle a wide temperature range. However, no IP rating is listed in the provided specs, so outdoor or exposed-environment suitability is not established from this data alone.

How does the UHP-750-48 compare with the other UHP-750 models?

Within the UHP-750 range, the UHP-750-12 is 720W at 12V and 60A, the UHP-750-24 is 751.2W at 24V and 31.3A, the UHP-750-36 is 752.4W at 36V and 20.9A, and the UHP-750-48 is 753.6W at 48V and 15.7A. The main difference across these models is the output voltage and current combination, while all are in the same general power class.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well UHP-750-36 Power Supply 752.4W 36V	752.4W	36V	20.9A	Indoor	$220.63	View
Mean Well UHP-750-24 Power Supply 751.2W 24V	751.2W	24V	31.3A	Indoor	$208.40	View
Mean Well UHP-750-12 Power Supply 720W 12V	720W	12V	60A	Indoor	$217.14	View
