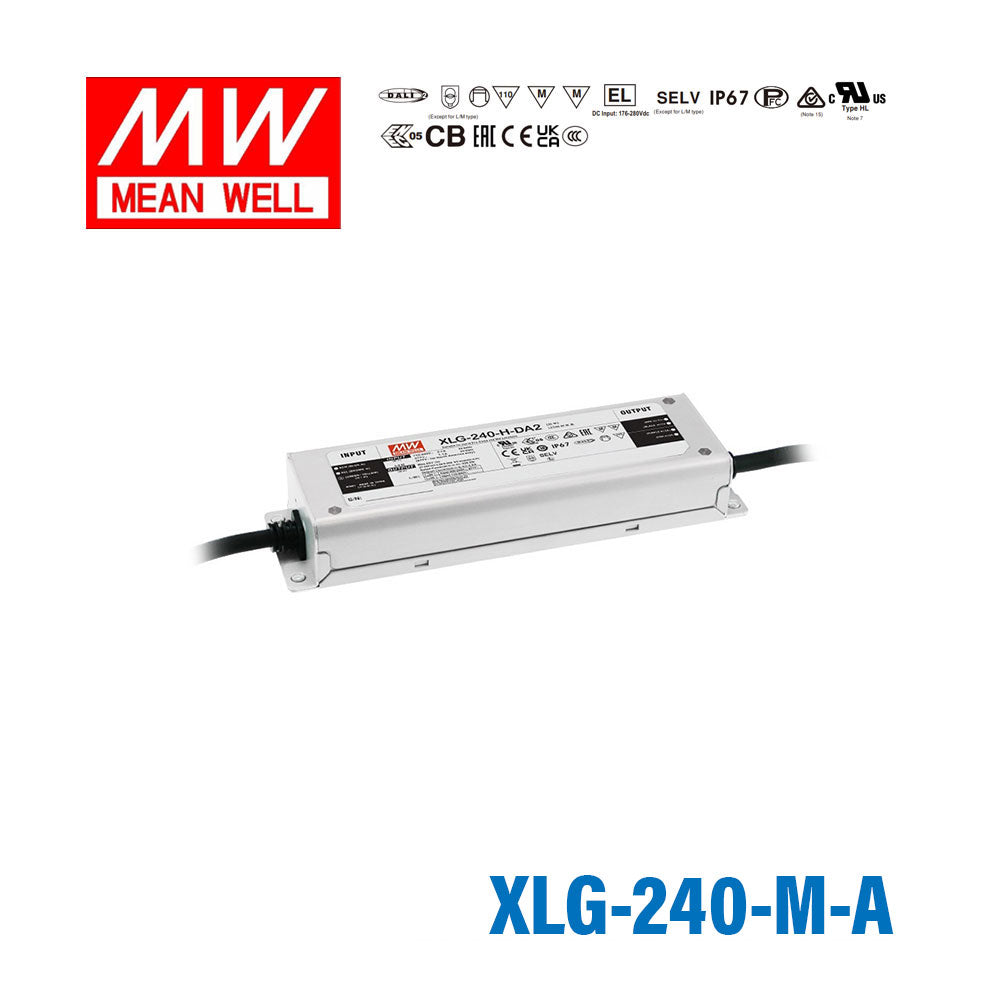

Mean Well XLG-240-M-A Power Supply 240W 1400mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-240-M-A Power Supply 240W 1400mA - Adjustable
The XLG-240-M is a 240W Mean Well power converter.
Key Features
- ✓ 3.75 KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating239.4 Watt
-
Output Voltage186 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.2 lb
::specification::
Frequently Asked Questions
What LED lighting applications is the XLG-240-M-A designed for?
The XLG-240-M-A is a constant-current driver targeting medium-high voltage LED strings, such as those used in commercial downlights, linear pendant luminaires, and indoor architectural lighting systems that require a forward voltage in the 90–171V range.
Can the XLG-240-M-A be used outdoors or in wet locations?
Yes. The IP67 rating means the driver is dust-tight and protected against temporary immersion. It can be mounted in exterior enclosures, under-canopy fixtures, or damp-rated indoor/outdoor luminaires.
Is the XLG-240-M-A suitable for powering LED street or area lighting with medium-voltage modules?
Yes. The 90–171V CC voltage range suits medium-voltage LED module arrays used in street lights, flood lights, and industrial high-bay applications. At 239.4W and 1.4A output current, it provides adequate power for a single large luminaire or a small cluster of modules.
Can I install the XLG-240-M-A on a 277V commercial branch circuit?
Yes. The 100–305VAC input covers US commercial 277V single-phase circuits, as well as standard 120V and 230V supplies worldwide, with no external step-down transformer required.
How does the XLG-240-M-A differ from the XLG-240-L-A and XLG-240-H-A?
All three are 239W-class constant-current IP67 drivers in the same chassis. The XLG-240-H-A targets low-voltage LED loads (27–56V CC range, 4.9A). The XLG-240-M-A targets medium-voltage loads (90–171V CC range, 1.4A). The XLG-240-L-A targets high-voltage loads (178–342V CC range, 0.7A). Select based on the forward voltage requirement of your LED string.
What is the operating temperature range of the XLG-240-M-A, and does it affect installation location?
The driver is rated for -40°C to +90°C, supporting installations in freezing outdoor environments as well as hot enclosed enclosures. The wide range makes it practical for both cold-climate outdoor fixtures and thermally demanding indoor luminaire housings.
