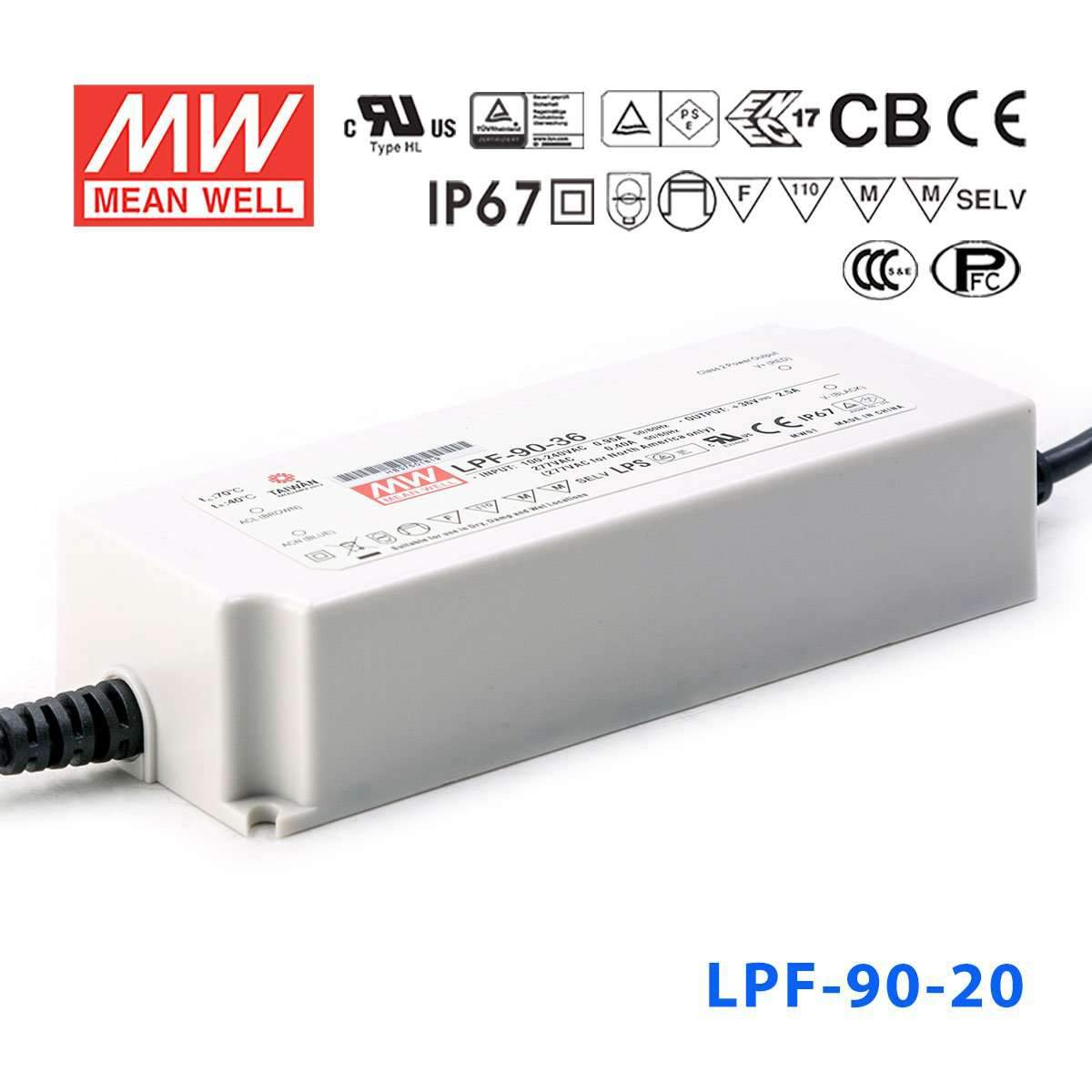

Mean Well LPF-90-20 Power Supply 90W 20V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| Fully encapsulated with IP67 level |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 161x 61x 36 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating90 Watt
-
Output Voltage20 Volt
-
Rated Current4.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.34 in
-
Width2.4 in
-
Height1.42 in
-
Weight1.54 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-90-20 for 20V LED strip lighting?
Yes, if the strip or lighting load is designed for 20V operation and the total demand stays within 90W and 4.5A. This model provides 20V output and is suited to 20V lighting loads that need more capacity than lower-wattage 20V units.
Is the LPF-90-20 suitable for 20V LED signage or lightbox applications?
It can be, as long as the sign or lighting load is a 20V load and does not exceed 90W or 4.5A. The wide 90-305VAC input also makes it practical for projects that need a broad AC input range.
Can this driver be used in outdoor or wet 20V lighting environments?
Yes, the IP67 waterproof rating supports outdoor and wet-location use. The operating temperature range is -40°C to +70°C, so the unit is built for harsher environmental conditions than an indoor-only supply.
How do I estimate LED strip length for the LPF-90-20?
Use the maximum output power of 90W and divide it by the strip wattage per meter. The sizing math is 90W / W per meter, but you need to check your strip rated power per meter and confirm it is a 20V strip.
How does LPF-90-20 compare with the other LPF-90 models?
In the non-dimming LPF-90 range, the models are LPF-90-15 at 75W, 15V, 5A; LPF-90-20 at 90W, 20V, 4.5A; LPF-90-24 at 90W, 24V, 3.75A; LPF-90-30 at 90W, 30V, 3A; LPF-90-36 at 90W, 36V, 2.5A; LPF-90-42 at 90.3W, 42V, 2.15A; LPF-90-48 at 90.24W, 48V, 1.88A; and LPF-90-54 at 90.18W, 54V, 1.67A. The dimming versions are LPF-90D-15 at 75W, 15V, 5A; LPF-90D-20 at 90W, 20V, 4.5A; LPF-90D-24 at 90W, 24V, 3.75A; LPF-90D-30 at 90W, 30V, 3A; LPF-90D-36 at 90W, 36V, 2.5A; LPF-90D-42 at 90.3W, 42V, 2.15A; LPF-90D-48 at 90.24W, 48V, 1.88A; and LPF-90D-54 at 90.18W, 54V, 1.67A.
