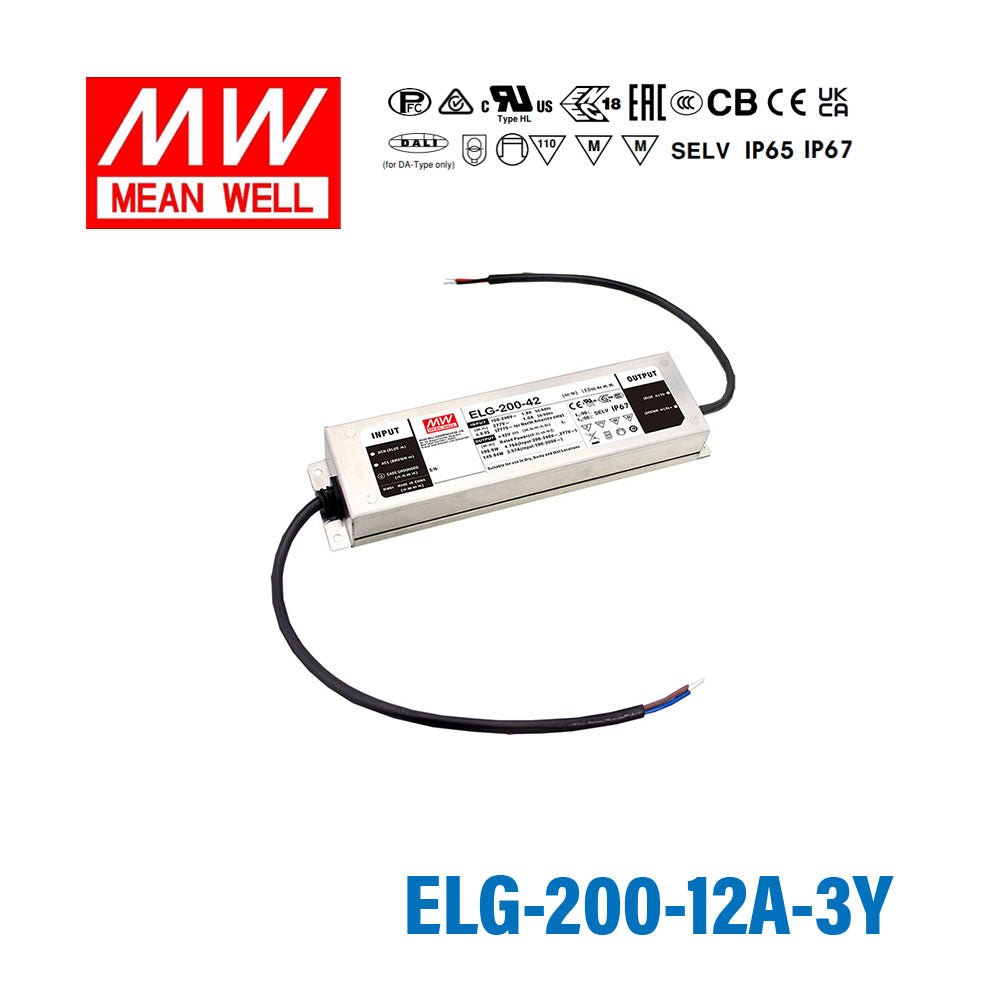

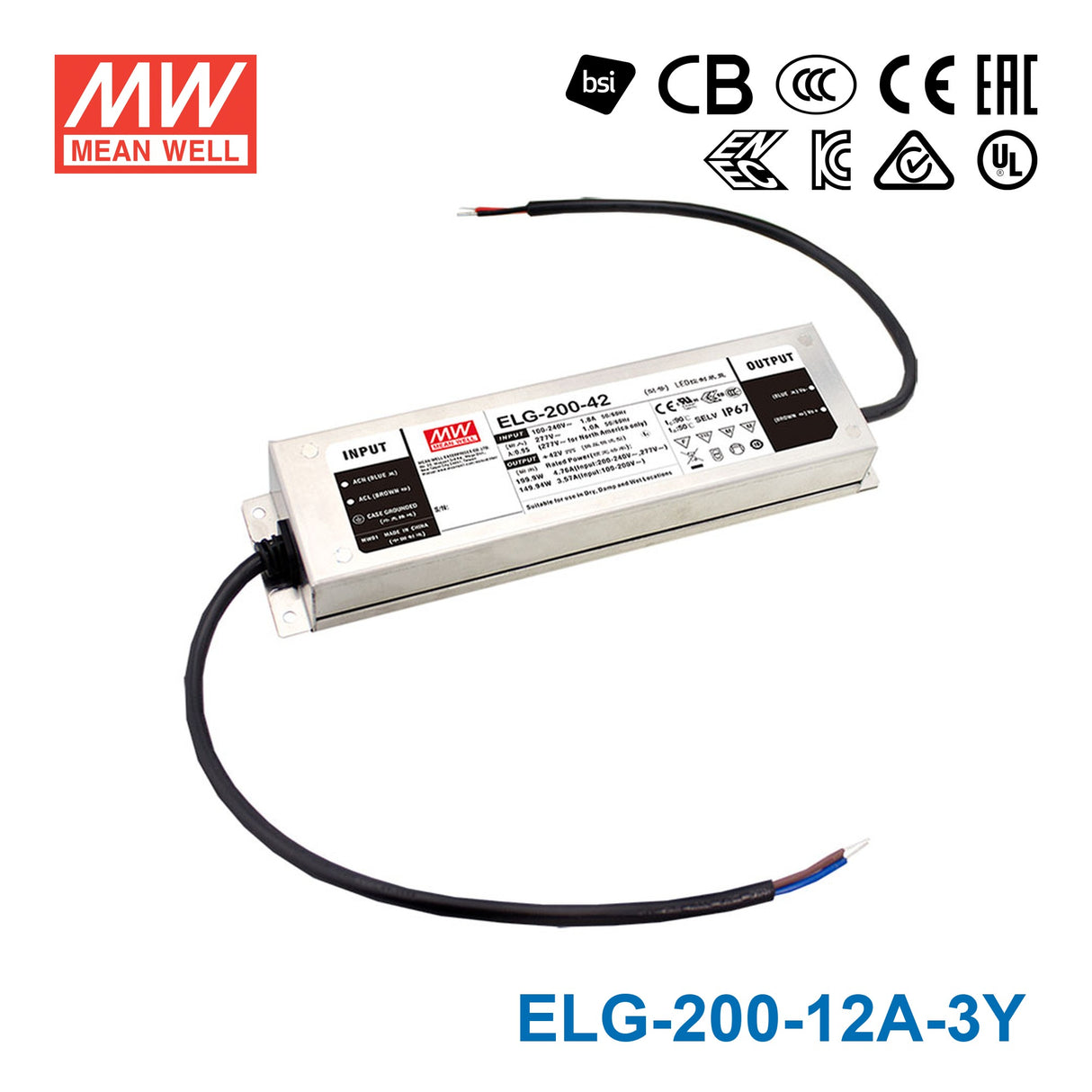

Mean Well ELG-200-12A Power Supply 192W 12V 3-wire Input - Adjustable

Q: What distinguishes the ELG-200-12A-3Y from the standard ELG-200-12A?

The ELG-200-12A-3Y is a 3-wire input variant of the ELG-200-12A. Both share the same 192W / 12V / 16A output, IP65 rating, adjustable output, and -40°C to +90°C operating range. The 3-wire input designation indicates it uses a three-conductor AC input configuration rather than a two-wire one, which may be required by specific installation wiring standards.

Q: Can the ELG-200-12A-3Y power 12V LED strips in an outdoor architectural lighting project?

Yes. The ELG-200-12A-3Y outputs 12V at up to 16A (192W) and carries an IP65 water-resistance rating, making it appropriate for sheltered outdoor architectural lighting. At 192W, a 10W/m LED strip allows approximately 19 meters per driver; check your strip's rated power per meter for an accurate figure.

Q: Is the ELG-200-12A-3Y suitable for use in outdoor enclosures exposed to rain?

The ELG-200-12A-3Y is IP65 rated, protecting it against low-pressure water jets from any direction. It is suitable for weatherproof enclosures, covered outdoor cabinets, and similar installations that may experience rain splash but not submersion.

Q: Can the ELG-200-12A-3Y drive 12V LED strips in a large-format illuminated sign?

Yes. With 192W at 12V and 16A, the ELG-200-12A-3Y can drive substantial LED strip runs inside large-format signs. The adjustable output also allows fine-tuning of brightness to match the specific LED strip load. Always account for derating in high-ambient enclosures.

Q: Does the ELG-200-12A-3Y operate across global mains voltages?

Yes. The ELG-200-12A-3Y accepts 100–305VAC input, covering standard residential and commercial voltages in North America (120V), Europe (230V), and US commercial (277V) without any configuration change.

Q: What is the operating temperature range of the ELG-200-12A-3Y?

The ELG-200-12A-3Y is rated for operation from -40°C to +90°C. This covers installations in cold-storage facilities, unheated outdoor enclosures in winter climates, and high-ambient locations such as rooftops or industrial spaces.

metal case, IP65/IP67, 5 years warranty

SKU:

ELG-200-12A-3Y

$51.37 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

100~305VAC wide input range

Built-in active PFC

Protections: Short circuit / Over voltage/Over temperature

No load power consumption <0.5W

High efficiency up to 93%

Suitable for LED lighting and street lighting applications

Cooling by free air convection

100% full load burn-in test

5 years warranty

General Specification

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 65 at 230VAC
DC adjustment range	±10% rated output voltage
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	500ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+80°C (refer to output derating curve)
Safety standards	UL8750 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1
Dimension (LxWxH)	244x71x37.5
Packing	12pcs / 15.2kg

Specifications

Brand

Mean Well
Series

ELG Series
Power Rating

192 Watt
Output Voltage

12 Volt
Rated Current

16 Ampere
Input Voltage

100V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

9.61 in
Width

2.8 in
Height

1.48 in
Weight

2.69 lb

File Downloads

::specification::
