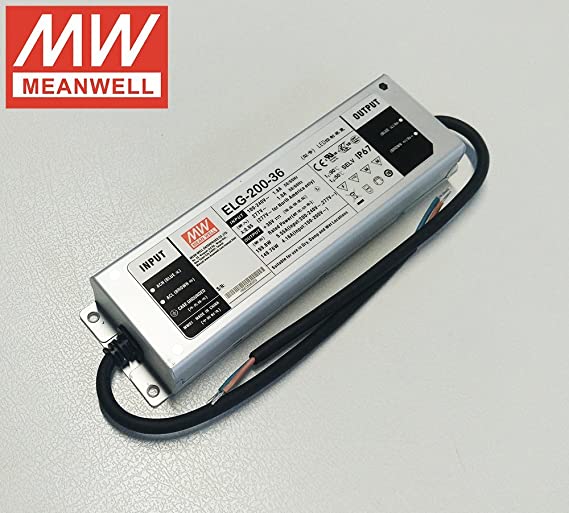

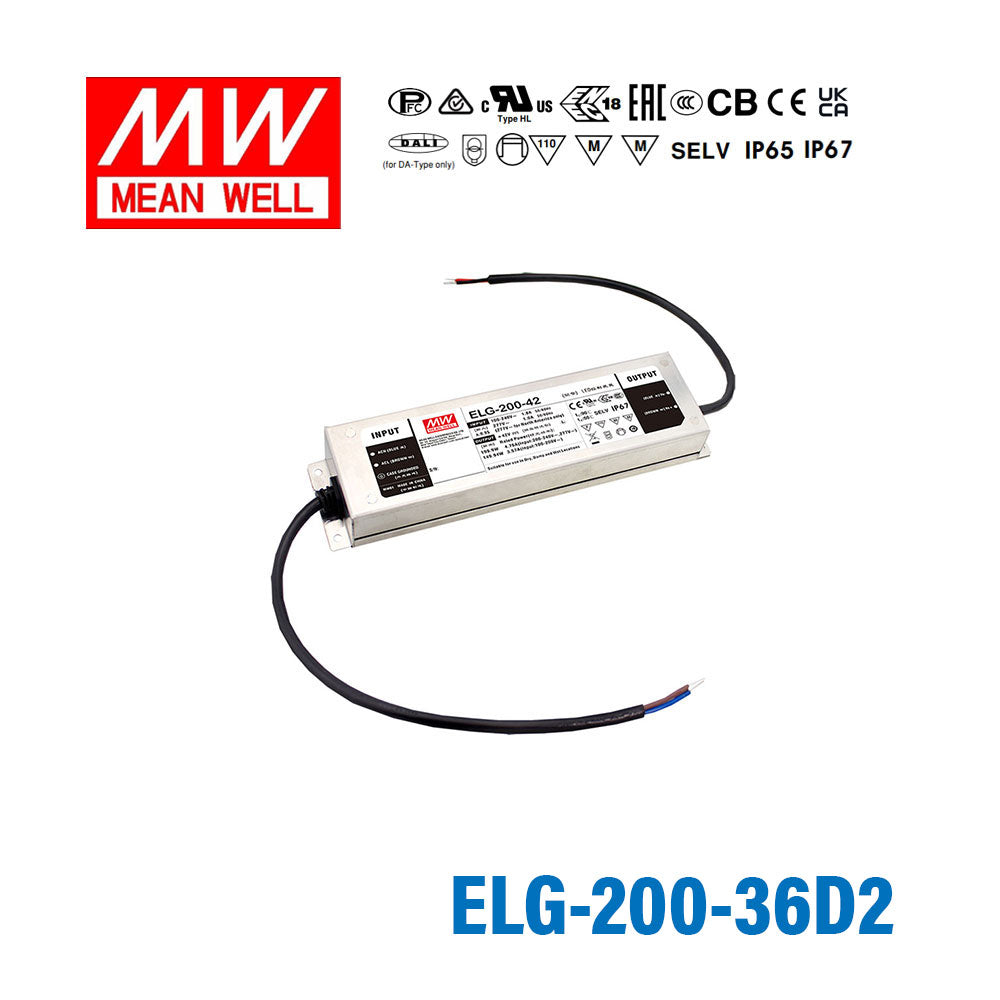

Mean Well ELG-200-36D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating200 Watt
-
Output Voltage36 Volt
-
Rated Current5.55 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-36D2 be used in an outdoor LED lighting installation exposed to rain?
Yes. The ELG-200-36D2 is rated IP67, providing protection against water immersion up to 1 meter for 30 minutes. It is suitable for direct outdoor exposure in sign cabinets, facade lighting, and landscape applications where rain contact is expected.
What dimming protocol does the ELG-200-36D2 use?
The D2 suffix indicates this driver supports DALI (Digital Addressable Lighting Interface) dimming. It is not compatible with standard 1–10V or PWM dimmer controllers. Use this model when your project requires individual DALI address control, such as in smart building systems, commercial offices, or retail environments with centralized lighting management.
Is the ELG-200-36D2 appropriate for a smart office LED strip installation on a DALI network?
Yes. The DALI interface allows the ELG-200-36D2 to receive individual digital dimming commands from a DALI controller or building management system. At 200W and 36V, it can power a meaningful length of 36V LED strip per zone in open-plan office cove or task lighting layouts.
How many meters of 36V LED strip can the ELG-200-36D2 drive?
The driver delivers 200W at 5.55A. For a 36V strip at 20 W/m, you can run approximately 10 m per driver (200 W ÷ 20 W/m). For strips rated at 12 W/m, that extends to about 16.7 m. Always check your strip's rated wattage per meter and derate by 10–20% for thermal headroom.
What is the operating temperature range of the ELG-200-36D2, and does it suit cold-climate outdoor use?
The ELG-200-36D2 operates from -40°C to +90°C. This range covers cold-climate outdoor installations where temperatures drop well below freezing. The IP67 rating additionally protects against rain, snow melt, and condensation encountered in outdoor environments.
Can the ELG-200-36D2 be used for 36V LED strip in a large-format illuminated retail display requiring zone-level dimming?
Yes. The DALI interface enables zone-level or individual-unit dimming when multiple ELG-200-36D2 drivers are deployed and addressed independently on a DALI bus. This suits retail lighting designs where different display sections need separate brightness levels or scheduling without additional analog infrastructure.
