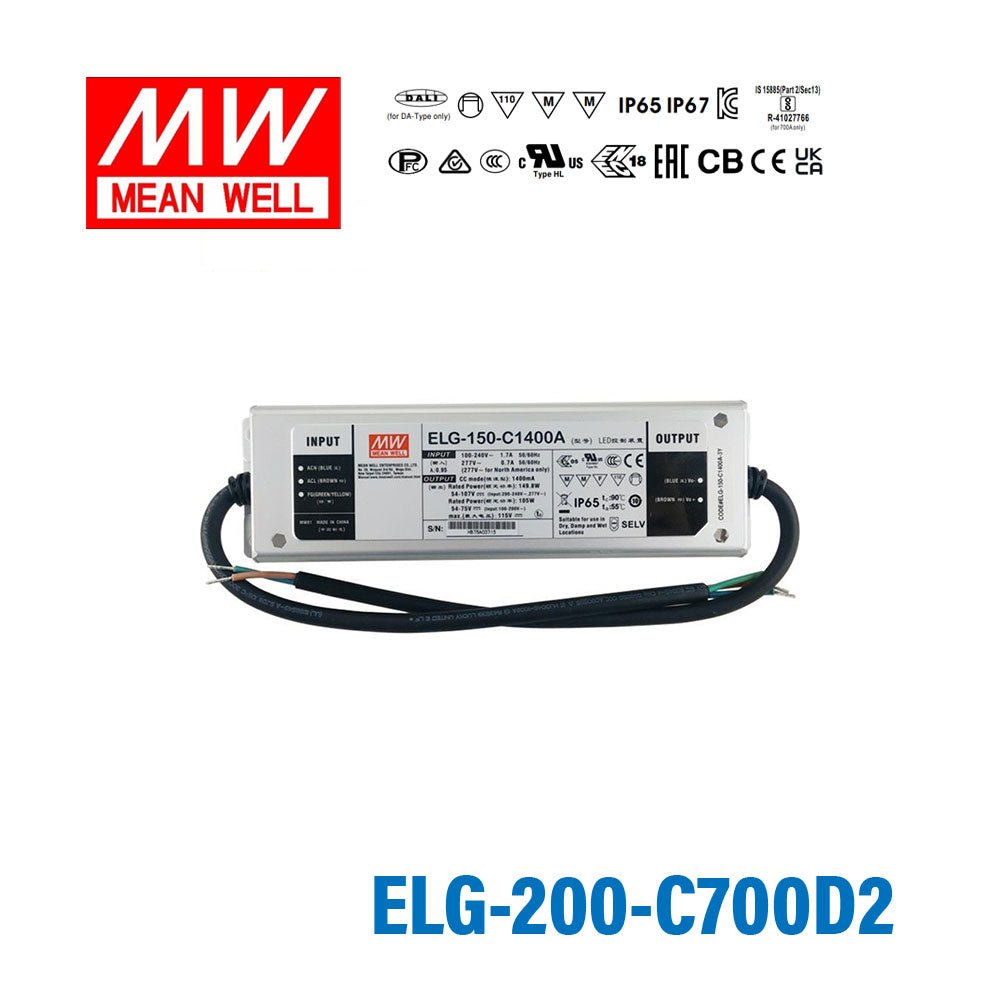

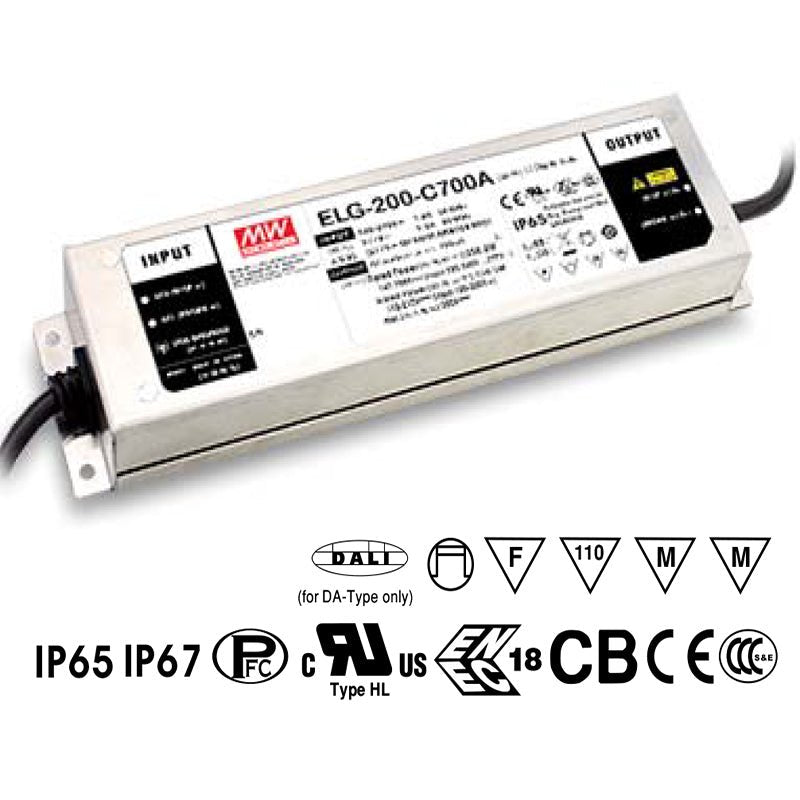

Mean Well ELG-200-C700D2 AC-DC Single output LED Driver (CC) with PFC

Q: Can the ELG-200-C700D2 be used for fixed-output LED downlight installations without dimming?

Yes. The ELG-200-C700D2 is a constant current driver with a fixed 286V maximum output and no dimming or adjustment function. It is a straightforward choice for LED downlight arrays or linear LED modules in permanent, non-dimmed installations that need a reliable 200W constant current supply.

Q: Is the ELG-200-C700D2 suitable for LED signage in outdoor or semi-outdoor locations?

The ELG-200-C700D2 is rated IP67 waterproof, making it appropriate for outdoor sign cabinets and semi-exposed installations where the driver may encounter rain or water splash. Its wide input range of 100–305VAC and -40°C to +85°C operating temperature support diverse outdoor deployment scenarios.

Q: What LED strings are compatible with the ELG-200-C700D2 given its CC voltage range?

The ELG-200-C700D2 operates in constant current mode with a CC output voltage range of 142–286V. LED loads connected in series must present a combined forward voltage within that window. The number of LEDs in the string depends on the forward voltage of each LED at the operating current.

Q: How does the ELG-200-C700D2 differ from other ELG-200-C700 variants?

The ELG-200-C700D2 has a fixed output (no trimming, no dimming signal) and is rated IP67 with a 286V maximum output voltage. The ELG-200-C700A and ELG-200-C700AB offer output adjustment and are IP65; the ELG-200-C700B adds analog dimming with IP67; the ELG-200-C700DA supports DALI dimming with IP67. All deliver a nominal 200W at 700mA constant current.

Q: Can the ELG-200-C700D2 be mounted in an outdoor enclosure exposed to rain?

Yes. The IP67 rating means the driver is protected against temporary water immersion up to 1 meter, so rain exposure and wet outdoor enclosures are within its design envelope. The operating temperature of -40°C to +85°C further supports year-round outdoor deployment.

Q: Is the ELG-200-C700D2 appropriate for industrial LED array applications requiring wide-range AC input?

Yes. The driver accepts 100–305VAC, covering both 120V North American and 230–277V European or industrial supply voltages without reconfiguration. This makes it suitable for industrial LED arrays, warehouse lighting, and multi-country product designs requiring a single SKU.

contant current, metal case, IP65/IP67, 5 years warranty

SKU:

ELG-200-C700D2

$56.95 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

100~305VAC wide input range

Built-in active PFC

Protections: Short circuit / Over voltage/Over temperature

No load power consumption <0.5W

High efficiency up to 93%

Suitable for LED lighting and street lighting applications

Cooling by free air convection

100% full load burn-in test

5 years warranty

General Specification

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 65 at 230VAC
DC adjustment range	±10% rated output voltage
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	500ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+80°C (refer to output derating curve)
Safety standards	UL8750 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1
Dimension (LxWxH)	244x71x37.5
Packing	12pcs / 15.2kg

Specifications

Brand

Mean Well
Series

ELG Series
Power Rating

200 Watt
Output Voltage

286 Volt
Rated Current

0.7 Ampere
Input Voltage

100V~305V
No of Output

1
Dimming Control

1-10V
Standards Met

BSMI,CB,CE,EAC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

9.61 in
Width

2.8 in
Height

1.48 in
Weight

2.69 lb

File Downloads

::specification::
