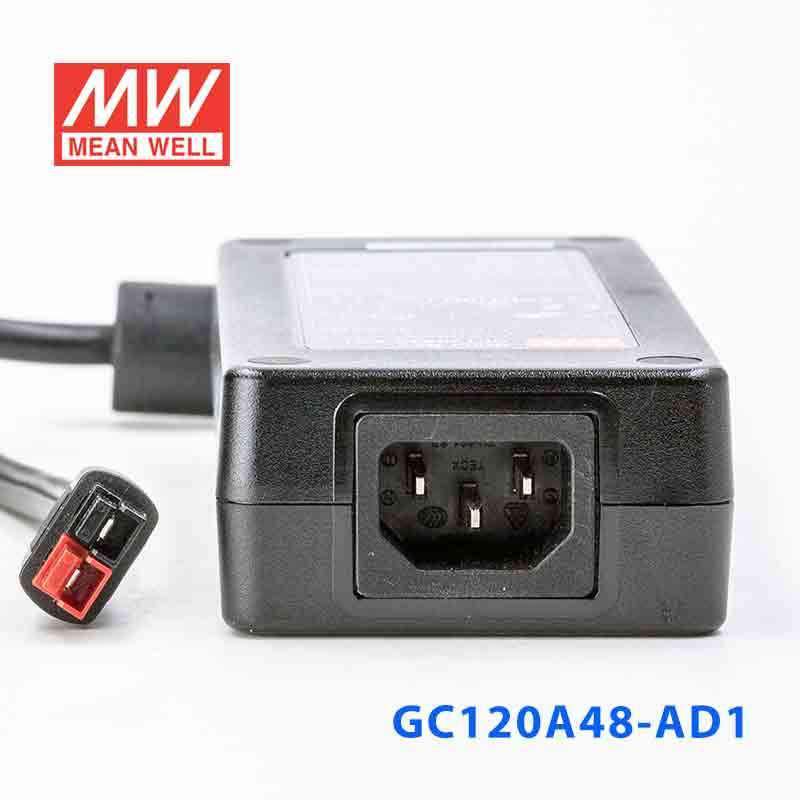

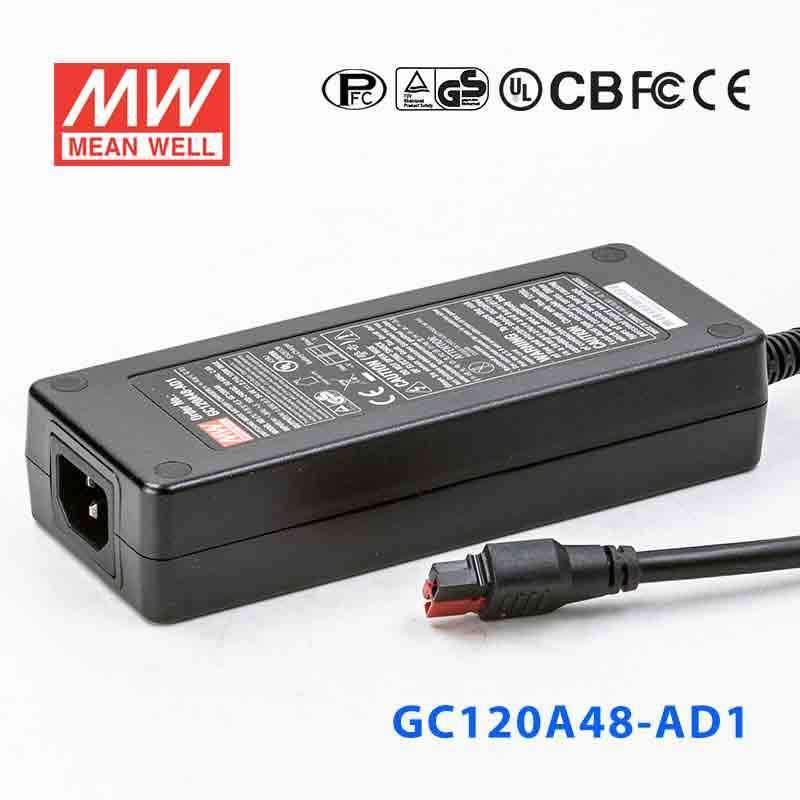

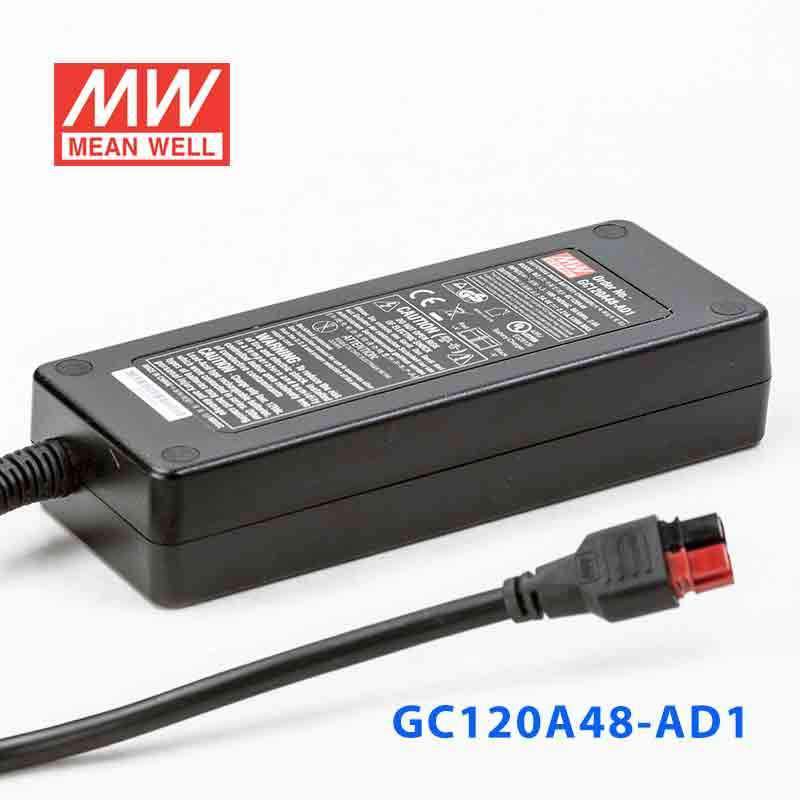

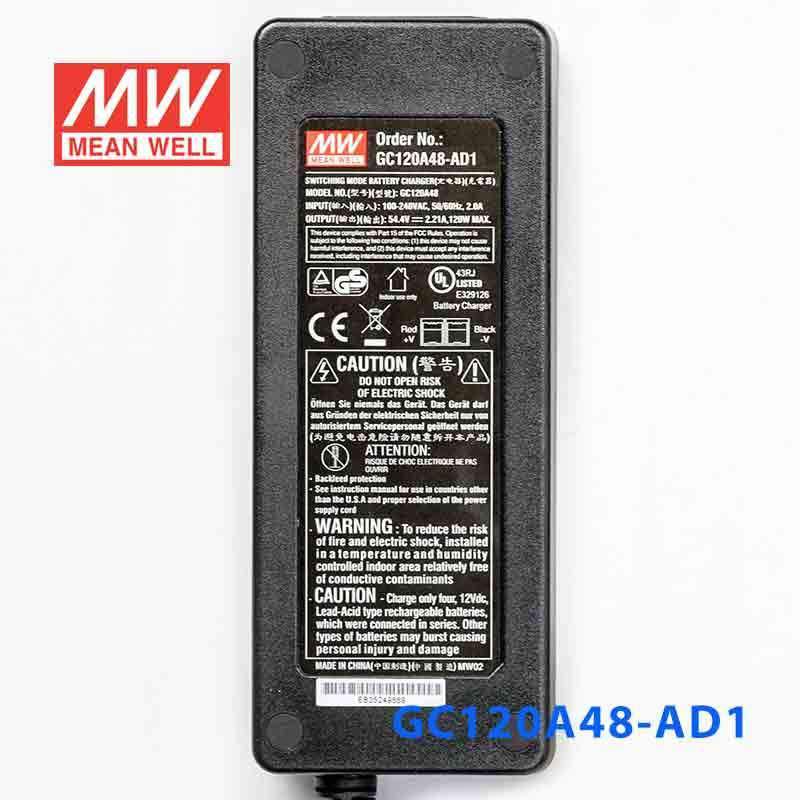

Mean Well GC120A48-AD1 Portable Chargers 120.2W 54.4V 2.21A - Green...
The GC120A48 is a 120W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating120.2 Watt
-
Output Voltage54.4 Volt
-
Rated Current2.21 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.57 in
-
Width2.64 in
-
Height1.38 in
-
Weight1.37 lb
::specification::
Frequently Asked Questions
What is the Mean Well GC120A48-AD1 designed for?
The GC120A48-AD1 is a portable AC/DC charger and power supply rated at 120.2W. It provides a 54.4V output at 2.21A and is suited to applications that require a compact external charger with a locked 4-pin Power DIN output. Its enclosed plastic case and free-air convection cooling make it suitable for portable and bench-side commercial use.
What are the key electrical ratings of the GC120A48-AD1?
This model is rated for 120.2W output power, with a nominal output of 54.4V DC and 2.21A. It accepts a universal 85 to 264VAC input range, and also supports 120 to 370VDC input. Efficiency is specified at up to 91%, with no-load power consumption below 0.5W.
Does the GC120A48-AD1 include charger protections?
Yes, this model includes protection for short circuit, overload, over voltage, and over temperature. Overload protection operates at 90 to 110% constant current with auto-recovery. Over-voltage protection shuts down the output at 105 to 135% of rated output voltage and requires re-powering to recover.
Can this charger be used in demanding temperature conditions?
The GC120A48-AD1 has a specified operating temperature range of -30°C to +70°C, subject to the derating curve. That makes it appropriate for a wide range of industrial and commercial environments where ambient temperature can vary significantly. Buyers should still confirm the full operating conditions of their enclosure or end equipment.
What charging features does this model offer?

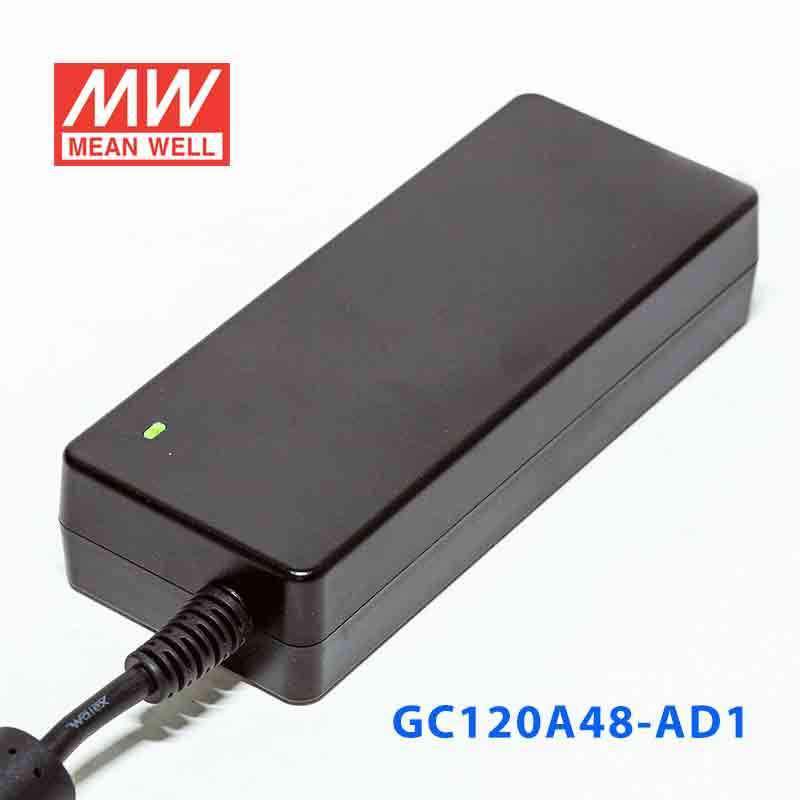

This charger uses a 2-stage charging characteristic and includes a 2-color LED indicator for charging status. It also includes active PFC and is cooled by free air convection. These features support efficient operation in a compact portable charger format.
What output interface and cable details come with the GC120A48-AD1?
The standard DC output plug is a Power DIN 4P lock type (R7B). The output cable length is specified as 120cm using UL2464, 18AWG x 4C cable. This is useful for buyers who need to confirm fitment with existing equipment specifications.
What compliance and warranty information is available for this charger?
The GC120A48-AD1 is listed with UL1012 for GC120Axx-AD1 models and EN60950-1 approval. EMC standards listed include EN55022 Class B, FCC Part 15 Class B, and multiple EN61000 immunity and harmonic standards. Mean Well specifies a 2-year warranty for this model.
