Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

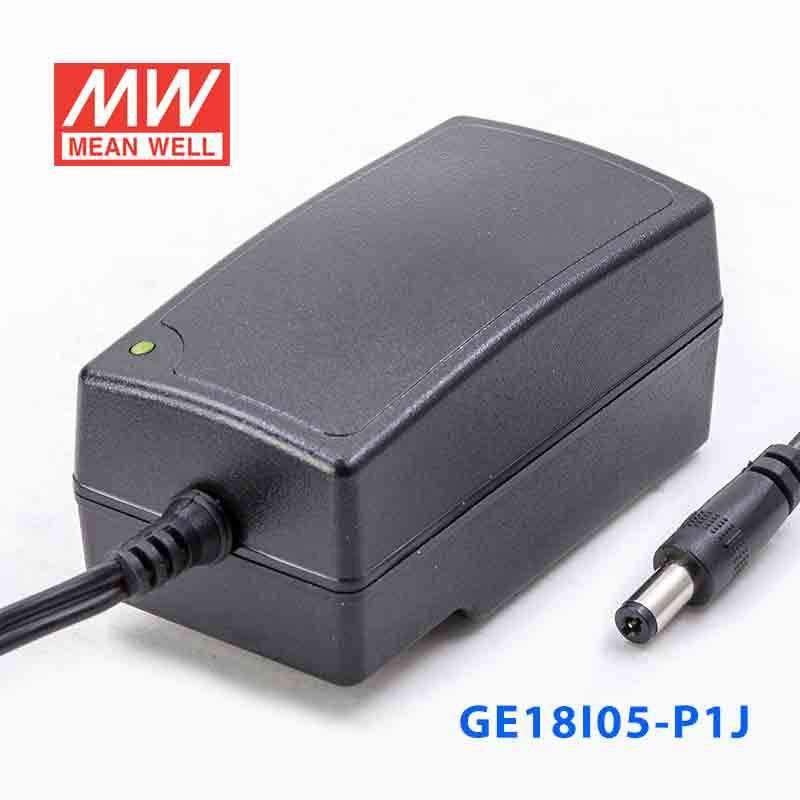

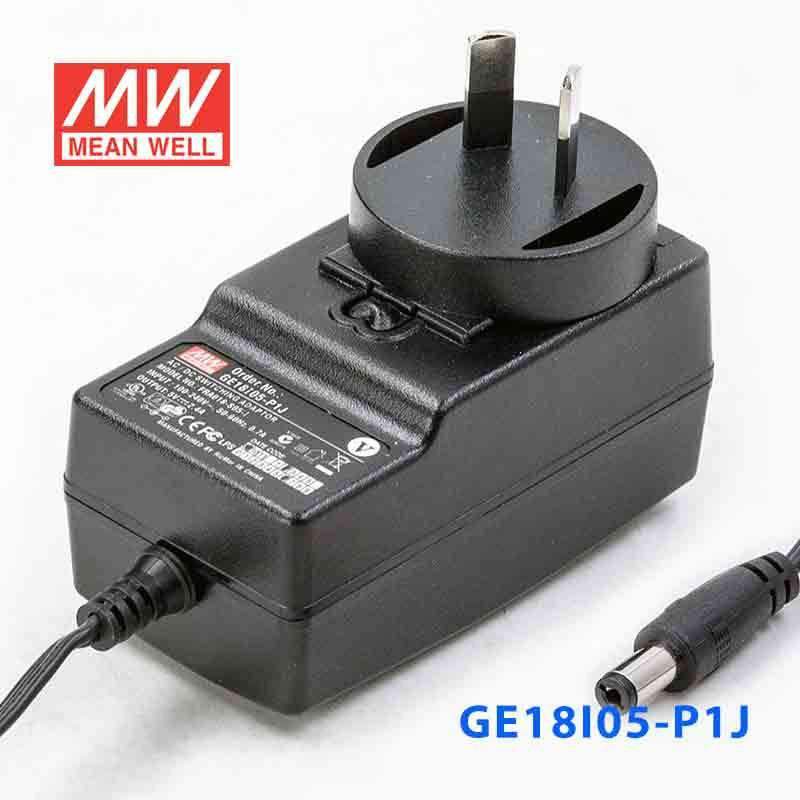

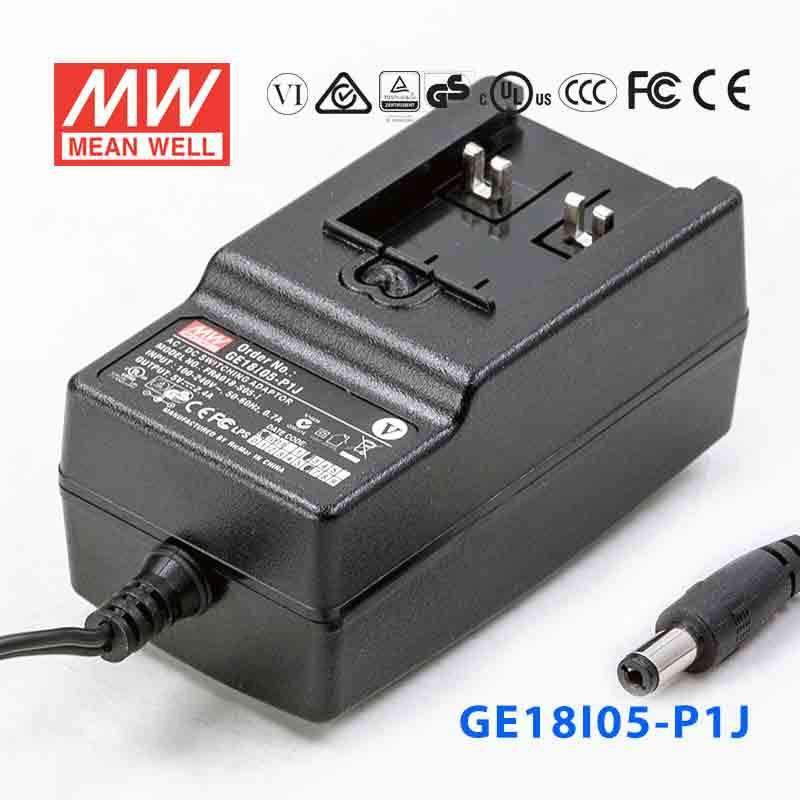

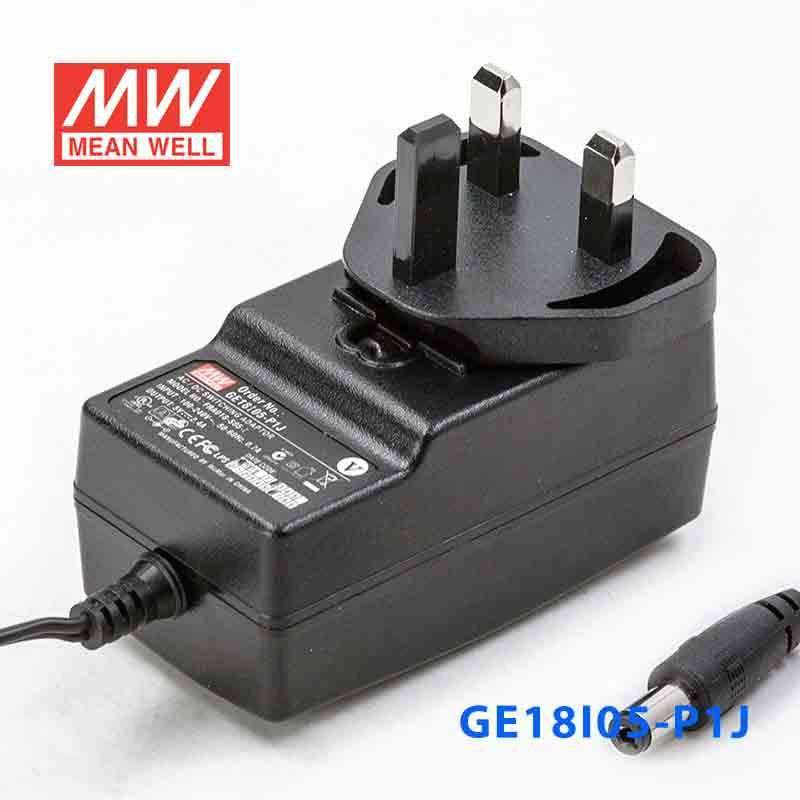

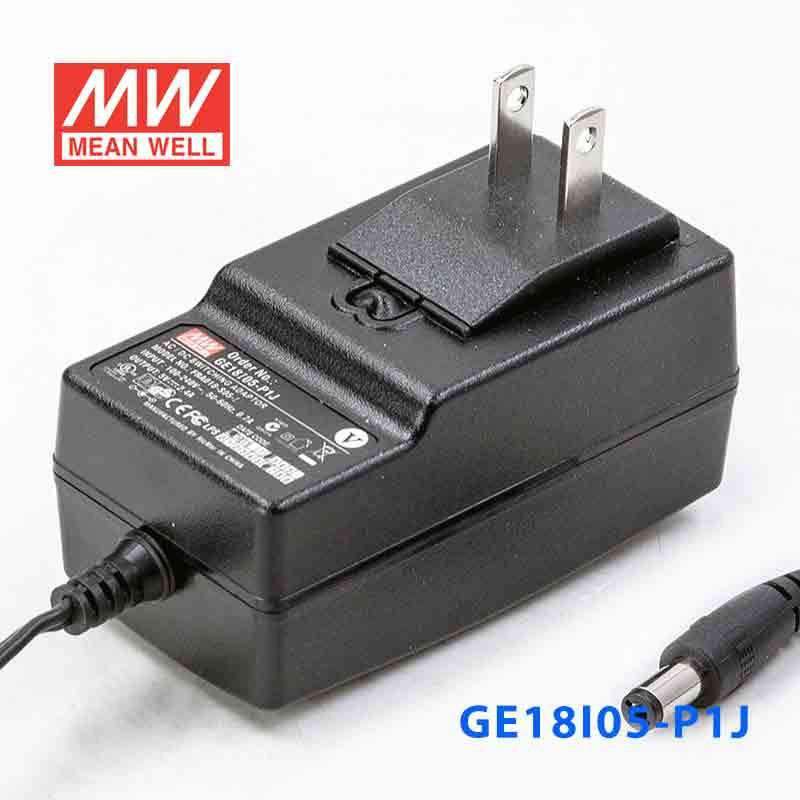

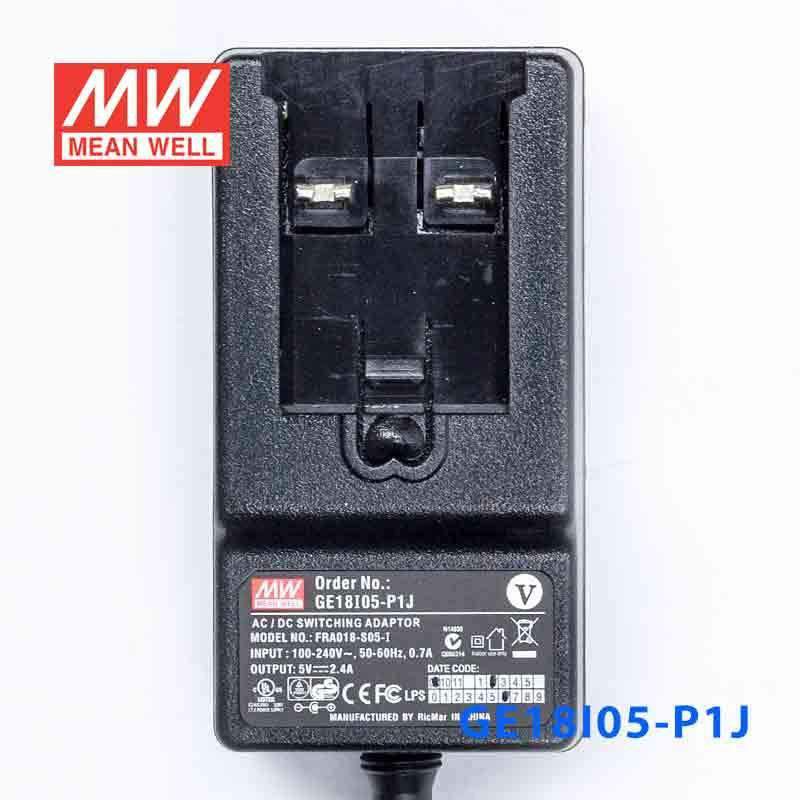

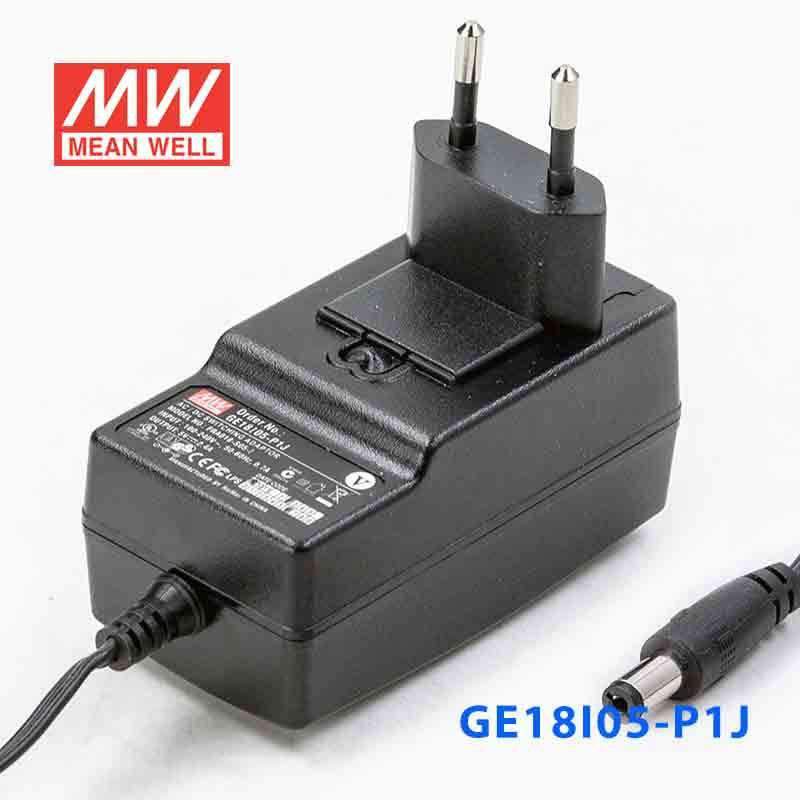

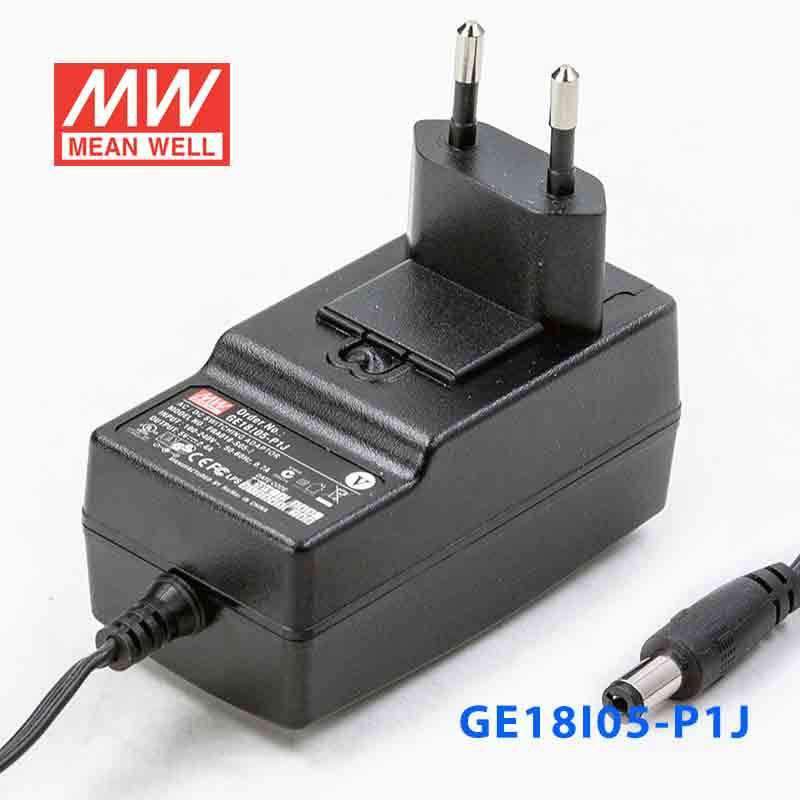

Mean Well GE18I05-P1J Power Supply 12W 5V
$16.17 USD
Unit price /
Unavailable
Description
Description
Features
| Interchangeable AC plugs (plug kit sold seperately) |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.3W |
| ErP step 2 compliant (Level V) |
| Meet EISA 2007 (Energy Independence and Security Act) |
| Class II power (without earth pin) |
| Fully enclosed plastic case |
| LED indicator for power on |
| Pass LPS |
| Approvals: UL / CUL / TUV / CCC / RCM / CB / FCC / CE |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC / 0.7A |
| AC inrush current (max.) | Cold start, 40A at 100VAC; 80A at 230VAC |
| Setup, rise, hold up time | 4000ms, 100ms, 30ms at 230VAC input |
| Overload protection | Hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P:4242VDC, 1 minute |
| Working temperature | -10~+50°C (refer to output derating curve) |
| Safety standards | UL60950-1, CSA22.2, EN60950-1, GB4943, AS/NZS 60950.1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part15 class B, GB9254 |
| Length of output cable | 150cm of AWM2468, 18AWG |
| Dimension (LxWxH) | 70.7x 40x 38.8 mm |
| Standard DC plug | P1J: 2.1ID x 5.5OD x 11L, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGE Series
-
Power Rating12 Watt
-
Output Voltage5 Volt
-
Rated Current2.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length3.19 in
-
Width1.69 in
-
Height1.59 in
-
Weight0.3 lb
