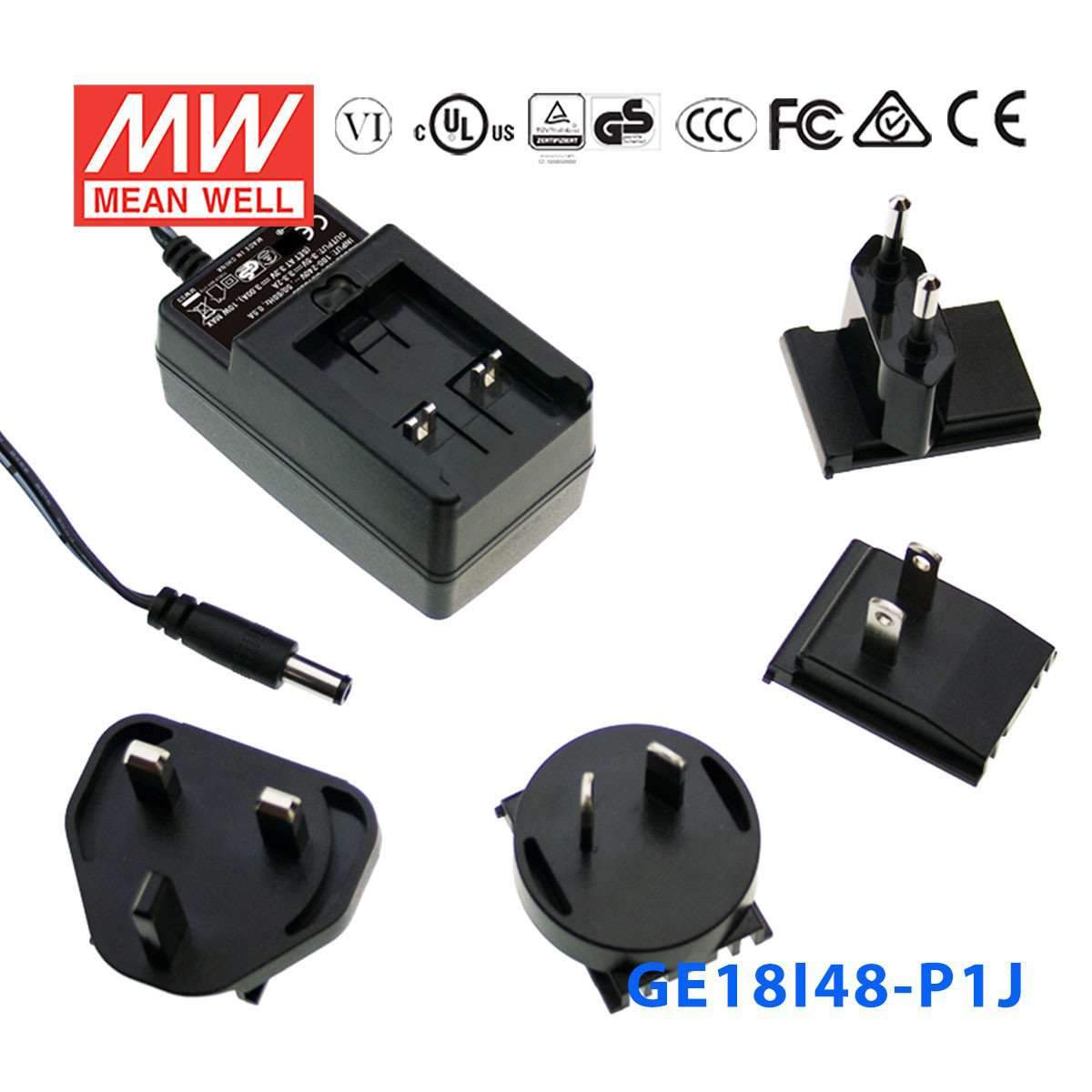

Mean Well GE18I48-P1J Power Supply 18W 48V
The GE18I48 is a 18W Mean Well power converter (input range: 90~264VAC, operating temperature: -10~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Wide operating temperature: -10~+50℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: -20 ~ +85℃, 10 ~ 95% RH ±0.03% / ℃ (0 ~ 30℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, CSA C22.2 NO. 62368-1 , TUV EN62368-1, AS/NZS 60950.1, CCC GB4943, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGE Series
-
Power Rating18 Watt
-
Output Voltage48 Volt
-
Rated Current0.37 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length3.19 in
-
Width1.69 in
-
Height1.59 in
-
Weight0.3 lb
::specification::
Frequently Asked Questions
Can I use the GE18I48-P1J with a 48V telecom, IT, or industrial communication device?
Yes, if the equipment requires constant 48V DC and its load stays within 0.38A. The total output is 18W, which suits lower-power 48V communication and control electronics.
Is this a good fit for a 48V embedded control node or small network appliance?
It can be, provided the device is designed for 48V constant-voltage input and does not exceed 18W. The current limit of 0.38A is the key sizing point for low-power 48V embedded hardware.
Can the GE18I48-P1J power a 48V automation module or low-draw industrial interface?
Yes, for 48V automation electronics that stay at or below 0.38A. This model is meant for constant-voltage applications, so it should match equipment specified for a regulated 48V input.
Can I use this 48V power supply in outdoor cabinets or unprotected areas?
Its operating temperature range is -10°C to +50°C. Since no IP rating is provided in the specs, it should be treated as a supply for protected indoor environments rather than exposed outdoor service.
How does the GE18I48-P1J compare with the other variants in its series?
The listed related variants are GE18I48-P1J-欧套, GE18I48-P1J-混套, GE18I48-P1J-澳套, GE18I48-P1J-美套, and GE18I48-P1J-英套. On this model page, the published output is 18W, 48V, 0.38A constant voltage, so selection should be based on the exact sibling code required.
