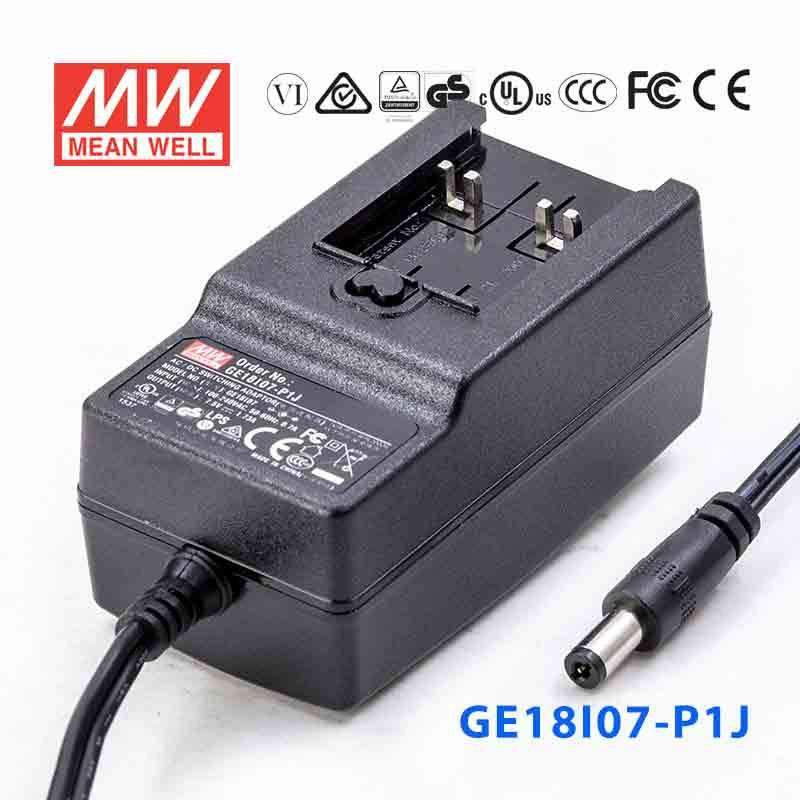

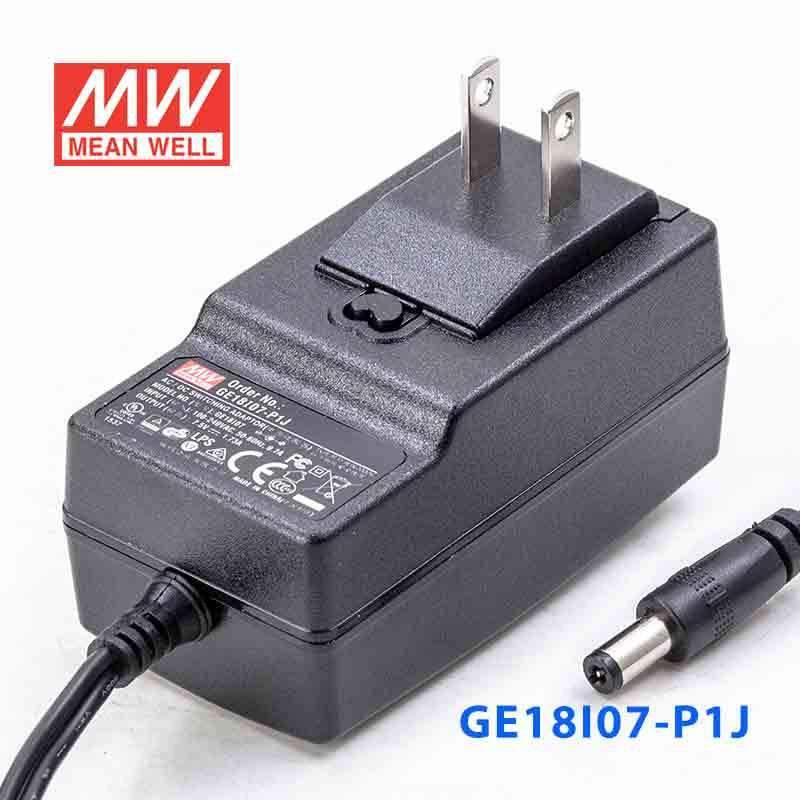

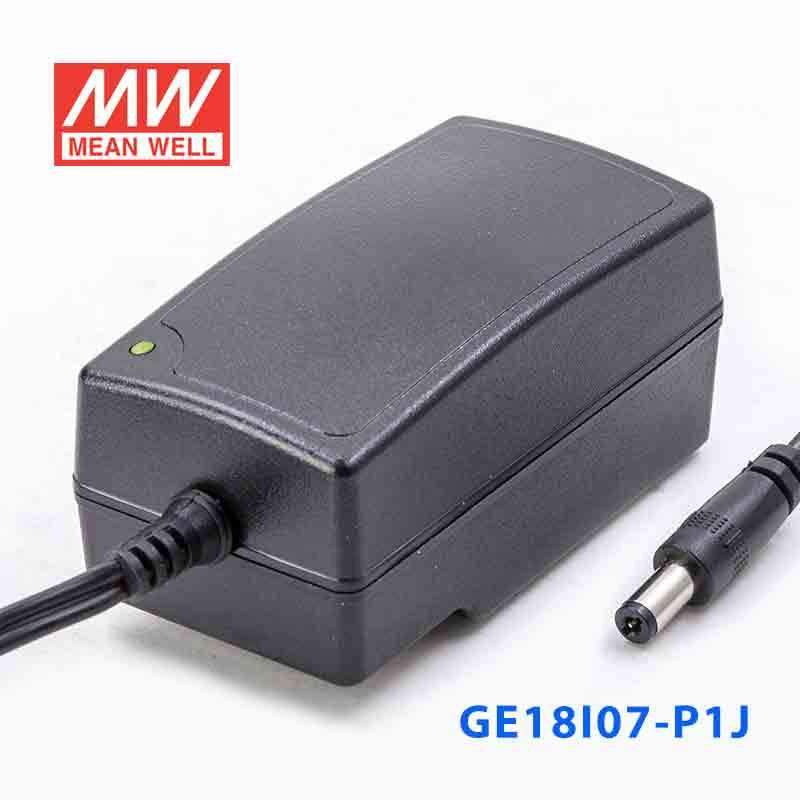

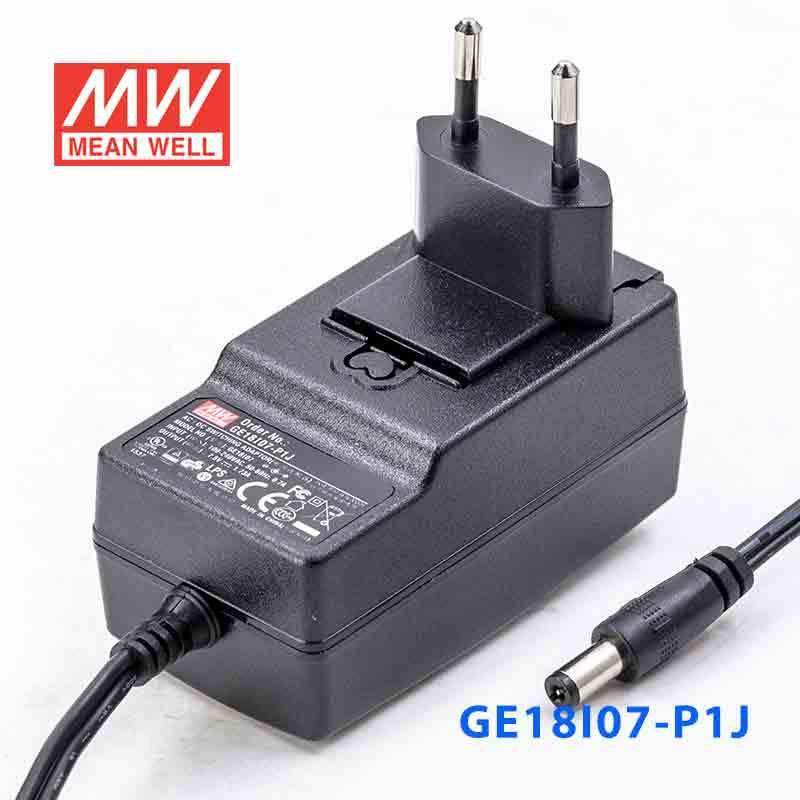

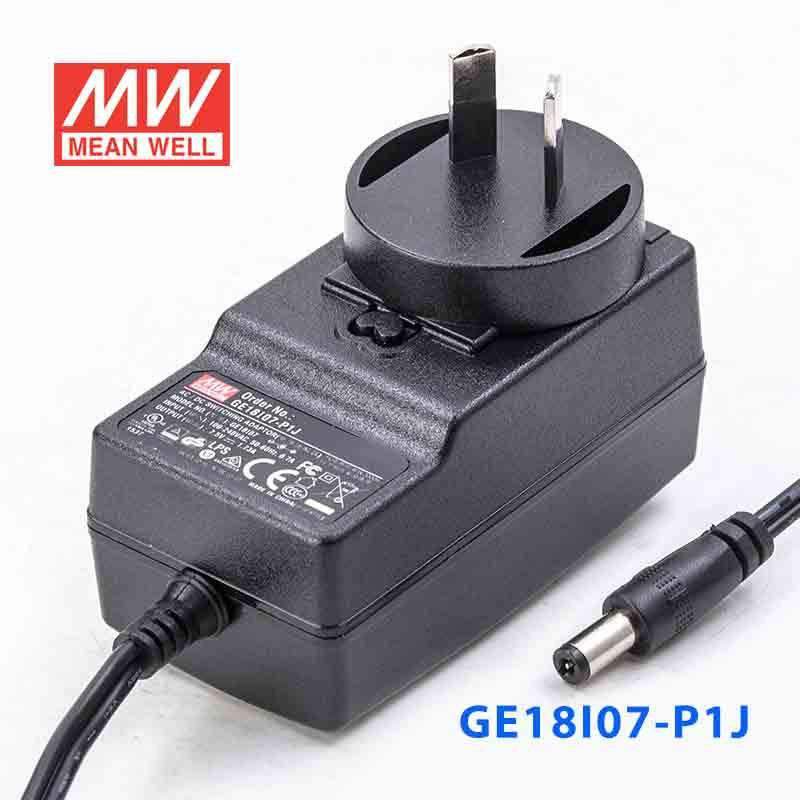

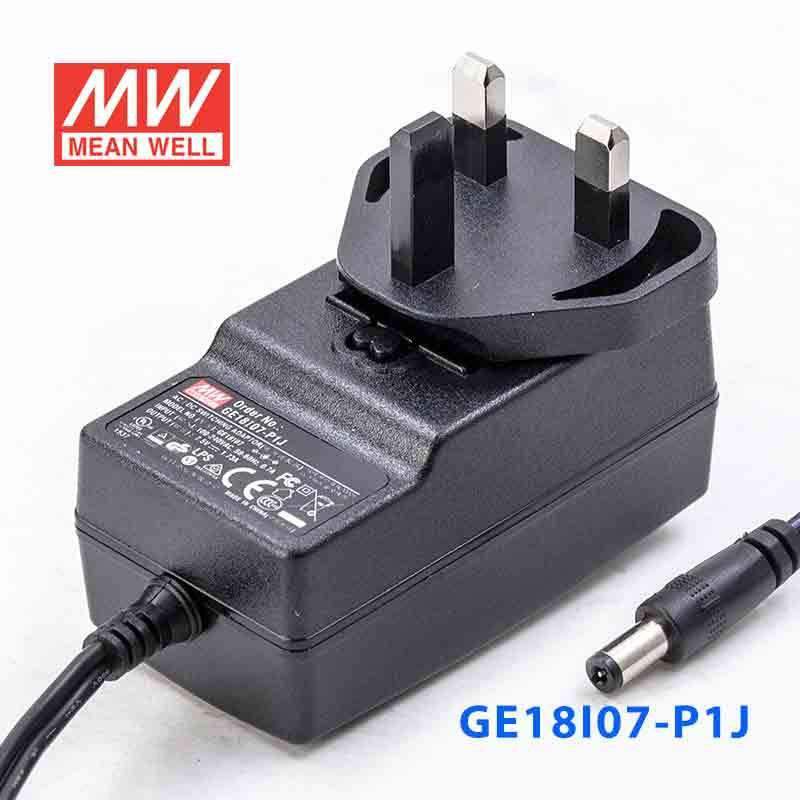

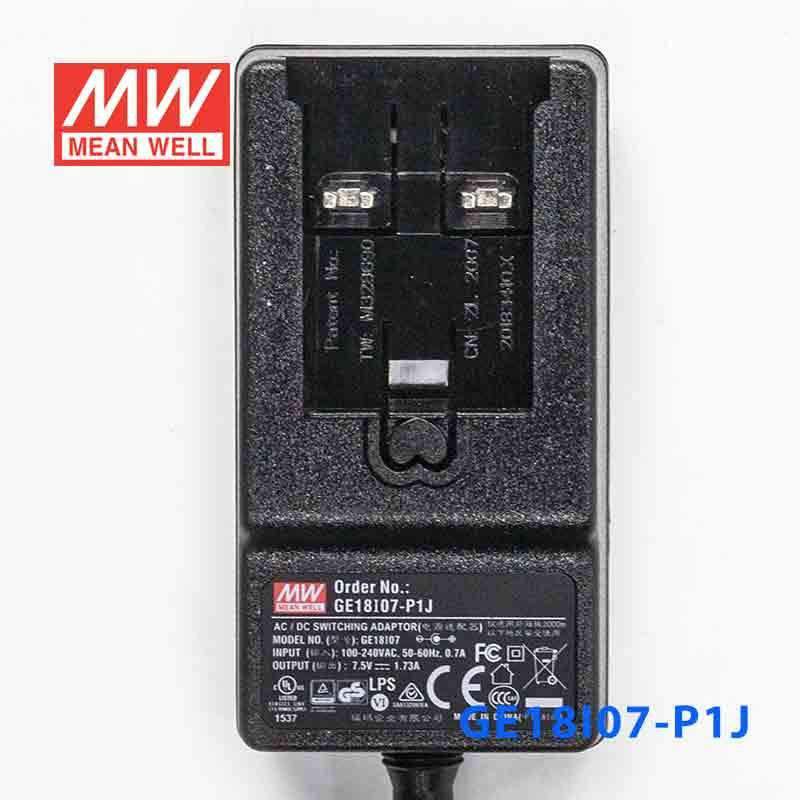

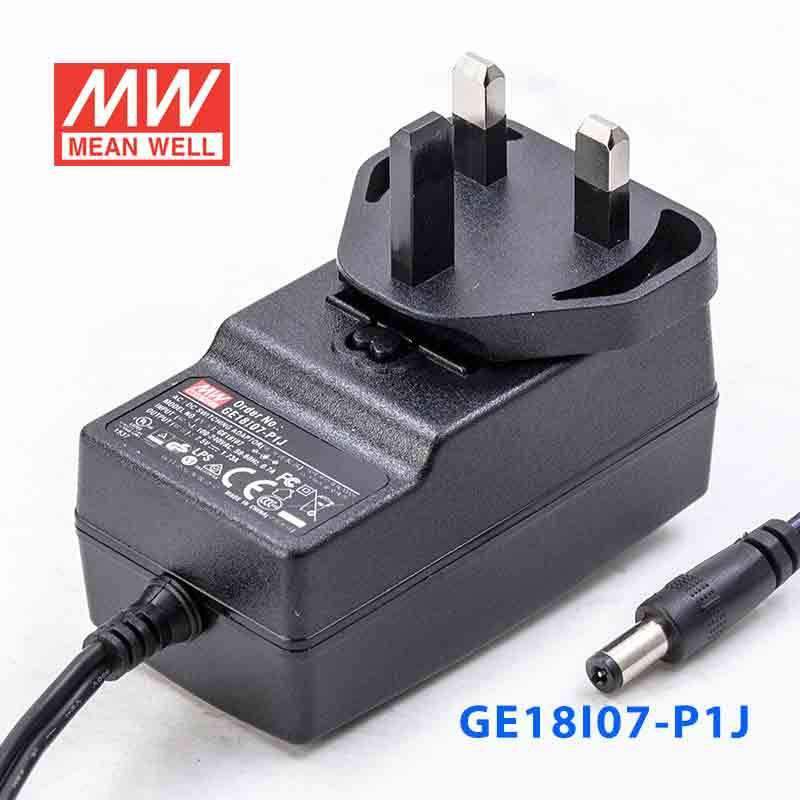

Mean Well GE18I07-P1J Power Supply 13W 7.5V
The GE18I07 is a 18W Mean Well power converter (input range: 90~264VAC, operating temperature: -10~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Wide operating temperature: -10~+50℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: -20 ~ +85℃, 10 ~ 95% RH ±0.03% / ℃ (0 ~ 30℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, CSA C22.2 NO. 62368-1 , TUV EN62368-1, AS/NZS 60950.1, CCC GB4943, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGE Series
-
Power Rating13 Watt
-
Output Voltage7.5 Volt
-
Rated Current1.73 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length3.19 in
-
Width1.69 in
-
Height1.59 in
-
Weight0.3 lb
::specification::
Frequently Asked Questions
Can I use the GE18I07-P1J for a 7.5V embedded controller or evaluation board?
Yes, if the equipment requires a constant 7.5V DC supply and stays within 1.73A and 13W. This model provides constant voltage output, so it fits low-power embedded electronics that match those electrical requirements.
Is this power supply suitable for a small industrial sensor interface or control module?
It can be suitable for a small control or interface device rated for 7.5V constant voltage, up to 1.73A. The 13W output makes it a fit for lower-power industrial or automation electronics rather than larger loads.
Can the GE18I07-P1J power a handheld terminal dock or compact IT peripheral that uses 7.5V?
Yes, provided the peripheral is specified for 7.5V DC input and does not exceed 1.73A or 13W. Buyers should match the device rating to the supply's constant voltage output before use.
Would this work for a small lab instrument or test accessory that needs 7.5V DC?
It may, as long as the instrument is designed for constant 7.5V input and its load remains at or below 1.73A. The universal 90-264VAC input also supports use across a wide AC input range.
Is the GE18I07-P1J intended for indoor or outdoor use?
This product should be treated as an indoor power supply unless the finished equipment provides its own environmental protection. No IP rating is listed in the provided specs, and the operating temperature range is -10°C to +50°C.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other GE18 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GE18I48-P1J Power Supply 18W 48V | 18W | 48V | 0.37A | Indoor | $16.62 | View |
| Mean Well GE18I24-P1J Power Supply 18W 24V | 18W | 24V | 0.75A | Indoor | $18.43 | View |
| Mean Well GE18I18-P1J Power Supply 18W 18V | 18W | 18V | 1A | Indoor | $18.05 | View |
| Mean Well GE18I15-P1J Power Supply 18W 15V | 18W | 15V | 1.2A | Indoor | $16.62 | View |
| Mean Well GE18I12-P1J Power Supply 18W 12V | 18W | 12V | 1.5A | Indoor | $18.43 | View |
| Mean Well GE18I09-P1J Power Supply 18W 9V | 18W | 9V | 2A | Indoor | $16.79 | View |
| Mean Well GE18I05-P1J Power Supply 12W 5V | 12W | 5V | 2.4A | Indoor | $15.62 | View |
