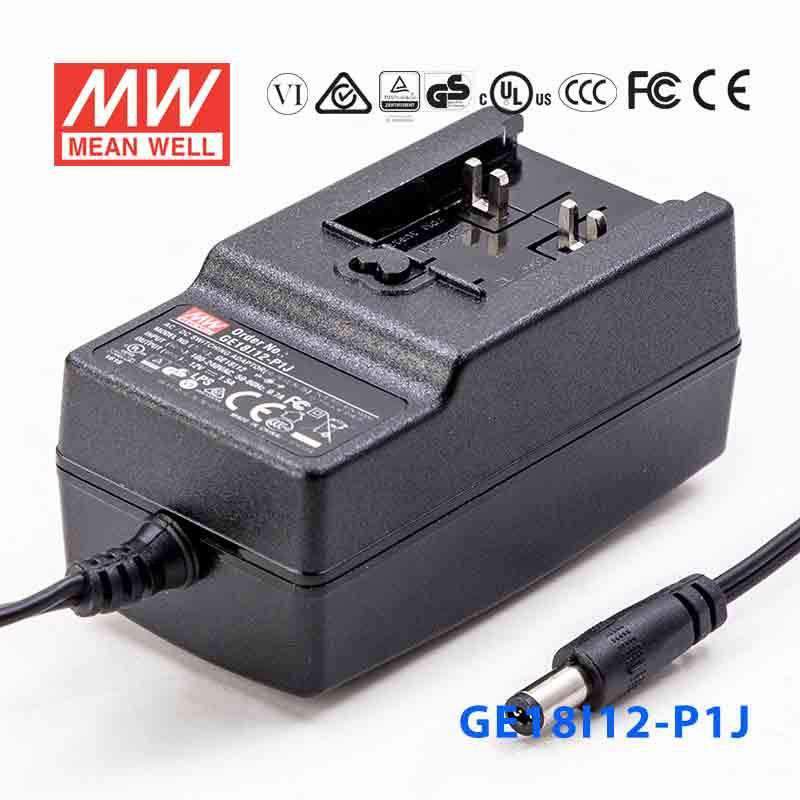

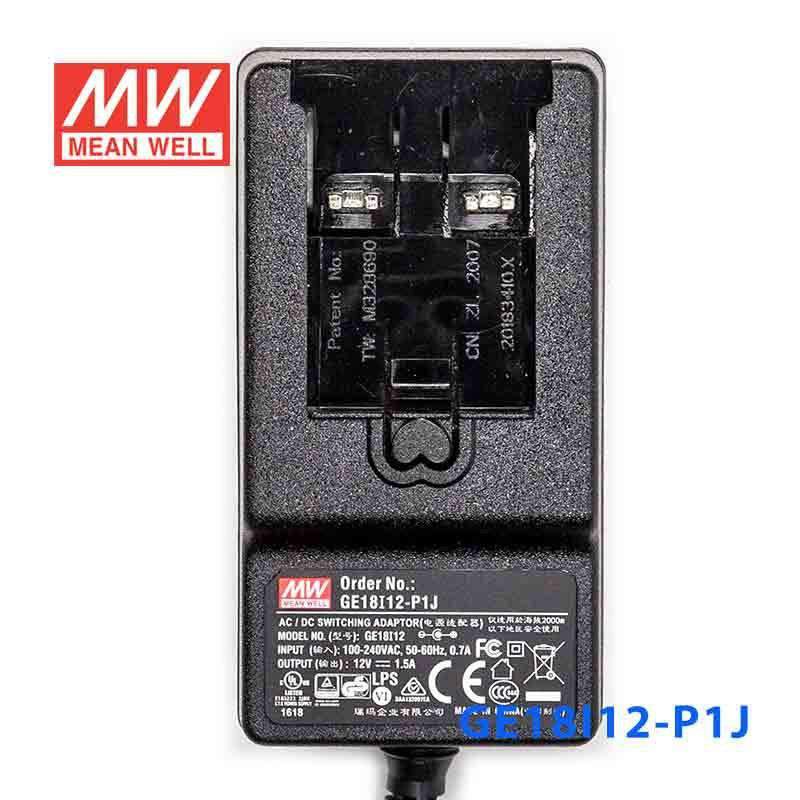

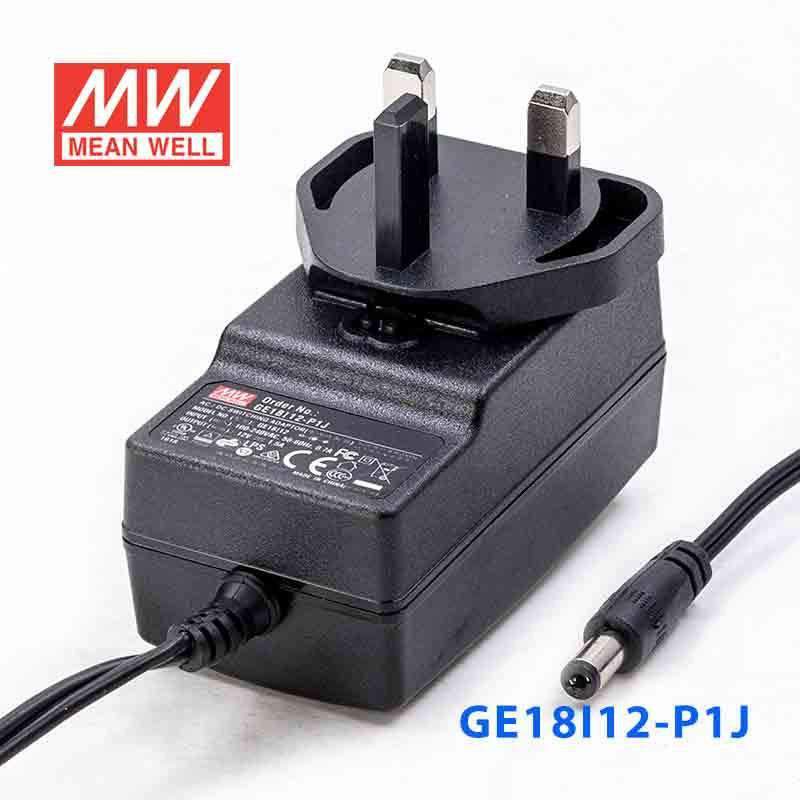

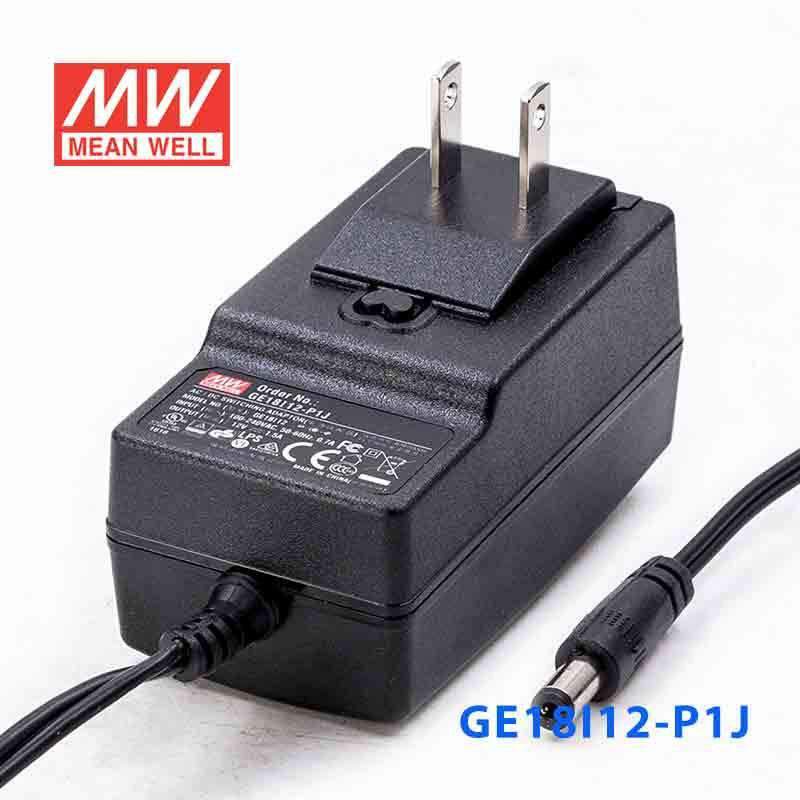

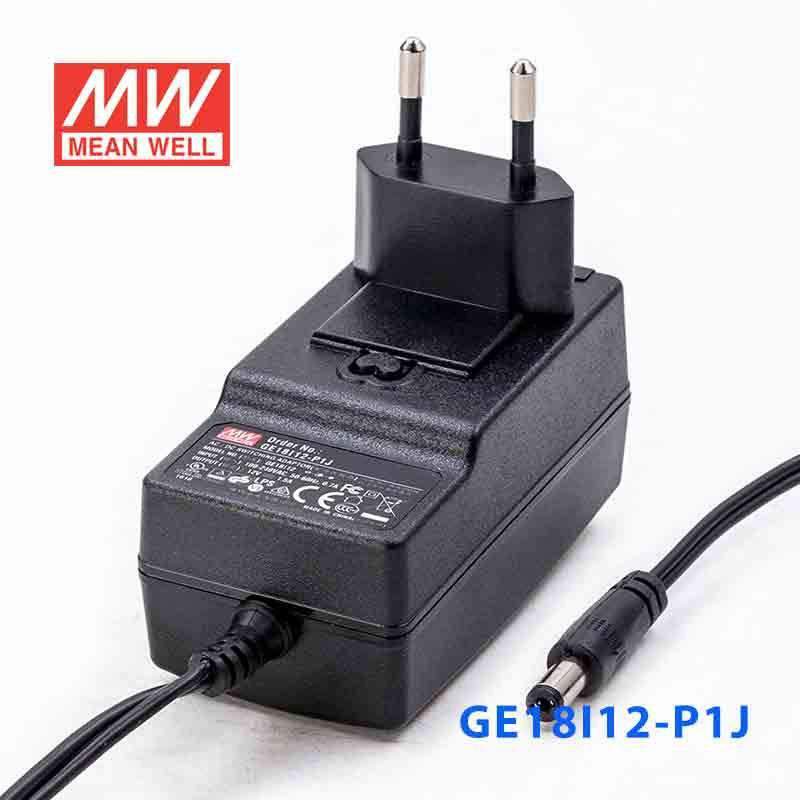

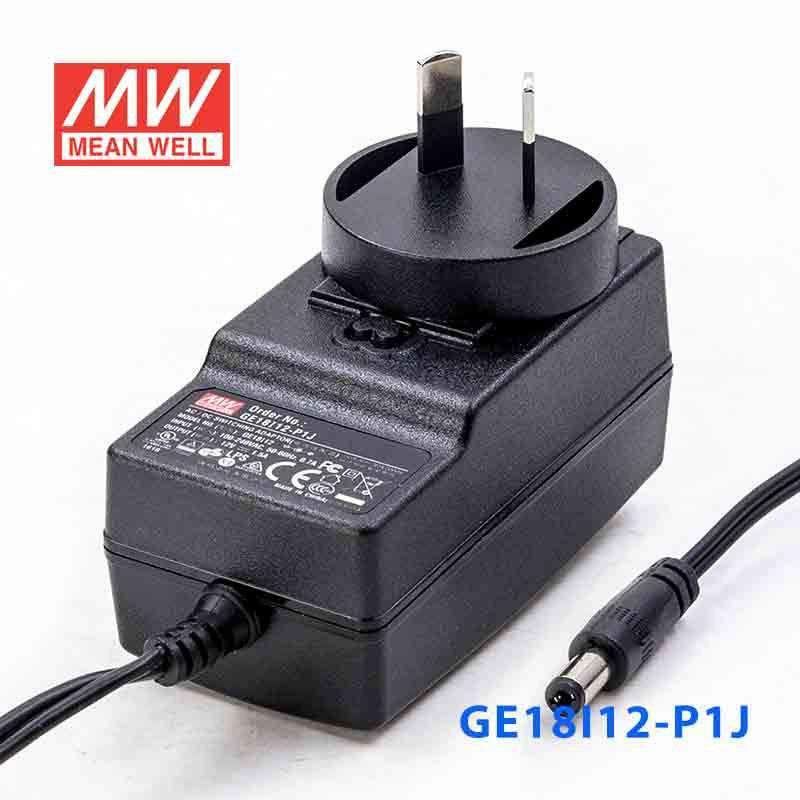

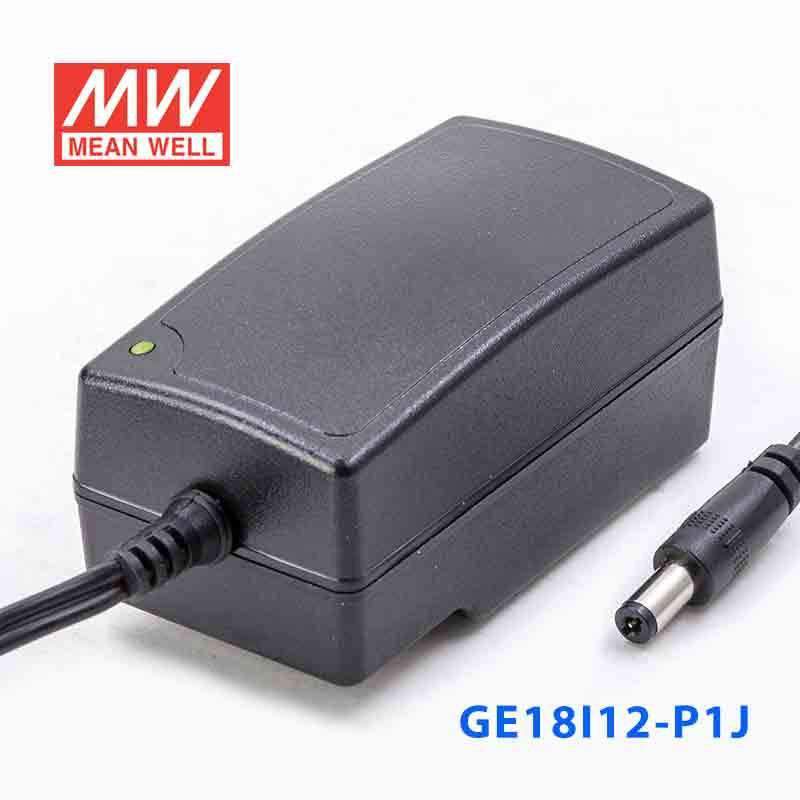

Mean Well GE18I12-P1J Power Supply 18W 12V
The GE18I12 is a 18W Mean Well power converter (input range: 90~264VAC, operating temperature: -10~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Wide operating temperature: -10~+50℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: -20 ~ +85℃, 10 ~ 95% RH ±0.03% / ℃ (0 ~ 30℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, CSA C22.2 NO. 62368-1 , TUV EN62368-1, AS/NZS 60950.1, CCC GB4943, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGE Series
-
Power Rating18 Watt
-
Output Voltage12 Volt
-
Rated Current1.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length3.19 in
-
Width1.69 in
-
Height1.59 in
-
Weight0.3 lb
::specification::
Frequently Asked Questions
Can I use the GE18I12-P1J for a 12V PLC accessory or automation module?
Yes, if the equipment requires a constant 12V DC supply and draws no more than 1.5A or 18W. It is suited to lower-power automation electronics that match those ratings.
Is this a good fit for a 12V embedded computer or industrial interface device?
It can be, as long as the device is specified for 12V constant voltage input and stays within 1.5A. The 18W output is appropriate for compact embedded and control hardware rather than higher-load systems.
Can the GE18I12-P1J power a small 12V HMI, panel device, or control accessory?
Yes, for devices that call for regulated 12V DC and do not exceed 18W total load. Constant voltage output is the key match point for this type of equipment.
Would this work for a 12V bench instrument or monitoring device?
It may, provided the product's DC input requirement is 12V and the current draw remains at or below 1.5A. Its 90-264VAC input range also supports broad AC input compatibility.
Is the GE18I12-P1J meant for indoor use only?
Based on the provided specs, it should be considered an indoor unit unless additional protection is provided by the finished system. The operating range is -10°C to +50°C, and no IP rating is listed.
