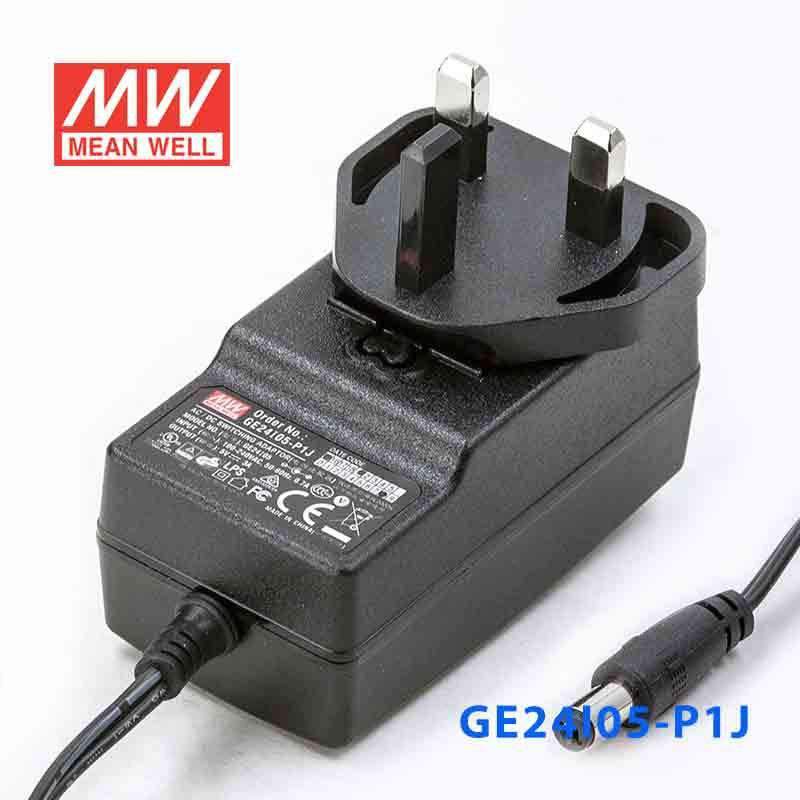

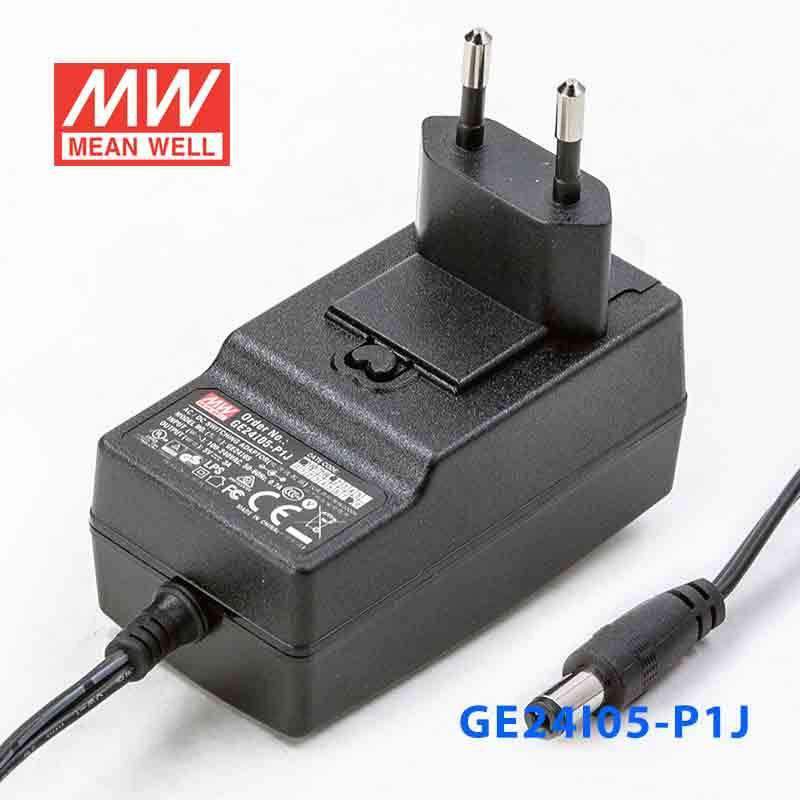

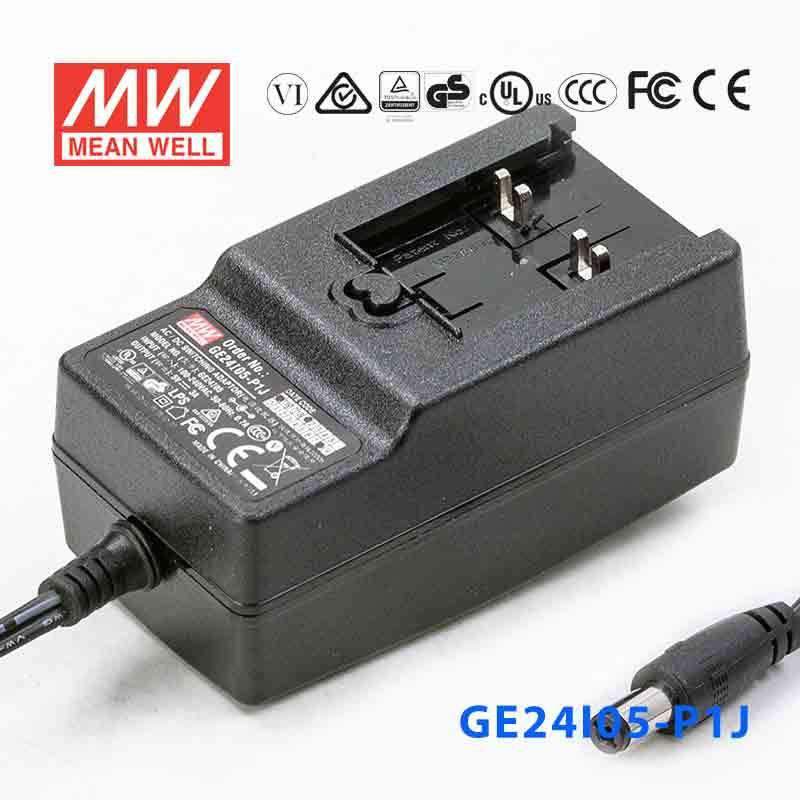

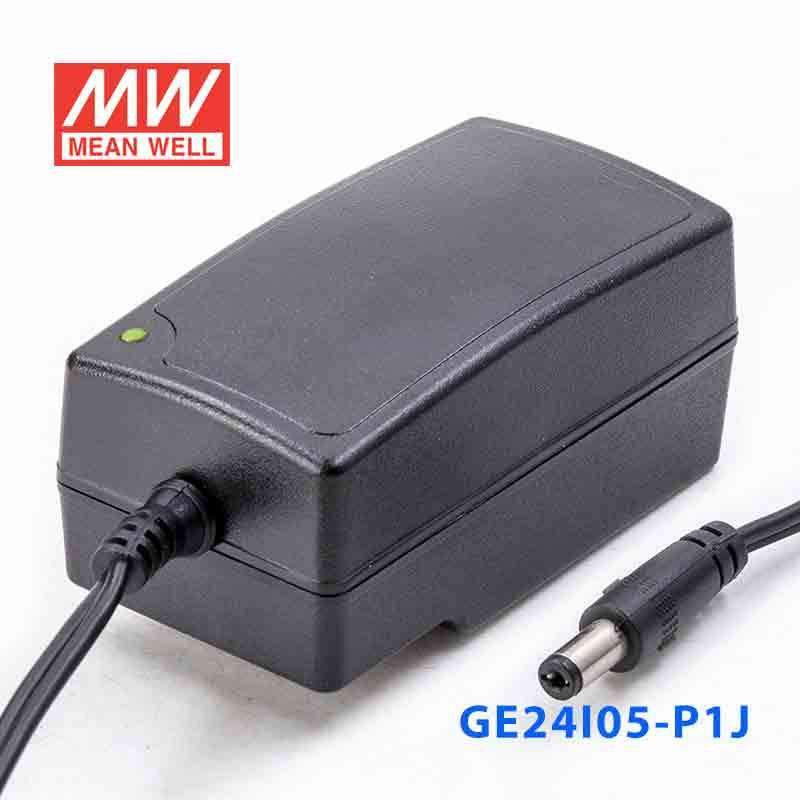

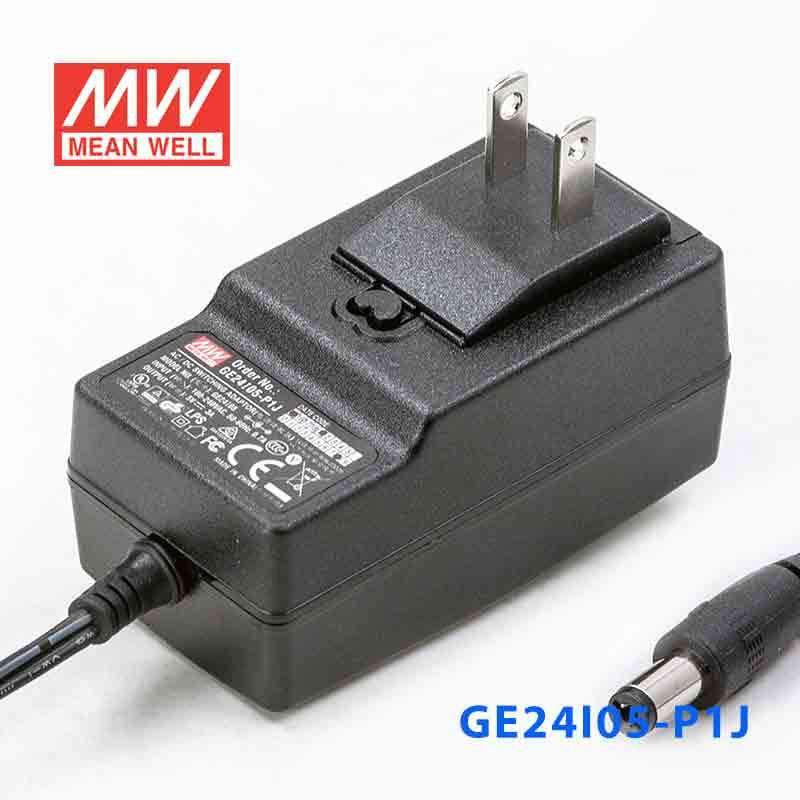

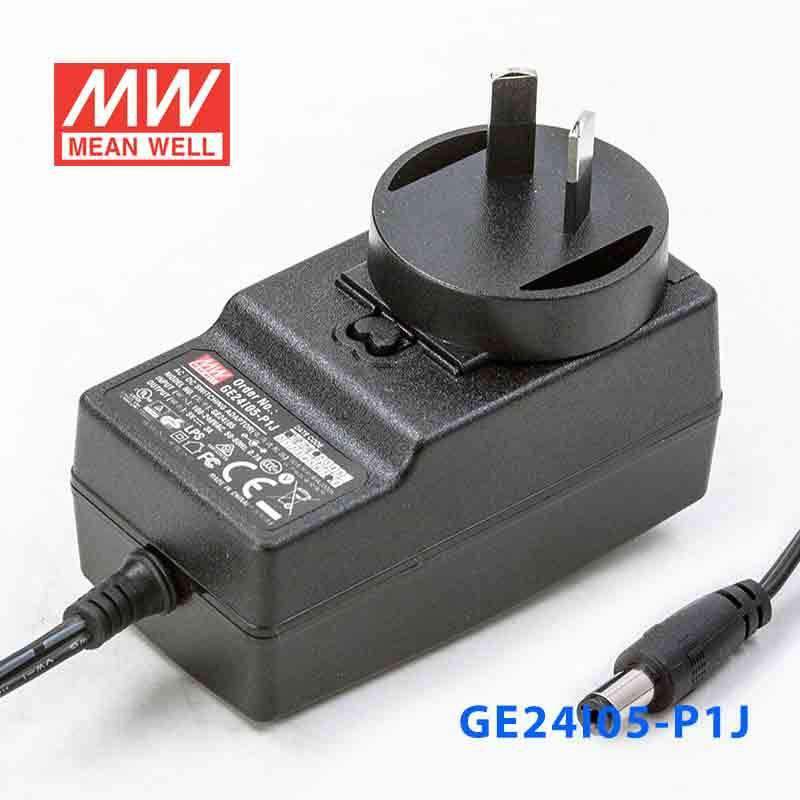

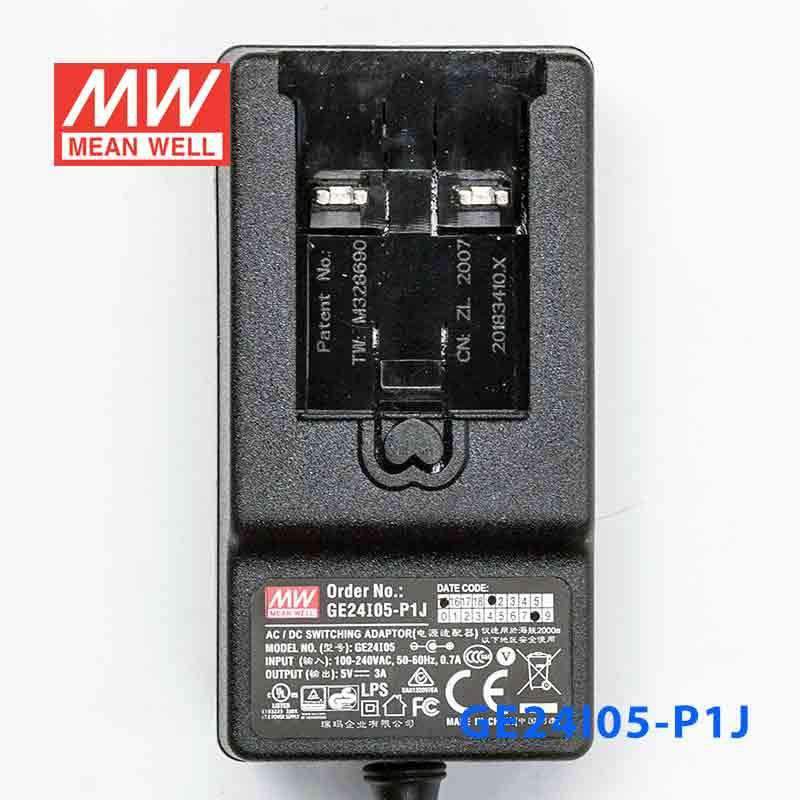

Mean Well GE24I05-P1J Power Supply 15W 5V
The GE24I05 is a 24W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGE Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length3.19 in
-
Width1.69 in
-
Height1.59 in
-
Weight0.3 lb
::specification::
Frequently Asked Questions
Can I use the GE24I05-P1J for a 5V single-board computer, embedded controller, or USB-class device?
Yes, if the equipment needs constant 5V DC and draws no more than 3A. With a 15W output rating, it fits many low-power embedded and IT devices that run from a regulated 5V source.
Is this 5V power supply suitable for industrial sensors, gateways, or logic devices that run on 5V?
It is suitable for 5V electronics as long as the total load stays within 15W and 3A. That makes it appropriate for lower-power industrial or automation devices designed around a constant 5V rail.
Can the GE24I05-P1J power a compact HMI, microcontroller platform, or test instrument that requires 5V DC?
It can, provided the device is specified for constant 5V input and does not exceed 3A. The supply is sized for light 5V control and embedded equipment rather than higher-current 5V systems.
Is the GE24I05-P1J meant for indoor or outdoor use?
The specified operating range is -10°C to +50°C. No IP rating is shown in the provided data, so it is best treated as an indoor supply for protected environments instead of exposed outdoor conditions.
What are the related versions of the GE24I05-P1J in the same series?
The listed sibling variants are GE24I05-P1J-OB, GE24I05-P1J-欧套, GE24I05-P1J-混套, GE24I05-P1J-澳套, GE24I05-P1J-美套, and GE24I05-P1J-英套. For this model page, the stated electrical rating is 15W, 5V, 3A constant voltage, so confirm the exact suffix when comparing versions.
