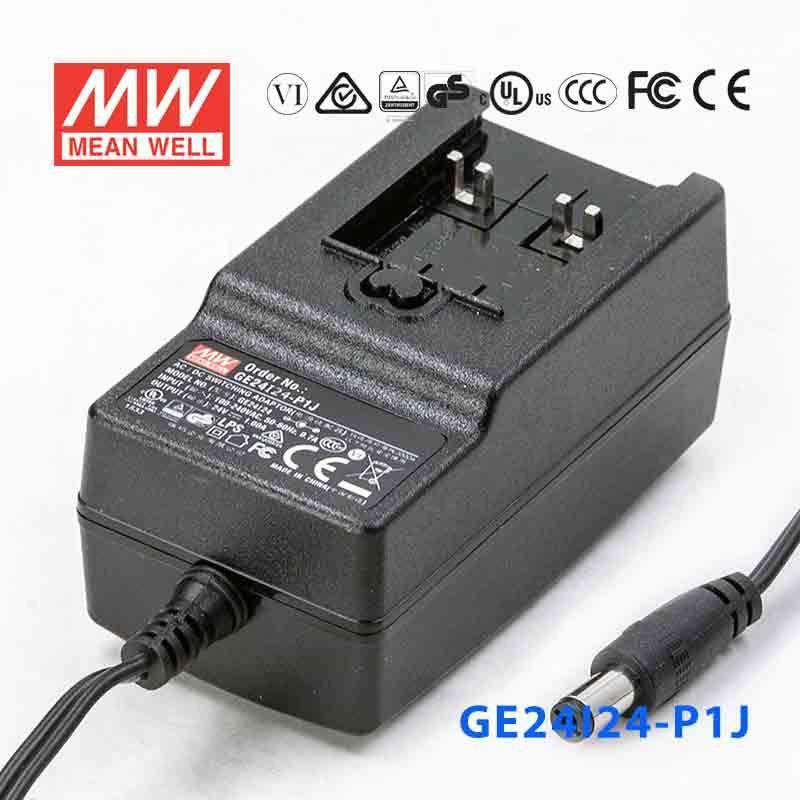

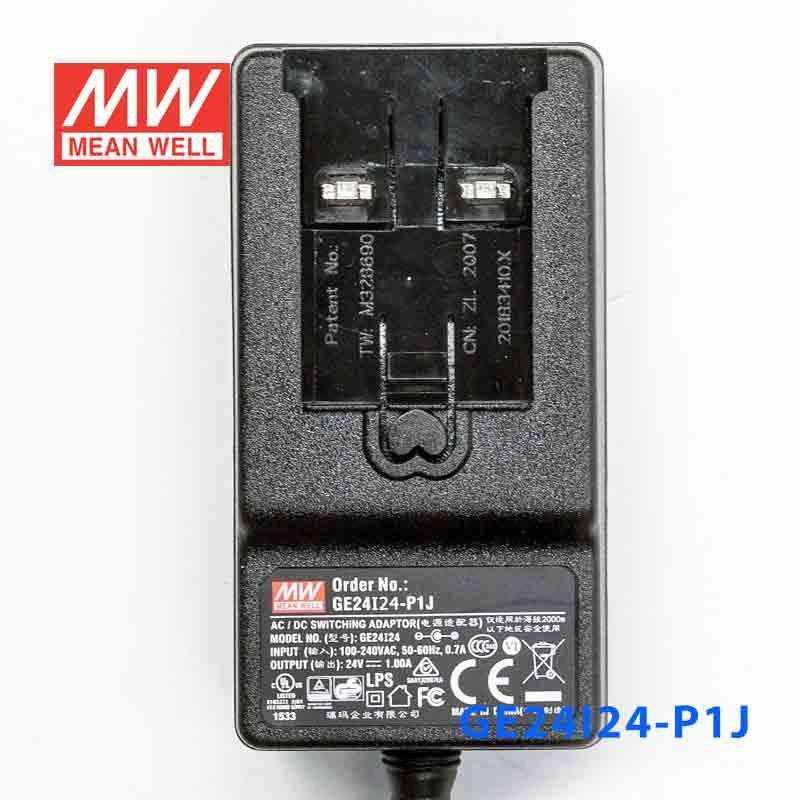

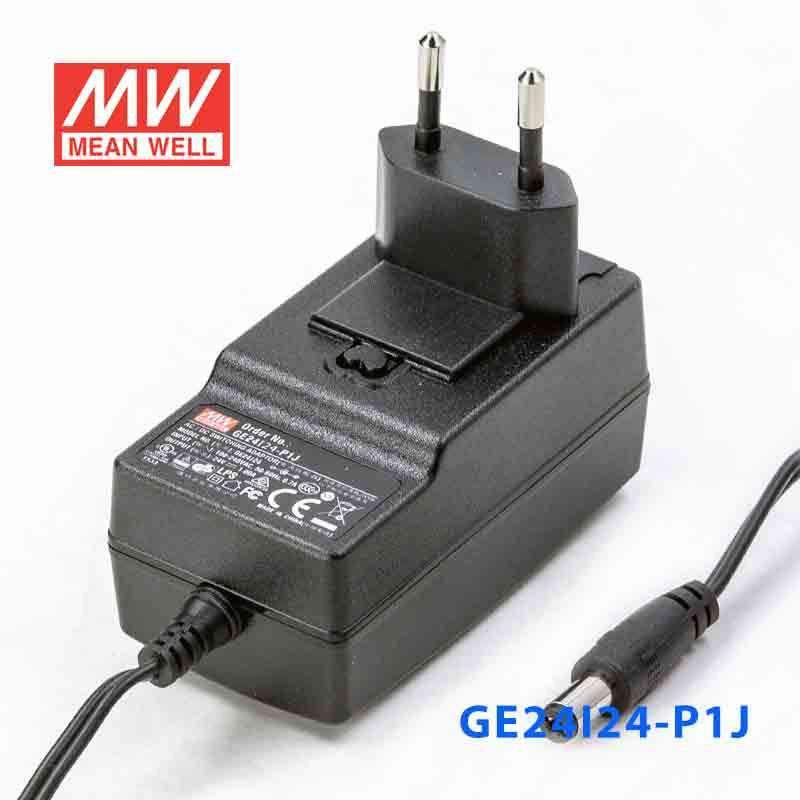

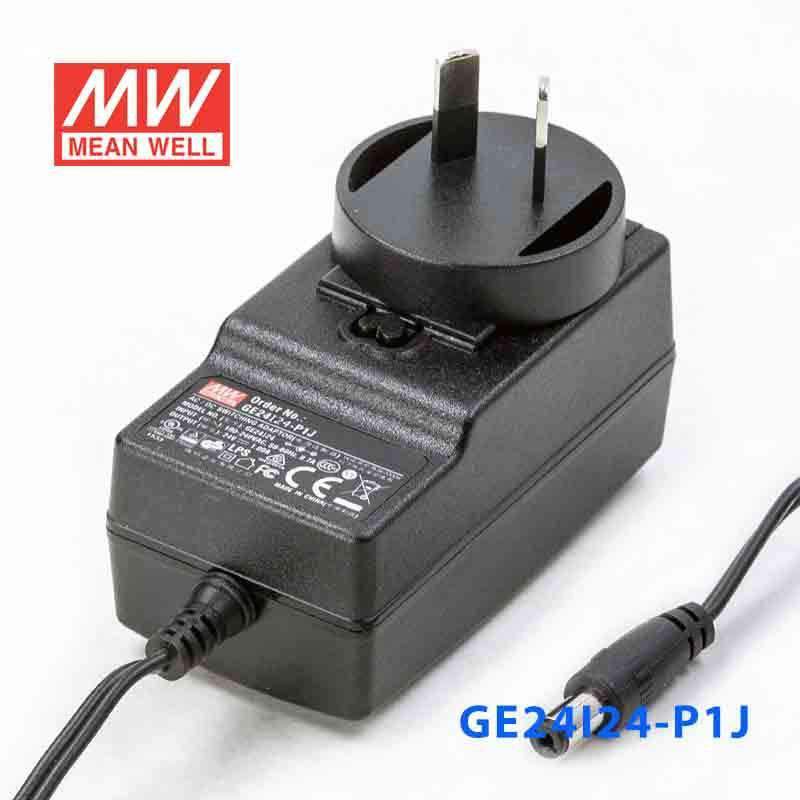

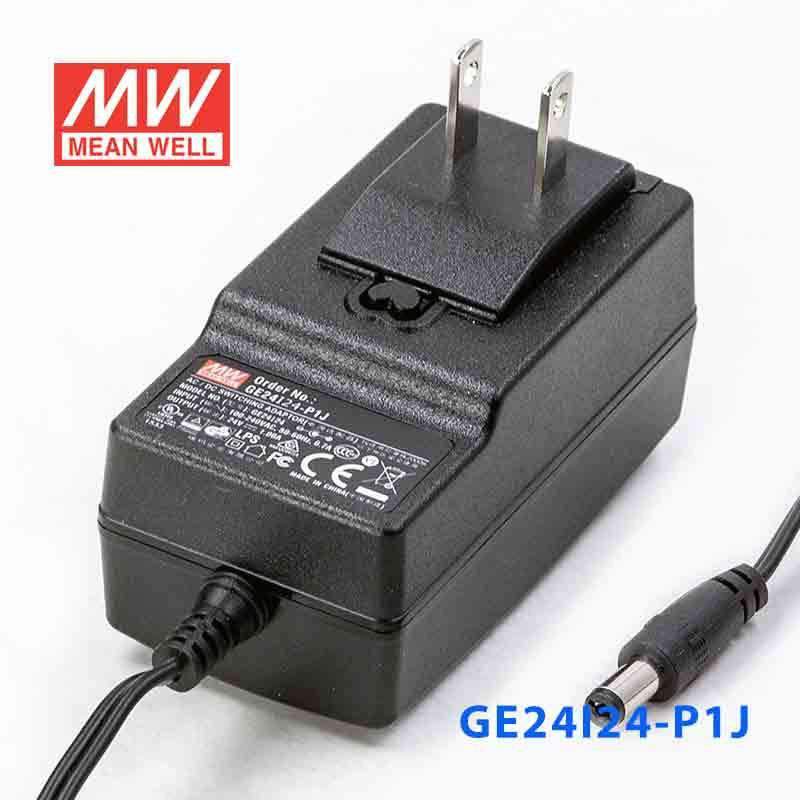

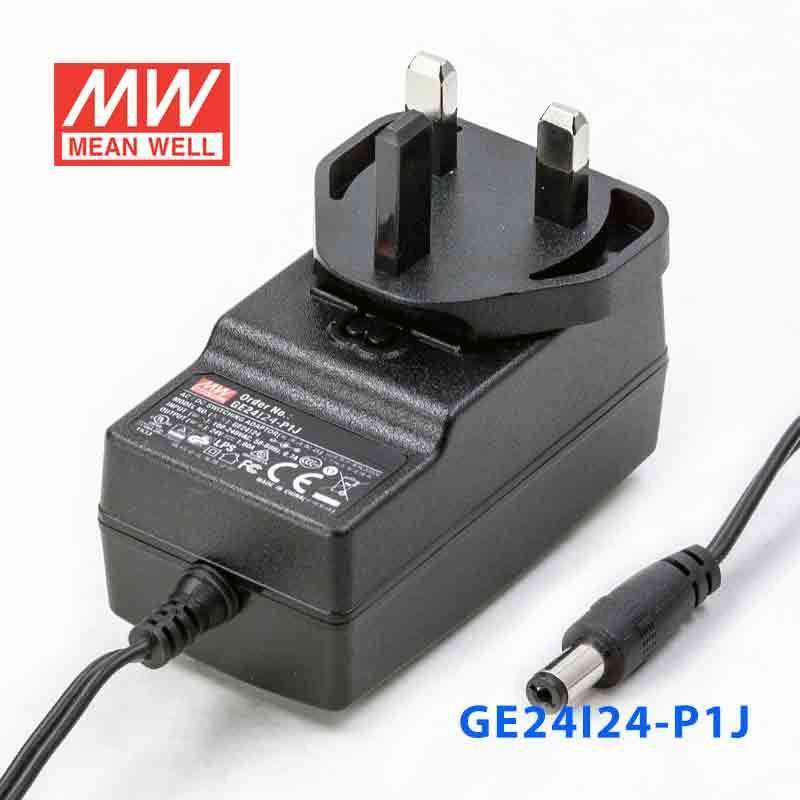

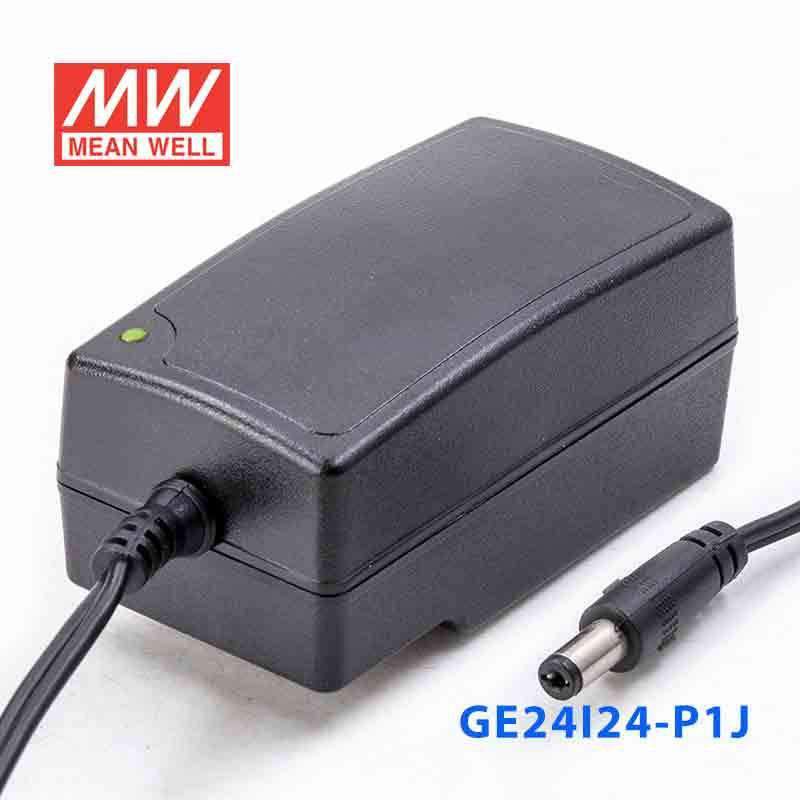

Mean Well GE24I24-P1J Power Supply 24W 24V
The GE24I24 is a 24W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGE Series
-
Power Rating24 Watt
-
Output Voltage24 Volt
-
Rated Current1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length3.19 in
-
Width1.69 in
-
Height1.59 in
-
Weight0.3 lb
::specification::
Frequently Asked Questions
Can I use the GE24I24-P1J for a small 24V PLC accessory or industrial I/O module?
Yes, this unit provides 24V constant-voltage output at up to 24W and 1A, which is a common fit for smaller 24V industrial electronics. It is intended for low-power 24V loads, not for higher-current 24V devices.
Is this power supply suitable for a compact 24V automation sensor or relay assembly?
It can be suitable if the assembly requires 24V DC input and its total draw stays within 1A and 24W. The constant-voltage output is appropriate for electronics designed around a fixed 24V supply.
Can the GE24I24-P1J power a 24V industrial communication or gateway device?
Yes, provided the gateway or communication device is specified for 24V DC and does not exceed the 1A output limit. With 24W total output capacity, it is aimed at compact 24V equipment.
Will this work for any 24V device, or do I need to check current draw?
You need to check both voltage and load. The device must require 24V constant-voltage input and must stay within 24W total power and 1A output current.
Can I use this 24V power supply outdoors?
No outdoor suitability is stated in the provided specs, and no IP rating is listed. The product should be treated as intended for protected indoor use, with an operating temperature range of -10°C to +50°C.
