Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

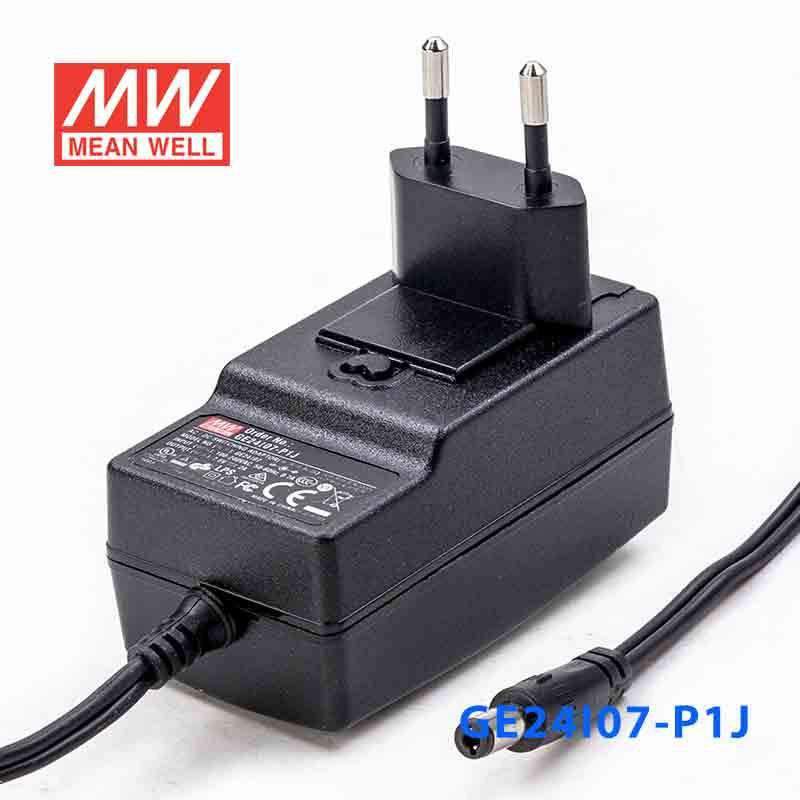

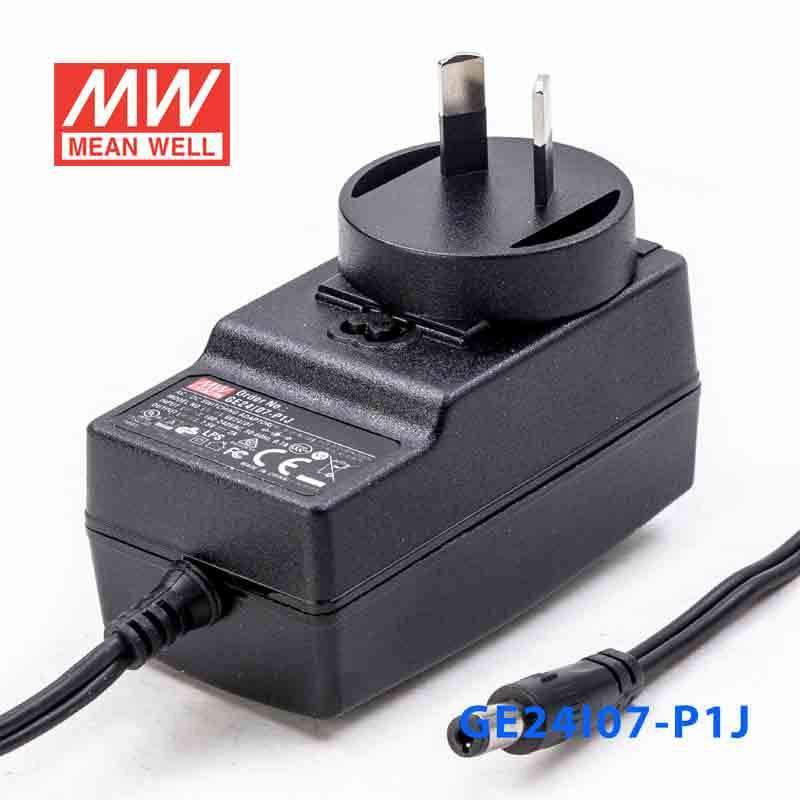

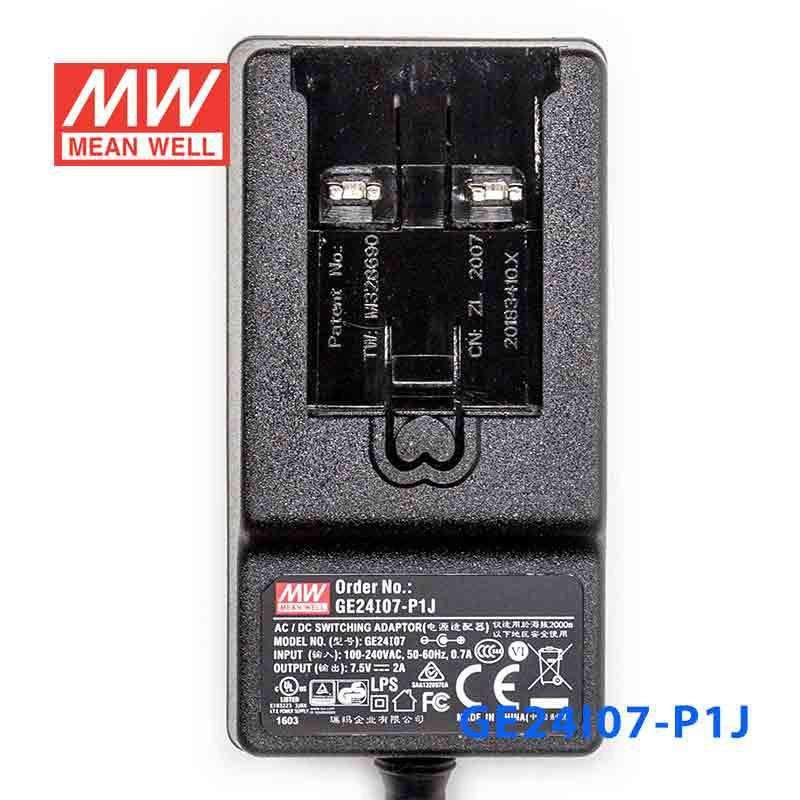

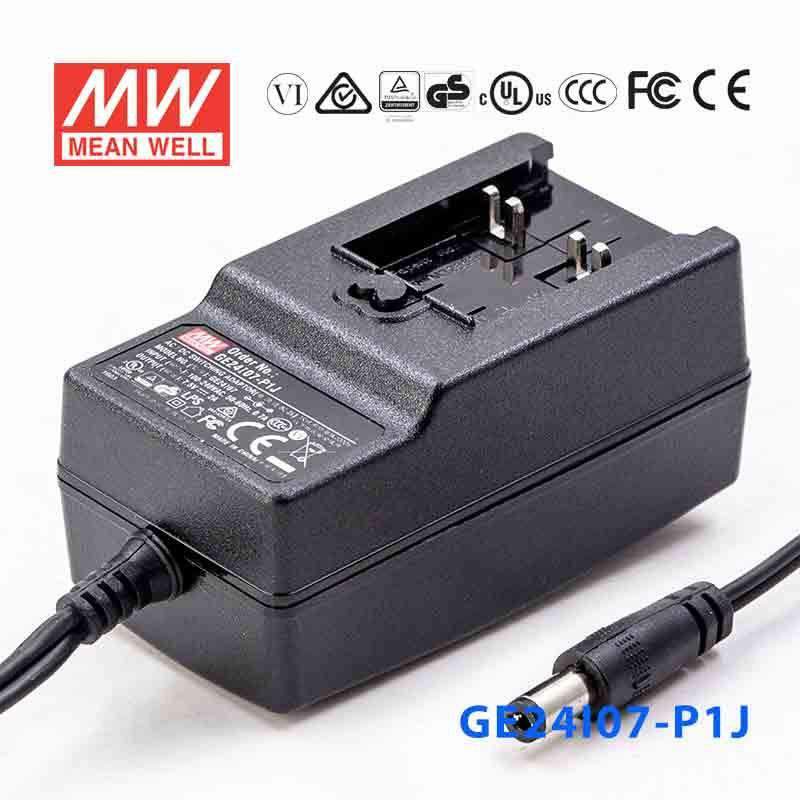

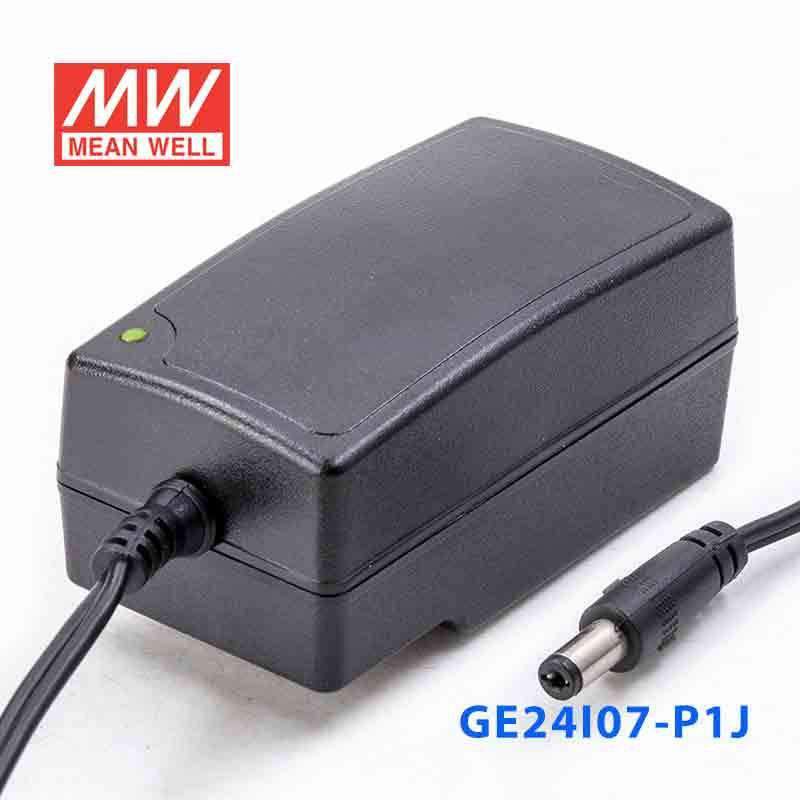

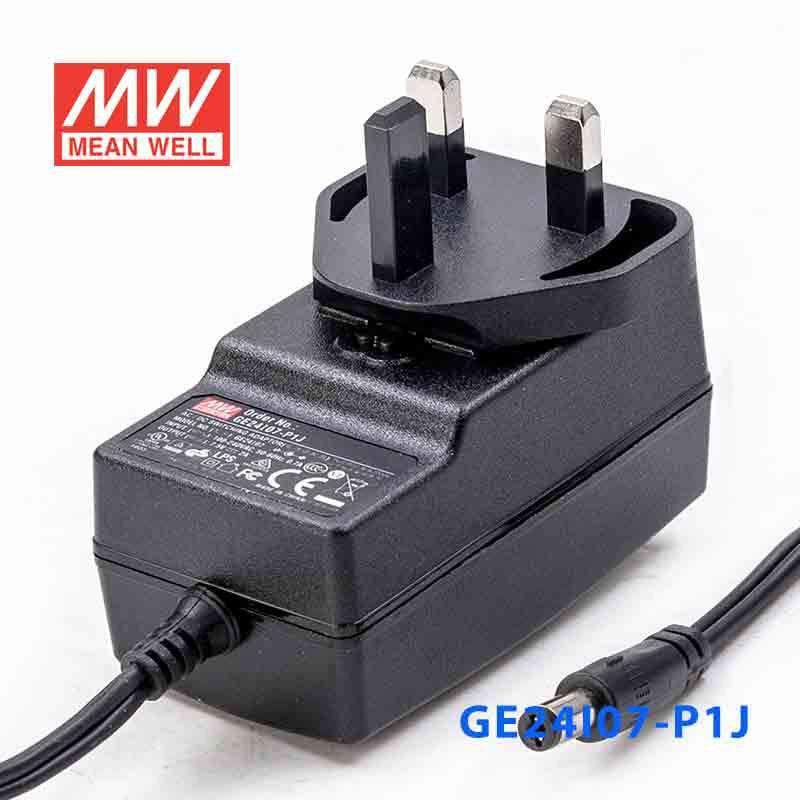

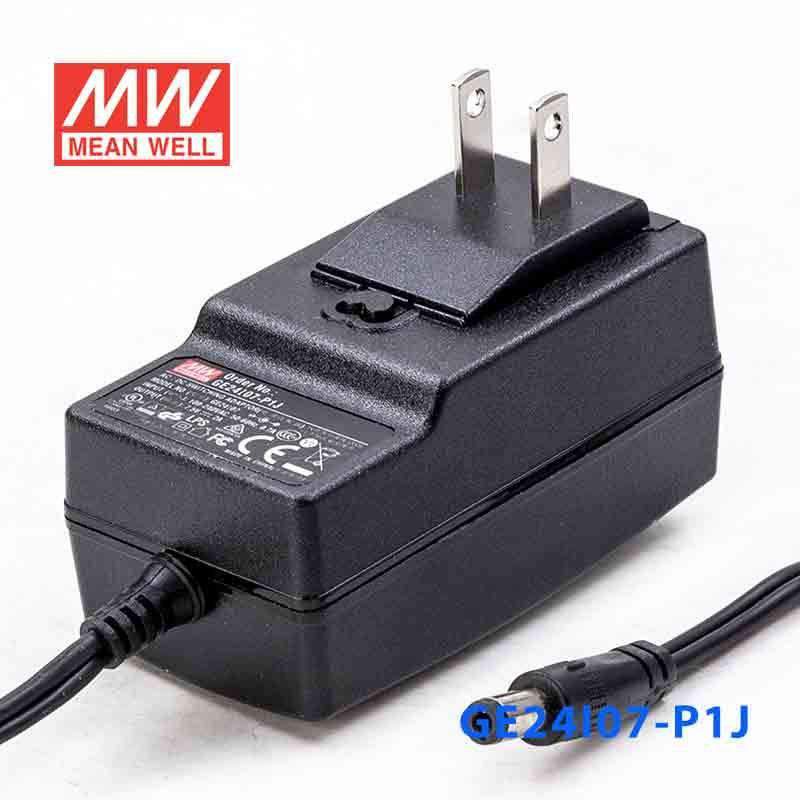

Mean Well GE24I07-P1J Power Supply 15W 7.5V

Q: Can I use the GE24I07-P1J for a 7.5V embedded device or legacy control product?

Yes, if the equipment requires constant 7.5V DC and the load does not exceed 2A. Its 15W rating makes it suitable for lower-power 7.5V electronics in embedded or control applications.

Q: Is this a fit for a 7.5V industrial handheld, test instrument, or small automation interface?

It can be used for those types of devices when they are specified for 7.5V constant-voltage input and stay within 15W. The maximum output current is 2A, which is the key limit to check against the load.

Q: Can the GE24I07-P1J power a compact 7.5V controller, decoder, or communication accessory?

Yes, for low-power 7.5V equipment that draws up to 2A. Because this is a constant-voltage model, it should be matched only with hardware designed for a regulated 7.5V supply.

Q: Is this 7.5V adapter appropriate for outdoor or dusty environments?

The operating temperature is rated at -10°C to +50°C. Since no IP rating is provided in the supplied specs, the conservative interpretation is indoor use in sheltered conditions rather than direct outdoor exposure.

Q: How does the GE24I07-P1J differ from the other versions listed in the series?

The related variants shown are GE24I07-P1J-欧套, GE24I07-P1J-混套, GE24I07-P1J-澳套, GE24I07-P1J-美套, and GE24I07-P1J-英套. On this page, the published output specification is 15W, 7.5V, 2A constant voltage, so check the exact sibling code when choosing among versions.

SKU:

GE24I07-P1J

$17.15 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Interchangeable AC plugs (plug kit sold seperately)

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.3W

ErP step 2 compliant (Level V)

Meet EISA 2007 (Energy Independence and Security Act)

Class II power (without earth pin)

Fully enclosed plastic case

LED indicator for power on

Pass LPS

Approvals: UL / CUL / TUV / CCC / RCM / CB / FCC / CE

2 years warranty

General Specification¬†

AC input voltage range	90~264VAC / 0.7A
AC inrush current (max.)	Cold start, 40A at 100VAC; 80A at 230VAC
Setup, rise, hold up time	4000ms, 100ms, 30ms at 230VAC input
Overload protection	Hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage
Withstand voltage	I/P-O/P:4242VDC, 1 minute
Working temperature	-10~+50°C (refer to output derating curve)
Safety standards	UL60950-1, CSA22.2, EN60950-1, GB4943, AS/NZS 60950.1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part15 class B, GB9254
Length of output cable	150cm of AWM2468, 18AWG
Dimension (LxWxH)	70.7x 40x 38.8 mm
Standard DC plug	P1J: 2.1ID x 5.5OD x 11L, tuning fork type

Specifications

Brand

Mean Well
Series

GE Series
Power Rating

15 Watt
Output Voltage

7.5 Volt
Rated Current

2 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CCC,CE,EAC,FCC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

2 Year
Length

3.19 in
Width

1.69 in
Height

1.59 in
Weight

0.3 lb
