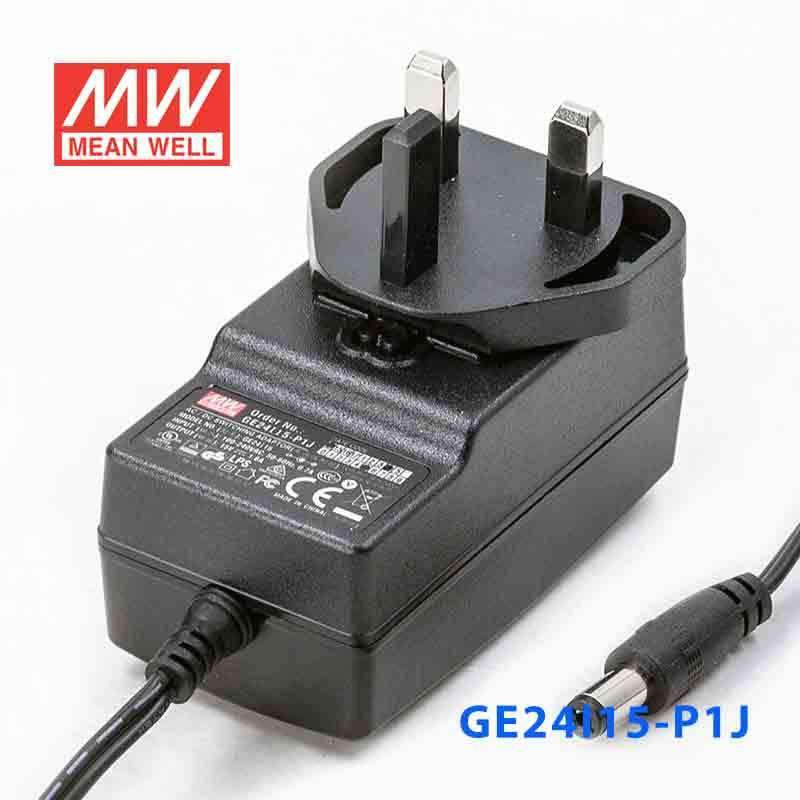

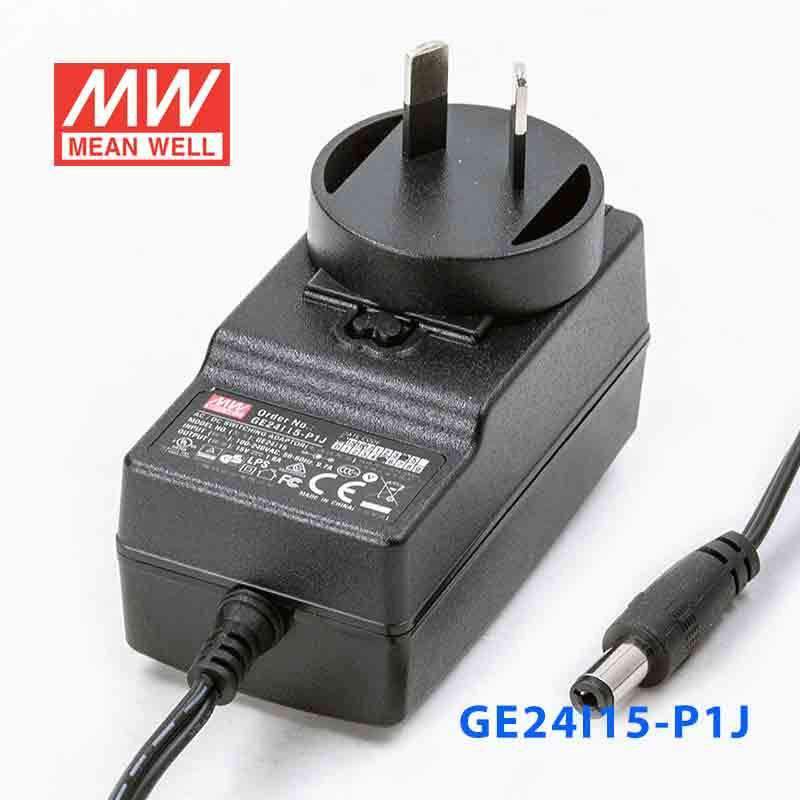

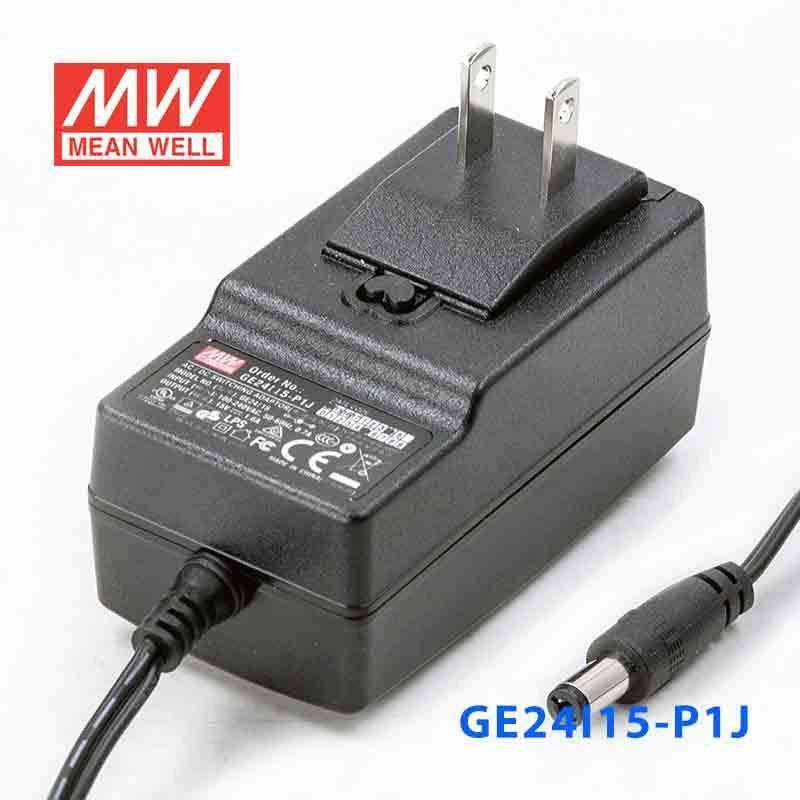

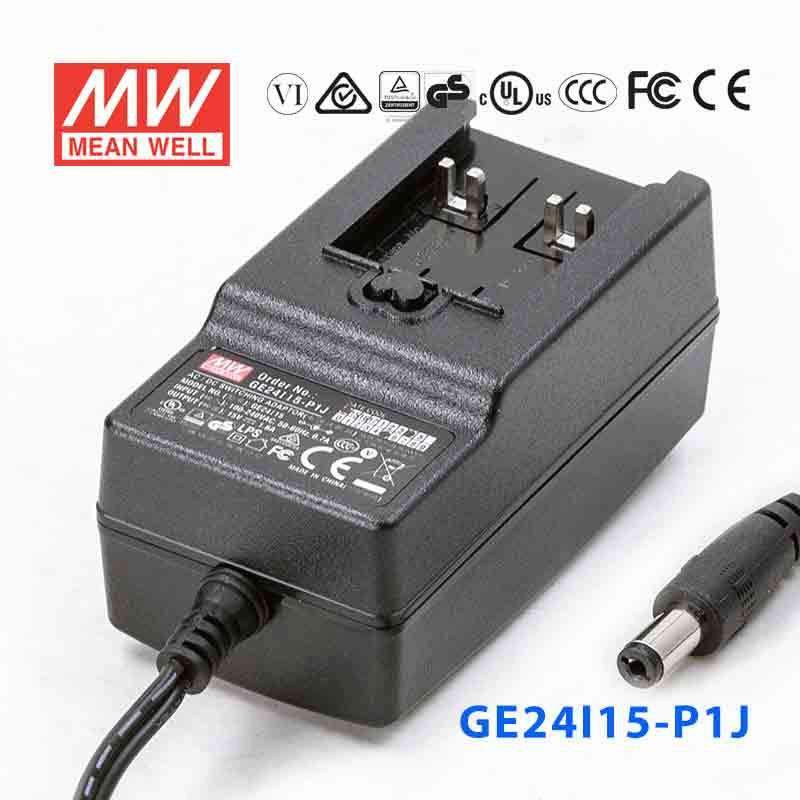

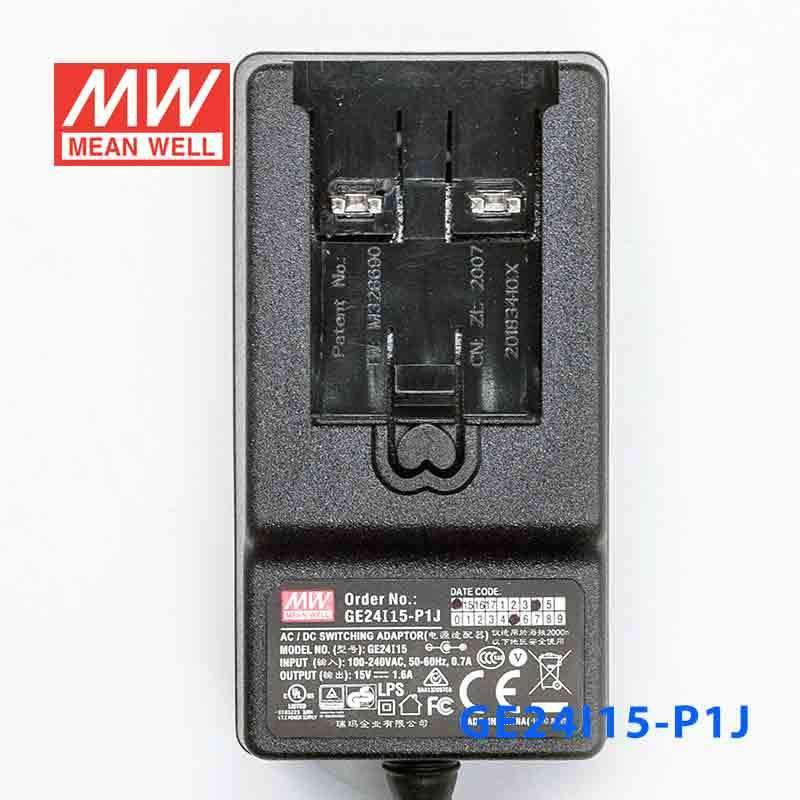

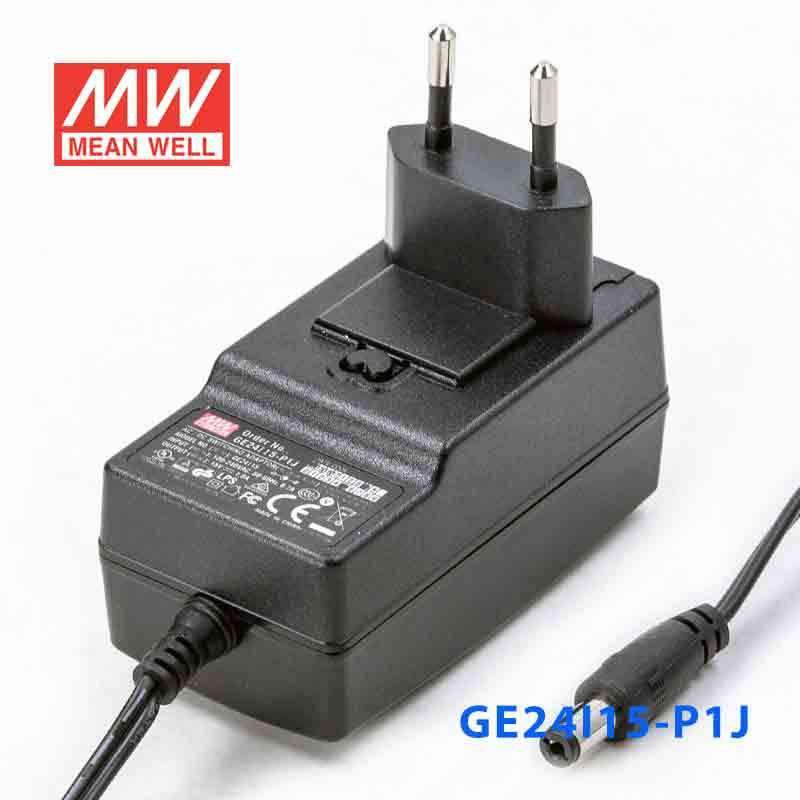

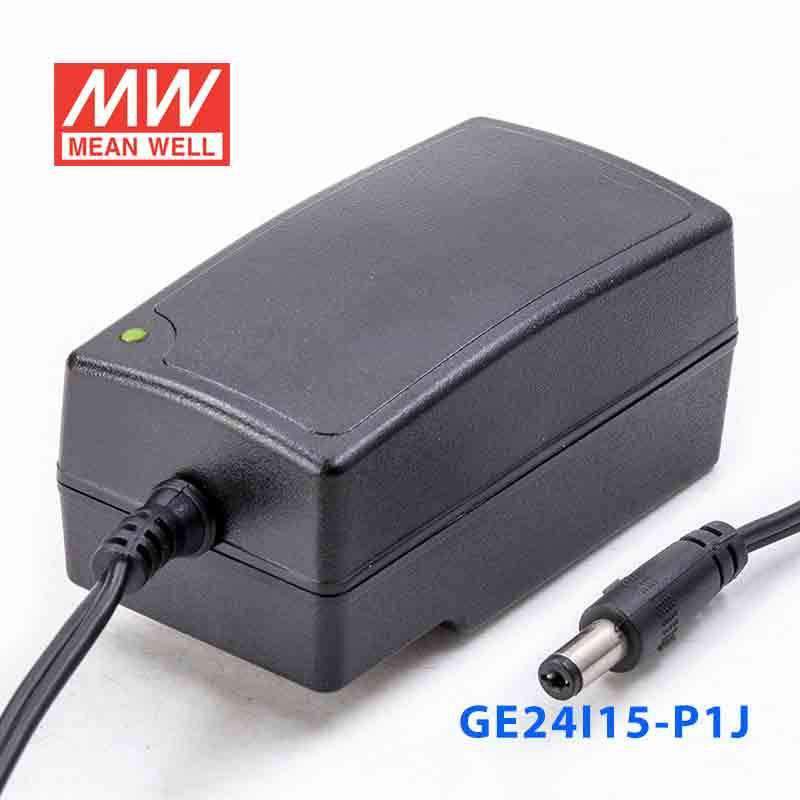

Mean Well GE24I15-P1J Power Supply 24W 15V
The GE24I15 is a 24W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGE Series
-
Power Rating24 Watt
-
Output Voltage15 Volt
-
Rated Current1.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length3.19 in
-
Width1.69 in
-
Height1.59 in
-
Weight0.3 lb
::specification::
Frequently Asked Questions
Can I use the GE24I15-P1J for a 15V industrial instrument or control module?
Yes, this supply is designed for 15V constant-voltage output and is rated for 24W with up to 1.6A output current. That makes it appropriate for smaller industrial or control devices that explicitly require 15V DC and remain within those limits.
Is this a good fit for a 15V embedded test or measurement device?
It can be used with embedded or measurement hardware that calls for a regulated 15V input and draws no more than 24W or 1.6A. The universal 90-264VAC input is useful when the equipment may be deployed across different AC power regions.
Can the GE24I15-P1J power a compact automation interface that runs on 15V DC?
Yes, provided the automation interface is a 15V constant-voltage load and its power demand stays at or below 24W. The 1.6A output rating makes it better suited to compact electronics than to heavier 15V loads.
How do I know if 24W and 1.6A are enough for my 15V device?
Your device must be rated for 15V DC input, and its total demand must not exceed 24W or 1.6A. If the load needs more than 1.6A at 15V, this model is undersized.
Can this power supply be used in outdoor or harsher ambient conditions?
The provided specs do not list an IP rating, so it should be used in indoor, protected environments instead of exposed outdoor locations. The operating temperature range is -10°C to +50°C.
