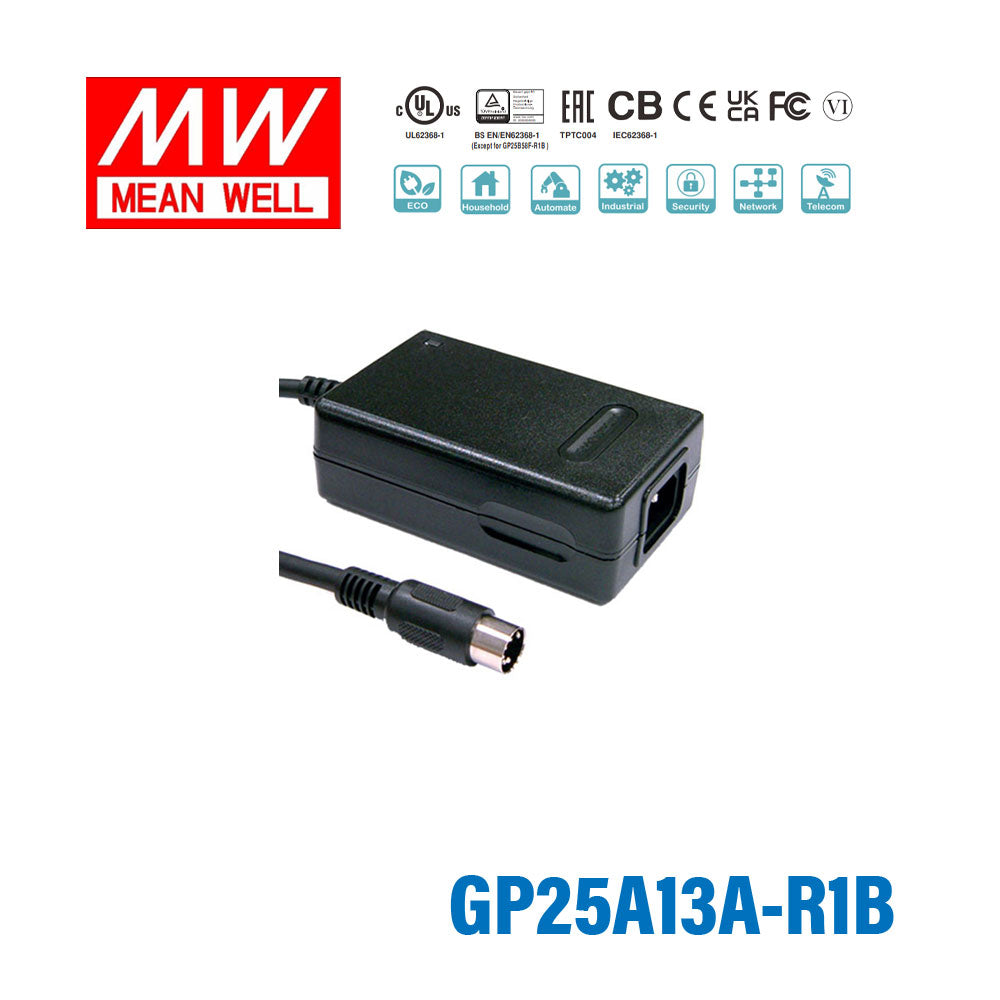

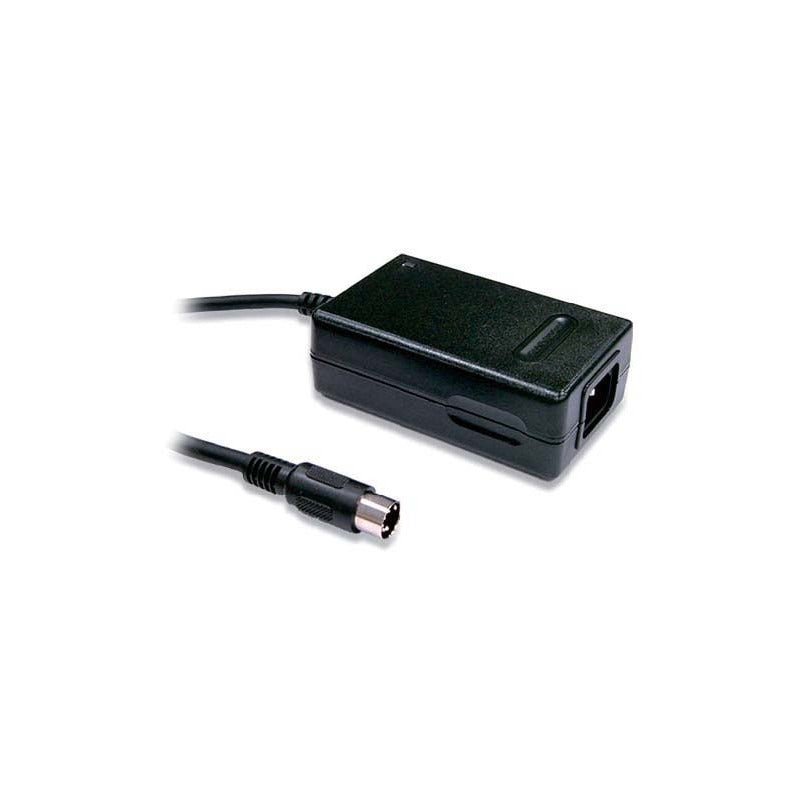

Mean Well GP25A13A-R1B Power Supply 50W 5V 12V -5V 2.5A

Name: Mean Well GP25A13A-R1B Power Supply 50W 5V 12V -5V 2.5A
Brand: Mean Well
SKU: GP25A13A-R1B
Price: 36.48 USD
Availability: InStock

SKU GP25A13A-R1B

$36.48 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

GP25A13A-R1B is the 5V / 12V / -5V output model of this series: rated power 28.5W, typical efficiency 80%.

GP25A is a 25W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level Ⅵ). Adopting Class I design and utilizing the standard inlet IEC320-C14, it is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. This series operates from 90~264VAC and offers three models with the output voltage sets +5V/+12V/-5V, +5V/+12V/-12V, +5V/+15V/-15V and can option +16V/+48V/-16V. Its supreme advantages includes the less-than-0.3W no load power consumption, the capability of working under -20~+70℃ ambient temperature, complete protection functions and three-year warranty and the compliance to the international safety certification such as CB, TUV, UL, CE and FCC. GP25A is a multiple-output green adaptor with high safety, high reliability and high quality.

Features

Universal AC input / Full range
3 pole AC inlet IEC320-C14, Class I power unit
No load power consumption < 0.3W
Energy efficiency level Ⅵ
Comply with EISA 2007/DoE
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
-20 ~ +70℃ working temperature
LED indicator for power on
Dual output available (optional)
± 16V /+48V also available for video system (optional, order NO. : GP25A58F-R1B)
3 years warranty

Specifications

GP25A13A-R1BSpecifications from the official datasheet (2026-01-09 edition)

OUTPUT

SAFETY MODEL NO.: GP25A13A
DC VOLTAGE^{Note.2; three outputs per model in printed order, separated by ' / '}: 5V / 12V / -5V
RATED SET CURRENT^{three outputs per model in printed order, separated by ' / '}: 2.5A / 1.2A / 0.3A
CURRENT RANGE^{three outputs per model in printed order, separated by ' / '}: 0.5 ~ 2.5A / 0.2 ~ 1.2A / 0.1 ~ 0.3A
RATED POWER: 28.5W
RIPPLE & NOISE (max.)^{Note.3; three outputs per model in printed order, separated by ' / '}: 50mVp-p / 100mVp-p / 50mVp-p
VOLTAGE TOLERANCE^{Note.4; three outputs per model in printed order, separated by ' / '}: ±5.0% / -5.0 ~ +10% / ±3.0%
LINE REGULATION^{Note.5; three outputs per model in printed order, separated by ' / '}: ±1.0% / ±1.0% / ±1.0%
LOAD REGULATION^{Note.6; three outputs per model in printed order, separated by ' / '}: ±5.0% / ±5.0% / ±3.0%
SETUP, RISE, HOLD UP TIME: 800ms, 50ms, 20ms / 230VAC 1200ms, 50ms, 16ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 90 ~ 264VAC 135~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 80%
AC CURRENT: 0.8A / 100VAC 0.4A / 230VAC
INRUSH CURRENT (max.): Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT (max.): 0.75mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by zener diode(5V only), output short

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (-20 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP25A58F-R1B ), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4242VDC , I/P-FG:2121VDC
ISOLATION RESISTANCE: I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N, 2KV/L,N-PE
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B)	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N, 2KV/L,N-PE
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

LIFE: 3 years : 100% load 40℃, 8hours/day
MTBF: 620K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 107.5*67*36mm (L*W*H)
PACKING: 0.3kg; 54pcs / 20kg / CARTON

CONNECTOR

PLUG: See page 4
CABLE: See page 4

Test conditions and notes8

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.When measured between the light load (20% of rated load) and full load, the load regulation is within ±5% whereas the cross regulation is within ±15%.
7.Derating may be needed under low input voltages. Please check the static characteristics for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

GP25A13A-R1B Derating Curve — Derating Curve

GP25A13A-R1B Mechanical Specification — Mechanical Specification

GP25A13A-R1B ◎ Standard plug: R1B — ◎ Standard plug: R1B

GP25A13A-R1B ◎ Optional DC plug — ◎ Optional DC plug

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Certificates8

Mean Well E183223 UL Certificate PDF Download

Mean Well GP25A-C-TUV Certificate PDF Download

Mean Well 0655094-EAC Certificate PDF Download

Mean Well GP25A-C-CB Certificate PDF Download

Mean Well GP25A-C-EMC Certificate PDF Download

Mean Well GP25A-C-CE-dec Certificate PDF Download

Mean Well GP25-UK-dec Certificate PDF Download

Mean Well GP25A-C-FCC Certificate PDF Download

Test reports1

Mean Well GP25x13A Test Report PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GP25A13A-R1B for legacy industrial electronics that need multiple DC rails?

It may be suitable when the equipment is designed around the listed multi-output format shown in the product name and the published 5V rail data. The provided specs show constant voltage operation, 5V output at 2.5A, and 28.5W total power, so selection should stay within those stated values.

Is the GP25A13A-R1B a fit for embedded or control assemblies that use a 5V main rail?

Yes, for applications that need a constant 5V output and remain within 2.5A on the published 5V rail. The total rated power in the provided specs is 28.5W, so the full system demand needs to be checked against that limit.

Can this power supply be used in older instrumentation or industrial interface hardware?

It can be considered for equipment that matches the listed output format and uses a constant voltage supply. Based on the provided specs, the main published output is 5V at 2.5A with 28.5W total power and a 90-264VAC input range.

How should I evaluate whether the GP25A13A-R1B is large enough for my system?

Start by confirming your application matches the listed output configuration and that the 5V requirement does not exceed 2.5A. The overall published power limit is 28.5W, so the complete load must remain within that total rating.

Is the GP25A13A-R1B intended for outdoor use or harsh enclosures?

The operating temperature range is -20°C to +70°C, which gives a broad ambient range for screening. However, no IP rating is listed in the provided specs, so the product data does not establish outdoor or water-exposed suitability.
