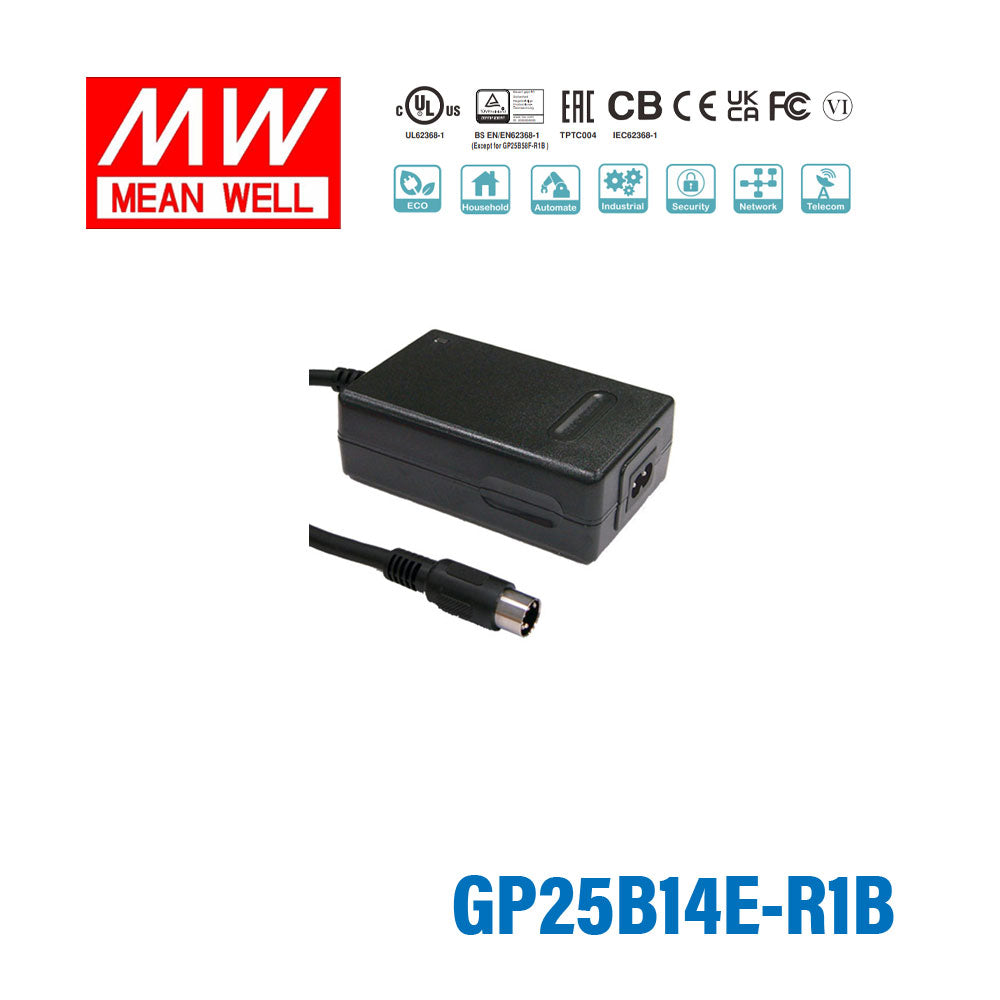

Mean Well GP25B14E-R1B Power Supply 50W 5V 15V -15V 2.5A
Overview
GP25B14E-R1B is the 5V / 15V / -15V output model of this series: rated power 29W, typical efficiency 80.5%.
GP25B is a 25W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level Ⅵ). Adopting Class Ⅱ design and utilizing the standard inlet IEC320-C8, it is designed without FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. This series operates from 90~264VAC and offers three models with the output voltage sets +5V/+12V/-5V, +5V/+12V/-12V, +5V/+15V/-15V and can option +16V/+48V/-16V. Its supreme advantages includes the less-than-0.3W no load power consumption, the capability of working under -20~+70℃ ambient temperature, complete protection functions and three-year warranty and the compliance to the international safety certification such as CB, TUV, UL, CE and FCC. GP25B is a multiple-output green adaptor with high safety, high reliability and high quality.
Features
- Universal AC input / Full range
- 2 pole AC inlet IEC320-C8, Class Ⅱ power unit
- No load power consumption < 0.3W
- Energy efficiency level Ⅵ
- Comply with EISA 2007/DoE
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- -20 ~ +70℃ working temperature
- LED indicator for power on
- Dual output available (optional)
- ± 16V /+48V also available for video system (optional, order NO. : GP25B58F-R1B)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GP25B14E
- DC VOLTAGENote.2
- 5V / 15V / -15V
- RATED SET CURRENT
- 2.5A / 0.8A / 0.3A
- CURRENT RANGE
- 0.5 ~ 2.5A / 0.1 ~ 0.8A / 0.1 ~ 0.3A
- RATED POWER
- 29W
- RIPPLE & NOISE (max.)Note.3
- 100mVp-p / 150mVp-p / 50mVp-p
- VOLTAGE TOLERANCENote.4
- ±5.0% / -5.0 ~ +15% / ±3.0%
- LINE REGULATIONNote.5
- ±1.0% / ±1.0% / ±1.0%
- LOAD REGULATIONNote.6
- ±5.0% / ±5.0% / ±3.0%
- SETUP, RISE, HOLD UP TIME
- 800ms, 50ms, 20ms / 230VAC 1200ms, 50ms, 16ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 90 ~ 264VAC 135~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 80.5%
- AC CURRENT
- 0.8A / 100VAC 0.4A / 230VAC
- INRUSH CURRENT (max.)
- Cold start 30A / 115VAC 60A / 230VAC
- LEAKAGE CURRENT (max.)
- 0.75mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- Protection type : Clamp by zener diode(5V only), output short
ENVIRONMENT
- WORKING TEMP.

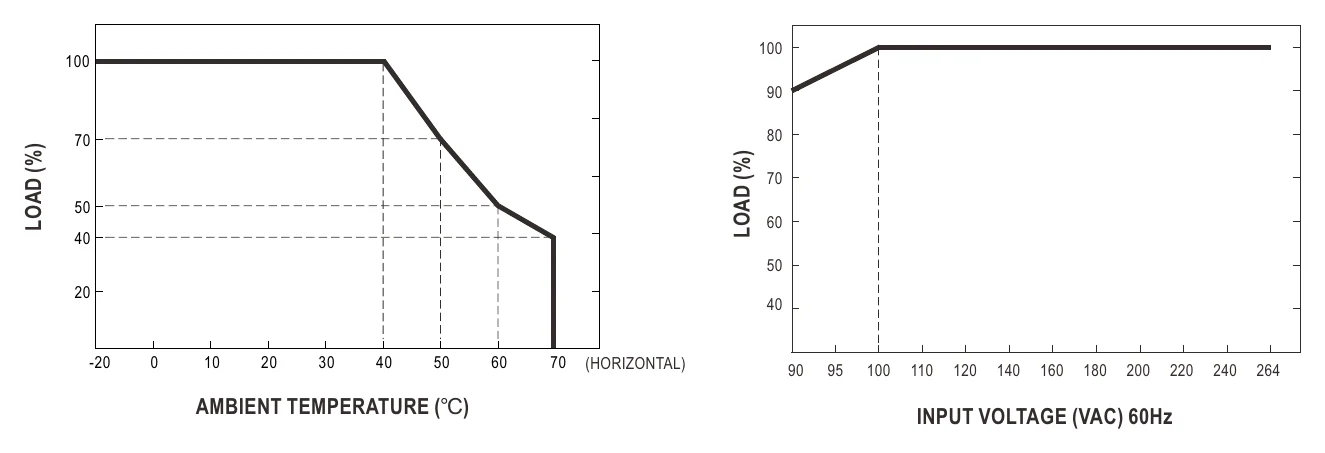

- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (-20 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note. 8)
- SAFETY STANDARDS
- IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP25B58F-R1B ), EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:4242VDC , I/P-FG:2121VDC
- ISOLATION RESISTANCE
- I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT bursts BS EN/EN61000-4-4 Level 2, 1KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- LIFE
- 3 years : 100% load 40℃, 8hours/day
- MTBF
- 620K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION

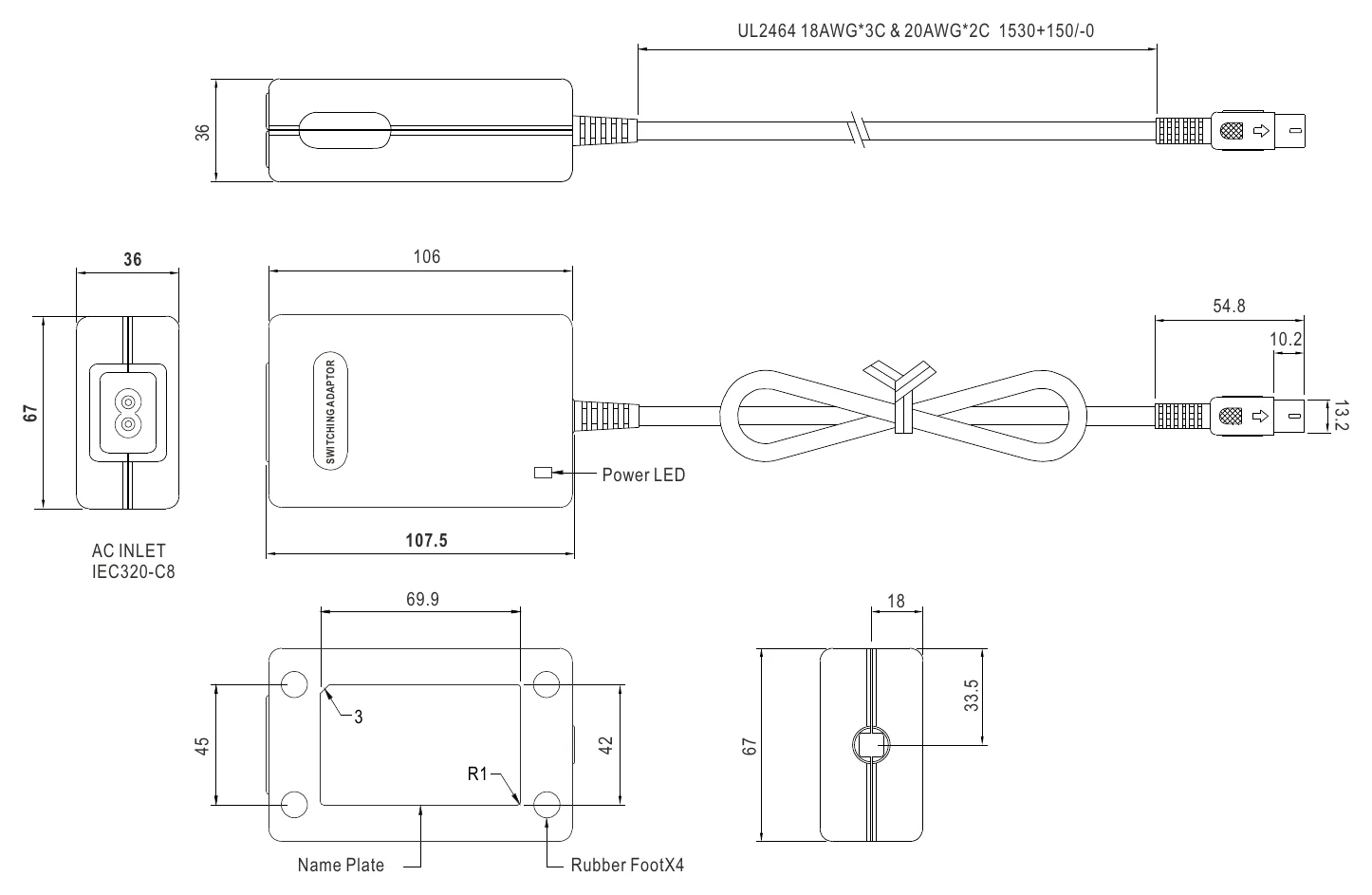

- 107.5*67*36mm (L*W*H)
- PACKING
- 0.3kg; 54pcs / 20kg / CARTON
CONNECTOR

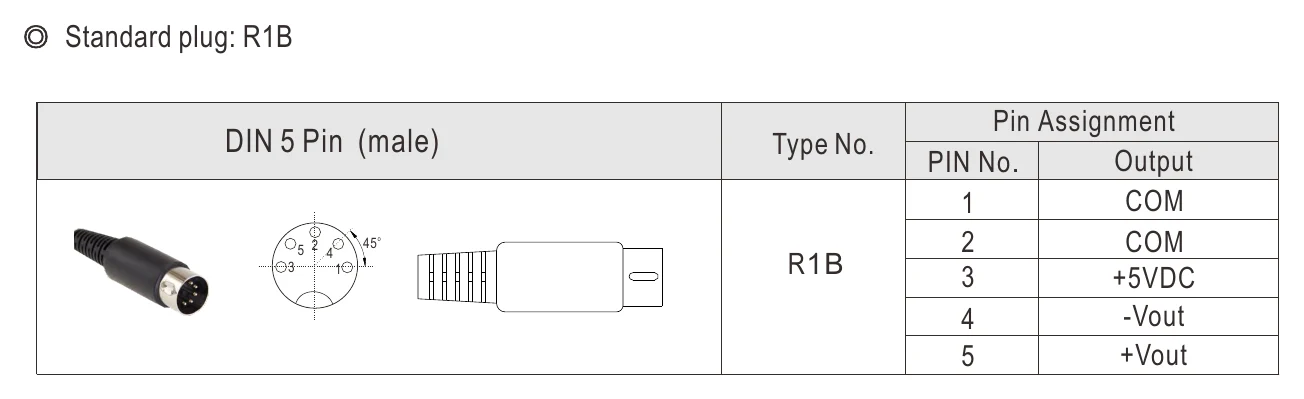

- PLUG
- See page 4

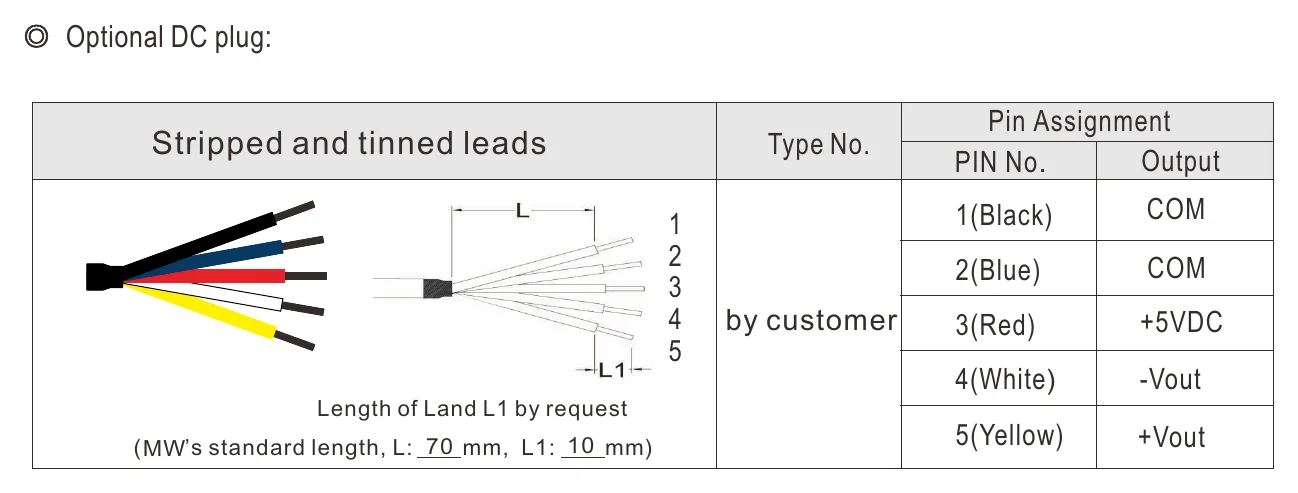

- CABLE
- See page 4
Test conditions and notes8
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.When measured between the light load (20% of rated load) and full load, the load regulation is within ±5% whereas the cross regulation is within ±15%.
- 7.Derating may be needed under low input voltages. Please check the static characteristics for more details.
- 8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
Downloads
Certificates8
Test reports1
FAQ
Can I use the GP25B14E-R1B in mixed-signal industrial electronics that need 5V and ±15V rails?
Yes, this model's output configuration includes 5V, 15V, and -15V, which makes it relevant for low-power mixed-signal electronics. It is rated for 29W total output, with 2.5A available on the 5V rail.
Is this power supply suitable for embedded monitoring equipment with 5V digital control and ±15V analog sections?
It can be a fit for embedded monitoring or instrumentation designs that use those voltage rails and require constant-voltage output. The unit accepts 90-264VAC input and provides 29W total rated power.
Would the GP25B14E-R1B work for compact automation hardware that uses positive and negative 15V rails?
Yes, it is suited to compact automation or control electronics that need 5V logic support along with 15V and -15V rails. The 5V output current is rated at 2.5A, and the total available output is 29W.
Can this model support low-power lab or test electronics with multiple DC rails?
It is appropriate for low-power electronics that specifically require 5V and ±15V outputs and remain within a 29W total load. Its constant-voltage operation is aligned with regulated electronic assemblies rather than variable-load power applications.
Is the GP25B14E-R1B suitable for outdoor use or unconditioned spaces?
The product is rated for operation from -20°C to +70°C, which defines its temperature range. The provided specs do not list an IP rating, so outdoor ingress protection is not confirmed here.
