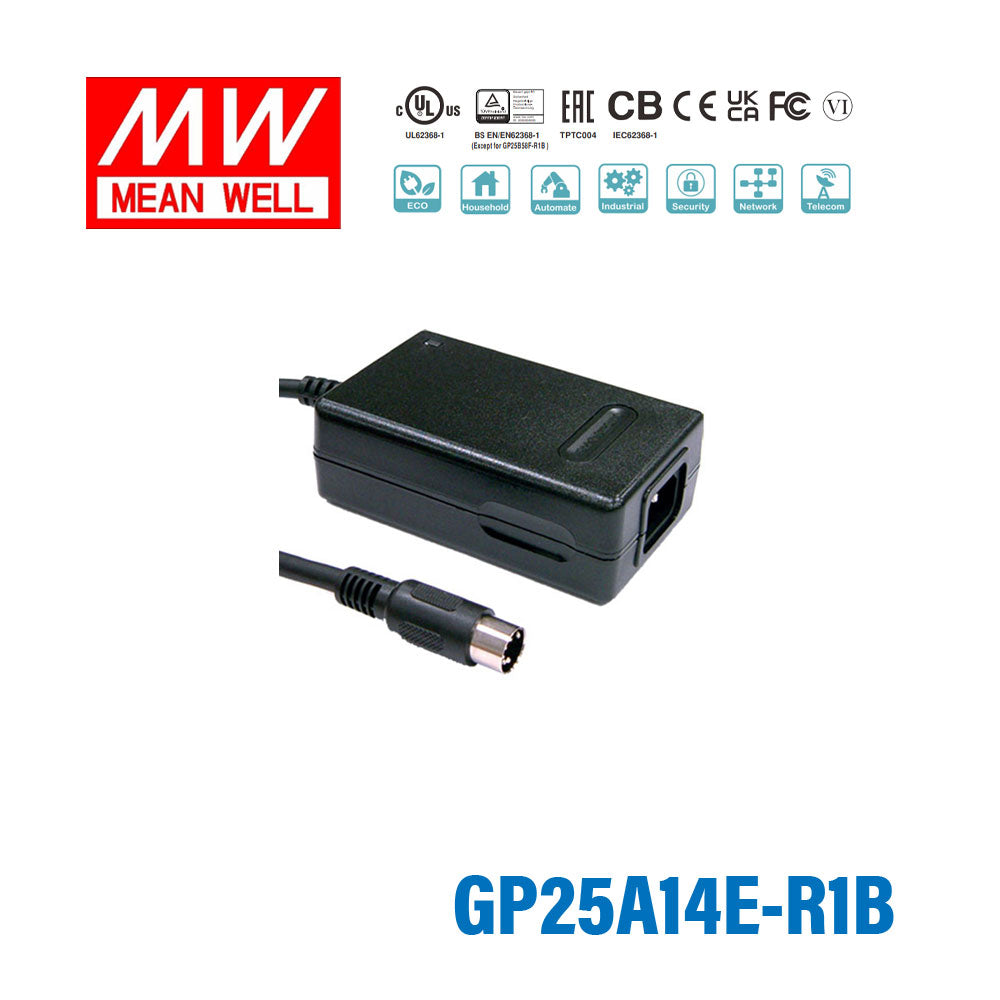

Mean Well GP25A14E-R1B Power Supply 50W 5V 15V -15V 2.5A
Overview
GP25A14E-R1B is the model of this series: rated power 29W, typical efficiency 80.5%.
GP25A is a 25W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level Ⅵ). Adopting Class I design and utilizing the standard inlet IEC320-C14, it is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. This series operates from 90~264VAC and offers three models with the output voltage sets +5V/+12V/-5V, +5V/+12V/-12V, +5V/+15V/-15V and can option +16V/+48V/-16V. Its supreme advantages includes the less-than-0.3W no load power consumption, the capability of working under -20~+70℃ ambient temperature, complete protection functions and three-year warranty and the compliance to the international safety certification such as CB, TUV, UL, CE and FCC. GP25A is a multiple-output green adaptor with high safety, high reliability and high quality.
Features
- Universal AC input / Full range
- 3 pole AC inlet IEC320-C14, Class I power unit
- No load power consumption < 0.3W
- Energy efficiency level Ⅵ
- Comply with EISA 2007/DoE
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- -20 ~ +70℃ working temperature
- LED indicator for power on
- Dual output available (optional)
- ± 16V /+48V also available for video system (optional, order NO. : GP25A58F-R1B)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GP25A14E
- RATED POWER
- 29W
- SETUP, RISE, HOLD UP TIME
- 800ms, 50ms, 20ms / 230VAC 1200ms, 50ms, 16ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 90 ~ 264VAC 135~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 80.5%
- AC CURRENT
- 0.8A / 100VAC 0.4A / 230VAC
- INRUSH CURRENT (max.)
- Cold start 30A / 115VAC 60A / 230VAC
- LEAKAGE CURRENT (max.)
- 0.75mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- Protection type : Clamp by zener diode(5V only), output short
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (-20 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP25A58F-R1B ), EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:4242VDC , I/P-FG:2121VDC
- ISOLATION RESISTANCE
- I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT bursts BS EN/EN61000-4-4 Level 2, 1KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N, 2KV/L,N-PE Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- LIFE
- 3 years : 100% load 40℃, 8hours/day
- MTBF
- 620K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 107.5*67*36mm (L*W*H)
- PACKING
- 0.3kg; 54pcs / 20kg / CARTON
CONNECTOR
- PLUG
- See page 4
- CABLE
- See page 4
Test conditions and notes8
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.When measured between the light load (20% of rated load) and full load, the load regulation is within ±5% whereas the cross regulation is within ±15%.
- 7.Derating may be needed under low input voltages. Please check the static characteristics for more details.
- 8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
Downloads
Certificates8
Test reports1
FAQ
Can I use the GP25A14E-R1B for embedded electronics that need 5V logic and ±15V analog rails?
Yes, this model is configured for constant-voltage use and its product designation includes 5V, 15V, and -15V outputs. With 29W total power and 2.5A on the 5V output, it fits low-power mixed-signal electronics that need those rails.
Is this power supply a fit for industrial signal-conditioning equipment with ±15V stages?
It can be suitable for compact industrial or instrumentation circuits that require 5V plus positive and negative 15V rails. The unit is rated for 29W total output and accepts 90-264VAC input.
Can the GP25A14E-R1B support a small automation monitoring module with 5V digital sections?
Yes, for low-power automation electronics that run on 5V and also need ±15V rails, this model is an appropriate constant-voltage option. The 5V output current is rated at 2.5A, with 29W total rated power.
Would this model work in bench or lab electronics that combine 5V control and ±15V analog circuitry?
It is a reasonable choice for bench-style or embedded electronics that use those three voltage rails and stay within a 29W output budget. The wide 90-264VAC input range also makes it usable across standard AC input conditions.
Can the GP25A14E-R1B be used in outdoor control cabinets?
The temperature rating is -20°C to +70°C, so thermal operating limits are provided. However, no IP rating is listed in the provided specs, so outdoor exposure suitability is not confirmed here.
