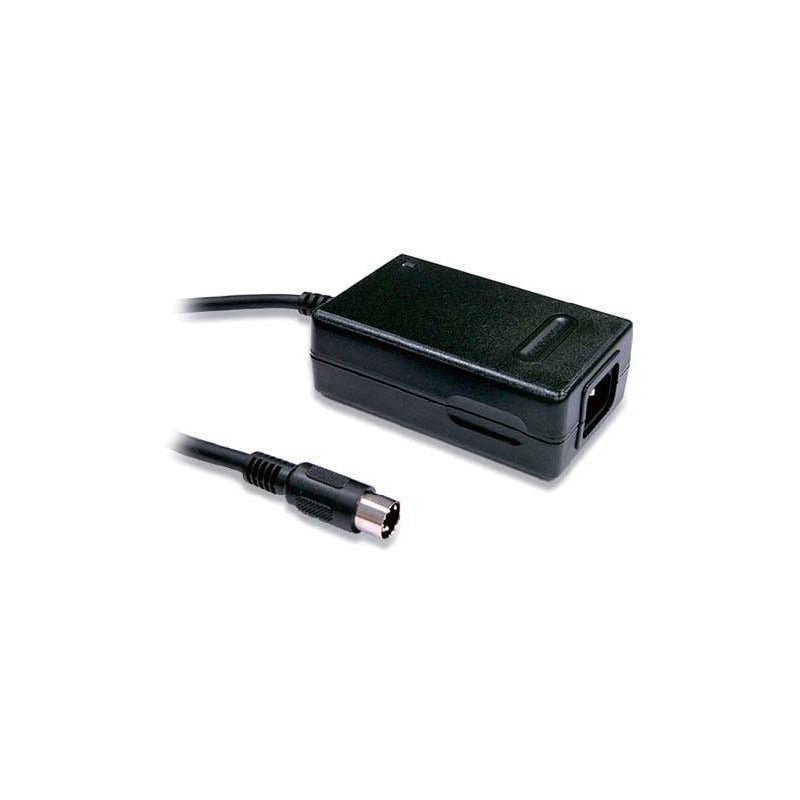

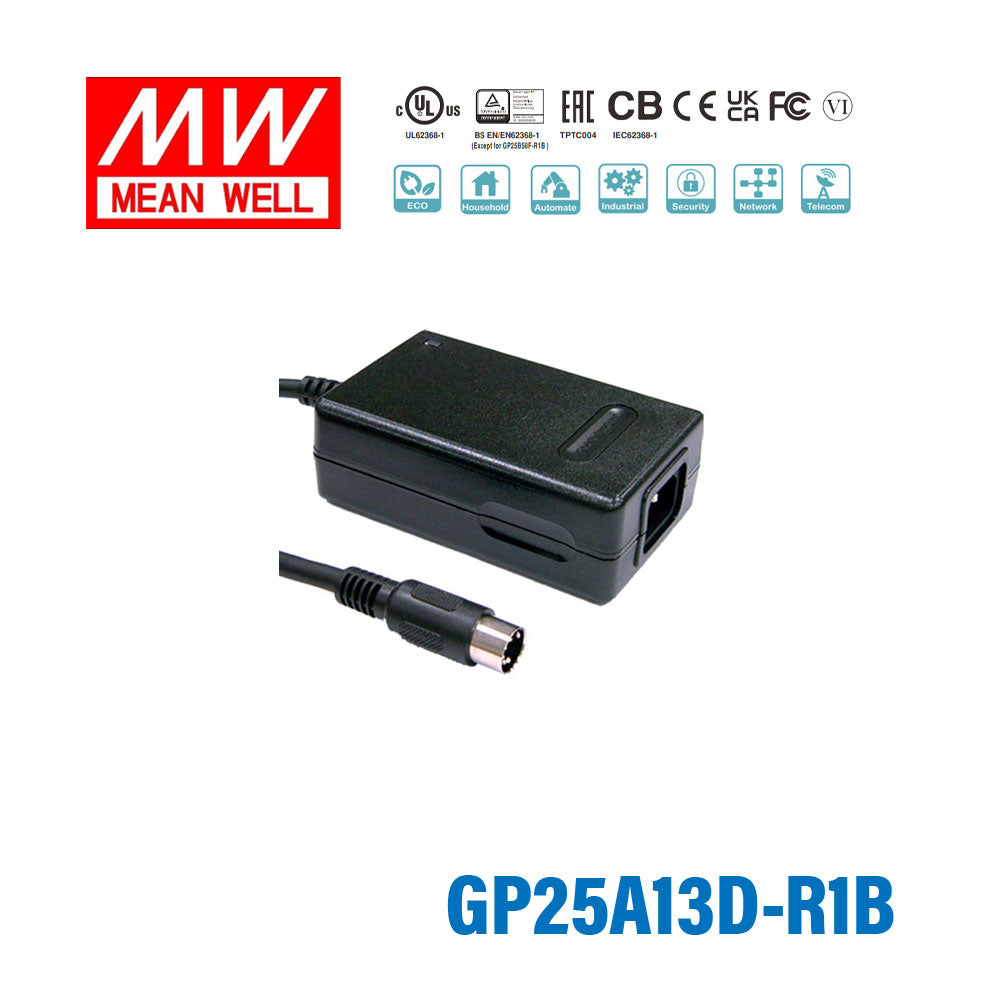

Mean Well GP25A13D-R1B Power Supply 50W 5V 12V -12V 2.5A
Overview
GP25A13D-R1B is the model of this series: rated power 28W, typical efficiency 80%.
GP25A is a 25W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level Ⅵ). Adopting Class I design and utilizing the standard inlet IEC320-C14, it is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. This series operates from 90~264VAC and offers three models with the output voltage sets +5V/+12V/-5V, +5V/+12V/-12V, +5V/+15V/-15V and can option +16V/+48V/-16V. Its supreme advantages includes the less-than-0.3W no load power consumption, the capability of working under -20~+70℃ ambient temperature, complete protection functions and three-year warranty and the compliance to the international safety certification such as CB, TUV, UL, CE and FCC. GP25A is a multiple-output green adaptor with high safety, high reliability and high quality.
Features
- Universal AC input / Full range
- 3 pole AC inlet IEC320-C14, Class I power unit
- No load power consumption < 0.3W
- Energy efficiency level Ⅵ
- Comply with EISA 2007/DoE
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- -20 ~ +70℃ working temperature
- LED indicator for power on
- Dual output available (optional)
- ± 16V /+48V also available for video system (optional, order NO. : GP25A58F-R1B)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GP25A13D
- RATED POWER
- 28W
- SETUP, RISE, HOLD UP TIME
- 800ms, 50ms, 20ms / 230VAC 1200ms, 50ms, 16ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 90 ~ 264VAC 135~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 80%
- AC CURRENT
- 0.8A / 100VAC 0.4A / 230VAC
- INRUSH CURRENT (max.)
- Cold start 30A / 115VAC 60A / 230VAC
- LEAKAGE CURRENT (max.)
- 0.75mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- Protection type : Clamp by zener diode(5V only), output short
ENVIRONMENT
- WORKING TEMP.

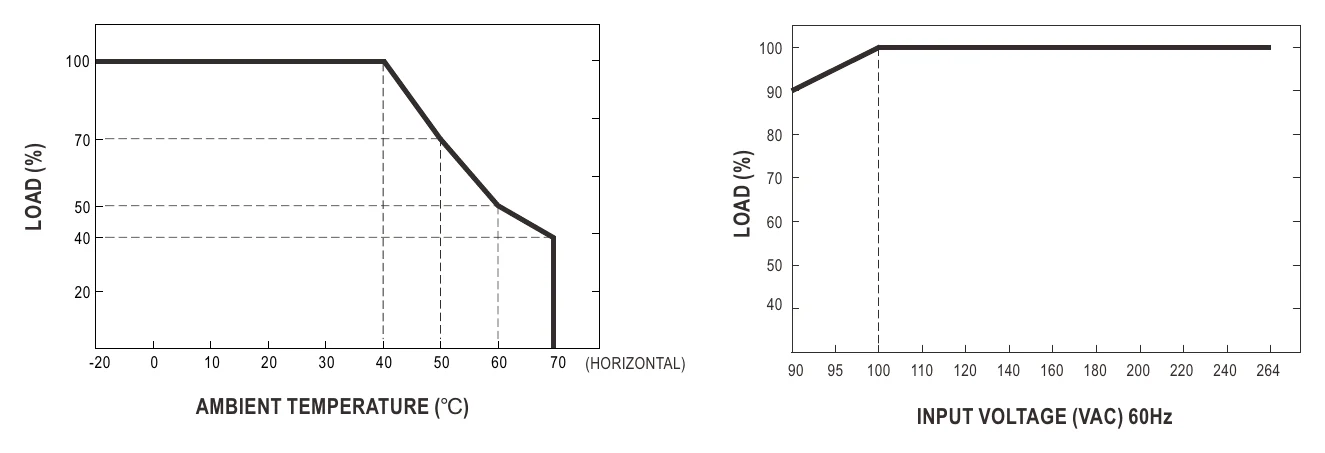

- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (-20 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP25A58F-R1B ), EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:4242VDC , I/P-FG:2121VDC
- ISOLATION RESISTANCE
- I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT bursts BS EN/EN61000-4-4 Level 2, 1KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N, 2KV/L,N-PE Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- LIFE
- 3 years : 100% load 40℃, 8hours/day
- MTBF
- 620K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 107.5*67*36mm (L*W*H)
- PACKING
- 0.3kg; 54pcs / 20kg / CARTON

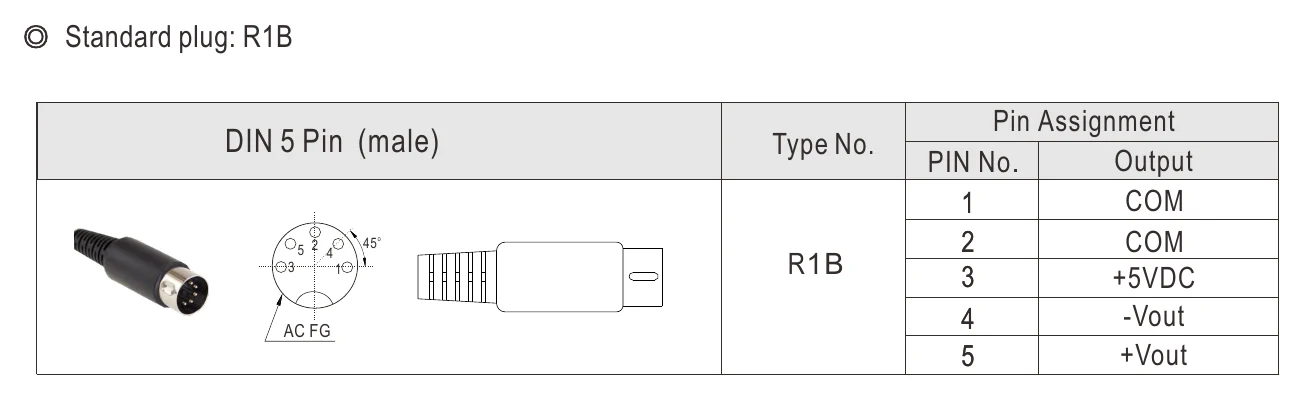

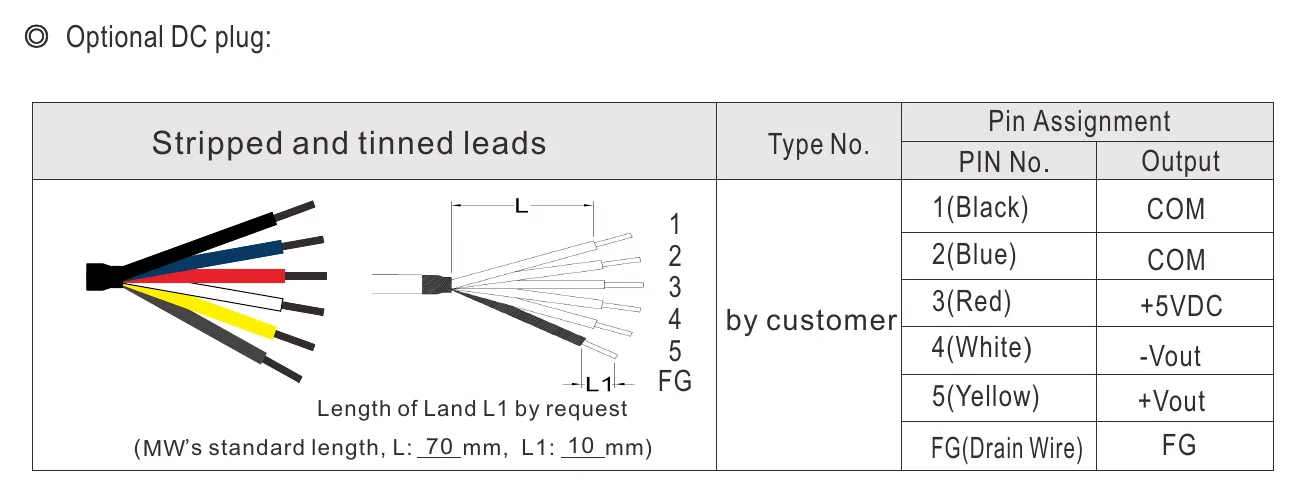

CONNECTOR
- PLUG
- See page 4
- CABLE
- See page 4
Test conditions and notes8
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.When measured between the light load (20% of rated load) and full load, the load regulation is within ±5% whereas the cross regulation is within ±15%.
- 7.Derating may be needed under low input voltages. Please check the static characteristics for more details.
- 8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

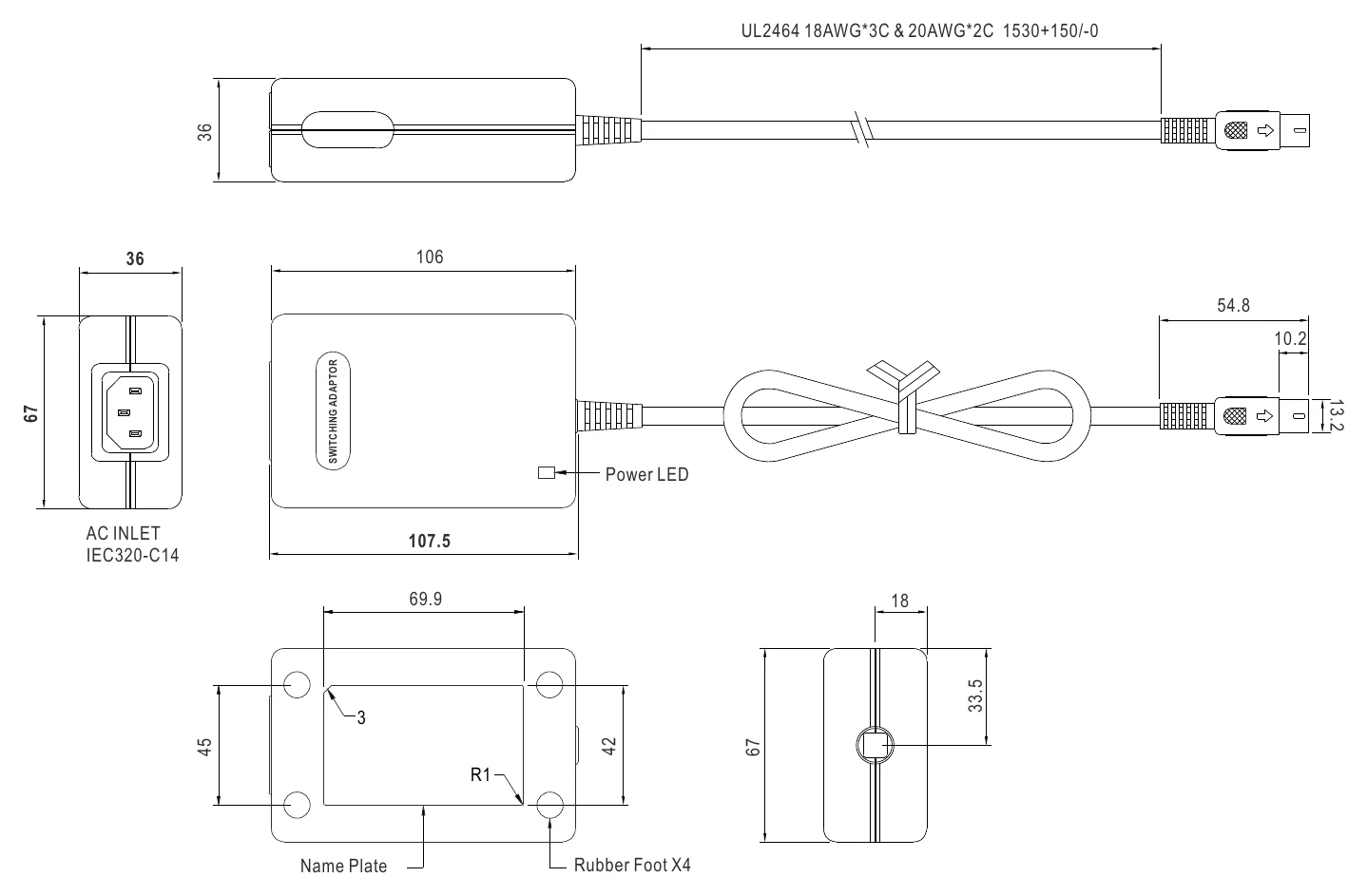

Technical drawings
Typical applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
Downloads
Certificates8
Test reports1
FAQ
Can I use the GP25A13D-R1B in a small industrial controller that needs 5V logic and ±12V analog rails?
Yes, this model is intended for constant-voltage applications and its product configuration includes 5V, 12V, and -12V outputs. With 28W total power and 2.5A on the 5V output, it suits compact control electronics that need those DC rails within that power budget.
Is this power supply suitable for embedded test equipment that uses 5V digital circuits and bipolar signal stages?
It can be a fit for embedded or bench-style electronics that require 5V together with positive and negative 12V rails. The available input range is 90-264VAC, and the unit is rated for 28W total output in constant-voltage operation.
Can the GP25A13D-R1B power a compact automation interface board with 5V control logic?
It is appropriate for automation or interface boards built around a 5V rail, especially where additional 12V and -12V rails are also required. The 5V output is rated at 2.5A, and the total rated power is 28W.
Would this model work for low-power instrumentation electronics that need positive and negative 12V rails?
Yes, low-power instrumentation is a reasonable use case when the design calls for 5V plus ±12V outputs. The unit provides 28W total and operates from 90-264VAC input, so it is best matched to systems that stay within that output capacity.
Is the GP25A13D-R1B suitable for outdoor or harsh-environment use?
The listed specs show an operating temperature range of -20°C to +70°C, but they do not provide an IP rating. That means temperature capability is specified, while outdoor or washdown suitability is not established by the provided data.
