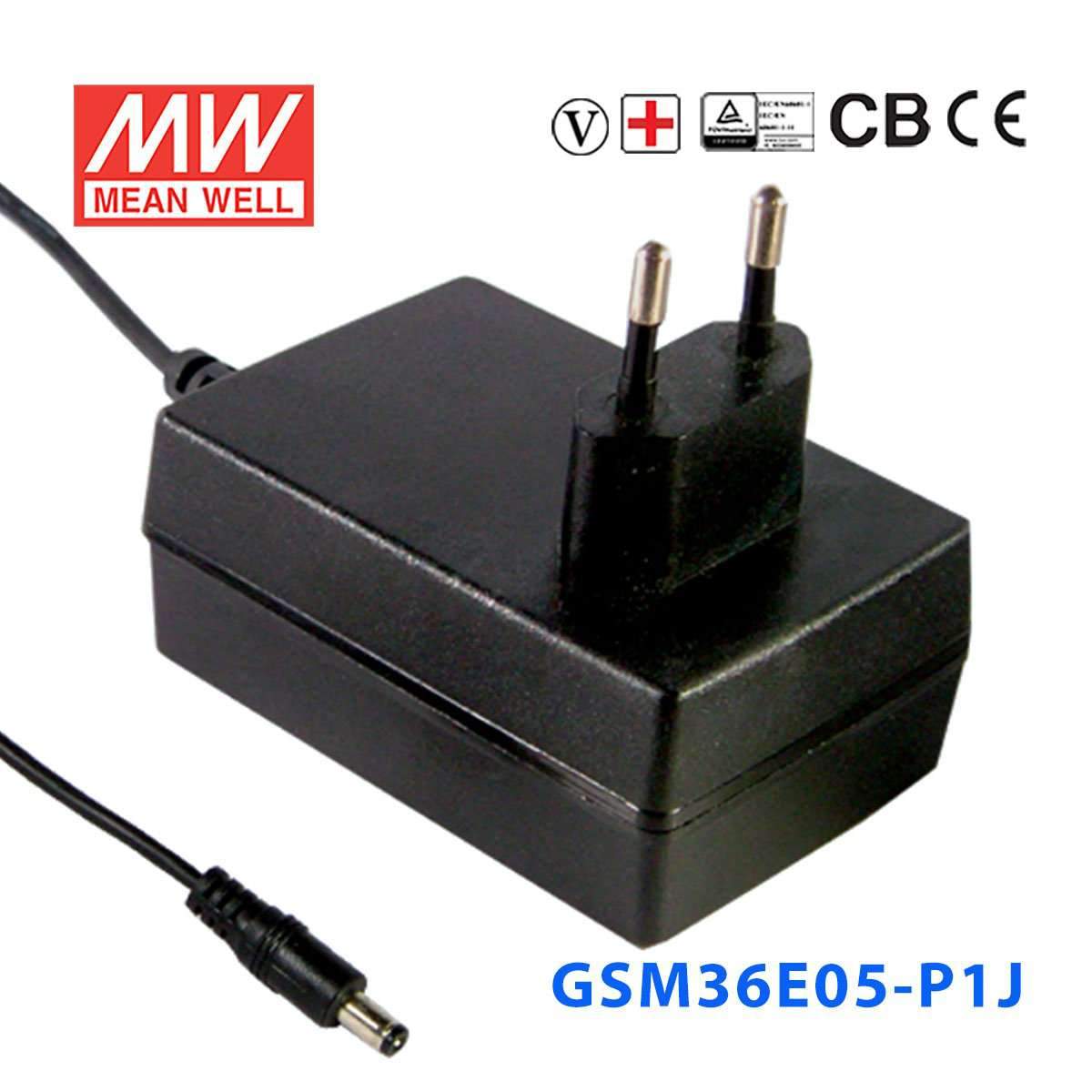

Mean Well GSM36E05-P1J Power Supply 22.5W 5V
The GSM36E05 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating22.5 Watt
-
Output Voltage5 Volt
-
Rated Current4.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the GSM36E05-P1J for a 5V single-board computer or embedded controller?
Yes, this model is a constant voltage 5V power supply with up to 4.5A output and 22.5W total power. That fits 5V embedded systems or single-board controllers that need a regulated 5V source and stay within 4.5A.
Is this power supply suitable for 5V industrial sensors or USB-powered automation accessories?
It can be used for 5V industrial or automation accessories if the load requires constant voltage and the total draw does not exceed 4.5A or 22.5W. The wide 80-264VAC input also supports use in facilities with different AC mains ranges.
Can the GSM36E05-P1J power a small 5V networking or IT device?
It is suitable for 5V IT or networking hardware that needs constant 5V DC and draws no more than 4.5A. Buyers should match the device requirement to the 5V output and 22.5W maximum power.
Is the GSM36E05-P1J okay for outdoor or harsh-environment use?
The provided specs list an operating temperature range of -25°C to +60°C, but they do not list an IP rating. That means temperature capability is defined, while dust and water protection for exposed outdoor use is not established by the provided data.
What kind of AC input range does this model support for global equipment use?
This power supply accepts 80-264VAC input, which covers a broad universal AC range. That makes it practical for equipment deployed across regions using different mains voltages, as long as the connected load needs 5V constant voltage output.
