Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

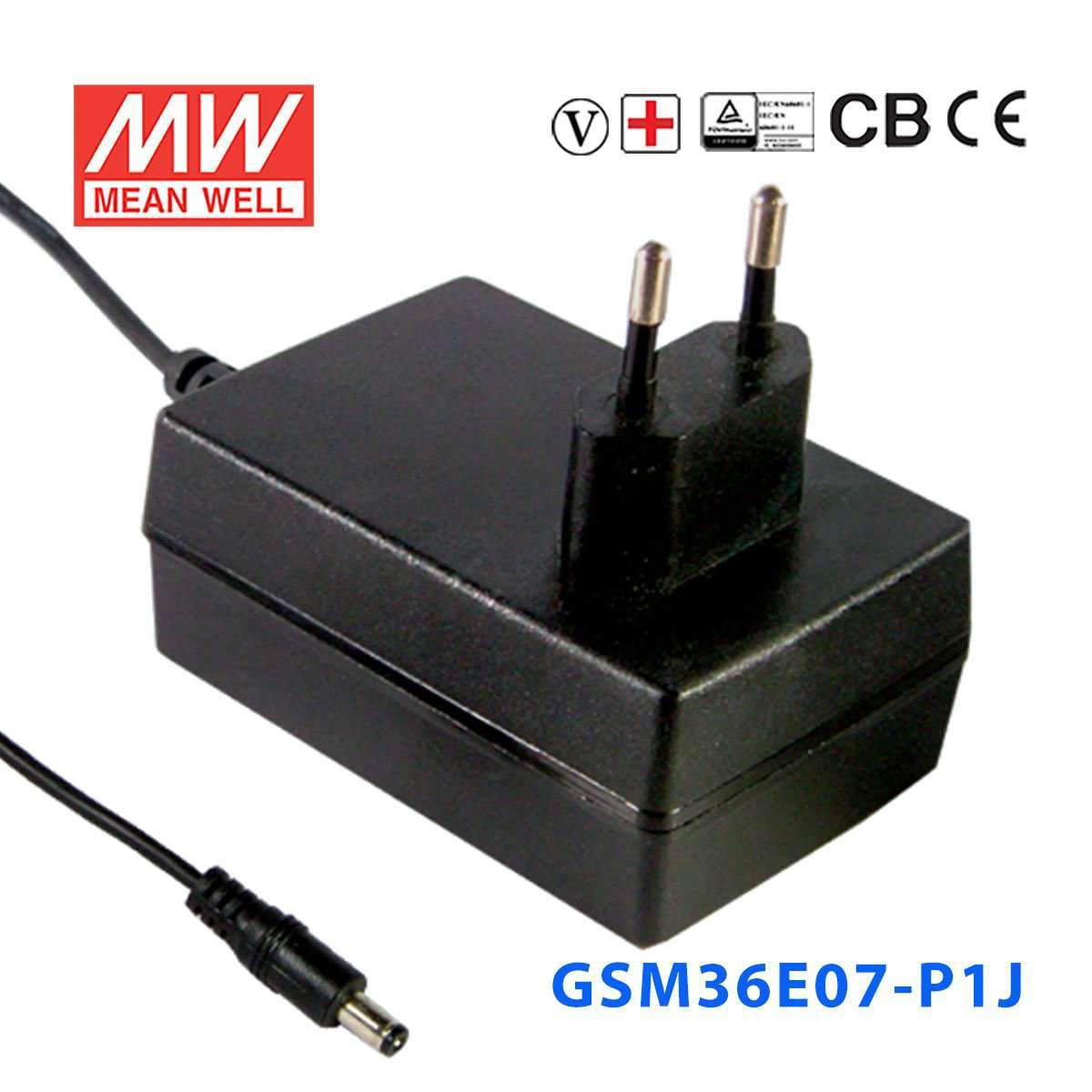

Mean Well GSM36E07-P1J Power Supply 32.4W 7.5V
The GSM36E07 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating32.5 Watt
-
Output Voltage7.5 Volt
-
Rated Current4.32 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the GSM36E07-P1J for a 7.5V embedded system or legacy controller?
Yes, if the equipment requires constant 7.5V DC and stays within 4.32A output current and 32.5W total power. That makes it a fit for 7.5V embedded or control hardware that is designed around that voltage.
Is this a good choice for 7.5V test instruments or industrial handheld equipment?
It can be used for 7.5V instruments or handheld industrial electronics that need a fixed 7.5V supply and do not exceed 32.5W. The key matching points are the 7.5V output, 4.32A current limit, and constant voltage operation.
Can the GSM36E07-P1J power a 7.5V communications or IT peripheral?
Yes, for communications or IT peripherals rated for 7.5V constant voltage and up to 4.32A. Its 80-264VAC input range also makes it suitable where the same device may be used across different AC mains environments.
Is this power supply intended for indoor or outdoor environments?
The published specs give an operating temperature range of -25°C to +60°C, but no IP rating is listed. That means temperature limits are defined, while outdoor exposure or sealed-enclosure suitability is not specified in the provided data.
How do I know if 32.5W is enough for my 7.5V load?
This model provides up to 32.5W at 7.5V with a maximum output current of 4.32A. It is suitable only when the total device demand stays at or below those limits.
