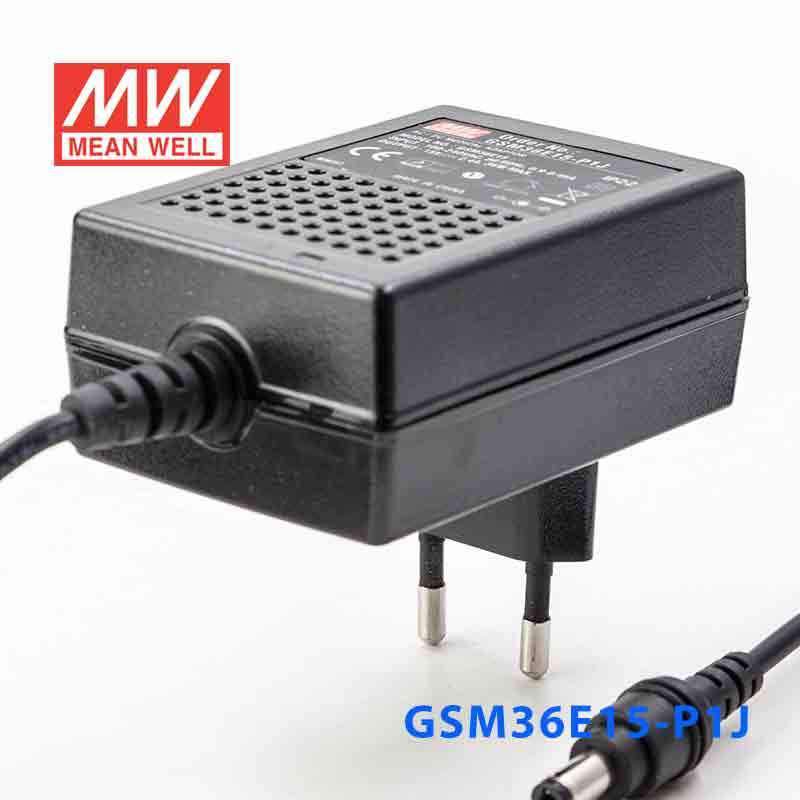

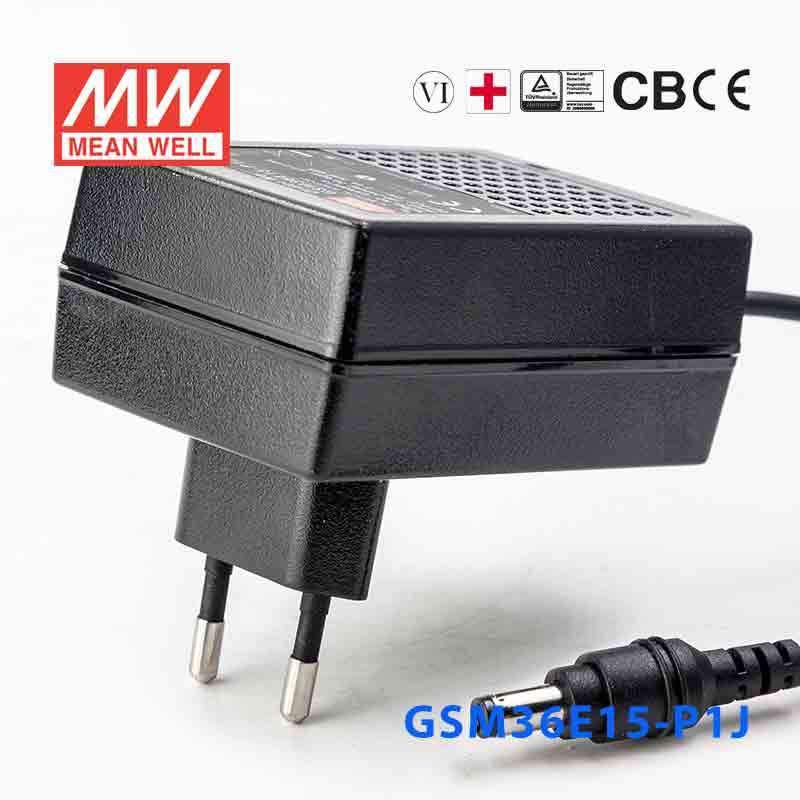

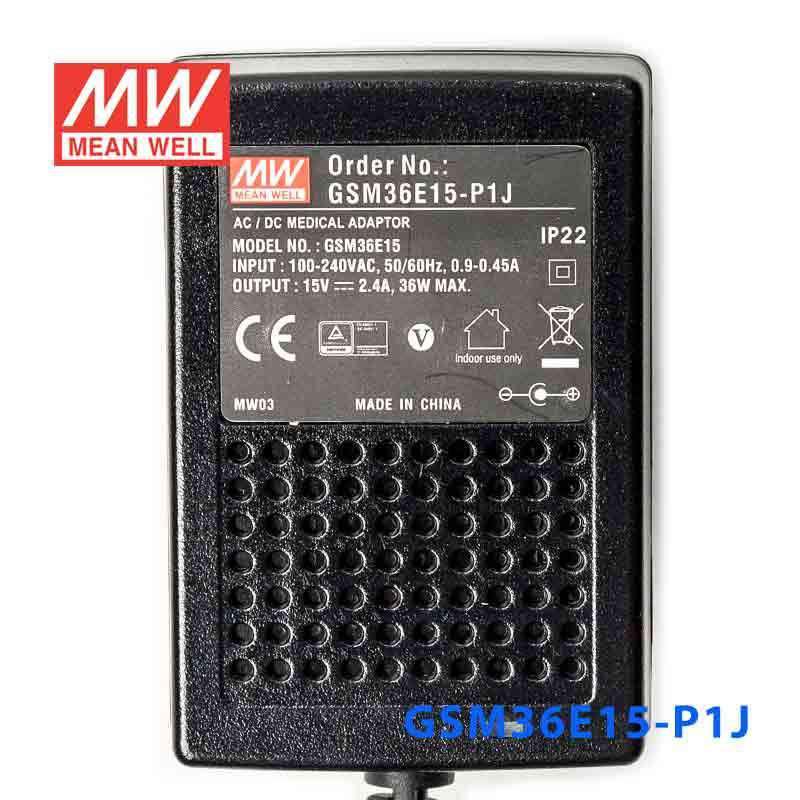

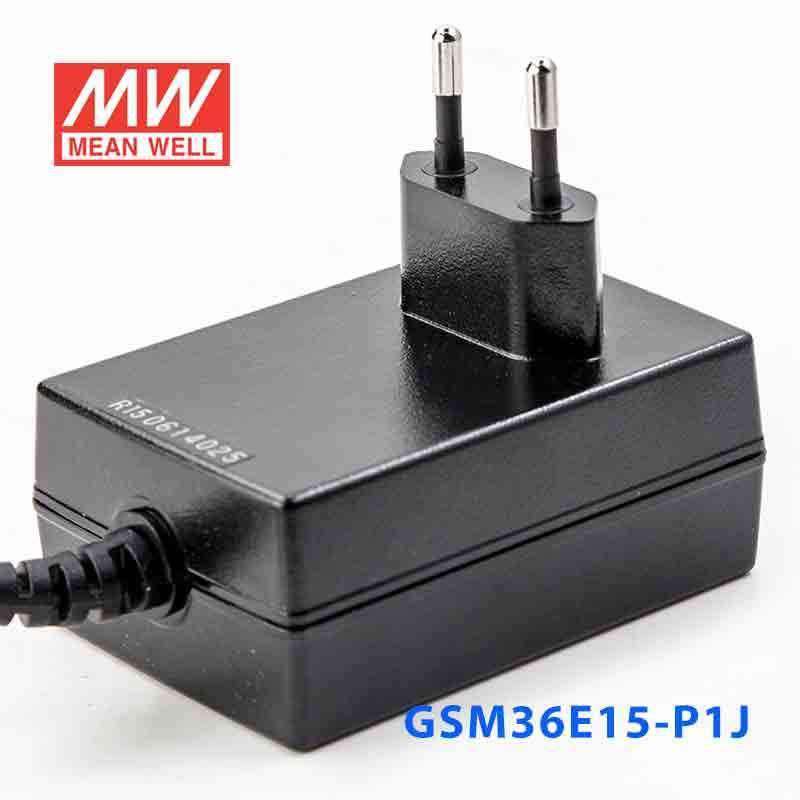

Mean Well GSM36E15-P1J Power Supply 36W 15V
The GSM36E15 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage15 Volt
-
Rated Current2.4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the GSM36E15-P1J for a 15V industrial sensor interface or analog module?
Yes, if the equipment is designed for constant 15V DC and draws no more than 2.4A. This model provides up to 36W total output power, which fits smaller 15V industrial electronics within that load range.
Is this a fit for 15V instrumentation or control electronics?
It is suitable for 15V instrumentation or control devices that require constant voltage output and stay within 2.4A and 36W. The important match points are the 15V rating and the available output current.
Can the GSM36E15-P1J power a 15V communications or embedded device?
Yes, for communications or embedded hardware specified for 15V constant voltage input and no more than 2.4A current draw. Its 80-264VAC input range also supports use where AC supply conditions vary by region.
How does this model handle indoor environmental conditions?
The listed operating temperature range is -25°C to +60°C, which defines the temperature envelope for use. The provided specs do not list an IP rating, so enclosure sealing or exposed outdoor suitability is not defined here.
How should I size this power supply for a 15V load?
This unit is rated for 15V output at up to 2.4A, with 36W maximum power. It should only be selected for loads that require constant 15V DC and remain within both the 2.4A and 36W limits.
