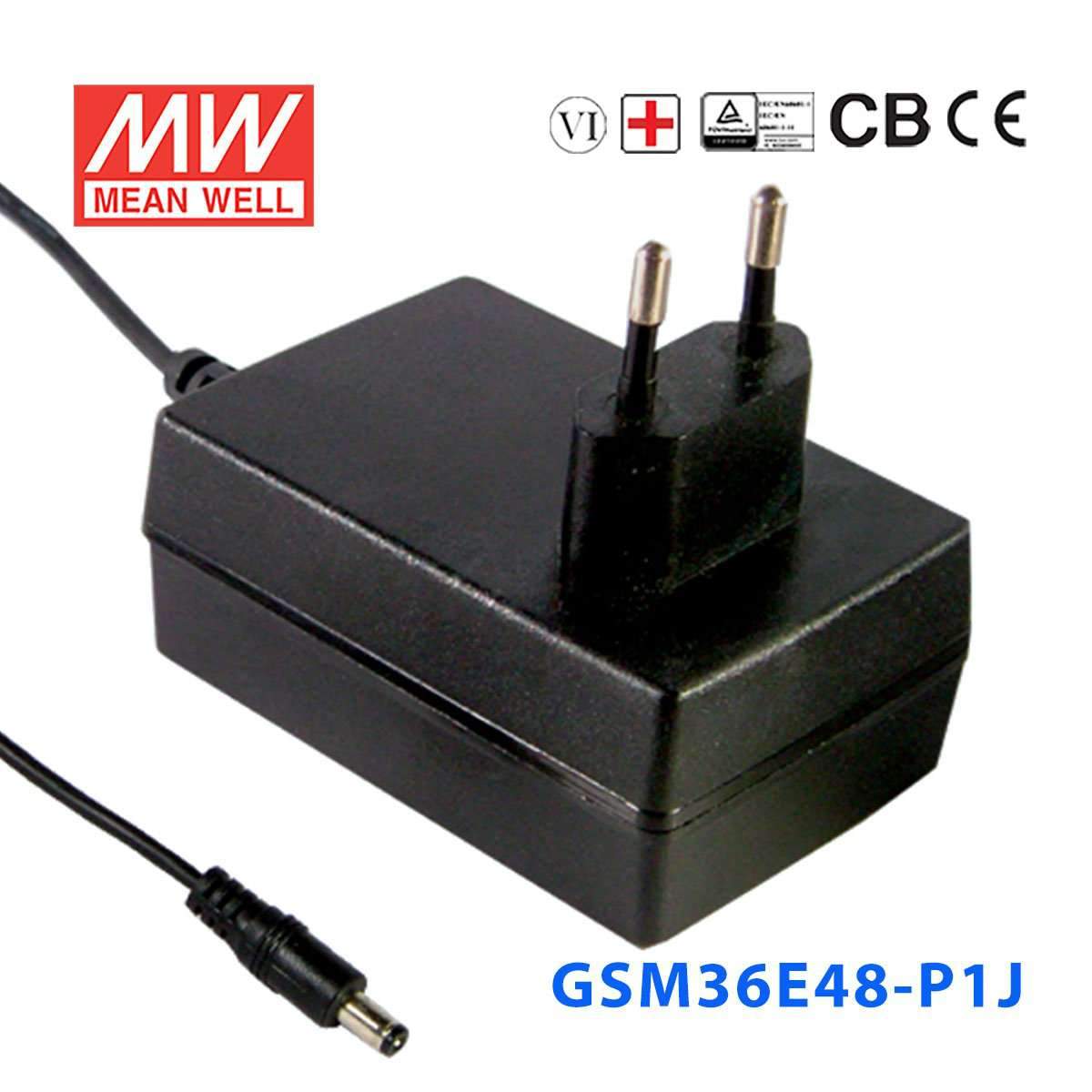

Mean Well GSM36E48-P1J Power Supply 36W 48V
The GSM36E48 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage48 Volt
-
Rated Current0.75 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the GSM36E48-P1J for 48V networking, telecom, or industrial communications equipment?
It can be used for 48V DC equipment that expects a constant-voltage source and stays within 0.75A. The maximum output is 36W, so the load must fit within both 48V and 0.75A.
Is this 48V power supply a fit for embedded or control systems that require 48V DC input?
Yes, if the system is specified for constant 48V DC and its demand does not exceed 36W. Output current is limited to 0.75A, which is the main sizing check for smaller 48V loads.
Can the GSM36E48-P1J power compact 48V automation or signal-processing devices?
It is suitable for compact 48V DC devices that operate from a constant-voltage source. The available output is 0.75A at 48V, with a 36W rating, so higher-current 48V loads would require a different model.
Can this 48V adapter be used outdoors or in exposed industrial areas?
The operating temperature range in the listed specs is -25°C to +60°C. The provided product data does not show an IP rating, so exposed outdoor suitability is not confirmed by the listed specifications.
How should I check compatibility for a 48V device with this power supply?
The device should require constant 48V DC and draw no more than 0.75A, with total power at or below 36W. If the load needs more current than 0.75A, this unit is not large enough.
