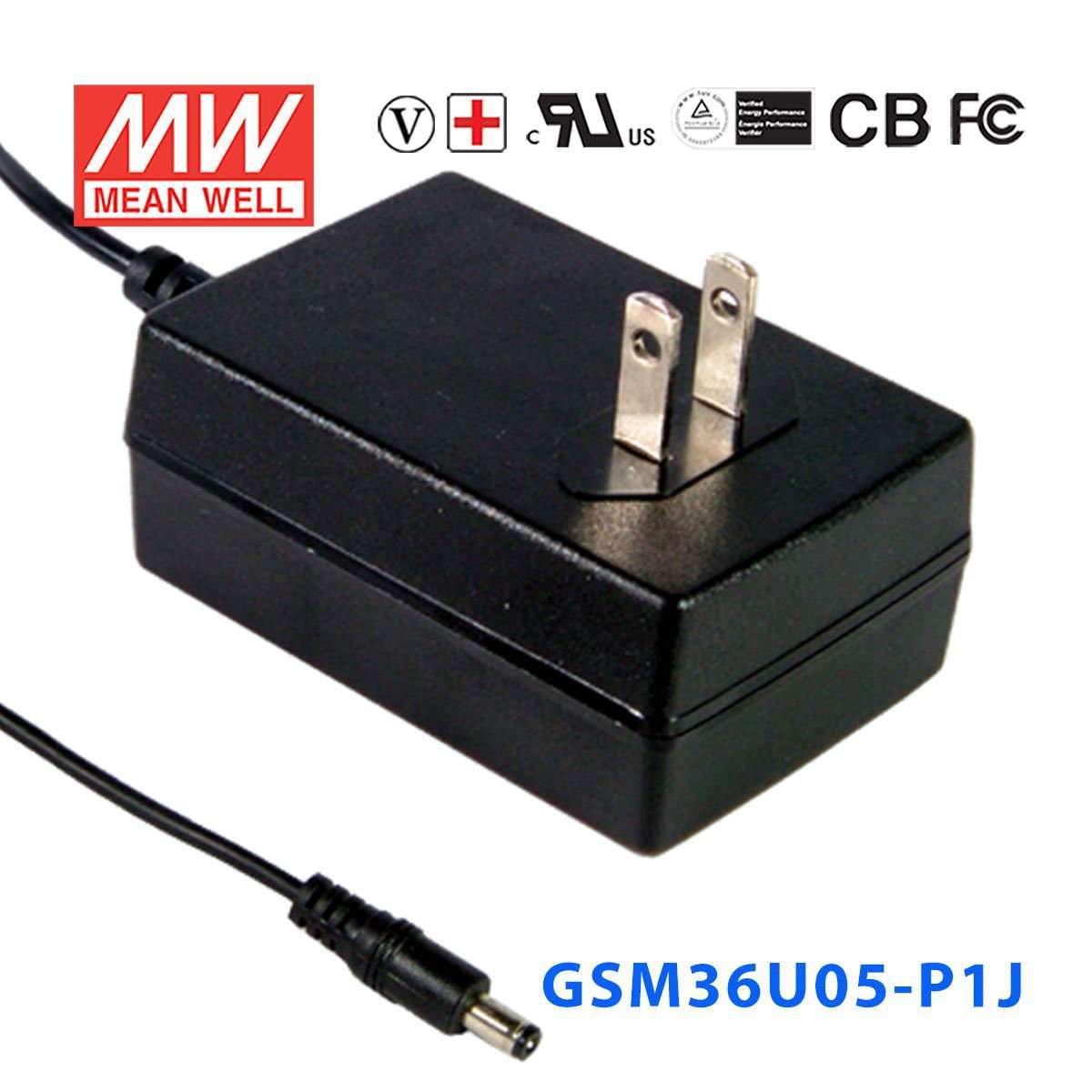

Mean Well GSM36U05-P1J Power Supply 22.5W 5V
Description
Description
Features
| Universal AC input / Full range |
| 2 pole USA plug |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <50uA |
| No load power consumption < 0.1W |
| High efficiency up to 88% |
| Class II power (without earth pin) |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| LED indicator for power on |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| Overload protection | 105%~170% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4KVAC |
| Working temperature | -25~+60°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1,ES60601-1-11 approved |
| EMC standards | FCC part 15 class B |
| Length of output cable | 120cm of UL1185, 16AWG for 5~9V ; 180cm of UL1185, 16AWG for 12~48V |
| Dimension (LxWxH) | 79x 54x 33mm |
| Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating22.5 Watt
-
Output Voltage5 Volt
-
Rated Current4.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,EAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.47 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM36U05-P1J for 5V embedded systems, SBCs, or USB-powered industrial electronics?
It is designed for constant 5V output and can supply up to 4.5A, with a total rating of 22.5W. That makes it suitable for 5V electronics that stay within those current and power limits.
Is this 5V power supply suitable for automation interfaces or compact controllers that run on 5V DC?
Yes, as long as the equipment is specified for constant 5V DC input. The output capacity is 4.5A and 22.5W, so the connected 5V load needs to remain within that range.
Can the GSM36U05-P1J be used for small IT or communications devices that need a stable 5V supply?
It can be a fit for small IT or communications hardware designed around a 5V constant-voltage input. The available output is 4.5A, so it is better suited to lower-power 5V equipment than to loads above 22.5W.
Is the GSM36U05-P1J rated for outdoor operation?
The listed operating temperature range is -25°C to +60°C. The provided specs do not include an IP rating, so outdoor or wet-location suitability is not confirmed by the published data.
How do I know whether this 5V model has enough capacity for my equipment?
Check that the equipment needs constant 5V DC and that its draw stays at or below 4.5A and 22.5W. If the required current or wattage is higher, this supply is not correctly sized.
