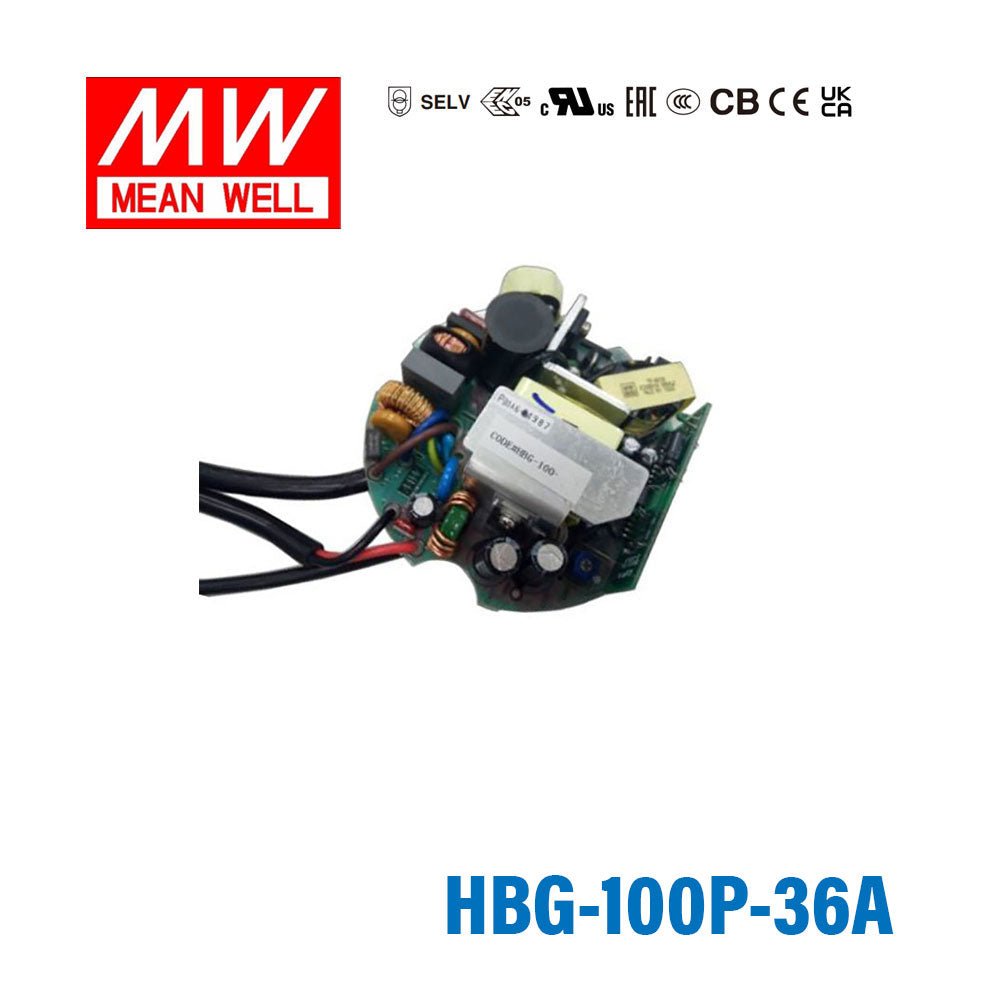

Mean Well HBG-100P-36A Power Supply 100W 36V PCB Type - Adjustable

circular shape, for high/low bay light, PCB design
SKU:
HBG-100P-36A

Model
$56.33 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Constant current mode output
Circular shape PCB type design with class II design
Built-in active PFC function
Class 2 power unit
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 90~295VAC   127~417VDC
AC inrush current (max.) Cold start, 45A at 230VAC
DC adjustment range 65%~100% rated current
Over current protection Hiccup mode, auto recovery
Withstand voltage I/P - O/P: 3.75kVAC
Working temperature -40~+70°C
Safety standards BS EN/EN61347-1, BS EN/EN61347-2-13
EMC standards EN55015, EN61000-3-2 Class C, EN61000-3-3
Connection UL1015 18AWG
Dimension (DxH) φ99x26
Packing 45pcs/10.4Kg

Specifications

  • Brand
    Mean Well
  • Series
    HBGP Series
  • Power Rating
    97.2 Watt
  • Output Voltage
    37 Volt
  • Rated Current
    2.7 Ampere
  • Input Voltage
    90V~305V
  • No of Output
    1
  • Dimming Control
    Built-in Potentiometer
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    5.12 in
  • Width
    5.12 in
  • Height
    2.62 in
  • Weight
    2.6 lb
