Mean Well HBG-100P-60B Power Supply 100W 60V PCB Type - Dimmable

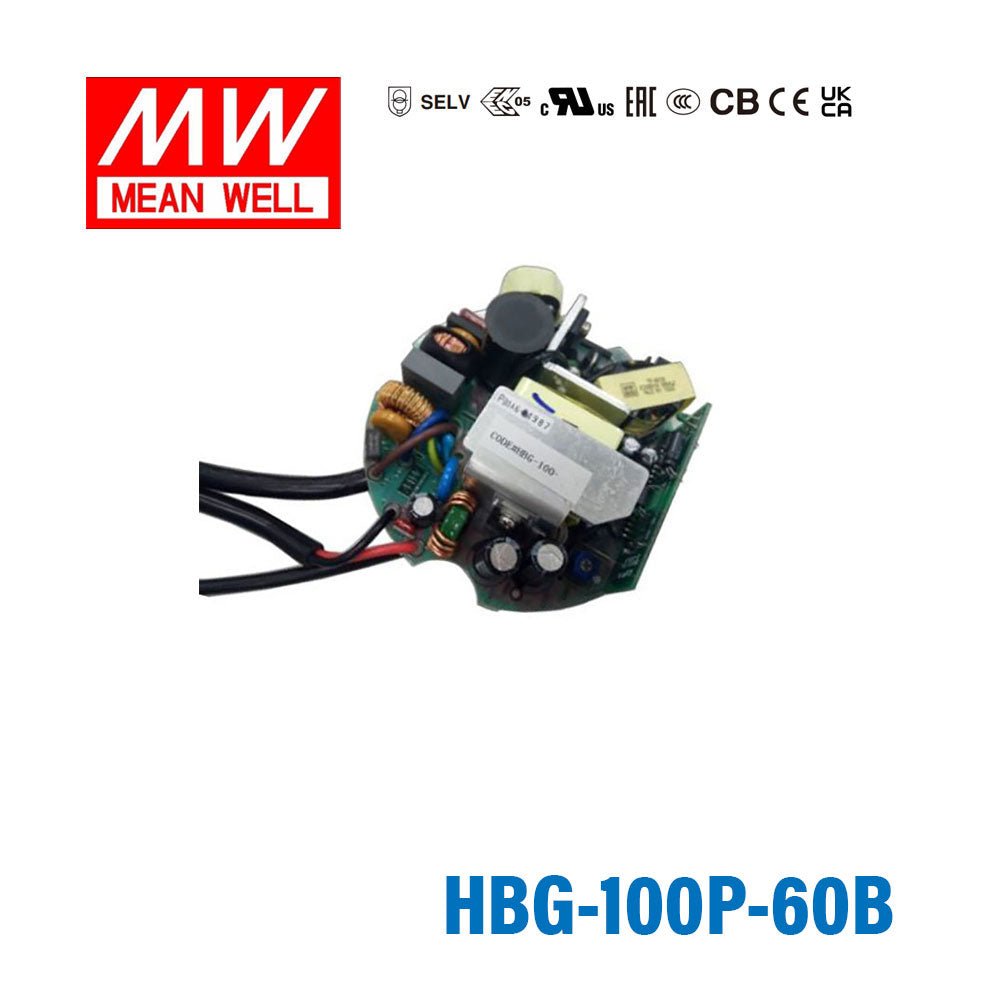

circular shapefor high/low bay lightPCB design
SKU HBG-100P-60B
$54.72 USD
Shipping calculated at checkout.

Select model — 28 in this family

HBG-100P-60B
|

Your order will be processed within 24 hours

Overview

HBG-100P-60B is the model of this series: rated current 1.6A, rated power 96W, typical efficiency 91.5%.

HBG-100P series is a 100W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90～305VAC and offers constant current output models with different rated voltage ranging between 36V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +45℃ under free air convection. HBG-100P is equipped with various function options, such as dimming methodology, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Circular shape PCB type design
  • Built-in active PFC function
  • Function options: output adjustable via potentiometer; 3 in 1 dimming
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

HBG-100P-60BSpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

RATED CURRENT
1.6A
RATED POWER
96W
CONSTANT CURRENT REGIONNote.2
36 ~ 60V
OPEN CIRCUIT VOLTAGE(max.)
62V
CURRENT ADJ. RANGE
Adjustable for A-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE
1.0 ~ 1.6A
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5.0%
SET UP TIMENote.4
2000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGENote.3
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.96/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)Note.5
91.5%
AC CURRENT
1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
65 ~ 75V Shut down o/p voltage, re-power on to recovery
OVER TEMPERATURENote.10
Shut down o/p voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.
Ta=-40 ~ +45℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 45℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB/T19510.1,GB/T19510.213,EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV),EAC TP TC 020

OTHERS

MTBF
2612.1K hrs min. Telcordia SR-332 (Bellcore) ;346.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
Refer to mechanical specification
PACKING
0.3Kg; 45pcs/14.5Kg/1.60CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  4. 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  5. 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. This series meets the typical life expectancy of >50,000 hours of operation when Ta is about 45℃ or less.
  7. 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. All functional testing must be filled with potting,including OTP function .

Technical drawings

HBG-100P-60B BLOCK DIAGRAM
BLOCK DIAGRAM
HBG-100P-60B DIMMING OPERATION
DIMMING OPERATION
HBG-100P-60B ◎ Applying additive resistance
◎ Applying additive resistance
HBG-100P-60B ◎ Applying additive resistance (2)
◎ Applying additive resistance (2)
HBG-100P-60B OUTPUT LOAD vs TEMPERATURE
OUTPUT LOAD vs TEMPERATURE
HBG-100P-60B STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
HBG-100P-60B TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HBG-100P-60B MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION

Typical applications

  • LED bay lighting
  • LED down lighting
  • LED spot lighting
  • LED mining lighting
  • LED stage lighting

Downloads

FAQ

What is the Mean Well HBG-100P-60B designed for?

The HBG-100P-60B is a 100W-class constant current LED power supply intended for LED lighting applications that need a dimmable driver. It is rated 96W at 1.6A across a 36-60V constant current region and is designed to drive LEDs directly.

What dimming methods does the HBG-100P-60B support?

This model supports 10V PWM, 1-10V, and resistance dimming control. That gives buyers flexibility when selecting a compatible dimming approach for commercial or architectural LED systems.

Is the HBG-100P-60B a constant current or constant voltage power supply?

The HBG-100P-60B is a constant current model. It is specified with constant current mode output and a rated current of 1.6A, which makes it different from a constant voltage supply used for loads that expect a fixed voltage output.

What are the key electrical specifications of this model?

This unit is rated at 96W with a 36-60V constant current region (62V max. open circuit voltage) and a rated current of 1.6A. It also includes built-in PFC (PF ≥0.96 at 115/230VAC full load) and 91.5% typical efficiency, which are important specifications for many professional lighting projects.

Can the HBG-100P-60B operate across a wide input voltage range?

Yes. It accepts 90-305VAC or 127-431VDC input, which makes it suitable for projects that need broad input compatibility across different power environments.

Is this power supply suitable for demanding temperature conditions?

The HBG-100P-60B has a listed working temperature range of Ta = -40 to +45°C, with load derating per the output load vs temperature curve. That makes it suitable for indoor and protected-environment lighting applications, including cold locations, as long as the derating is respected.

What are the size, lifespan, and warranty details for the HBG-100P-60B?

The unit weighs 0.3kg; dimensions are given in the datasheet's mechanical drawing. Mean Well lists a typical life expectancy over 50,000 hours at an ambient of about 45°C or less, and refers to the warranty statement on its website for warranty terms.
