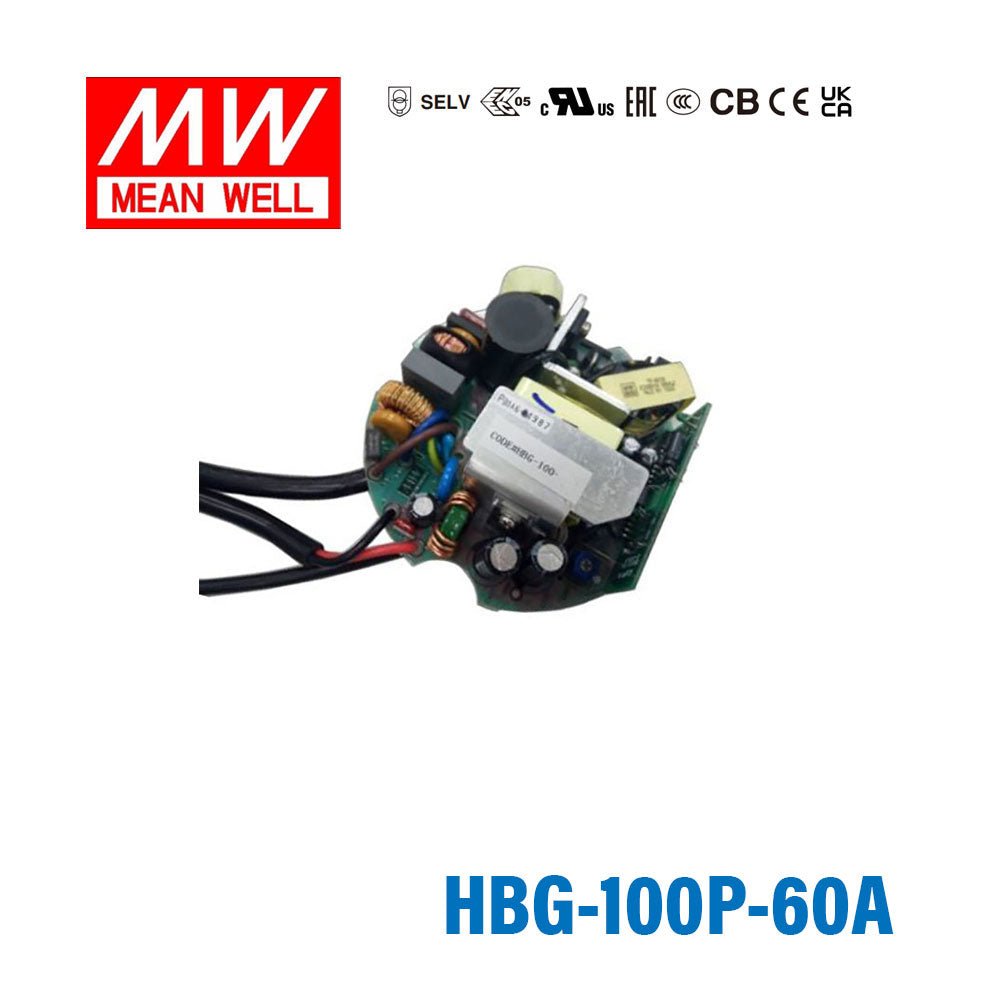

Mean Well HBG-100P-60A Power Supply 100W 60V PCB Type

Name: Mean Well HBG-100P-60A Power Supply 100W 60V PCB Type - Adjustable
Brand: Mean Well
SKU: HBG-100P-60A
Price: 56.33 USD
Availability: InStock

Overview

HBG-100P-60A is the model of this series: rated current 1.6A, rated power 96W, typical efficiency 91.5%.

HBG-100P series is a 100W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90～305VAC and offers constant current output models with different rated voltage ranging between 36V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +45℃ under free air convection. HBG-100P is equipped with various function options, such as dimming methodology, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Circular shape PCB type design
Built-in active PFC function
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-100P-60ASpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

RATED CURRENT: 1.6A
RATED POWER: 96W
CONSTANT CURRENT REGION^Note.2: 36 ~ 60V
OPEN CIRCUIT VOLTAGE(max.): 62V
CURRENT ADJ. RANGE: Adjustable for A-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 1.0 ~ 1.6A
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 2000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.96/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)^Note.5: 91.5%
AC CURRENT: 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 65 ~ 75V Shut down o/p voltage, re-power on to recovery
OVER TEMPERATURE^Note.10: Shut down o/p voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Ta=-40 ~ +45℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB/T19510.1,GB/T19510.213,EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV),EAC TP TC 020

OTHERS

MTBF: 2612.1K hrs min. Telcordia SR-332 (Bellcore) ;346.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: Refer to mechanical specification
PACKING: 0.3Kg; 45pcs/14.5Kg/1.60CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Ta is about 45℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. All functional testing must be filled with potting,including OTP function .

Technical drawings

HBG-100P-60A BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-100P-60A DIMMING OPERATION — DIMMING OPERATION

HBG-100P-60A ◎ Applying additive resistance — ◎ Applying additive resistance

HBG-100P-60A ◎ Applying additive resistance (2) — ◎ Applying additive resistance (2)

HBG-100P-60A OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HBG-100P-60A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-100P-60A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-100P-60A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED bay lighting
LED down lighting
LED spot lighting
LED mining lighting
LED stage lighting

Downloads

Certificates9

Mean Well HBG-100-160-60(DA) BIS Certificate PDF Download

Mean Well HBG-100 ENEC Certificate PDF Download

Mean Well HBG-100 CCC Certificate PDF Download

Mean Well HBG-100 CB Certificate PDF Download

Mean Well HBG-100 EMC Certificate PDF Download

Mean Well HBG-100 UK-dec Certificate PDF Download

Mean Well HBG-100 CE-DEC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-100-60 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What type of LED applications is the Mean Well HBG-100P-60A designed for?

The HBG-100P-60A is a constant current LED driver intended for professional LED lighting applications that need a high-voltage, constant current output. It is designed to drive LEDs directly and its output current can be tuned with a built-in potentiometer. It is best suited to applications that match its 36-60V constant current region and 1.6A rated current.

What are the key electrical specs of the HBG-100P-60A?

This model is in the 100W class, with the datasheet listing 96W power, a 36-60V constant current region (62V max. open circuit voltage), and 1.6A rated current. The input range is 90 to 305VAC or 127 to 431VDC. It also includes built-in PFC (PF ≥0.96 at 115/230VAC full load).

Does the HBG-100P-60A support output adjustment?

Yes, this version includes a built-in potentiometer. The listed current adjustment range is 1.0 to 1.6A. That makes it useful where some output current tuning is needed within the driver's supported range.

Is the HBG-100P-60A suitable for demanding temperature environments?

The specification lists a working temperature range of Ta = -40 to +45°C, with load derating per the output load vs temperature curve. That makes it suitable for a wide range of indoor or protected commercial and industrial lighting environments. Buyers should still confirm the full fixture design stays within the driver's stated operating limits.

What protections and reliability features does this model include?

The HBG-100P-60A includes over-current protection by constant current limiting with automatic recovery, plus over-voltage and over-temperature shutdown. Mean Well also lists a typical life expectancy over 50,000 hours at an ambient of about 45°C or less. Those are important indicators for long-service LED lighting projects.

How does the HBG-100P-60A differ from a general-purpose power supply?

This model is built as a constant current LED driver rather than a general-purpose fixed-voltage power supply. That matters for LED applications where maintaining the specified current is the primary requirement. It is a better fit when the lighting load is designed around a 1.6A constant current driver in the 60V class.
