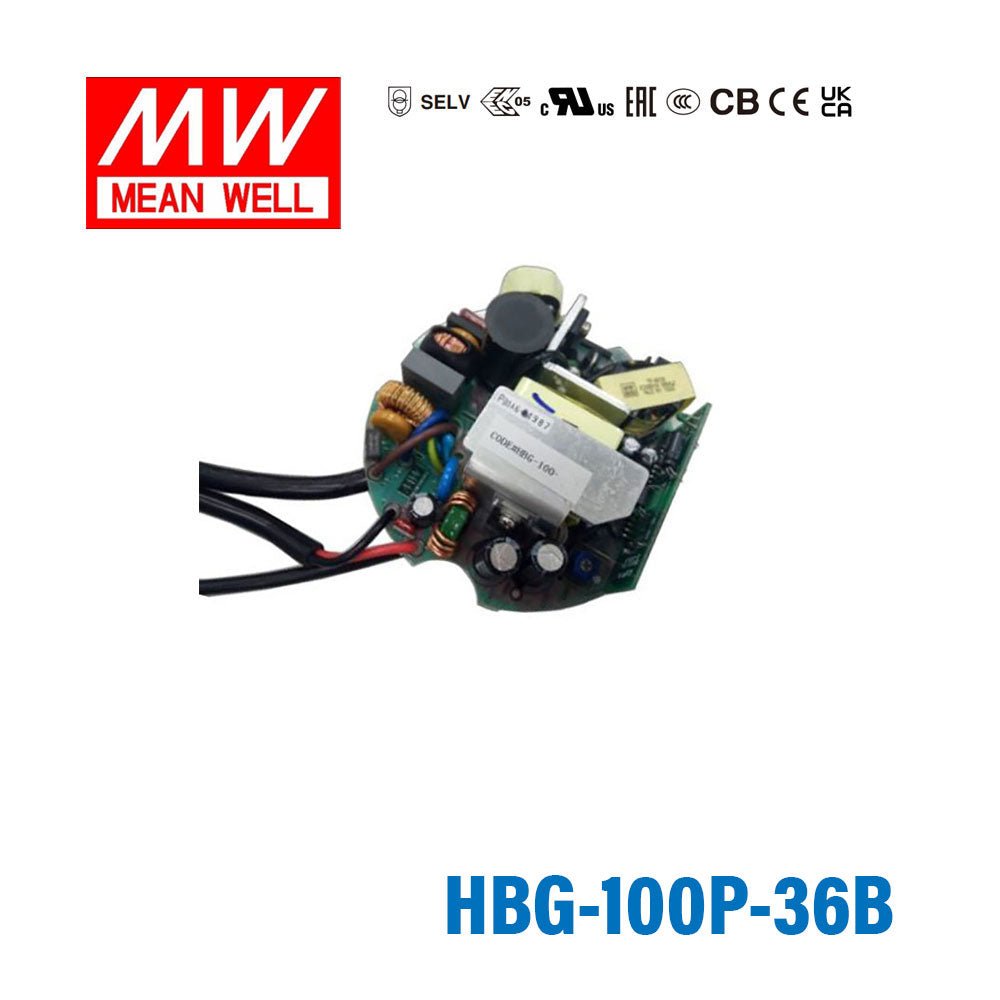

Mean Well HBG-100P-36B Power Supply 100W 36V PCB Type

Name: Mean Well HBG-100P-36B Power Supply 100W 36V PCB Type - Dimmable
Brand: Mean Well
SKU: HBG-100P-36B
Price: 49.98 USD
Availability: InStock

Overview

HBG-100P-36B is the model of this series: rated current 2.7A, rated power 97.2W, typical efficiency 91%.

HBG-100P series is a 100W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90～305VAC and offers constant current output models with different rated voltage ranging between 36V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +45℃ under free air convection. HBG-100P is equipped with various function options, such as dimming methodology, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Circular shape PCB type design
Built-in active PFC function
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-100P-36BSpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

RATED CURRENT: 2.7A
RATED POWER: 97.2W
CONSTANT CURRENT REGION^Note.2: 21.6 ~ 36V
OPEN CIRCUIT VOLTAGE(max.): 37V
CURRENT ADJ. RANGE: Adjustable for A-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 1.62 ~ 2.7A
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 2000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.96/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)^Note.5: 91%
AC CURRENT: 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 49V Shut down o/p voltage, re-power on to recovery
OVER TEMPERATURE^Note.10: Shut down o/p voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Ta=-40 ~ +45℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB/T19510.1,GB/T19510.213,EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV),EAC TP TC 020

OTHERS

MTBF: 2612.1K hrs min. Telcordia SR-332 (Bellcore) ;346.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: Refer to mechanical specification
PACKING: 0.3Kg; 45pcs/14.5Kg/1.60CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Ta is about 45℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. All functional testing must be filled with potting,including OTP function .

Technical drawings

HBG-100P-36B BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-100P-36B DIMMING OPERATION — DIMMING OPERATION

HBG-100P-36B ◎ Applying additive resistance — ◎ Applying additive resistance

HBG-100P-36B ◎ Applying additive resistance (2) — ◎ Applying additive resistance (2)

HBG-100P-36B OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HBG-100P-36B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-100P-36B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-100P-36B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED bay lighting
LED down lighting
LED spot lighting
LED mining lighting
LED stage lighting

Downloads

Certificates9

Mean Well HBG-100-160-60(DA) BIS Certificate PDF Download

Mean Well HBG-100 ENEC Certificate PDF Download

Mean Well HBG-100 CCC Certificate PDF Download

Mean Well HBG-100 CB Certificate PDF Download

Mean Well HBG-100 EMC Certificate PDF Download

Mean Well HBG-100 UK-dec Certificate PDF Download

Mean Well HBG-100 CE-DEC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-100-36 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What type of LED applications is the Mean Well HBG-100P-36B designed for?

This model is intended for constant current LED lighting applications that need a dimmable driver in the 100W class. It is suited to OEM and commercial lighting builds where a 36V-class output and current-controlled operation are required.

What are the main output ratings of the HBG-100P-36B?

The HBG-100P-36B is rated at 97.2W with a 21.6-36V constant current region, 37V max. open circuit voltage, and 2.7A rated current. Its output current is adjusted through the DIM+/DIM- dimming input.

What dimming controls does the HBG-100P-36B support?

This version supports 10V PWM, 1-10V, and resistance dimming control. That makes it a practical choice when the lighting system needs output adjustment rather than fixed full-power operation.

Is the HBG-100P-36B suitable for demanding temperature conditions?

According to the specification, the driver is rated for operation from Ta = -40°C to +45°C, with load derating per the output load vs temperature curve. That makes it appropriate for installations exposed to cold starts, provided the ambient stays within the unit's rated limits.

What certifications and electrical protection features does this model include?

The HBG-100P-36B has built-in PFC, over-current protection by constant current limiting with automatic recovery, and over-voltage and over-temperature shutdown. It meets listed safety and EMC standards including UL8750, EN61347-1, EN61347-2-13, and EN55015.

What distinguishes the HBG-100P-36B from a basic non-dimmable LED driver?

A key difference is that this model combines constant current output with multiple dimming control options, including 1-10V, 10V PWM, and resistance dimming. It is also designed to drive LEDs directly in constant current mode, which can matter when matching the driver to the LED load.

What should buyers know about the physical format and service life of the HBG-100P-36B?

This driver weighs 0.3kg, with dimensions given in the datasheet's mechanical drawing. Mean Well lists a typical life expectancy over 50,000 hours at an ambient of about 45°C or less and refers to the warranty statement on its website for warranty terms.
