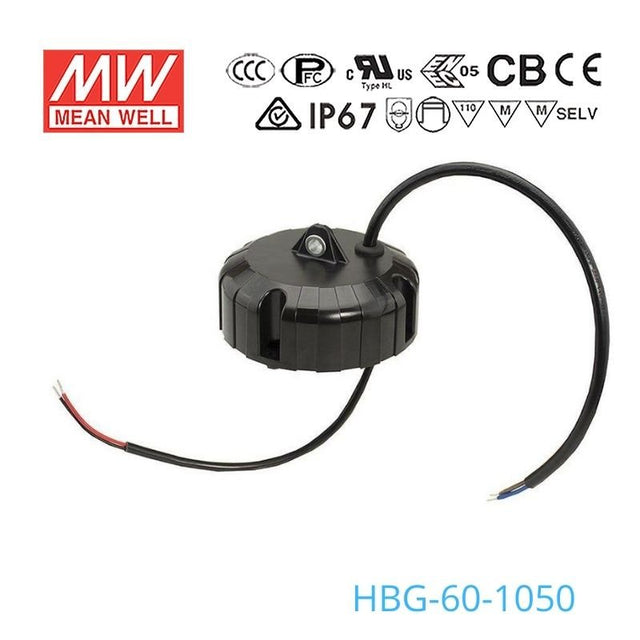

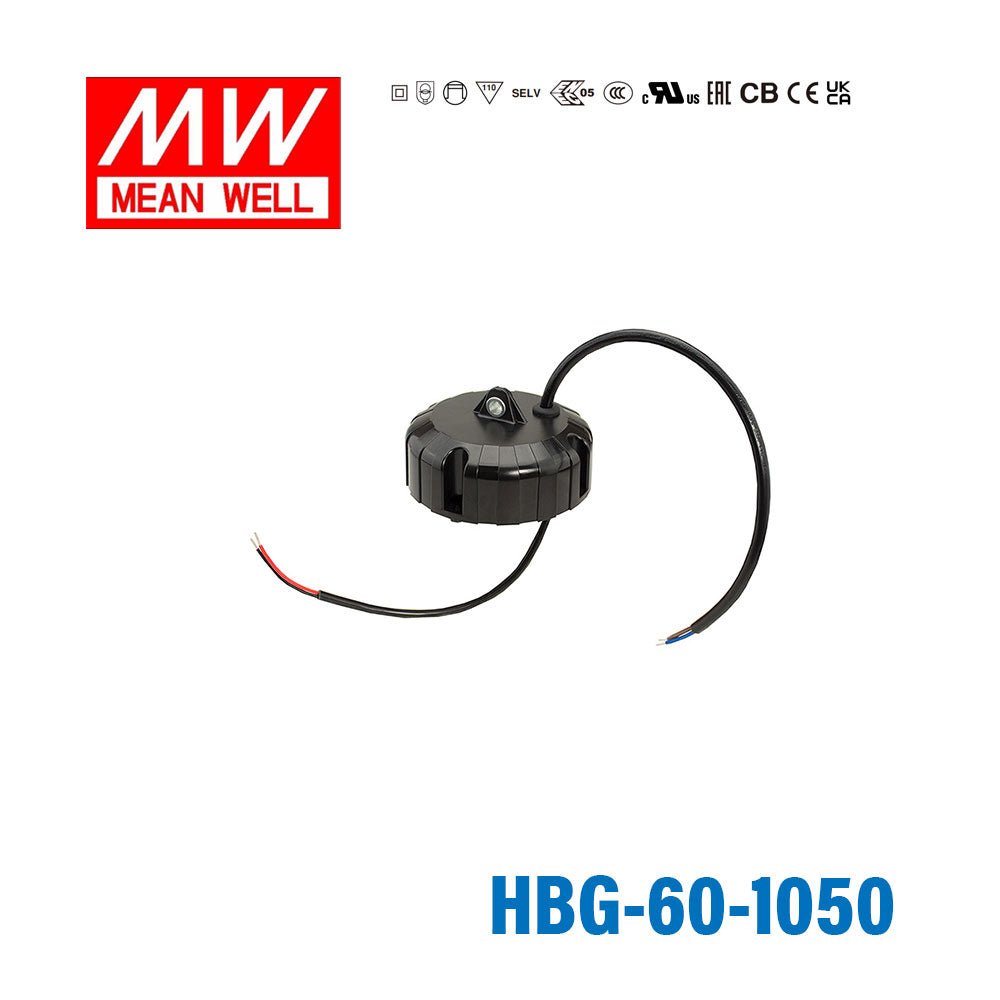

Mean Well HBG-60-1050 Power Supply 60W 1050mA
The HBG-60 is a 60W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating57.75 Watt
-
Output Voltage60 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length4.33 in
-
Width4.33 in
-
Height2.38 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
Can I use the HBG-60-1050 for LED downlights that need a higher forward-voltage constant current driver?
This model is a constant current LED driver with a 37-55V constant current range and 57.75W output. It fits LED downlights built around a higher forward-voltage LED load that operates within that range. It is not a constant voltage driver, so it should be matched to a constant current LED load.
Is the HBG-60-1050 suitable for a compact LED signage module assembly?
It can suit a signage module assembly if the LED load is designed for constant current operation and falls within the 37-55V constant current range. The available output power is 57.75W, so the total load also needs to stay within that rating. This is generally the better fit for higher forward-voltage module strings rather than constant voltage signage products.
Can this driver run a small LED array or COB module?
Yes, if the LED array is a constant current load and its operating voltage stays within 37-55V. With 57.75W available, it is aimed at moderate-power LED arrays rather than larger multi-array builds. The key match is the array's constant current requirement, not a fixed constant voltage output.
How do I know if my LED load is compatible with the HBG-60-1050?
Check that the LED load is designed for constant current operation and that its total forward voltage falls within the 37-55V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this driver. The load also needs to stay within the 57.75W rating.
What is the difference between the HBG-60-1050 and the other HBG-60 constant current versions?
Within the HBG-60 constant current group, the HBG-60-1050 is 57.75W with a 37-55V CC range at 1.05mA, the HBG-60-1400 is 60.2W with a 28-43V CC range at 1.4mA, and the HBG-60-2100 is 60.9W with a 19-29V CC range at 2.1mA. The P versions listed for each current level carry the same electrical ratings. All three use 90-295VAC input and share the 110.0 x 110.0 x 60.5 mm form factor.
Can the HBG-60-1050 be used in hot or cold operating conditions?
The specified operating temperature range is -40°C to +85°C. That covers demanding thermal conditions, but these specs do not list an IP rating. If the environment is exposed to water or dust, you would need the product's listed enclosure rating before treating it as suitable for that condition.
