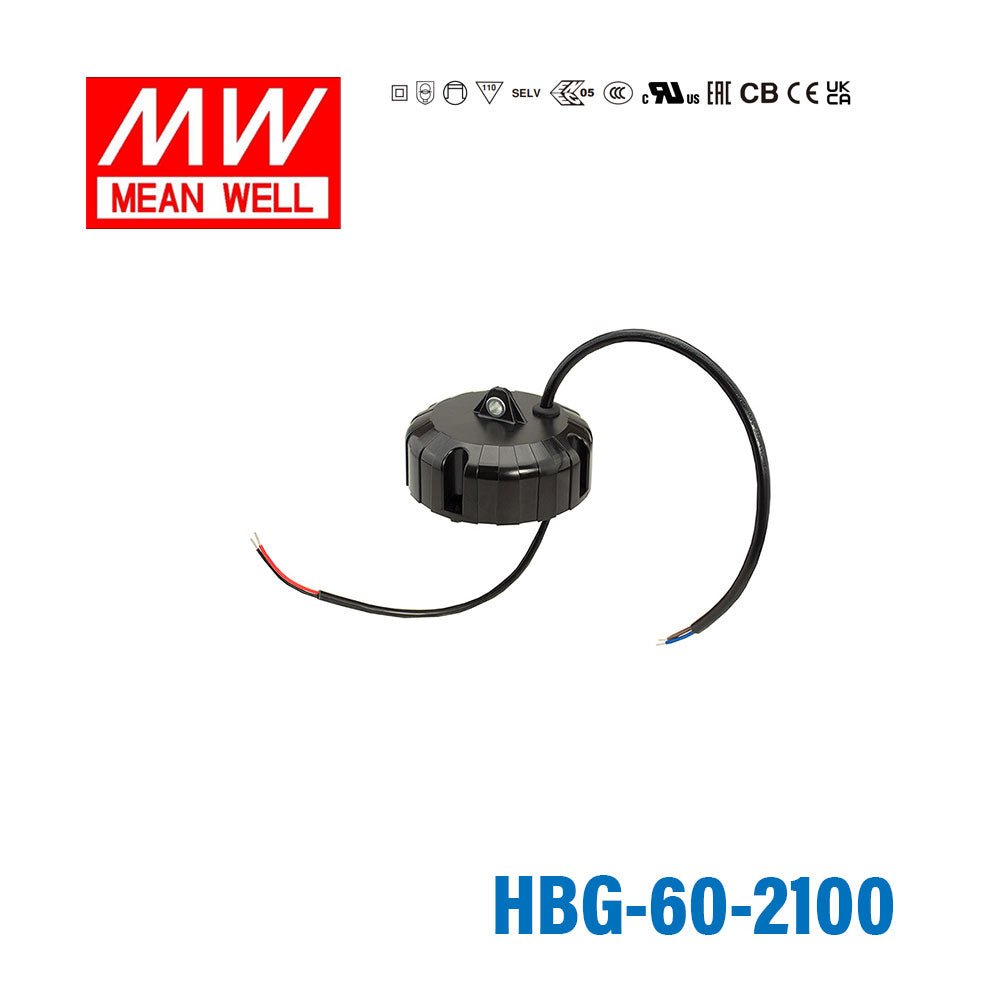

Mean Well HBG-60-2100 Power Supply 60W 2100mA
Overview
HBG-60-2100 is the model of this series: rated current 2100mA, rated power 60.9W, typical efficiency 89%.
HBG-60 series is a 60W AC/DC LED driver featuring the circular shape design with the plastic enclosure. It operates from 90~295VAC and offers the constant current output models with different rated current between 1050mA and 2100mA. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection.
Features
- Constant current mode output
- Circular plastic housing with class II design
- Built-in active PFC function
- Class 2 power unit
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 2100mA
- RATED POWER
- 60.9W
- CONSTANT CURRENT REGIONNote.2
- 19 ~ 29V
- OPEN CIRCUIT VOLTAGE(max.)
- 35V
- CURRENT ADJ. RANGE
- 1360mA ~ 2100mA
- CURRENT RIPPLE
- 25% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SET UP TIMENote.4
- 500ms / 230VAC 1200ms / 115VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 295VAC 127 ~ 417VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧65%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT (Typ.)
- 0.7A/115VAC 0.4A/230VAC 0.3A/277VAC
- INRUSH CURRENT (Typ.)
- COLD START 45A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 28 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.8
- Compliance to BS EN/EN55015, GB/T 17743, GB17625.1, BS EN/EN61000-3-2 Class C (@load≧65%) ; BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level(surge immunity: Line-Line:2KV), EAC TP TC 020
OTHERS
- MTBF
- 4523.2K hrs min. Telcordia SR-332 (Bellcore) ; 455.5Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- ψ110mm * 60.5mm (D * H)
- PACKING
- 0.5Kg; 20pcs/ 11Kg/ 0.94CUFT
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft)
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf.
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- LED down lighting
Downloads
Datasheet1
Certificates9
Test reports1
FAQ
Can I use the HBG-60-2100 for LED downlights that need higher current and lower forward voltage?
Yes, if the LED downlight is designed for constant current operation and its load voltage falls within the 19-29V constant current range. This model provides 60.9W, so it is aimed at higher-current LED loads in a lower voltage band. It is not a constant voltage power supply.
Is the HBG-60-2100 appropriate for a small high-current LED array?
It can be appropriate for a small LED array when the array is built for constant current operation and its forward voltage stays within 19-29V. With 60.9W output, it is oriented toward higher-current arrays rather than higher-voltage strings. The electrical match should be based on constant current requirements, not only nominal voltage.
Can this driver be used for compact signage modules that run at lower forward voltage?
It can fit compact signage modules if they are constant current modules and the total LED forward voltage is within 19-29V. The driver's 60.9W rating sets the power ceiling for the assembly. It is not intended for constant voltage signage systems.
How do I check LED compatibility for the HBG-60-2100?
The LED load needs to be a constant current load with a total forward voltage in the 19-29V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no single stated LED count for this model. The total power also has to remain within 60.9W.
What is the difference between the HBG-60-2100 and the lower-current HBG-60 versions?
The HBG-60-2100 is the lower-voltage, higher-current version at 60.9W with a 19-29V CC range and 2100mA output. By comparison, the HBG-60-1400 is 60.2W with a 28-43V CC range at 1400mA, and the HBG-60-1050 is 57.75W with a 37-55V CC range at 1050mA. All three share 90-295VAC input and the same 110mm diameter x 60.5mm round housing.
What environmental conditions are covered by the HBG-60-2100 specs?
The working temperature is Tcase -40°C to +85°C (case temperature, with load derating per the output load vs temperature curve). Those numbers define thermal operating conditions, but the provided specs do not include an IP rating. That means water and dust exposure suitability is not defined in the data shown here.
