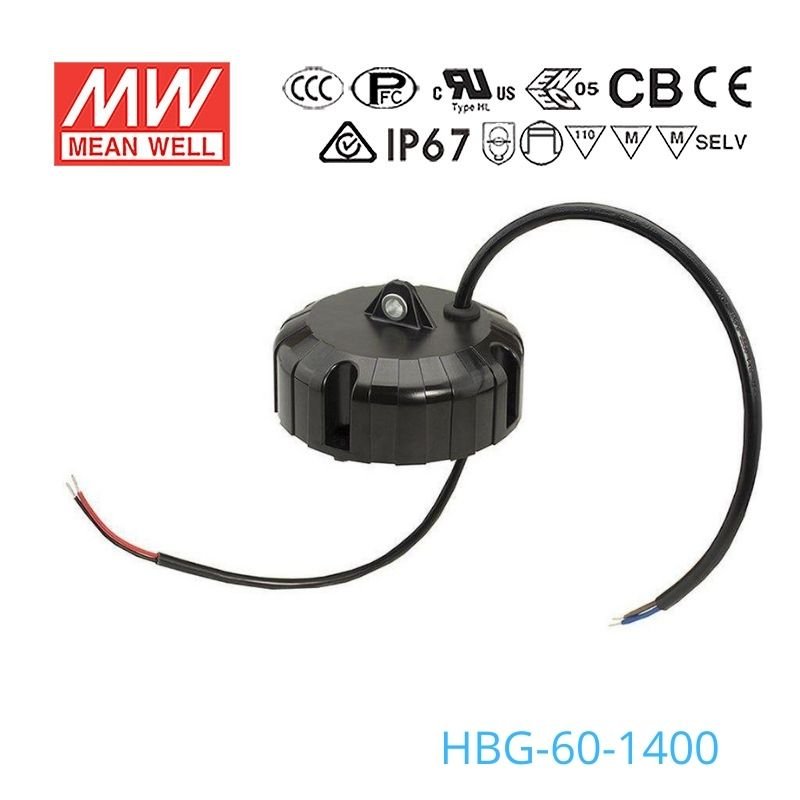

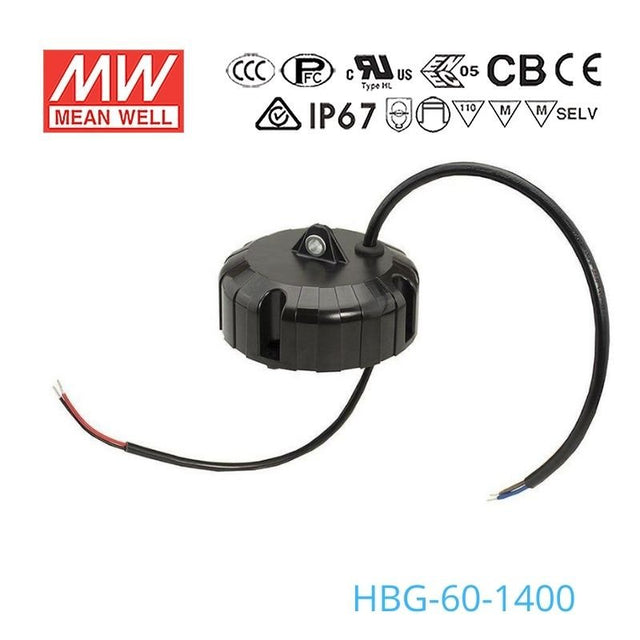

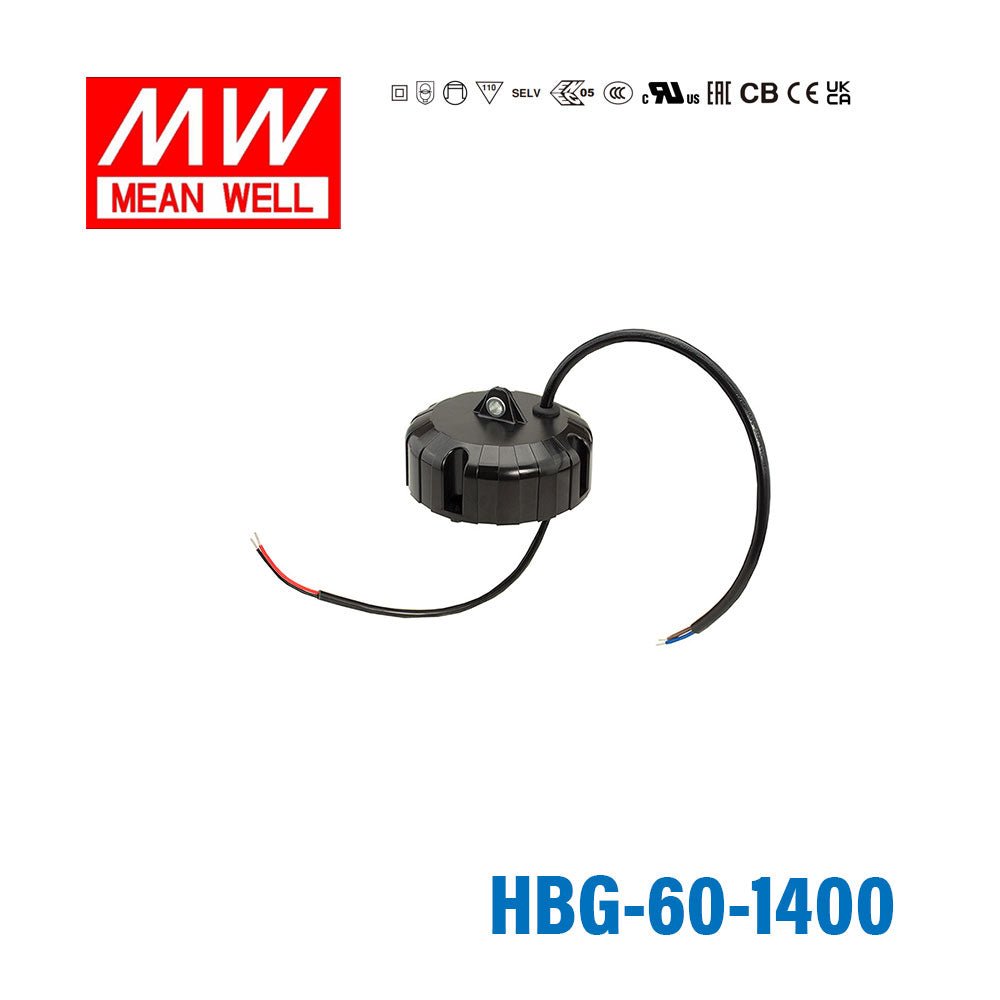

Mean Well HBG-60-1400 Power Supply 60W 1400mA
Overview
HBG-60-1400 is the model of this series: rated current 1400mA, rated power 60.2W, typical efficiency 89%.
HBG-60 series is a 60W AC/DC LED driver featuring the circular shape design with the plastic enclosure. It operates from 90~295VAC and offers the constant current output models with different rated current between 1050mA and 2100mA. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection.
Features
- Constant current mode output
- Circular plastic housing with class II design
- Built-in active PFC function
- Class 2 power unit
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1400mA
- RATED POWER
- 60.2W
- CONSTANT CURRENT REGIONNote.2
- 28 ~ 43V
- OPEN CIRCUIT VOLTAGE(max.)
- 50V
- CURRENT ADJ. RANGE
- 910 ~ 1400mA
- CURRENT RIPPLE
- 25% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SET UP TIMENote.4
- 500ms / 230VAC 1200ms / 115VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 295VAC 127 ~ 417VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧65%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT (Typ.)
- 0.7A/115VAC 0.4A/230VAC 0.3A/277VAC
- INRUSH CURRENT (Typ.)
- COLD START 45A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 28 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.8
- Compliance to BS EN/EN55015, GB/T 17743, GB17625.1, BS EN/EN61000-3-2 Class C (@load≧65%) ; BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level(surge immunity: Line-Line:2KV), EAC TP TC 020
OTHERS
- MTBF
- 4523.2K hrs min. Telcordia SR-332 (Bellcore) ; 455.5Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- ψ110mm * 60.5mm (D * H)
- PACKING
- 0.5Kg; 20pcs/ 11Kg/ 0.94CUFT
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft)
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf.
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- LED down lighting
Downloads
Datasheet1
Certificates9
Test reports1
FAQ
Can I use the HBG-60-1400 for LED downlights that need more current and a mid-range forward voltage?
This driver is intended for constant current LED loads and operates across a 28-43V constant current range with 60.2W available. That makes it suitable for LED downlights whose electrical requirements fall inside that range. It should not be used as a constant voltage power supply.
Is the HBG-60-1400 a good fit for signage modules that are built as constant current assemblies?
It can be used for signage module assemblies when the LED load is designed for constant current operation and its forward voltage fits within 28-43V. The driver provides up to 60.2W, so the total module load must stay within that power level. It is not the right choice for constant voltage signage products.
Can this model power a small LED array with a lower total forward voltage than the 1050mA version?
Yes, this version is better aligned with constant current LED arrays that operate within 28-43V rather than the higher 37-55V range of the 1050 model. Its output power is 60.2W, which suits moderate-size LED arrays and COB-style loads in that band. The load must be specified for constant current operation.
What should I check before pairing the HBG-60-1400 with an LED board or module?
Verify that the LED board or module is a constant current load and that its total forward voltage stays within the 28-43V constant current range. The number of LEDs depends on each LED's forward voltage, so compatibility cannot be reduced to one fixed LED count. The total load also needs to remain within the 60.2W rating.
How does the HBG-60-1400 compare with the other HBG-60 current options?
In the HBG-60 family, the HBG-60-1050 is 57.75W with a 37-55V CC range at 1050mA, the HBG-60-1400 is 60.2W with a 28-43V CC range at 1400mA, and the HBG-60-2100 is 60.9W with a 19-29V CC range at 2100mA. All are specified for 90-295VAC input and share the same round housing of 110mm diameter x 60.5mm height.
Is the HBG-60-1400 suitable for wide-temperature environments?
The working temperature is specified as Tcase -40°C to +85°C (case temperature, with load derating per the output load vs temperature curve), which supports both low-temperature and high-temperature operation. The page data does not list an IP rating, so environmental exposure to water or dust is not defined here. For exposed locations, the enclosure rating would need to be confirmed separately.
