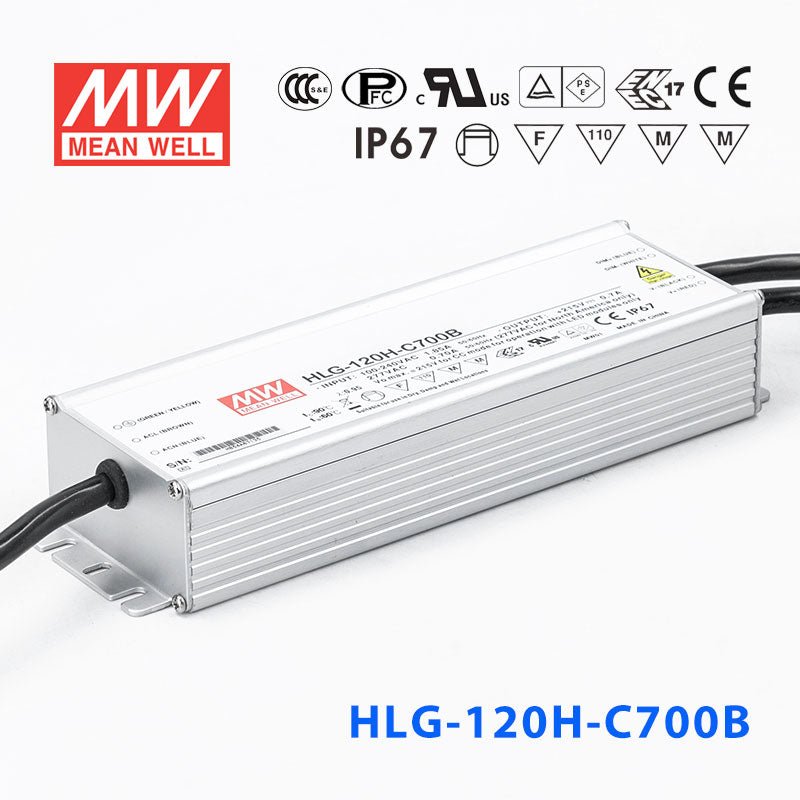

Mean Well HLG-120H-C700AB Power Supply 150.5W 700mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-120H-C700AB Power Supply 150.5W 700mA - Adjustable an...
The HLG-120H is a 120W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating150.5 Watt
-
Output Voltage215 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.29 lb
::specification::
Frequently Asked Questions
Can I use the HLG-120H-C700AB for dimmable LED downlights in an office or retail environment?
Yes. The HLG-120H-C700AB delivers 700mA constant current at up to 150.5W with a CC voltage range of 107-215V. The AB suffix means it has both output adjustment and a 1-10V/PWM dimming input, so you can tune the baseline current to your LED modules and control brightness through a building automation system or wall dimmer.
Is the HLG-120H-C700AB suitable for powering adjustable LED panel lights in a conference room?
Yes. At 700mA constant current with a 107-215V range and built-in dimming, it is a strong match for conference room LED panels where brightness adjustment is important. The potentiometer lets you set the maximum current to match the panel's rating, while the 1-10V/PWM dimming input allows smooth brightness transitions during presentations.
Can the HLG-120H-C700AB drive dimmable LED modules in architectural accent lighting?
Yes. With 150.5W at 700mA and a CC voltage range of 107-215V, it can power series-connected LED modules for cove lighting, wall washing, or facade accents. The dimming input supports dynamic lighting scenes, and the adjustable output lets you optimize the current for your specific LED modules. The IP65 rating covers indoor and sheltered outdoor installations.
What control options does the HLG-120H-C700AB offer for LED brightness?
The HLG-120H-C700AB provides two levels of control. The built-in potentiometer allows manual output current adjustment to set the baseline drive level. The 1-10V/PWM dimming input allows remote, dynamic brightness control via compatible dimmers, lighting controllers, or building management systems. Both features work together to give precise control over LED output.
Can the HLG-120H-C700AB be installed in a damp indoor location such as a natatorium or pool area?
The HLG-120H-C700AB is rated IP65, which provides protection against dust and low-pressure water jets. This is generally suitable for damp indoor environments like pool deck areas or covered natatorium ceilings, provided the driver is not submerged or subject to direct high-pressure cleaning. The -40°C to +90°C operating range handles the warm, humid conditions typical of pool areas.
What is the difference between the HLG-120H-C700A, C700AB, and C700B?
All three share the same 150.5W, 700mA, 107-215V constant current output and IP65 rating. The C700A has output adjustment only via potentiometer. The C700AB combines output adjustment with a 1-10V/PWM dimming input. The C700B has dimming input only, without output adjustment. Pick the variant that matches your need for manual tuning, remote dimming, or both.
