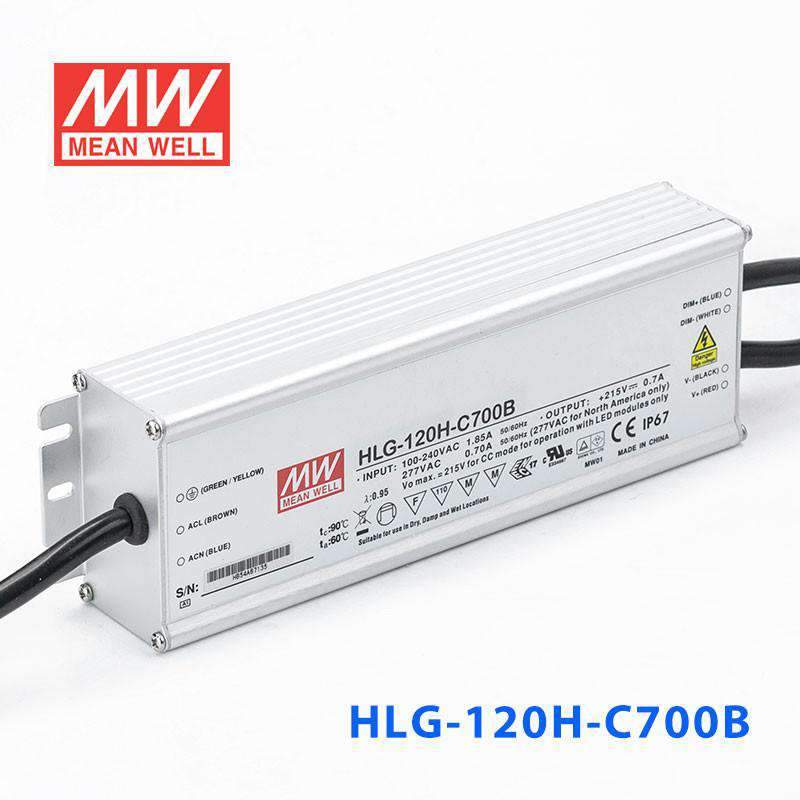

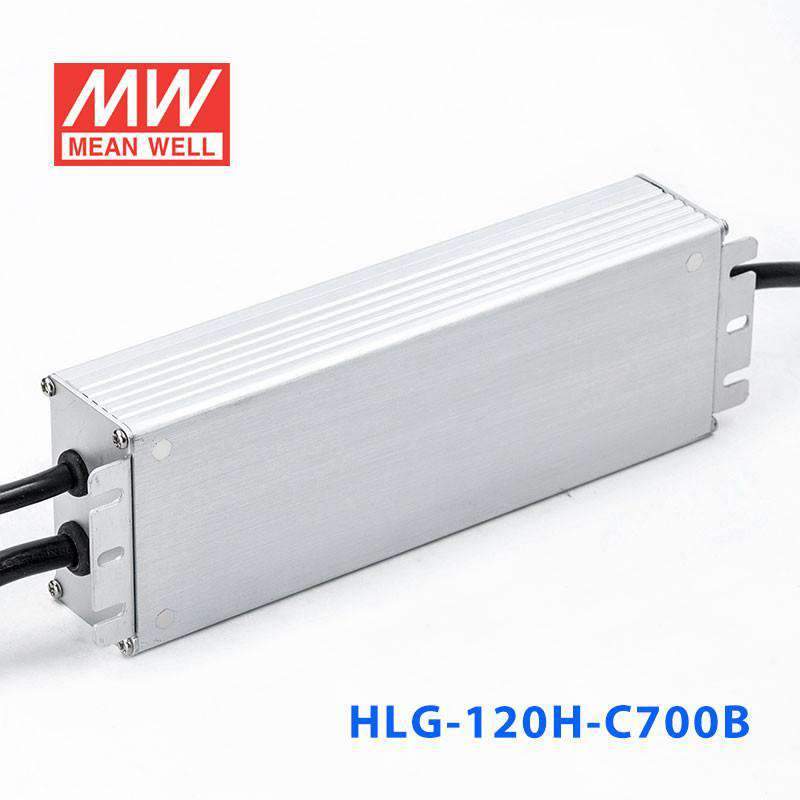

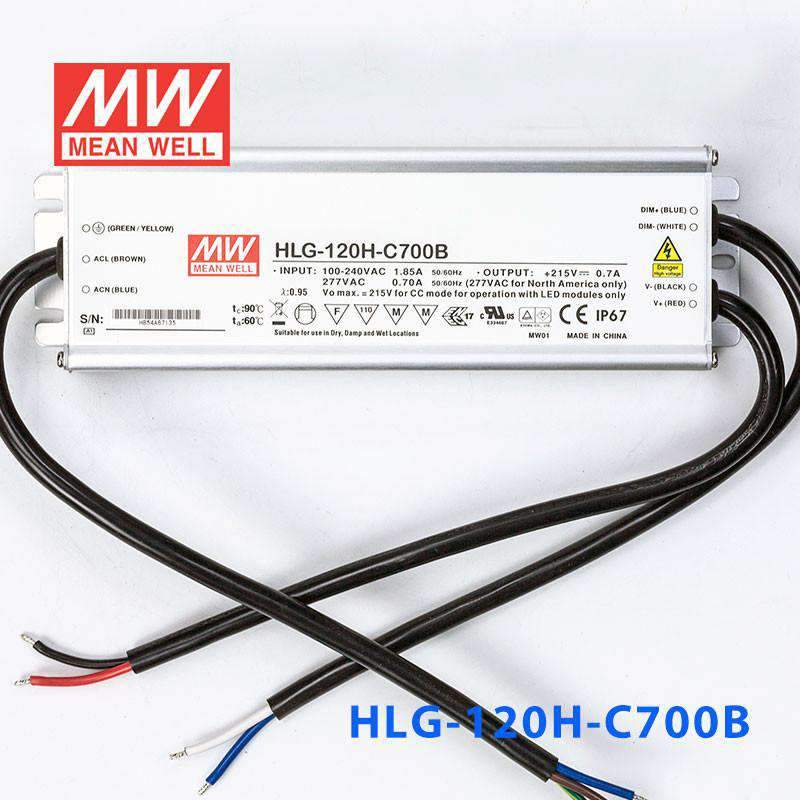

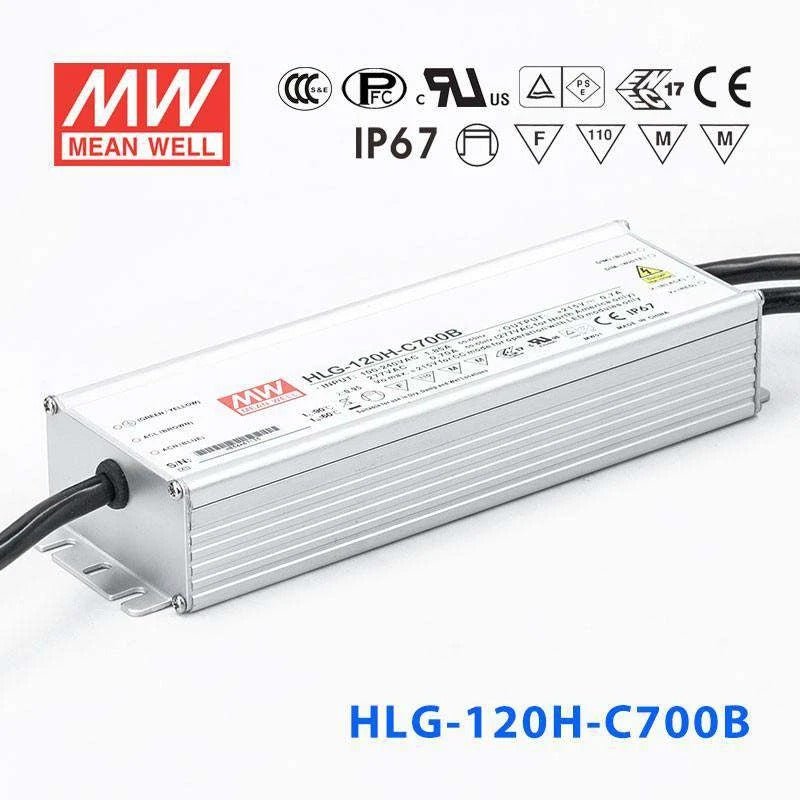

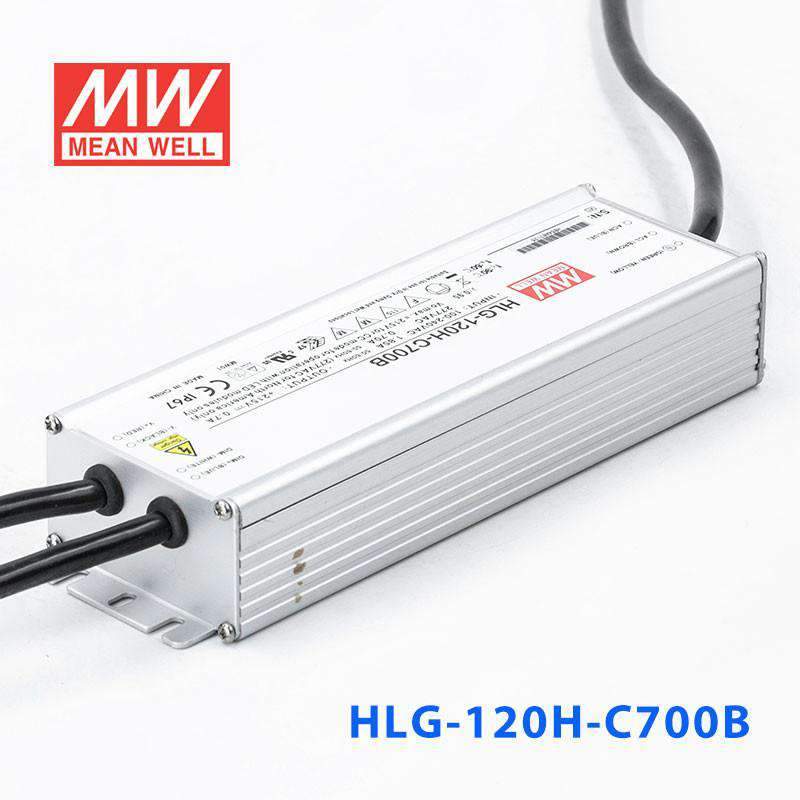

Mean Well HLG-120H-C700B Power Supply 150.5W 700mA

Name: Mean Well HLG-120H-C700B Power Supply 150.5W 700mA - Dimmable
Brand: Mean Well
SKU: HLG-120H-C700B
Price: 48.85 USD
Availability: InStock

Overview

HLG-120H-C700B is the model of this series: rated current 700mA, rated power 150.5W, typical efficiency 94%. Type B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP67).

HLG-120H-C series is a 150W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-120H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠ design
Built-in active PFC function
IP67 design for indoor or outdoor installations
Function options: 3 in 1 dimming
Typical lifettime>62000 hours
7 years warranty

Specifications

HLG-120H-C700BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER: 150.5W
CONSTANT CURRENT REGION^Note.2: 107V ~ 215V
CURRENT ADJ. RANGE: 350 ~ 700mA
CURRENT RIPPLE: 8.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 1.6A / 115VAC 0.8 A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 240 ~ 260V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.7: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.6: UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1, GB/T19510.213, IP67, J61347-1, J61347-2-13, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2456.4K hrs min. Telcordia SR-332 (Bellcore) ; 191.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*68*38.8mm (L*W*H)
PACKING: 1.04Kg; 12pcs/13.5Kg/0.8CUFT

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-120H-C700B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-120H-C700B DIMMING OPERATION — DIMMING OPERATION

HLG-120H-C700B Illustration (page 5) — Illustration (page 5)

HLG-120H-C700B OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-120H-C700B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-120H-C700B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-120H-C700B MECHANICAL SPECIFICATION ※ B-Type — MECHANICAL SPECIFICATION ※ B-Type

HLG-120H-C700B Dimensions (mm) — Dimensions (mm)

HLG-120H-C700B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

Downloads

Datasheet1

HLG-120H-C700B datasheetHLG-120H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

UL Certificate(HLG-120H-C)(EN) PDF Download

CB Certificate(HLG-120H-C)(EN) PDF Download

EMC Certificate(HLG-120H-C)(EN) PDF Download

ENEC Certificate(HLG-120H-C)(EN) PDF Download

PSE Certificate(HLG-120H-C)(EN) PDF Download

Test reports1

Test Report(HLG-120H-C700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-120H-C700B for dimmable LED high-bay or troffer fixtures?

Yes. The HLG-120H-C700B delivers 700mA constant current at up to 150.5W with a CC voltage range of 107-215V. The B suffix means it includes a 1-10V/PWM dimming input for brightness control, making it well-suited for high-bay or troffer lighting where occupancy sensors or daylight harvesting systems adjust light levels.

Is the HLG-120H-C700B suitable for driving LED modules in dimmable signage applications?

Yes. At 700mA constant current and a voltage range of 107-215V, it can power series-connected LED signage modules. The dimming input allows nighttime brightness reduction for energy savings or light pollution compliance. The number of LEDs you can wire in series depends on each LED's forward voltage — ensure the total falls within 107-215V.

Can the HLG-120H-C700B power LED modules in a dimmable retail display lighting system?

Yes. The 700mA constant current output is common for mid-power LED modules used in retail spotlights, track lighting modules, and display case lighting. The 1-10V/PWM dimming input lets store staff adjust brightness throughout the day. At 150.5W, it can handle substantial lighting loads for a single zone or fixture group.

Does the HLG-120H-C700B have a potentiometer for adjusting the output current?

No. The B suffix indicates this model has a 3-in-1 dimming input (1-10V, PWM or resistance) but no built-in potentiometer for output current adjustment, which the sheet lists for A/AB types only. The rated output is 700mA, and lower levels are set only through the dimming input. If you need to adjust the baseline current to match a specific LED module, choose the C700A (adjustment only) or C700AB (adjustment plus dimming).

Can the HLG-120H-C700B handle the temperature extremes inside an outdoor sign cabinet?

Yes. The HLG-120H-C700B works at a case temperature (Tcase) of -40°C to +90°C, with load derating at higher temperatures per the output load vs temperature curve, so it can handle winter cold and heat build-up inside sign cabinets within those limits. The series' IP65/IP67 rating protects against dust and moisture ingress typical of outdoor sign enclosures. Ensure adequate ventilation to keep the case at or below +90°C.

How does the 700mA constant current output differ from a constant voltage driver for LED applications?

The HLG-120H-C700B maintains a steady 700mA output current regardless of the load voltage (within 107-215V), which is ideal for LEDs wired in series. Constant voltage drivers maintain a fixed voltage and let current vary, which suits parallel-connected LED strips. If your LED modules specify a drive current (e.g., 700mA), a constant current driver like this one ensures consistent brightness and prevents overcurrent damage.
