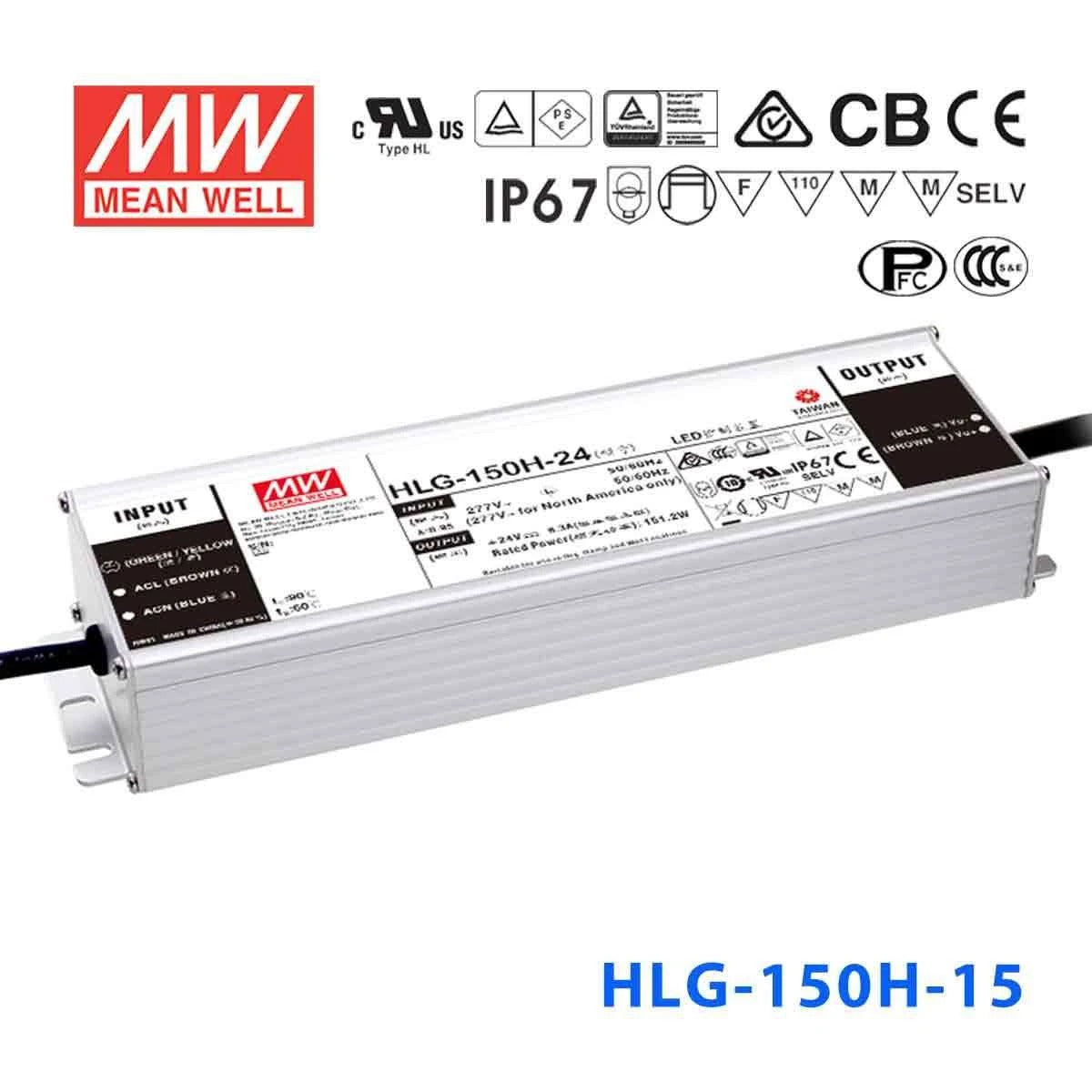

Mean Well HLG-150H-15 Power Supply 150W 15V
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage15 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-15 to power 15V LED modules in an outdoor billboard?
Yes. The HLG-150H-15 outputs 15V at up to 10A (150W) and carries an IP67 waterproof rating, making it suitable for exposed billboard installations. The aluminium casing and -40°C to +90°C operating range handle extreme weather, and the wide 90-305VAC input works on most mains supplies.
Is the HLG-150H-15 suitable for powering 15V LED architectural flood lighting?
It is a good fit for 15V LED flood lights drawing up to 150W total. The IP67 waterproof rating allows outdoor mounting where the driver may be exposed to rain or sprinklers. The constant-current mode with a 7-15V range helps maintain consistent brightness across LED arrays.
Can I use the HLG-150H-15 to drive 15V LED strips for warehouse aisle lighting?
Yes. The HLG-150H-15 provides 150W at 15V, which is ample for long runs of 15V LED strip in industrial or warehouse environments. Its IP67 rating provides extra protection in dusty or damp warehouse conditions, and the robust aluminium housing withstands vibration and temperature swings.
How many meters of 15V LED strip can the HLG-150H-15 support?
That depends on the strip's rated wattage per meter. The HLG-150H-15 provides 150W at 15V. For example, if your strip draws 15W/m, you could run up to 10 meters (150W / 15W per meter = 10m). Always check your strip's rated power per meter and keep total load at or below 150W.
Is the HLG-150H-15 suitable for installation in freezing outdoor conditions?
Yes. The HLG-150H-15 operates from -40°C to +90°C, so it handles extreme cold in northern climates as well as hot summer conditions. The IP67 waterproof rating also protects against snow, ice melt, and condensation that occur during freeze-thaw cycles.
What are the differences between the HLG-150H-15, 15A, 15AB, and 15B variants?
All four share the same 150W, 15V, 10A core output. The base HLG-150H-15 has fixed output and IP67 waterproof protection. The -15A adds adjustable output via potentiometer but drops to IP65 water-resistant. The -15AB offers both adjustable output and dimming at IP65. The -15B provides dimming with fixed output and retains IP67 waterproof rating.
