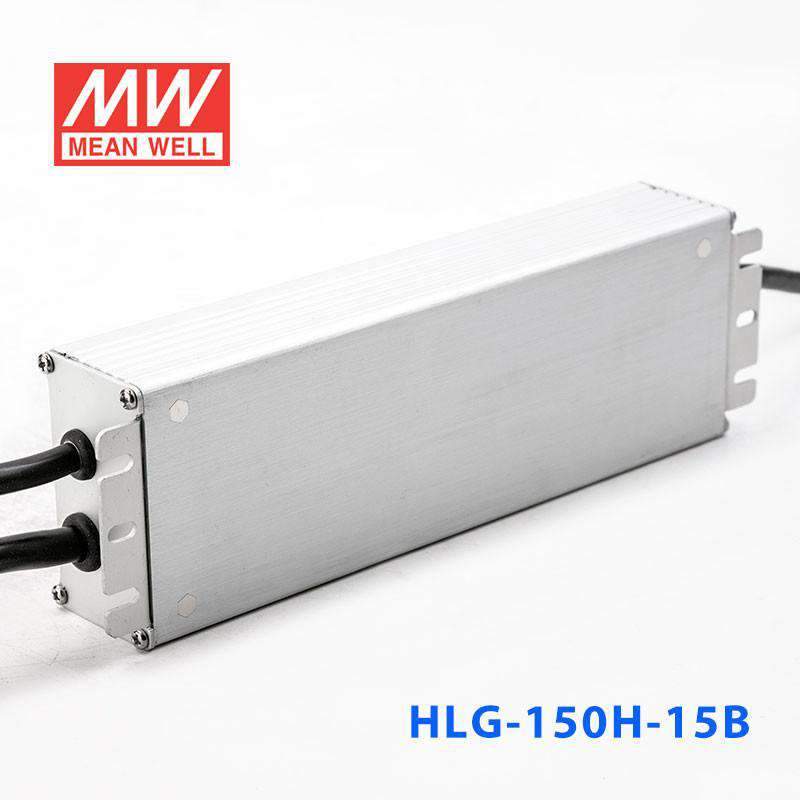

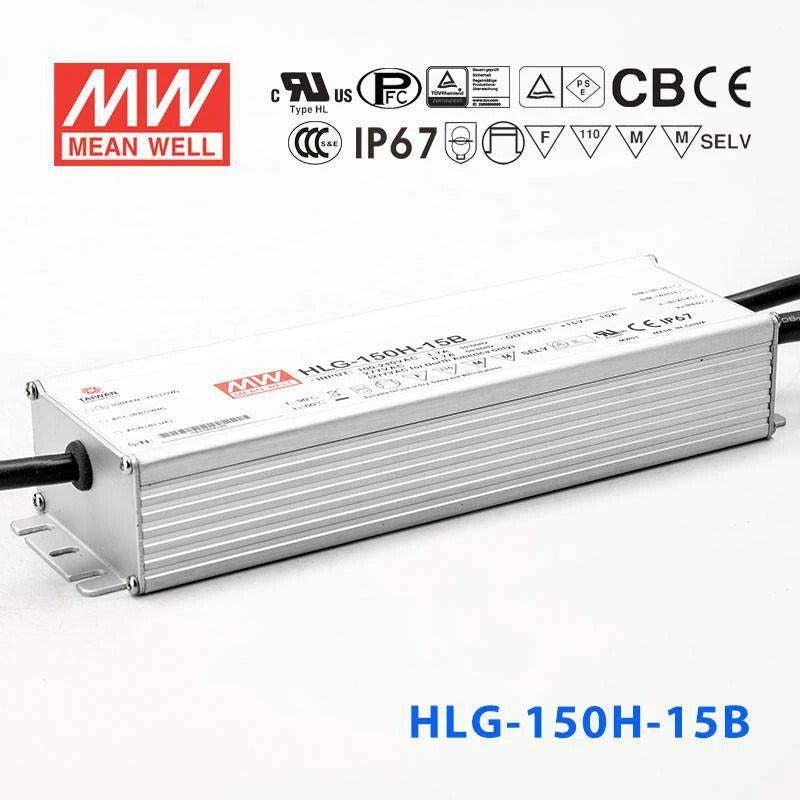

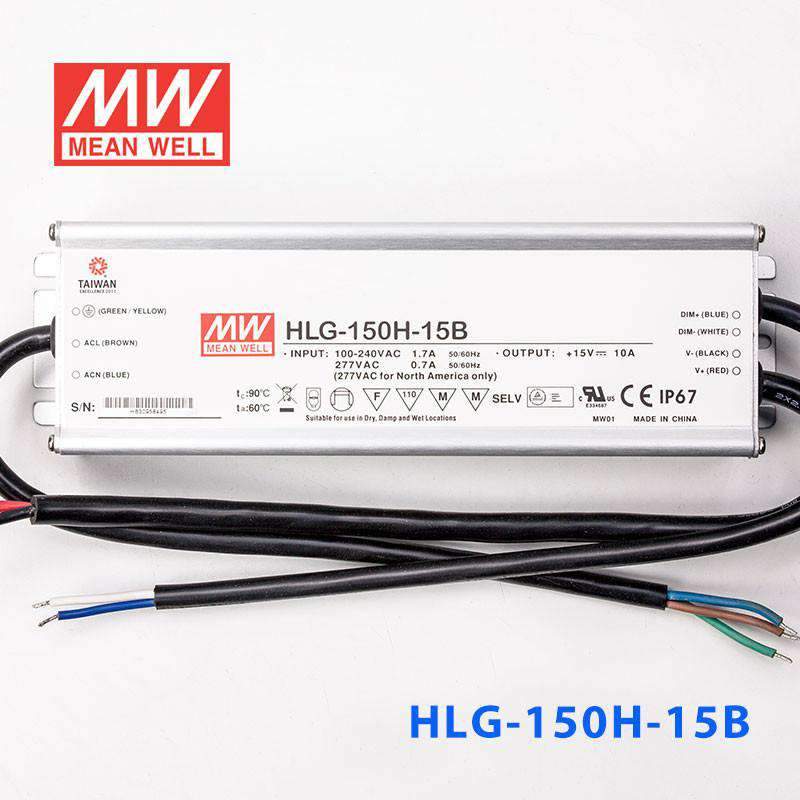

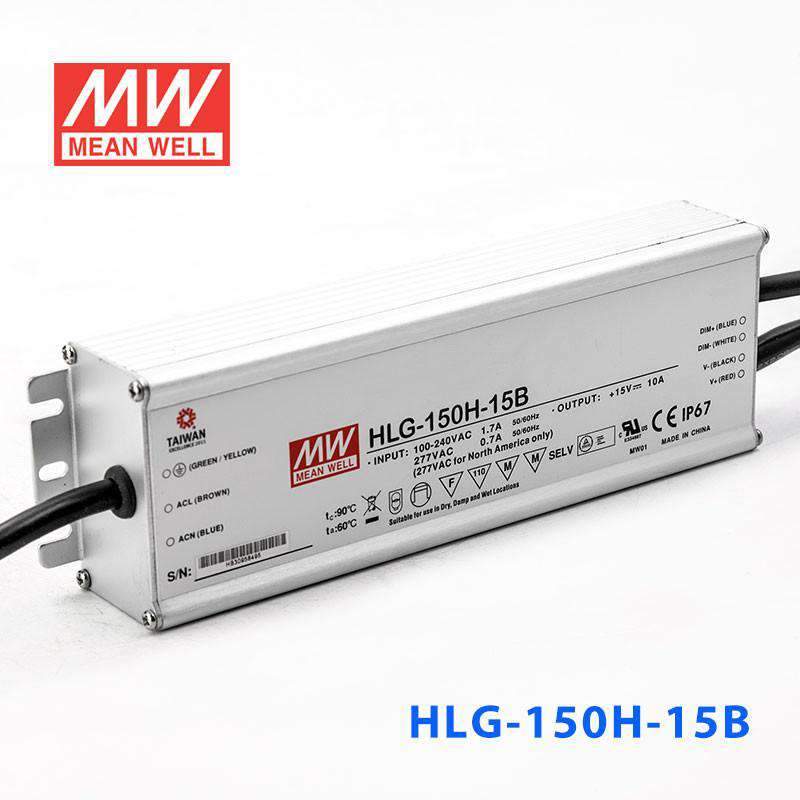

Mean Well HLG-150H-15B Power Supply 150W 15V

Name: Mean Well HLG-150H-15B Power Supply 150W 15V - Dimmable 10A
Brand: Mean Well
SKU: HLG-150H-15B
Price: 51.34 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-150H-15B is the 15V output model of this series: rated current 10A, rated power 150W, typical efficiency 92%. Type B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) (IP67).

HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-150H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-150H-15BSpecifications from the official datasheet (2026-07-24 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 15V
CONSTANT CURRENT REGION^Note.4: 7.5 ~ 15V
RATED CURRENT: 10A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 17V
CURRENT ADJ. RANGE: 6 ~ 10A
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
SETUP, RISE TIME^Note.6: 1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=425μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 18 ~ 21V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.9: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213 ;IP67; J61347-1, J61347-2-13 ,BIS Is15885( for A,B type only), EAC TP TC 004; KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1(except for D-type), EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF: 2176.1K hrs min. Telcordia SR-332(Bellcore) ; 166.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 228*68*38.8mm
PACKING: 1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-150H-15B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-150H-15B DIMMING OPERATION — DIMMING OPERATION

HLG-150H-15B Illustration (page 5) — Illustration (page 5)

HLG-150H-15B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-150H-15B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-150H-15B Dimensions (mm) — Dimensions (mm)

HLG-150H-15B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "H" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-150H-15B datasheetHLG-150H-SPEC.PDF · 2026-07-24 edition PDF Download

Certificates5

UL Certificate (HLG-150H)(EN) PDF Download

TUV Certificate (HLG-150H)(EN) PDF Download

EMC Certificate (HLG-150H)(EN) PDF Download

PSE Certificate (HLG-150H)(EN) PDF Download

CCC Certificate(HLG-150H)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-150H-15B for outdoor 15V dimmable LED strip lighting?

Yes. The HLG-150H-15B delivers 15V at up to 10A (150W) with dimming capability and an IP67 waterproof rating. It is ideal for outdoor 15V LED strip installations requiring brightness control in locations exposed to rain, dust, or temporary submersion.

Is the HLG-150H-15B suitable for dimmable 15V LED parking structure lighting?

It is a strong fit for parking structures where weatherproof dimmable drivers are needed. The IP67 rating handles moisture and dust, while the dimming input allows you to reduce brightness during low-traffic hours for energy savings. The 150W output handles typical parking bay LED arrays.

Can I power a dimmable 15V LED canopy light with the HLG-150H-15B?

Yes, provided the canopy light load stays within 150W at 15V. The dimming input allows automated brightness control, for example via a photocell or timer, to reduce output during daylight hours. The IP67 waterproof rating means the driver can be mounted in exposed canopy housings without additional weather shielding.

How many meters of 15V LED strip can the HLG-150H-15B power?

The HLG-150H-15B delivers up to 150W at 15V. Divide 150W by your strip's rated power per meter. For example, a strip rated at 7.5W/m could run up to 20 meters (150W / 7.5W per meter = 20m). Always check your strip's rated power per meter and keep total load at or below 150W.

Can the HLG-150H-15B be installed in a coastal environment with salt air exposure?

The IP67 waterproof rating and sealed metal housing protect against spray, moisture and dust, and the -40°C to +90°C case-temperature (Tcase) range covers wide temperature swings. The datasheet does not specify salt-mist or corrosion resistance, so for harsh salt environments placing the driver in a ventilated IP-rated enclosure adds an extra layer of protection.

How does the HLG-150H-15B compare to the HLG-150H-15AB?

Both offer dimming on the same 150W, 15V, 10A platform. The HLG-150H-15B has fixed output and IP67 waterproof protection, while the HLG-150H-15AB adds an adjustable output potentiometer but carries an IP65 water-resistant rating. Choose the -15B for fully exposed outdoor installations and the -15AB when you need output fine-tuning in a sheltered location.
