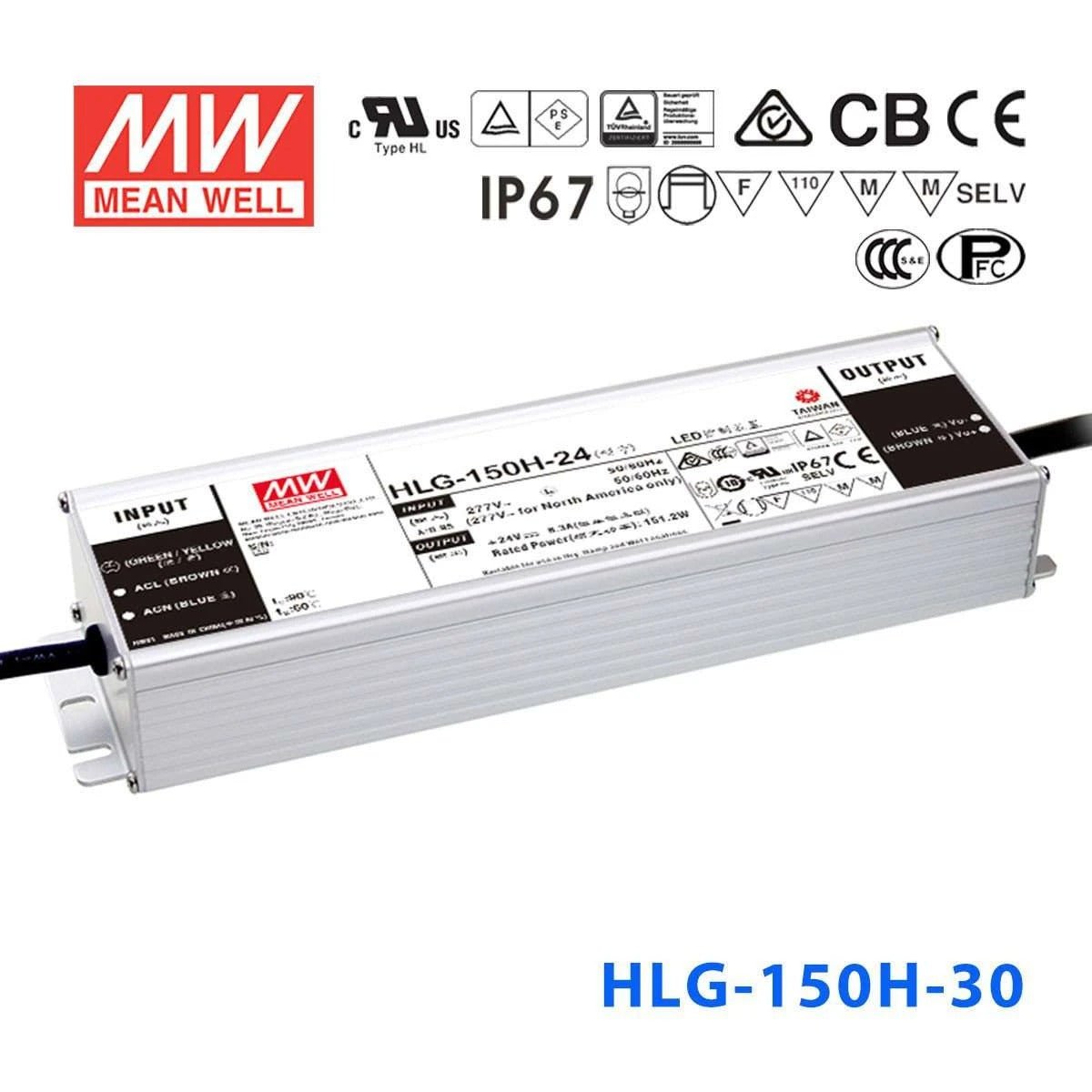

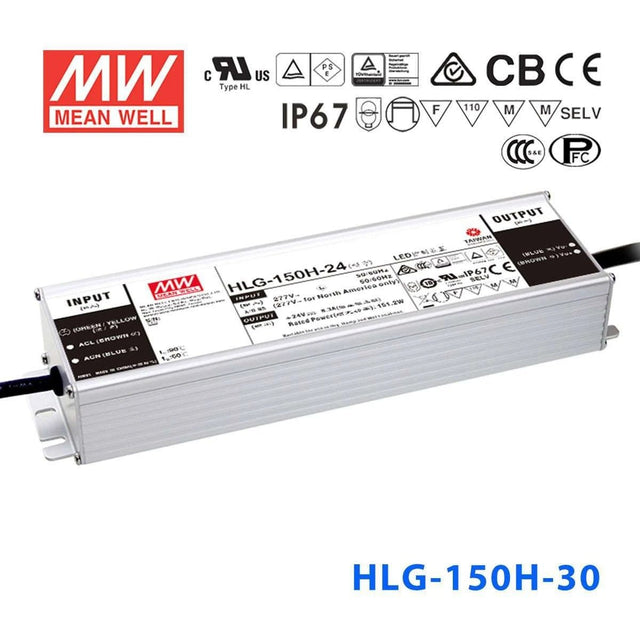

Mean Well HLG-150H-30 Power Supply 150W 30V
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage30 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-30 to power 30V LED strip lighting outdoors?
Yes. The HLG-150H-30 outputs 30V at up to 5A and carries an IP67 waterproof rating, so it can be installed in fully exposed outdoor locations including rain, snow, and high-humidity environments. Its aluminium casing and -40°C to +90°C operating range make it well suited for year-round outdoor LED strip installations.
Is the HLG-150H-30 a good driver for 30V LED signage applications?
Yes. With 150W at 30V, the HLG-150H-30 has enough capacity to drive multiple 30V LED sign modules in channel letters, light boxes, or cabinet signs. Its wide 90-305VAC input handles most commercial mains supplies worldwide, and the IP67 rating allows outdoor mounting without additional weatherproofing.
Can the HLG-150H-30 power 30V LED high-bay or warehouse fixtures?
Yes. The 150W output at 30V with constant-current operation and a CC voltage range of 15-30V makes it compatible with 30V LED high-bay luminaires. The -40°C to +90°C operating temperature range handles unheated warehouse environments, and the 7-year warranty provides long-term reliability.
How many meters of 30V LED strip can the HLG-150H-30 power?
Divide 150W by your strip's rated power per meter. For example, a 30V strip drawing 14W/m could run up to about 10.7 meters (150W / 14W per meter = 10.7m). Always check your strip's rated power per meter and keep the total load at or below 150W.
Can the HLG-150H-30 be mounted in an outdoor junction box or directly exposed to rain?
Yes. Its IP67 waterproof rating means the unit is sealed against dust ingress and protected against temporary submersion in water up to 1 meter. It can be mounted outdoors without any additional enclosure, even in locations with direct rain or sprinkler exposure.
What are the differences between the HLG-150H-30, 30A, 30AB, and 30B variants?
All four share the same 150W / 30V / 5A core specs and 228 x 68 x 38.8 mm dimensions. The base HLG-150H-30 has fixed output and IP67 waterproof rating. The -30A adds output voltage/current adjustment via built-in potentiometer (IP65). The -30AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -30B provides dimming input only and retains IP67.
