Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

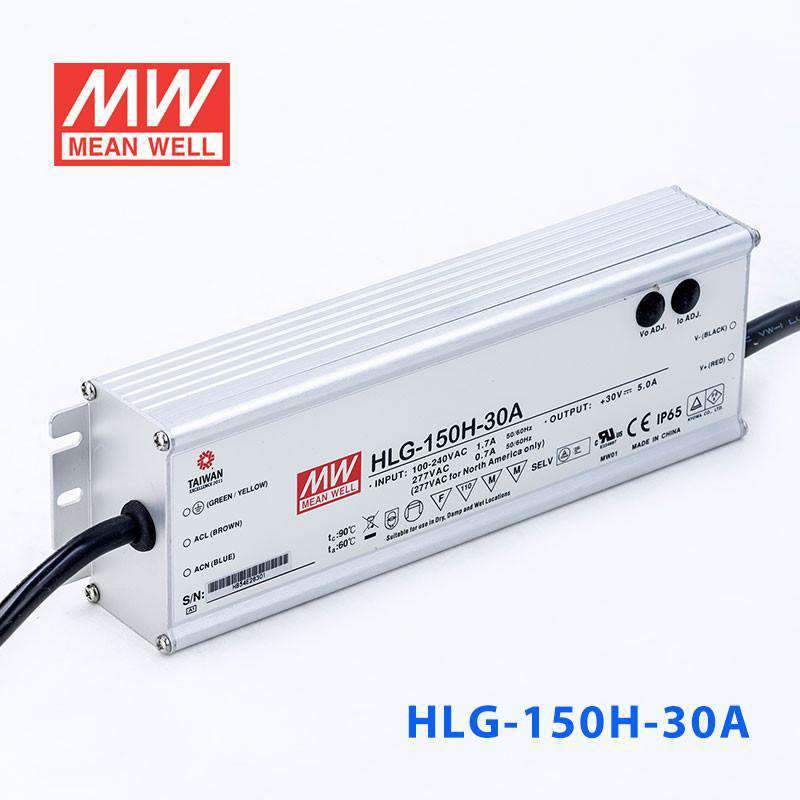

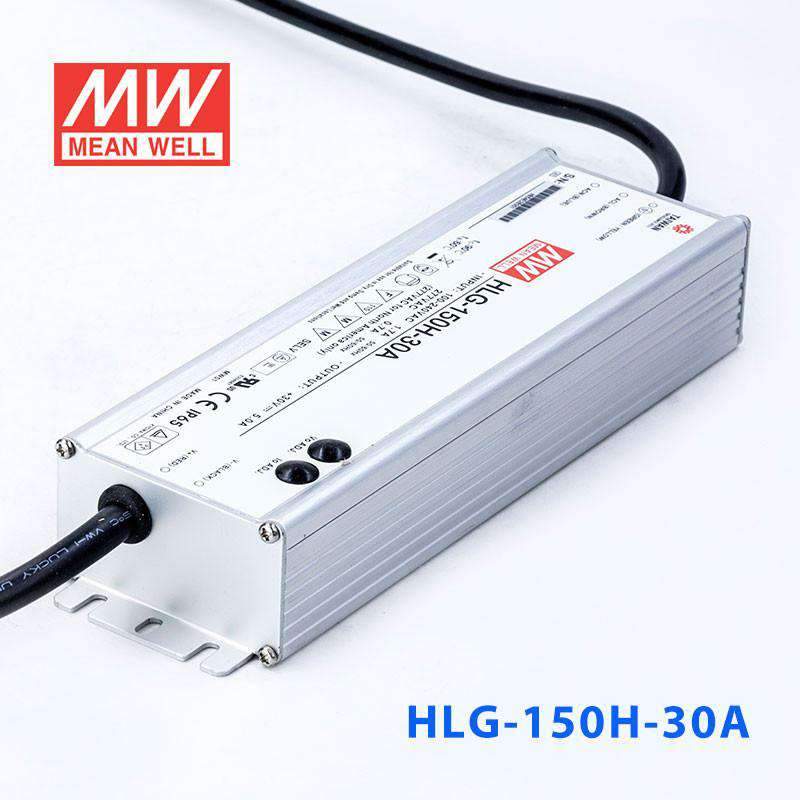

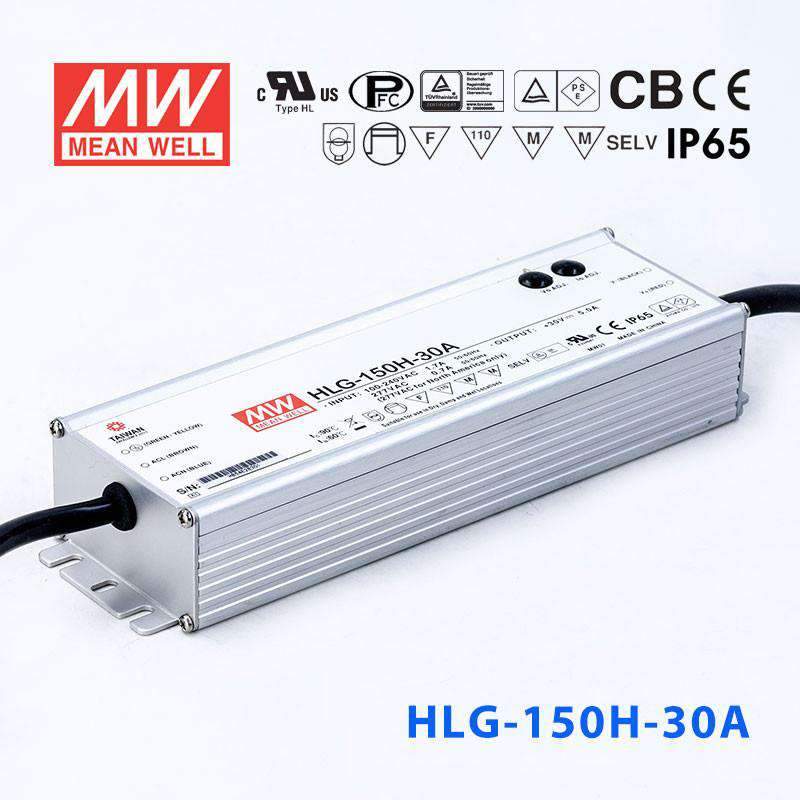

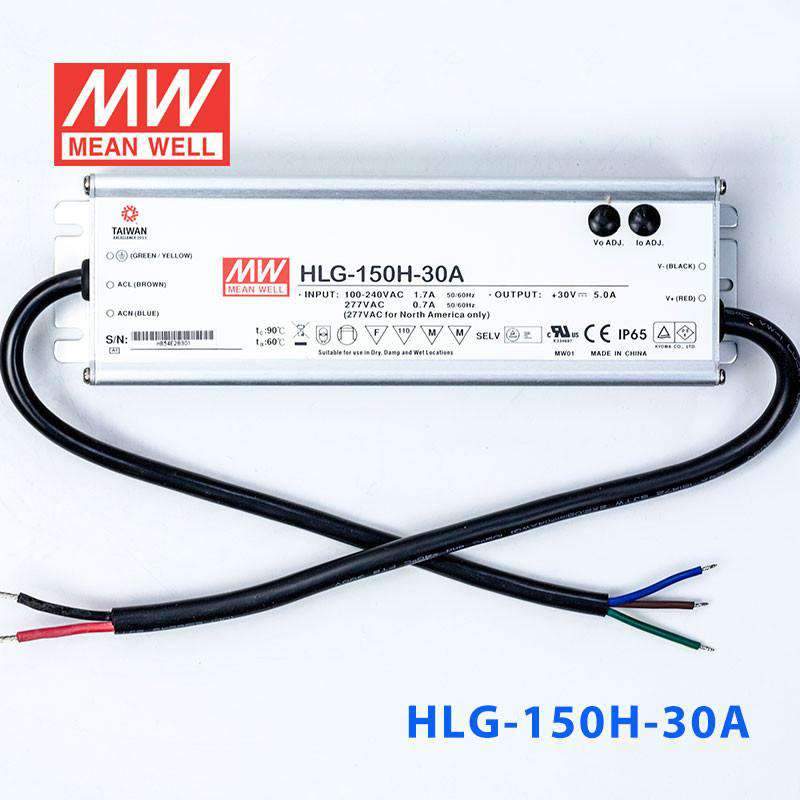

Mean Well HLG-150H-30A Power Supply 150W 30V - Adjustable
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage30 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-30A to fine-tune brightness on 30V LED strip installations?
Yes. The HLG-150H-30A has a built-in potentiometer that lets you adjust the output voltage and current. This is useful when you need to reduce brightness slightly or match the driver precisely to a specific 30V LED strip load without needing an external dimmer.
Is the HLG-150H-30A suitable for powering 30V LED modules in commercial signage?
Yes. At 150W and 30V output, it can drive 30V channel letters, light boxes, or cabinet sign modules. The adjustable output is an added benefit for matching the driver precisely to the module string voltage, and the wide 90-305VAC input handles most commercial mains voltages.
Can the HLG-150H-30A drive 30V LED flood lights for landscape lighting?
Yes. The 150W output at 30V is sufficient for landscape flood lights, and the built-in potentiometer allows you to dial down the output if the fixtures need less than the full 5A. Its -40°C to +90°C operating range handles both hot summers and freezing winters.
How many meters of 30V LED strip can the HLG-150H-30A handle?
The HLG-150H-30A supplies up to 150W at 30V. Divide 150 by your strip's wattage per meter to find the maximum length. For a strip rated at 10W/m, you could run up to 15 meters (150W / 10W per meter = 15m). Always check your strip's rated power per meter before sizing.
Is the HLG-150H-30A suitable for covered outdoor or semi-exposed locations?
Yes. Its IP65 water-resistant rating protects against low-pressure water jets and dust ingress, making it suitable for covered patios, canopies, soffits, and other semi-exposed locations. For fully exposed rain installations, consider the IP67-rated HLG-150H-30 base model instead.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-150H Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-150H-24B Power Supply 150W 24V- Dimmable | 150W | 24V | 6.3A | IP67 | $56.23 | View |
| Mean Well HLG-150H-24 Power Supply 150W 24V | 150W | 24V | 6.3A | IP67 | $54.87 | View |
| Mean Well HLG-150H-12 Power Supply 150W 12V | 150W | 12V | 12.5A | IP67 | $49.38 | View |
| Mean Well HLG-150H-48A Power Supply 150W 48V - Adjustable | 150W | 48V | 3.2A | IP65 | $54.81 | View |
| Mean Well HLG-150H-42B Power Supply 150W 42V- Dimmable | 150W | 42V | 3.6A | IP67 | $54.24 | View |
