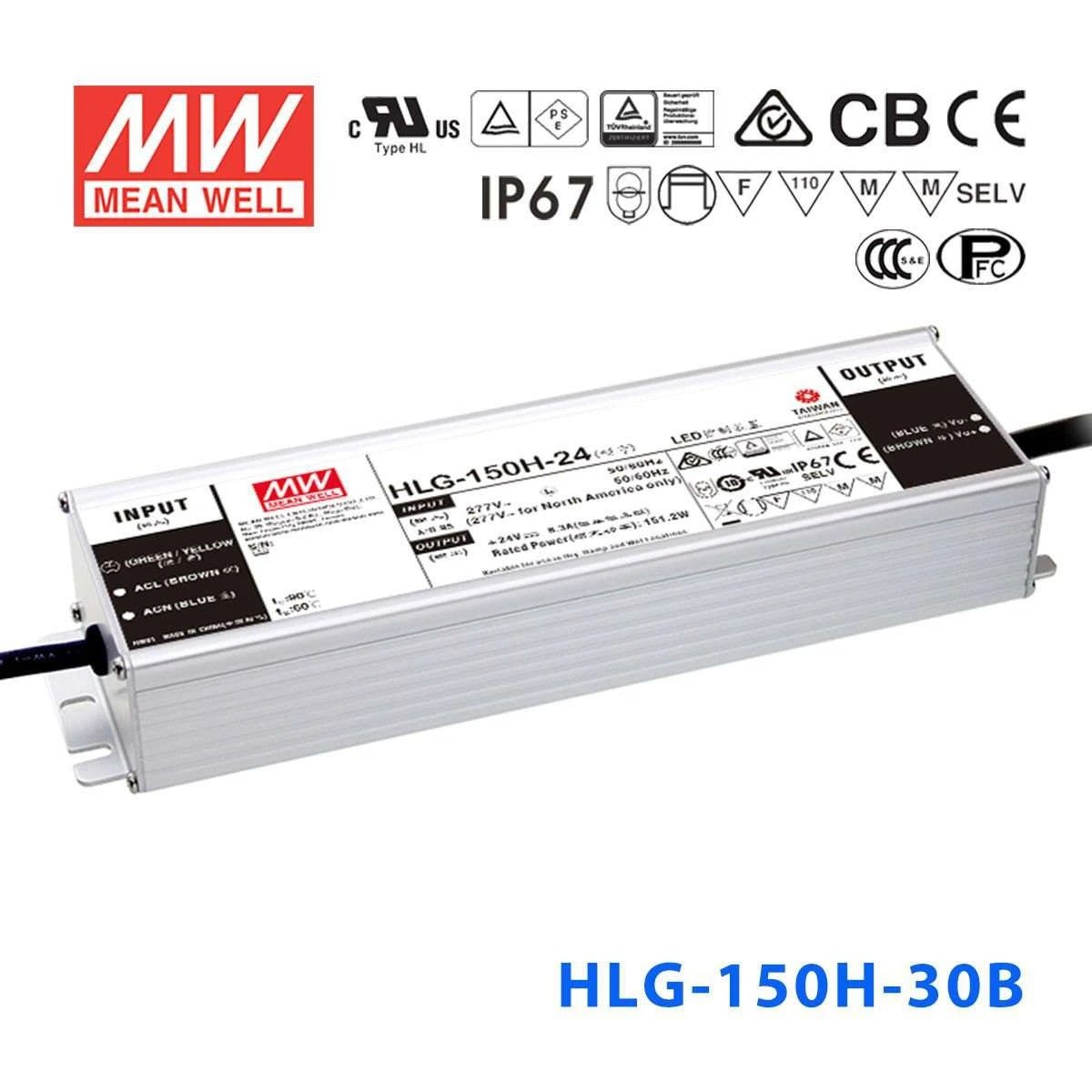

Mean Well HLG-150H-30B Power Supply 150W 30V- Dimmable 5A

Name: Mean Well HLG-150H-30B Power Supply 150W 30V- Dimmable 5A
Brand: Mean Well
SKU: HLG-150H-30B
Price: 5.83 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-150H-30B is the 30V output model of this series: rated current 5A, rated power 150W, typical efficiency 93.5%. Type B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) (IP67).

HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-150H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-150H-30BSpecifications from the official datasheet (2026-07-24 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 30V
CONSTANT CURRENT REGION^Note.4: 15 ~ 30V
RATED CURRENT: 5A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 27 ~ 33V
CURRENT ADJ. RANGE: 3 ~ 5A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=425μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 34 ~ 38V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.9: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213 ;IP67; J61347-1, J61347-2-13 ,BIS Is15885( for A,B type only), EAC TP TC 004; KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1(except for D-type), EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF: 2176.1K hrs min. Telcordia SR-332(Bellcore) ; 166.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 228*68*38.8mm
PACKING: 1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-150H-30B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-150H-30B DIMMING OPERATION — DIMMING OPERATION

HLG-150H-30B Illustration (page 5) — Illustration (page 5)

HLG-150H-30B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-150H-30B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-150H-30B Dimensions (mm) — Dimensions (mm)

HLG-150H-30B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "H" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-150H-30B datasheetHLG-150H-SPEC.PDF · 2026-07-24 edition PDF Download

Certificates5

UL Certificate (HLG-150H)(EN) PDF Download

TUV Certificate (HLG-150H)(EN) PDF Download

EMC Certificate (HLG-150H)(EN) PDF Download

PSE Certificate (HLG-150H)(EN) PDF Download

CCC Certificate(HLG-150H)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I dim 30V outdoor LED strip lighting using the HLG-150H-30B?

Yes. The HLG-150H-30B accepts 1-10V and PWM dimming signals and carries an IP67 waterproof rating, combining dimming capability with outdoor waterproofing. You can pair with a weatherproof 1-10V controller or an indoor controller with outdoor-rated cabling.

Is the HLG-150H-30B suitable for dimmable 30V LED signage exposed to weather?

Yes. It delivers 150W at 30V with dimming input and an IP67 waterproof rating, so you can adjust sign brightness for day/night scheduling while the driver remains fully protected outdoors. The wide 90-305VAC input handles varying commercial mains supplies.

Can the HLG-150H-30B power dimmable 30V LED parking-lot or pathway lights?

Yes. With 150W output, constant-current operation (CC range 15-30V), and dimming capability, it can drive 30V LED fixtures in parking lots or pathways. The IP67 rating and -40°C to +90°C case-temperature (Tcase) range allow fully exposed outdoor mounting year-round.

How many meters of 30V LED strip can the HLG-150H-30B power?

Divide 150W by your strip's rated power per meter. For instance, a strip consuming 15W/m would allow up to 10 meters (150W / 15W per meter = 10m). Always check your strip's rated power per meter and keep total load at or below 150W for reliable operation.

Can the HLG-150H-30B handle freezing temperatures and direct rain simultaneously?

Yes. The IP67 rating protects against dust and temporary water submersion, while the -40°C to +90°C case-temperature (Tcase) range means it starts and runs even in sub-zero conditions. It can be mounted fully exposed; make the wiring connections with waterproof connectors or a cable joiner as shown on the datasheet.
