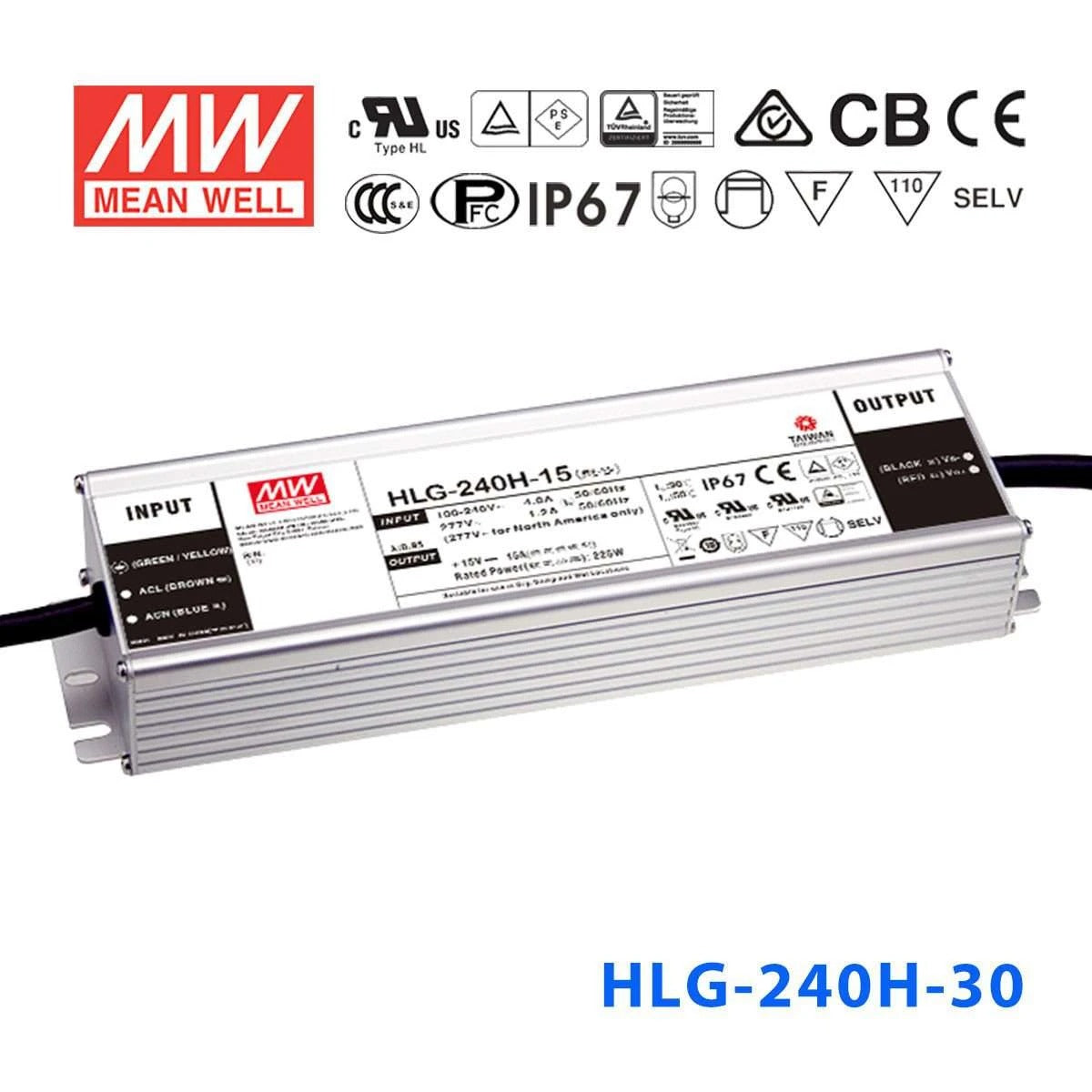

Mean Well HLG-240H-30 Power Supply | 240W 30V LED Driver

Description

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 95%

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

IP67 / IP65 design for indoor or outdoor installations

Cooling by free air convection

Output current adjustable

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W)

Optional CQC models available (A/Blank-Type)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 75A at 230VAC
DC adjustment range	±6% rated output voltage
Current adjustment range	50%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	2500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1, TUV EN60950-1
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm);
Connection Output	A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block
Dimension (LxWxH) (mm)	A/B/D/Blank-Type: 244.2x 68x 38.8 C-Type: 251x 68x 38.8

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

240 Watt
Output Voltage

30 Volt
Rated Current

8 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

9.61 in
Width

2.68 in
Height

1.53 in
Weight

2.87 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-240H-30 to power 30V LED modules for outdoor building signage?

Yes. The HLG-240H-30 provides 240W at 30V (8A) with an IP67 waterproof rating, making it well suited for exposed outdoor sign cabinets, channel letters, or illuminated building fascias using 30V LED modules. The aluminium casing resists corrosion and dissipates heat efficiently.

Is the HLG-240H-30 appropriate for powering 30V LED flood lights in a parking lot?

Yes. At 240W it can drive one or more 30V LED flood fixtures as long as the total load stays within 240W. The IP67 rating handles full rain exposure and dust, and the -40°C to +90°C operating range supports year-round outdoor operation in most climates.

Can the HLG-240H-30 drive 30V LED strips for architectural or landscape lighting?

Yes. With 240W at 30V output, it is suitable for long runs of 30V LED strip in outdoor architectural accents, garden path edging, or landscape feature lighting. The IP67 waterproof housing allows direct burial in junction boxes or mounting in exposed locations.

How many meters of 30V LED strip can the HLG-240H-30 handle?

Divide 240W by the strip's power per meter. For example, a 30V strip rated at 10W/m would allow 24 meters (240W / 10W per meter = 24m). Always check your strip's rated power per meter and keep the total load at or below 240W to avoid overloading the driver.

Can the HLG-240H-30 withstand direct rain and dust exposure in a fully outdoor installation?

Yes. Its IP67 rating means it is completely dust-tight and can withstand temporary immersion in water up to 1 meter. Combined with the -40°C to +90°C operating temperature range and aluminium casing, it is built for permanent fully exposed outdoor use.

What are the differences between the HLG-240H-30, 30A, 30AB, and 30B variants?

All four share 240W / 30V / 8A core specs. The base HLG-240H-30 has fixed output and IP67 waterproof rating. The -30A adds output voltage/current adjustment via potentiometer (IP65). The -30AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -30B provides dimming input only and retains IP67.
