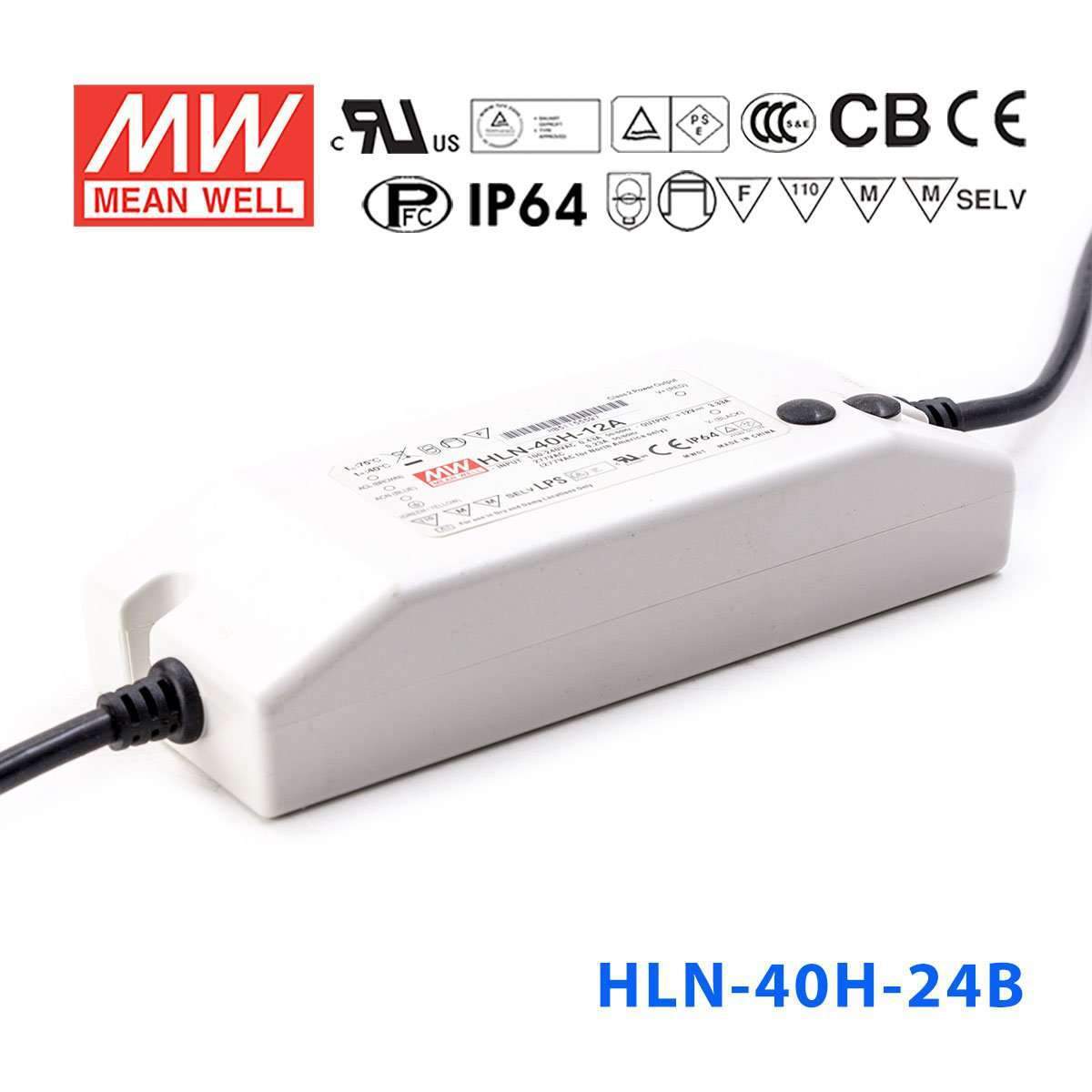

Mean Well HLN-40H-24B Power Supply 40W 24V - IP64, Dimmable

fully isolated plastic case, IP64, suitable for signage applications, Class 2 power unit

SKU:

HLN-40H-24B

$36.63 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 305VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

High efficiency up to 91%

Cooling by free air convection

Suitable for dry, damp location

Suitable for LED lighting and moving sign applications

Multiple models for choice: A-Type: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP64 rated and built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance)

3 years warranty

General Specification

AC input voltage range	90~305VAC; 127~431VDC
AC inrush current (max.)	Cold start, 50A at 230VAC
DC adjustment range	±10% rated output voltage (A-Type only)
Current adjustment range	60%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	109%~150% rated output voltage
Setup, rise, hold up time	1000ms, 80ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature	-40~+50ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1for
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx3C (30cm)
Connection Output	A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm)
Dimension (LxWxH) (mm)	161x 61.5x 35

Specifications

Brand

Mean Well
Series

HLN Series
Power Rating

40.1 Watt
Output Voltage

24 Volt
Rated Current

1.67 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~50°C
Warranty

3 Year
Length

6.34 in
Width

2.42 in
Height

1.38 in
Weight

0.77 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the HLN-40H-24B be used for 24V illuminated signage?

Yes, it is a 24V, 1.67A, 40.1W LED driver and the listed features say it is suitable for signage applications. The connected lighting load should stay within the 14-24V constant current range and the 40.1W maximum output.

Is this a good match for 24V retail display lighting or backlit panels?

It can be used for 24V display lighting or backlit panel loads that do not exceed 40.1W and 1.67A. Its fully isolated plastic case also helps in enclosed lighting assemblies where an isolated Class 2 unit is preferred.

Can I use the HLN-40H-24B for 24V decorative lighting in covered outdoor areas?

It can fit 24V decorative or accent lighting loads up to 40.1W where splash resistance is needed. The IP64 enclosure and -40 C to +50 C operating range make it more suitable for harsh conditions than an indoor-only unit.

What is the difference between the HLN-40H-24B and other HLN 40W series voltage options?

Within the HLN-40H 40W family, the voltage and current combinations are 12V at 3.33A, 15V at 2.67A, 20V at 2A, 24V at 1.67A, 30V at 1.34A, 36V at 1.12A, 42V at 0.96A, 48V at 0.84A, and 54V at 0.75A. This specific model is the 24V, 40.1W, 1.67A version.

How should I estimate 24V LED strip length for this driver?

Take the maximum output power, 40.1W, and divide by the strip's rated watts per meter to estimate length: 40.1W / strip W per meter. Check your strip rated power per meter first, because this driver is limited to 24V output, 1.67A current, and 40.1W total load.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HLN-40H-54B Power Supply 40W 54V - IP64, Dimmable	40.5W	54V	0.75A	IP64	$36.46	View
Mean Well HLN-40H-54A Power Supply 40W 54V - IP64, Adjustable	40.5W	54V	0.75A	IP64	$36.63	View
Mean Well HLN-40H-48B Power Supply 40W 48V - IP64, Dimmable	40.3W	48V	0.84A	IP64	$36.63	View
Mean Well HLN-40H-48A Power Supply 40W 48V - IP64, Adjustable	40.3W	48V	0.84A	IP64	$36.63	View
Mean Well HLN-40H-42B Power Supply 40W 42V - IP64, Dimmable	40.3W	42V	0.96A	IP64	$36.63	View
Mean Well HLN-40H-42A Power Supply 40W 42V - IP64, Adjustable	40.3W	42V	0.96A	IP64	$36.63	View
Mean Well HLN-40H-36B Power Supply 40W 36V - IP64, Dimmable	40.3W	36V	1.12A	IP64	$34.65	View
Mean Well HLN-40H-36A Power Supply 40W 36V - IP64, Adjustable	40.3W	36V	1.12A	IP64	$36.63	View
Mean Well HLN-40H-30B Power Supply 40W 30V - IP64, Dimmable	40.2W	30V	1.34A	IP64	$36.63	View
Mean Well HLN-40H-30A Power Supply 40W 30V - IP64, Adjustable	40.2W	30V	1.34A	IP64	$36.63	View
Mean Well HLN-40H-24A Power Supply 40W 24V - IP64, Adjustable	40.1W	24V	1.67A	IP64	$36.63	View
Mean Well HLN-40H-20B Power Supply 40W 20V - IP64, Dimmable	40W	20V	2A	IP64	$36.63	View
Mean Well HLN-40H-20A Power Supply 40W 20V - IP64, Adjustable	40W	20V	2A	IP64	$36.60	View
Mean Well HLN-40H-15B Power Supply 40W 15V - IP64, Dimmable	40W	15V	2.67A	IP64	$36.63	View
Mean Well HLN-40H-15A Power Supply 40W 15V - IP64, Adjustable	40W	15V	2.67A	IP64	$36.63	View
Mean Well HLN-40H-12B Power Supply 40W 12V - IP64, Dimmable	40W	12V	3.33A	IP64	$36.63	View
