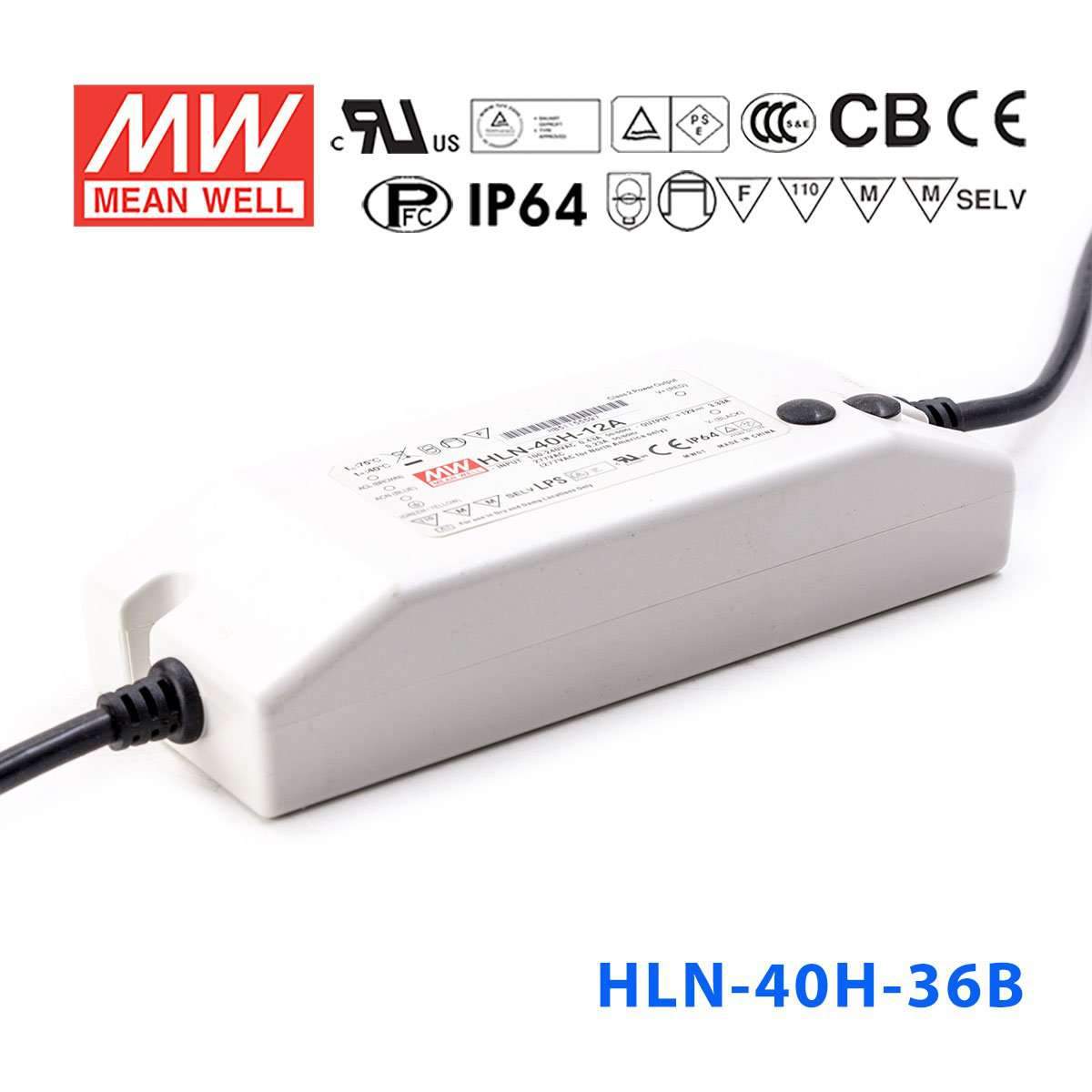

Mean Well HLN-40H-36B Power Supply 40W 36V - IP64, Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-40H-36B Power Supply 40W 36V - IP64, Dimmable
The HLN-40H is a 40W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating40.3 Watt
-
Output Voltage36 Volt
-
Rated Current1.12 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight0.77 lb
::specification::
Frequently Asked Questions
Can I use the HLN-40H-36B for 36V LED signage modules?
Yes, this driver is suited to 36V constant-current signage loads within its 21-36V constant-current range. It delivers up to 1.12A and 40.3W, and the product features specifically note suitability for signage applications.
Is the HLN-40H-36B suitable for 36V linear lighting or display lighting?
It can be used for 36V constant-current linear or display lighting that operates inside the 21-36V CC range. The driver provides 1.12A at up to 40.3W, so the fixture needs to match both the current and power limits.
Can this driver power a 36V LED strip system?
It can only be used with a 36V constant-current LED strip that is designed to run at 1.12A and within the 21-36V output range. It is not a general-purpose constant-voltage driver, so the strip's electrical type has to match the driver's constant-current operation.
Would this work for damp or dust-exposed sign lighting?
Yes, the IP64 housing is built for protection against dust and water splashes, which makes it appropriate for many sheltered outdoor or damp-location sign lighting applications. Its operating temperature range is -40°C to +50°C, so it is also rated for a wide range of ambient conditions.
How much 36V LED strip can the HLN-40H-36B handle?
The maximum load is 40.3W. To estimate strip length, divide 40.3W by your strip's rated power per meter, and make sure the strip is a 36V constant-current product that fits the 21-36V range and 1.12A output.
How does the HLN-40H-36B compare with other HLN-40H models?
Within the HLN-40H series, outputs include 12V at 3.33A, 15V at 2.67A, 20V at 2A, 24V at 1.67A, 30V at 1.34A, 36V at 1.12A, 42V at 0.96A, 48V at 0.84A, and 54V at 0.75A, all around 40W. The HLN-40H-36B sits in the middle of that range with 40.3W output at 36V and 1.12A.
