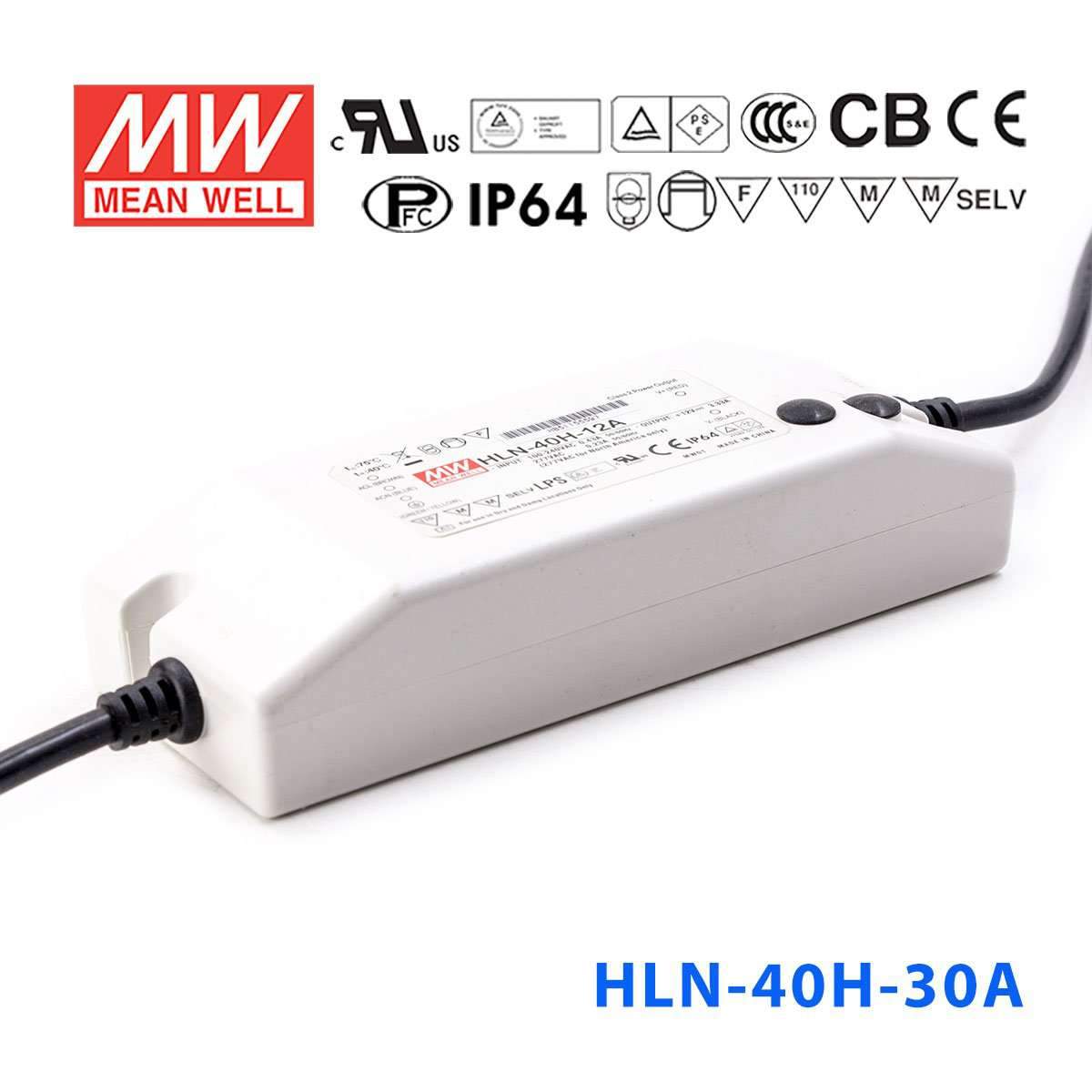

Mean Well HLN-40H-30A Power Supply 40W 30V - IP64, Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLN-40H-30A Power Supply 40W 30V - IP64, Adjustable
The HLN-40H is a 40W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating40.2 Watt
-
Output Voltage30 Volt
-
Rated Current1.34 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length6.34 in
-
Width2.42 in
-
Height1.38 in
-
Weight0.77 lb
::specification::
Frequently Asked Questions
Can I use the HLN-40H-30A for 30V signage lighting?
Yes, this model is intended for LED lighting loads at 30V up to 40.2W and 1.34A, and its features list says it is suitable for signage applications. The connected load should match the 18-30V constant current range.
Is the HLN-40H-30A suitable for 30V linear or architectural LED fixtures?
It can fit 30V linear, accent, or architectural lighting loads that stay within the 40.2W maximum output. The 90-305VAC input range is useful when the installation may see varied AC input conditions.
Can this driver power 30V display lighting or illuminated panels?
It can be used for 30V display or panel lighting when the total load does not exceed 1.34A and 40.2W. Its fully isolated plastic case and Class 2 rating also make it practical for many enclosed lighting products.
How do I size LED strip length for a 30V load on this driver?
Use the driver's maximum power and divide by your strip's rated watts per meter: 40.2W / strip W per meter = maximum theoretical length. Check your strip rated power per meter first, because the driver is limited to 30V, 1.34A, and 40.2W.
Is the HLN-40H-30A OK for outdoor or damp lighting locations?
Its IP64 rating means protection against dust and water splashes, so it can suit outdoor or damp-area lighting where splash exposure is expected. It is not a submersible unit, and the specified operating range is -40 C to +50 C.
