Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

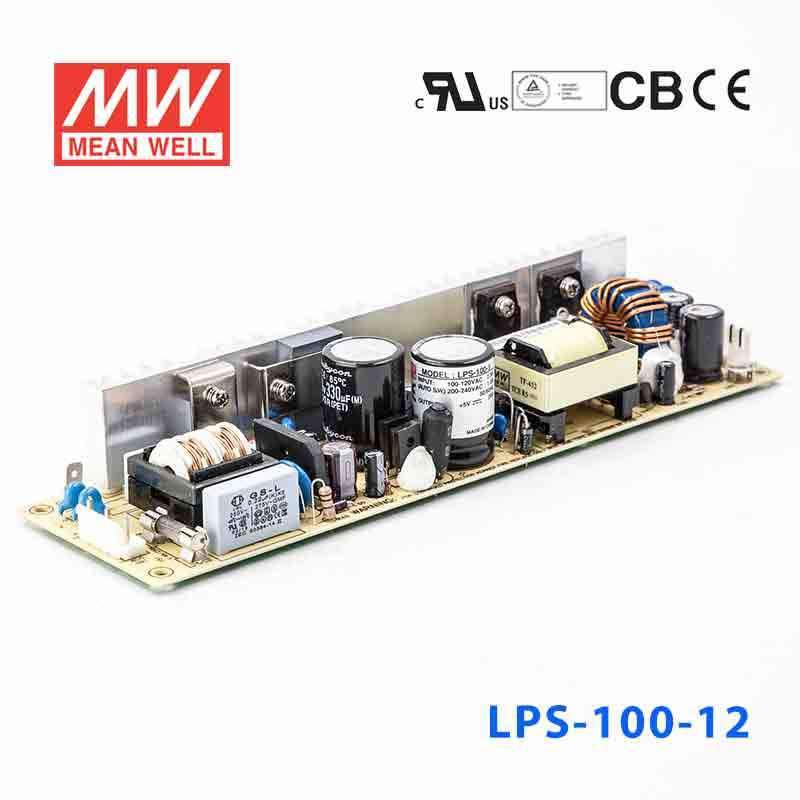

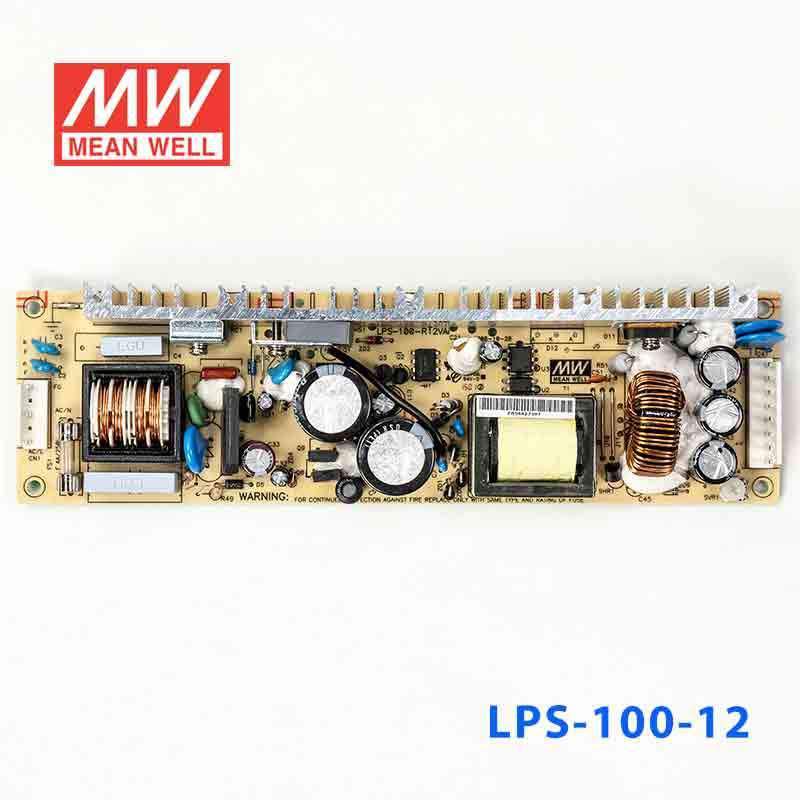

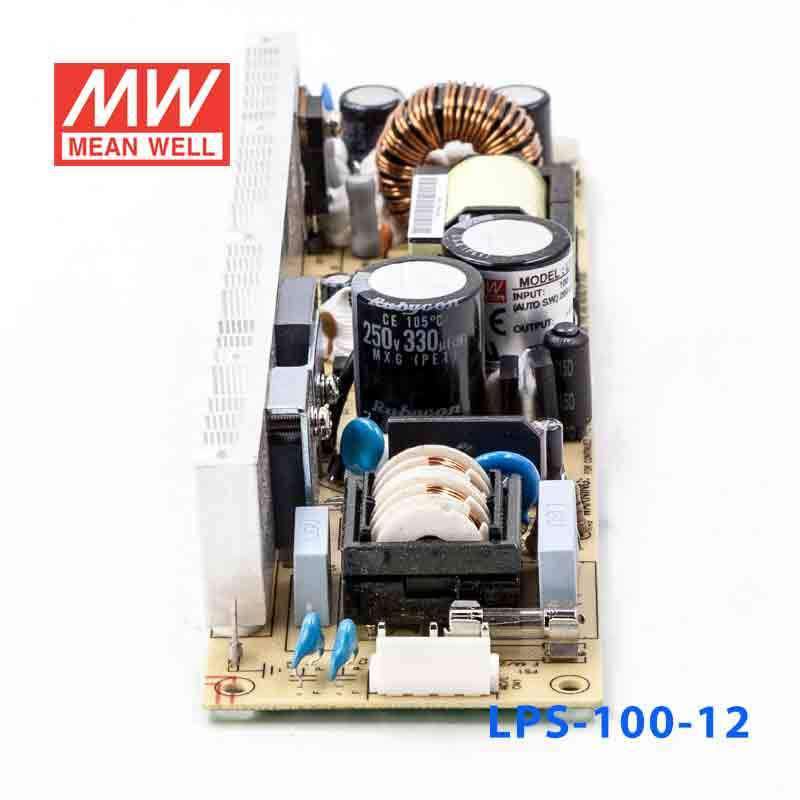

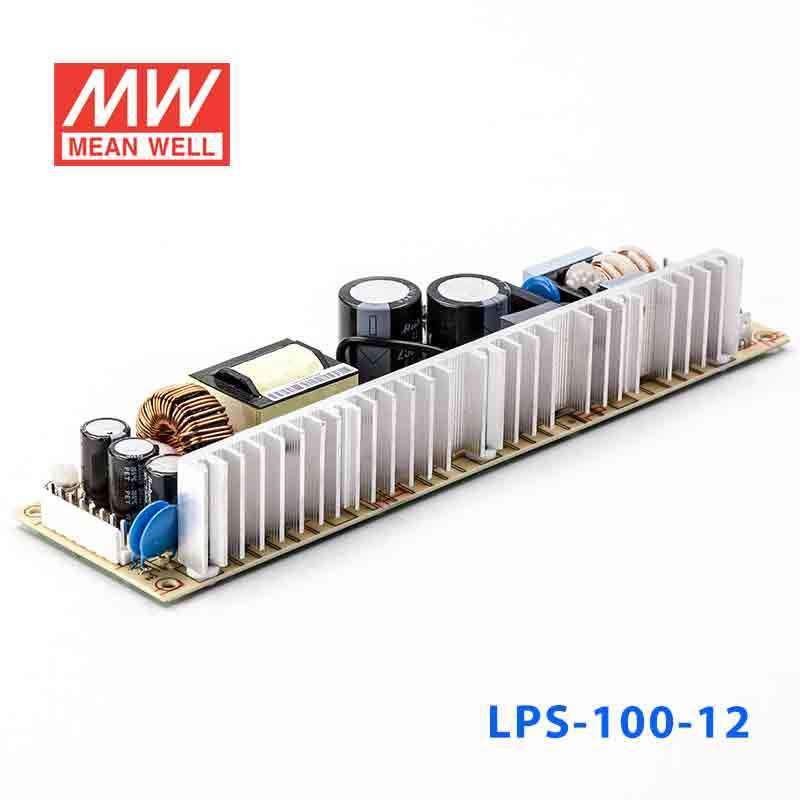

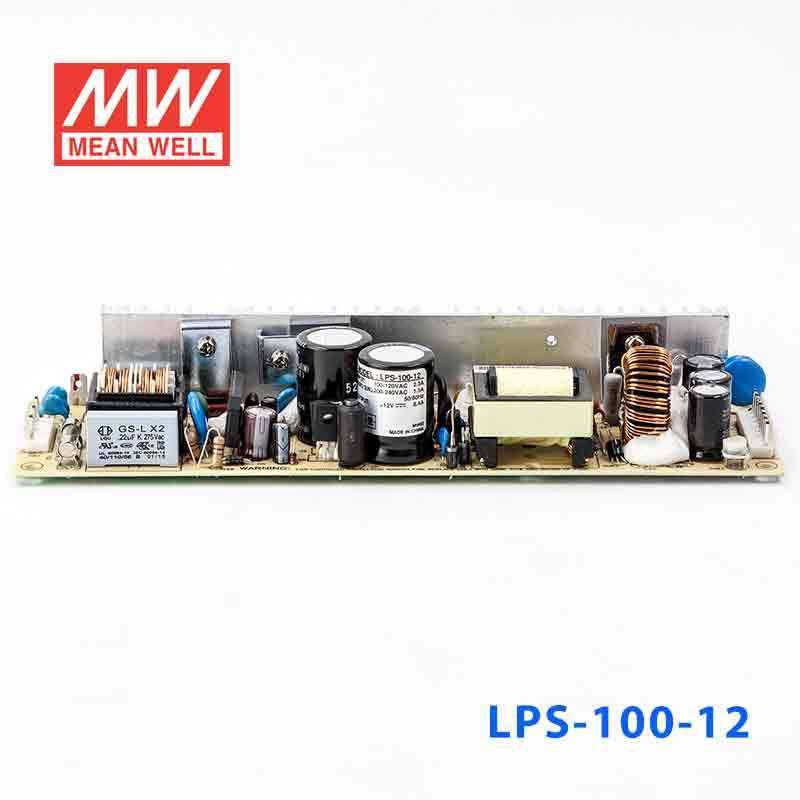

Mean Well LPS-100-12 Power Supply 100W 12V

small and compact, low profile, 23mm thickness, built-in remote ON-OFF control

SKU:

LPS-100-12

$32.90 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

Built-in remote ON/OFF control

100% full load burn-in test

2 years warranty for LPS series

General Specification

AC input voltage range	90~264VAC
AC inrush current(230VAC)	36A
DC adjustment range	±10% rated output voltage
Overload protection Range	115%~150%
Overload protection Type	Hiccup mode, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Hiccup mode, auto recovery
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-20~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry
Connection	JST B5P / B6P-VH
Dimension (LxWxH)	222x55x30
Packing	48pcs / 15.6kg

Specifications

Brand

Mean Well
Series

LPS Series
Power Rating

100.8 Watt
Output Voltage

12 Volt
Rated Current

8.4 Ampere
Input Voltage

88V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

8.74 in
Width

2.44 in
Height

1.26 in
Weight

0.99 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPS-100-12 for a 12V PLC panel or industrial control cabinet?

Yes, it is a constant voltage 12V power supply rated for up to 8.4A. That makes it suitable for 12V industrial control, PLC support hardware, or automation subsystems that stay within the 100.8W output rating.

Is the LPS-100-12 suitable for embedded or IT hardware that needs a slim 12V power supply?

It can be a good fit where low profile matters because the unit is small and compact and the features list calls out a low-profile design with 23mm thickness. Electrically, it provides 12V constant-voltage output up to 8.4A from an 88-264VAC input.

Can this power supply be used in equipment that needs remote on-off control?

Yes, the features list includes built-in remote ON-OFF control. That can be useful in industrial, embedded, or automation equipment where the 12V supply needs to be controlled as part of the system design.

What is the difference between the LPS-100-12 and related LPS models?

The listed LPS-100 siblings are LPS-100-13.5 at 101.25W, 13.5V, 7.5A; LPS-100-15 at 100.5W, 15V, 6.7A; LPS-100-24 at 100.8W, 24V, 4.2A; LPS-100-27 at 102.6W, 27V, 3.8A; LPS-100-3.3 at 66W, 3.3V, 20A; LPS-100-48 at 100.8W, 48V, 2.1A; LPS-100-5 at 100W, 5V, 20A; and LPS-100-7.5 at 99.75W, 7.5V, 13.3A. Other listed siblings are LPS-50-12 at 50.4W, 12V, 4.2A; LPS-50-15 at 51W, 15V, 3.4A; LPS-50-24 at 50.4W, 24V, 2.1A; LPS-50-3.3 at 33W, 3.3V, 10A; LPS-50-48 at 52.8W, 48V, 1.1A; LPS-50-5 at 50W, 5V, 10A; LPS-75-12 at 74.4W, 12V, 6.2A; LPS-75-15 at 75W, 15V, 5A; LPS-75-24 at 76.8W, 24V, 3.2A; LPS-75-3.3 at 49.5W, 3.3V, 15A; LPS-75-48 at 75W, 48V, 1.56A; and LPS-75-5 at 75W, 5V, 15A. The LPS-100-12 is the 100.8W, 12V, 8.4A member of that family.

Is the LPS-100-12 suitable for outdoor or exposed installations?

The provided specs give an operating temperature range of -10°C to +60°C, but no IP rating is listed. Based on the available data, temperature capability is specified, while outdoor exposure protection is not.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well LPS-100-7.5 Power Supply 100W 7.5V	99.75W	7.5V	13.3A	Indoor	$32.90	View
Mean Well LPS-100-5 Power Supply 100W 5V	100W	5V	20A	Indoor	$32.90	View
Mean Well LPS-100-48 Power Supply 100W 48V	100.8W	48V	2.1A	Indoor	$32.90	View
Mean Well LPS-100-3.3 Power Supply 66W 3.3V	66W	3.3V	20A	Indoor	$32.90	View
Mean Well LPS-100-27 Power Supply 102W 27V	102.6W	27V	3.8A	Indoor	$28.88	View
Mean Well LPS-100-24 Power Supply 100W 24V	100.8W	24V	4.2A	Indoor	$27.23	View
Mean Well LPS-100-15 Power Supply 100W 15V	100.5W	15V	6.7A	Indoor	$32.90	View
Mean Well LPS-100-13.5 Power Supply 101W 13.5V	101.25W	13.5V	7.5A	Indoor	$32.90	View
