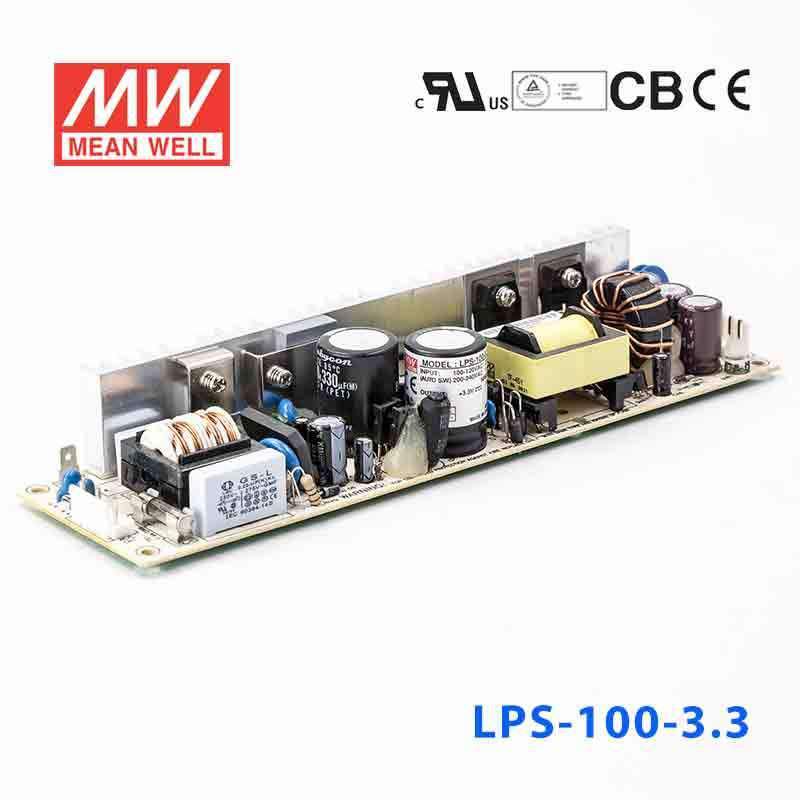

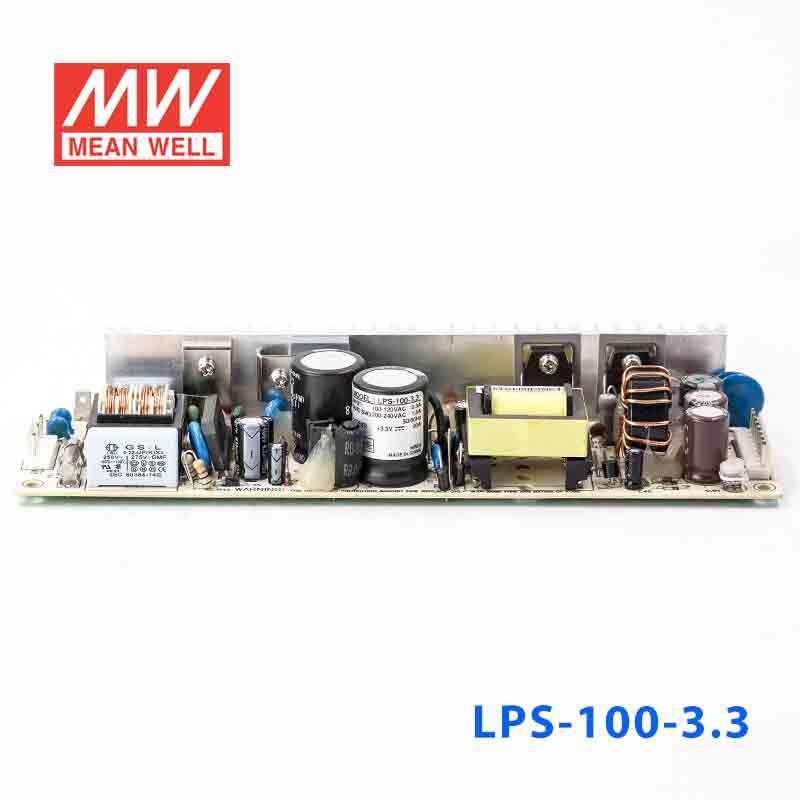

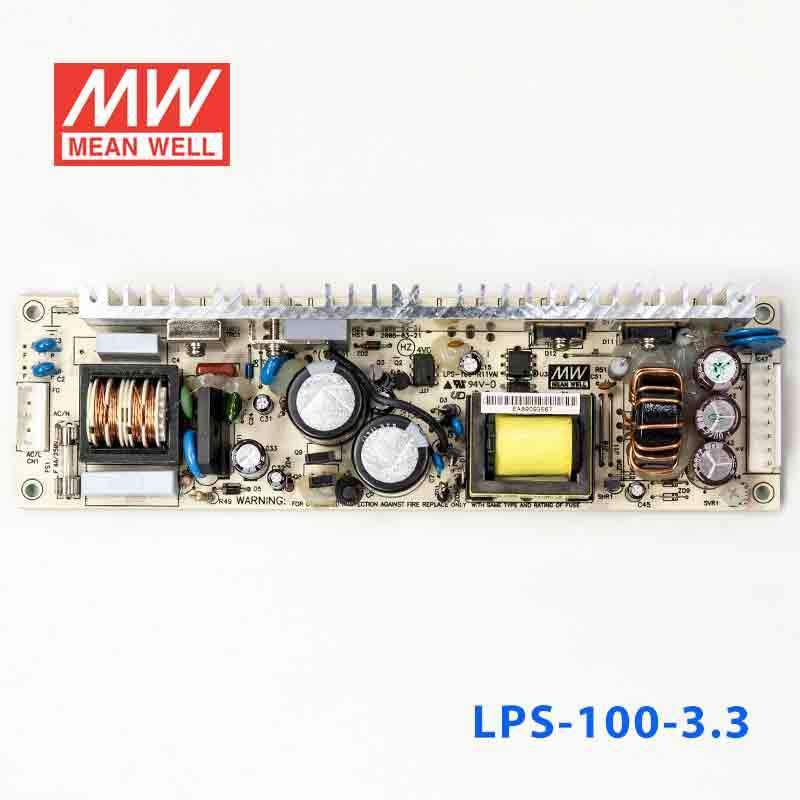

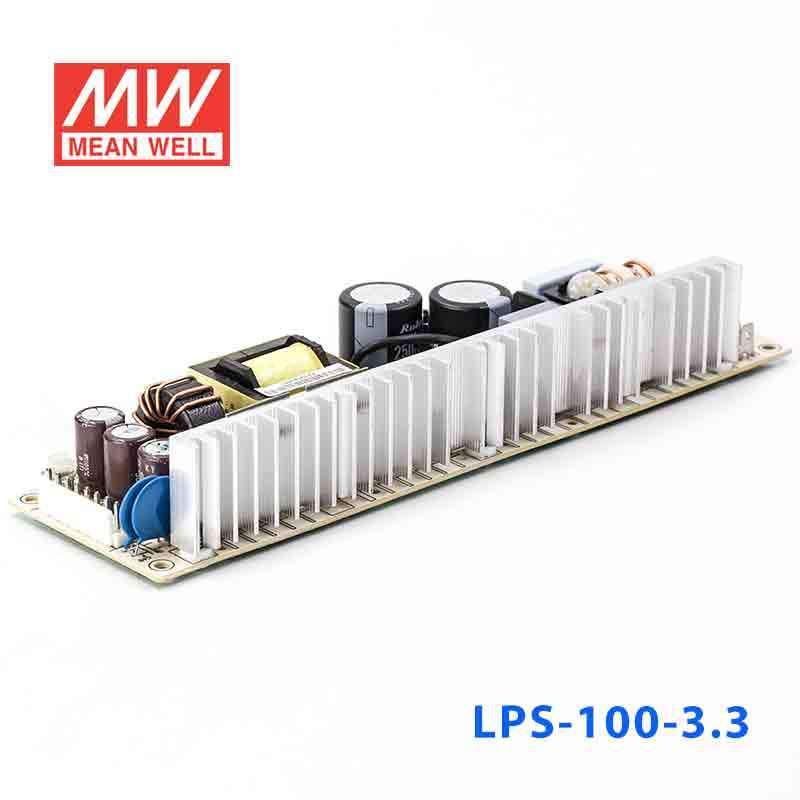

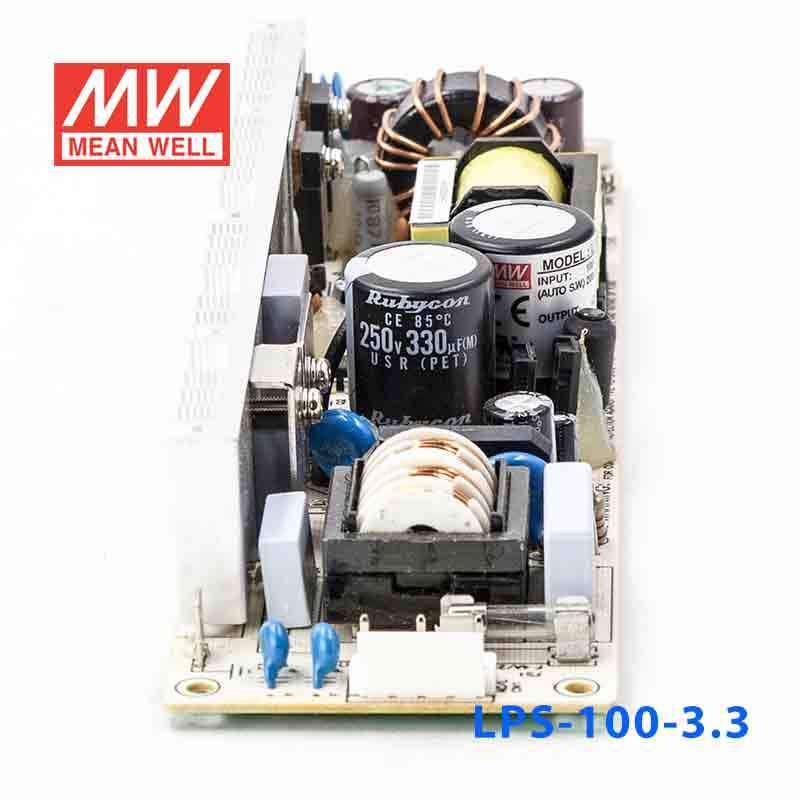

Mean Well LPS-100-3.3 Power Supply 66W 3.3V 20A
Overview
LPS-100-3.3 is the 3.3V output model of this series: rated current 20A, rated power 66W, typical efficiency 69%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fix switching frequency at 134KHz
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 3.3V
- RATED CURRENT
- 20A
- CURRENT RANGE
- 0 ~ 20A
- RATED POWER
- 66W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 3 ~ 3.6V
- VOLTAGE TOLERANCENote.3
- ±3.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIME
- 800ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 132VAC / 176 ~ 264VAC auto switch 248 ~ 370VDC [DC input operation possible by connecting AC/N(-), AC/L(+)]
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 69%
- AC CURRENT (Typ.)
- 2.3A/115VAC 1.5A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A/115VAC 60A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 140% (+24V: above 6.5A) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 3.8 ~ 4.45V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2(Note.7),-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2983.9K hrs min. Telcordia SR-332 (Bellcore) ; 342.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 222*62*32mm (L*W*H)
- PACKING
- 0.45Kg; 24pcs/12.5Kg/1.63CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. If the input range 85V-89V, the output load is changed from 0A-rated load, There will be reduced 20V for 1second (LPS-100-24).
- 6. Mounting holes M1 and M2 should be grounded for EMI purposes.
- 7. Testing harmonic current at 90% load.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the LPS-100-3.3 for 3.3V embedded processors, logic boards, or industrial electronics?
Yes, this model is designed for constant voltage output at 3.3V and can deliver up to 20A. That makes it a candidate for 3.3V logic-heavy electronics or embedded assemblies that need high current within the 66W limit.
Is the LPS-100-3.3 suitable for powering multiple 3.3V digital loads from one supply?
It can be suitable when the combined 3.3V load stays within 20A and 66W total output. The constant voltage design matches systems that require a fixed 3.3V rail for digital or control electronics.
Can this model be used for 3.3V industrial control logic or communication boards?
Yes, if those boards are specified for a direct 3.3V constant voltage source. Its 20A output capacity is useful for lower-voltage systems where current demand is higher even though the total power is 66W.
Is the LPS-100-3.3 a good fit where high current is needed at low voltage?
That is where this version stands out in the series, because it provides 3.3V at up to 20A. It is intended for applications that specifically need a low-voltage, high-current constant voltage supply rather than higher-voltage outputs.
Can the LPS-100-3.3 be used in outdoor or harsh exposed environments?
The listed operating temperature range is -10°C to +60°C, but no IP rating is provided in the specs. From the available product data, it is better aligned with protected indoor environments than exposed outdoor or washdown areas.
