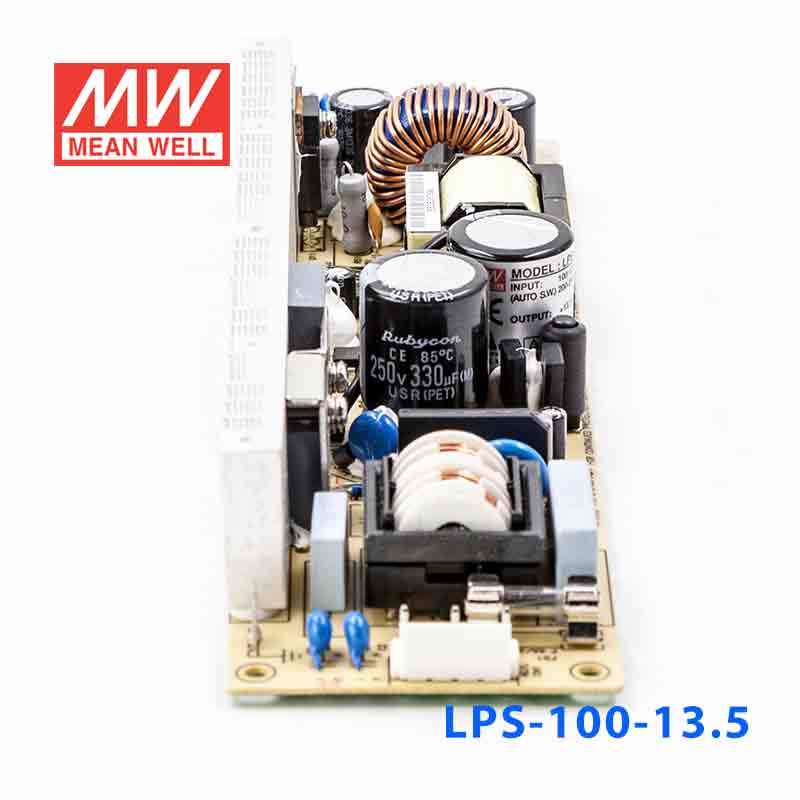

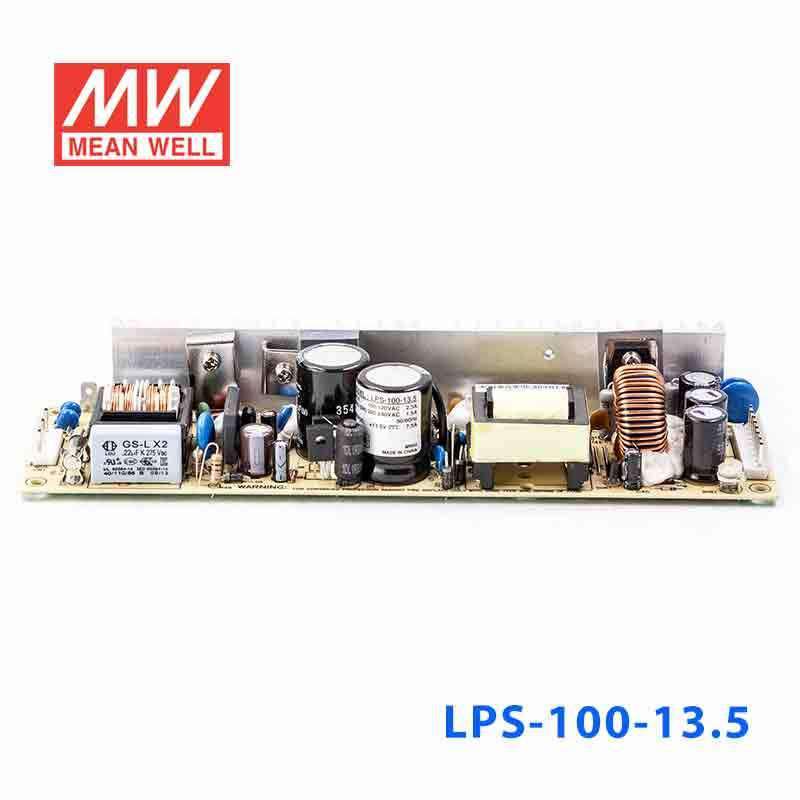

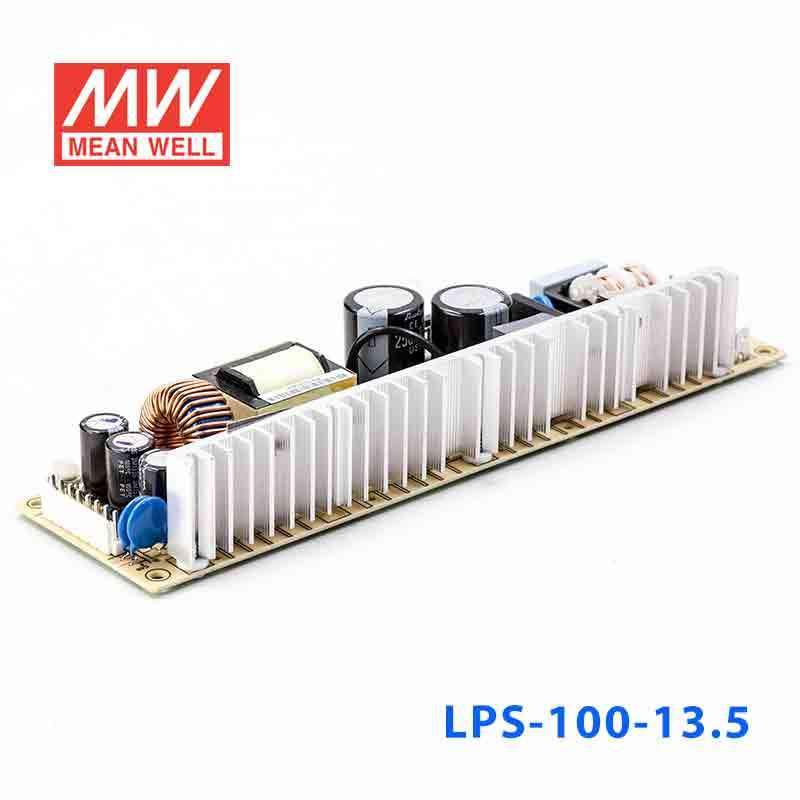

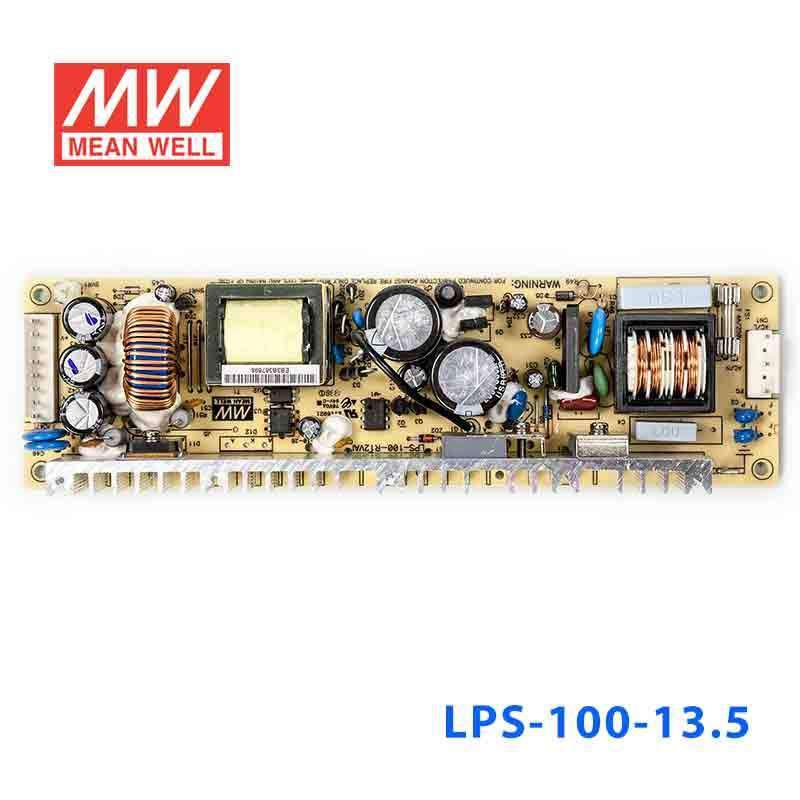

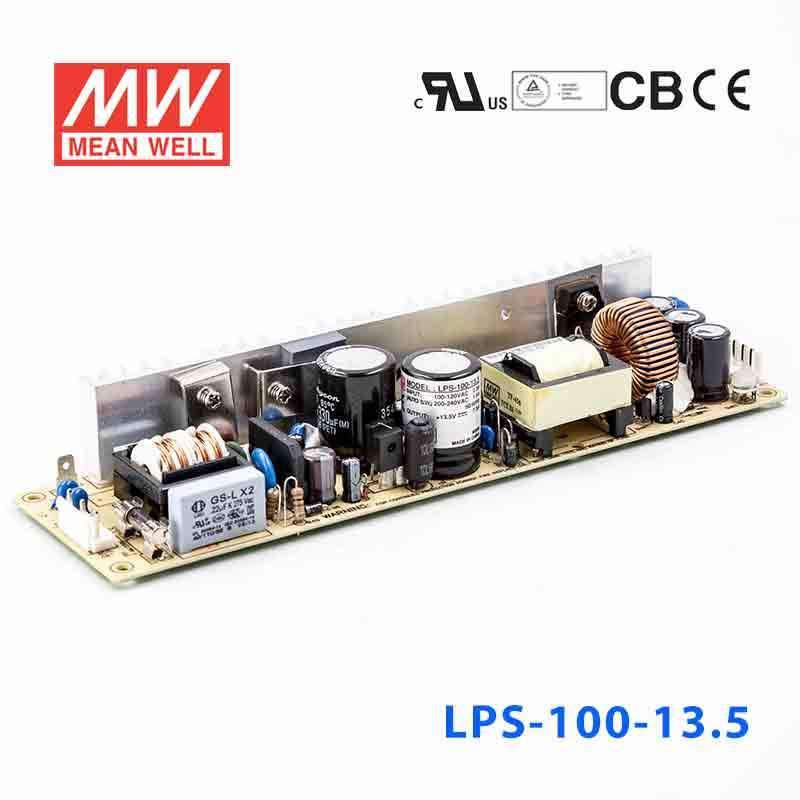

Mean Well LPS-100-13.5 Power Supply 101W 13.5V 7.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPS-100-13.5 Power Supply 101W 13.5V 7.5A
Overview
LPS-100-13.5 is the 13.5V output model of this series: rated current 7.5A, rated power 101.25W, typical efficiency 79%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fix switching frequency at 134KHz
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 13.5V
- RATED CURRENT
- 7.5A
- CURRENT RANGE
- 0 ~ 7.5A
- RATED POWER
- 101.25W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- 12 ~ 15V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.5%
- SETUP, RISE TIME
- 800ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 132VAC / 176 ~ 264VAC auto switch 248 ~ 370VDC [DC input operation possible by connecting AC/N(-), AC/L(+)]
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 79%
- AC CURRENT (Typ.)
- 2.3A/115VAC 1.5A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A/115VAC 60A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 140% (+24V: above 6.5A) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 15.5 ~ 18.2V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2(Note.7),-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2983.9K hrs min. Telcordia SR-332 (Bellcore) ; 342.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 222*62*32mm (L*W*H)
- PACKING
- 0.45Kg; 24pcs/12.5Kg/1.63CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. If the input range 85V-89V, the output load is changed from 0A-rated load, There will be reduced 20V for 1second (LPS-100-24).
- 6. Mounting holes M1 and M2 should be grounded for EMI purposes.
- 7. Testing harmonic current at 90% load.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the LPS-100-13.5 for a 13.5V industrial control panel?
Yes, this model is a constant voltage power supply with a 13.5V output and 7.5A maximum output current. That makes it suitable for 13.5V control hardware, relays, interface boards, or panel accessories that stay within its 101.25W output rating.
Is this power supply a fit for 13.5V communications or radio equipment?
It can be a fit when the equipment is designed for a 13.5V constant voltage input and the total load stays within 7.5A. The 88-132VAC / 176-264VAC auto-switching input also helps in facilities that may standardize on different AC mains ranges.
Can the LPS-100-13.5 power embedded systems that need a regulated 13.5V rail?
Yes, if the embedded system is designed for a 13.5V constant voltage source and its demand remains under 101.25W. The 222.0 x 62.0 x 32.0 mm size can also help where internal space is limited.
Is this suitable for 13.5V automation equipment in a compact enclosure?
It is intended for constant voltage applications and provides 13.5V at up to 7.5A, which suits many compact automation loads in that voltage class. Its 0.45 kg weight and 32.0 mm overall height support use where a slim power supply is preferred.
Can the LPS-100-13.5 be used in outdoor or exposed environments?
The listed operating temperature range is -10°C to +60°C, but the provided specs do not include an IP rating. Based on the listed data, it is better matched to protected indoor equipment spaces rather than outdoor or washdown exposure.
