Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

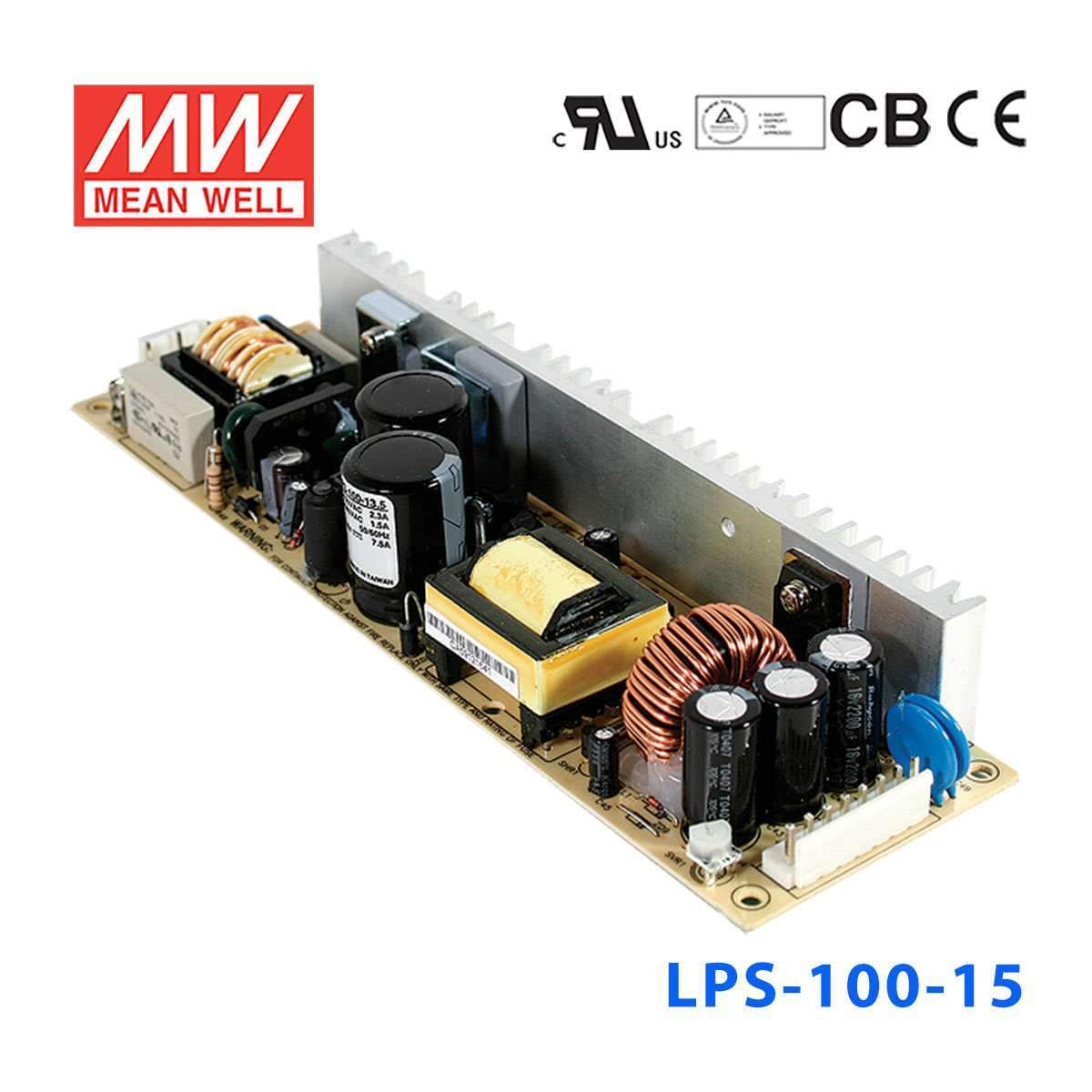

Mean Well LPS-100-15 Power Supply 100W 15V

small and compact, low profile, 23mm thickness, built-in remote ON-OFF control

SKU:

LPS-100-15

$32.90 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

Built-in remote ON/OFF control

100% full load burn-in test

2 years warranty for LPS series

General Specification

AC input voltage range	90~264VAC
AC inrush current(230VAC)	36A
DC adjustment range	±10% rated output voltage
Overload protection Range	115%~150%
Overload protection Type	Hiccup mode, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Hiccup mode, auto recovery
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-20~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry
Connection	JST B5P / B6P-VH
Dimension (LxWxH)	222x55x30
Packing	48pcs / 15.6kg

Specifications

Brand

Mean Well
Series

LPS Series
Power Rating

100.5 Watt
Output Voltage

15 Volt
Rated Current

6.7 Ampere
Input Voltage

88V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

8.74 in
Width

2.44 in
Height

1.26 in
Weight

0.99 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPS-100-15 for a 15V industrial controller or test fixture?

Yes, if the device requires a 15V constant voltage input and draws no more than 6.7A. This unit provides 100.5W total output capacity, which fits many 15V bench, control, and fixture loads.

Is the LPS-100-15 suitable for 15V automation sensors and auxiliary devices?

It can be suitable for grouped 15V auxiliary loads when the combined demand stays within 6.7A at 15V. Because it is a constant voltage model, it is intended for equipment that expects a fixed 15V supply.

Can this model power a 15V embedded or industrial computing assembly?

Yes, provided the assembly is specified for 15V input and remains under the 100.5W output limit. The compact 222.0 x 62.0 x 32.0 mm form factor can be useful in space-constrained electronics housings.

Is the LPS-100-15 a good option for 15V lab or instrumentation loads?

It is a fit for instrumentation or electronics that specifically call for a 15V constant voltage source up to 6.7A. Its universal 88-264VAC input can also simplify use across different AC input standards.

Is this power supply intended for indoor or outdoor conditions?

The published operating temperature range is -10°C to +60°C, which defines the thermal range in the provided specs. Since no IP rating is listed, the available data supports use in protected indoor environments rather than exposed outdoor locations.
