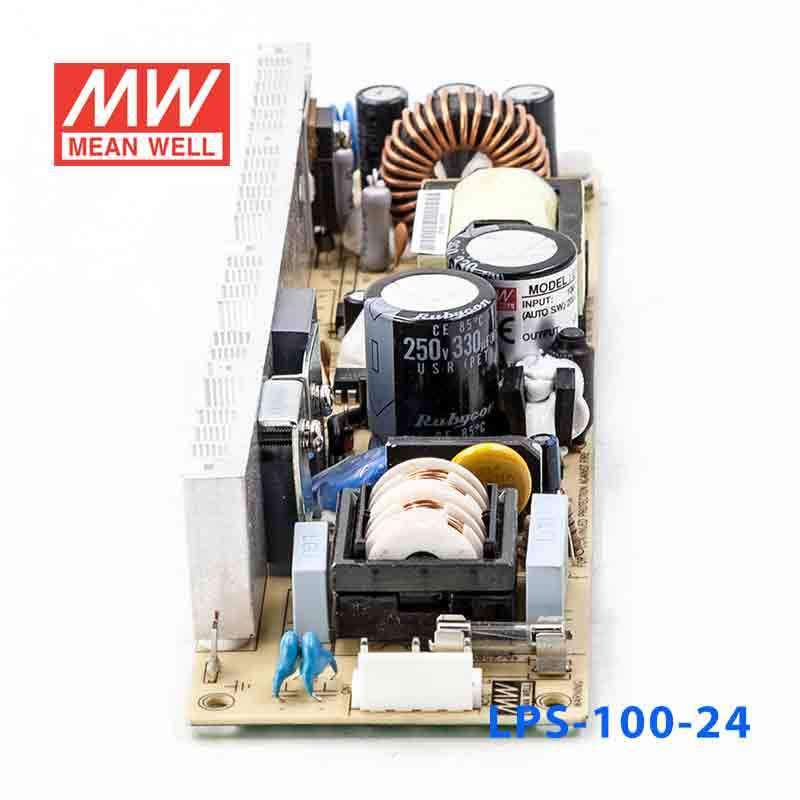

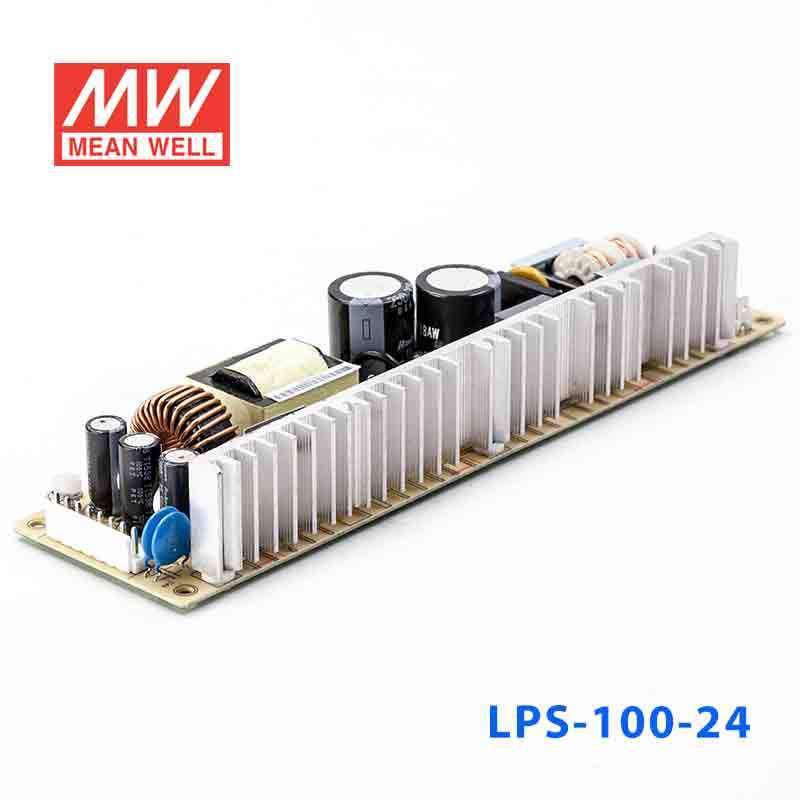

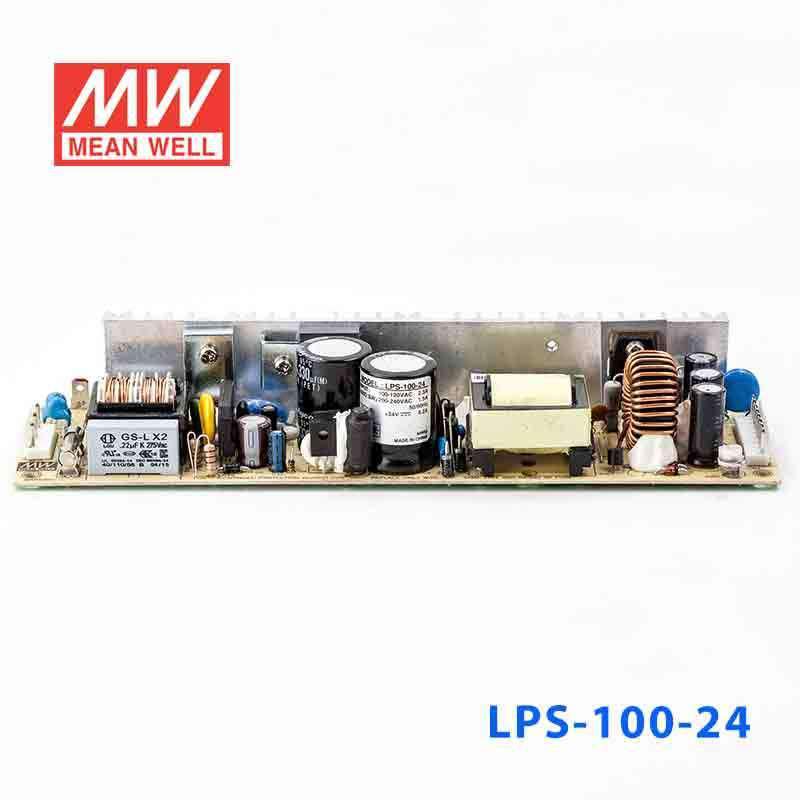

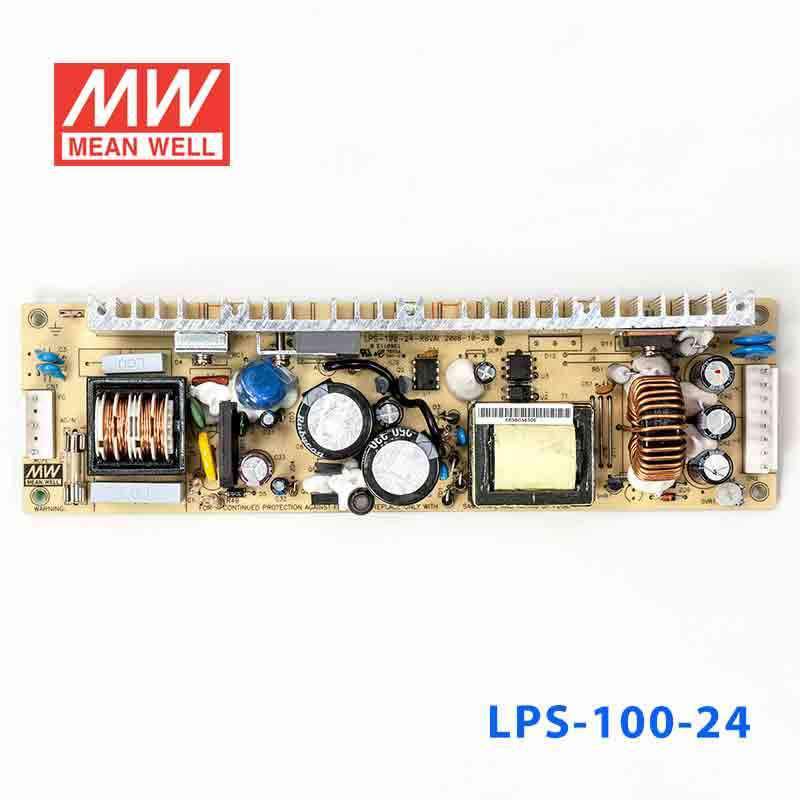

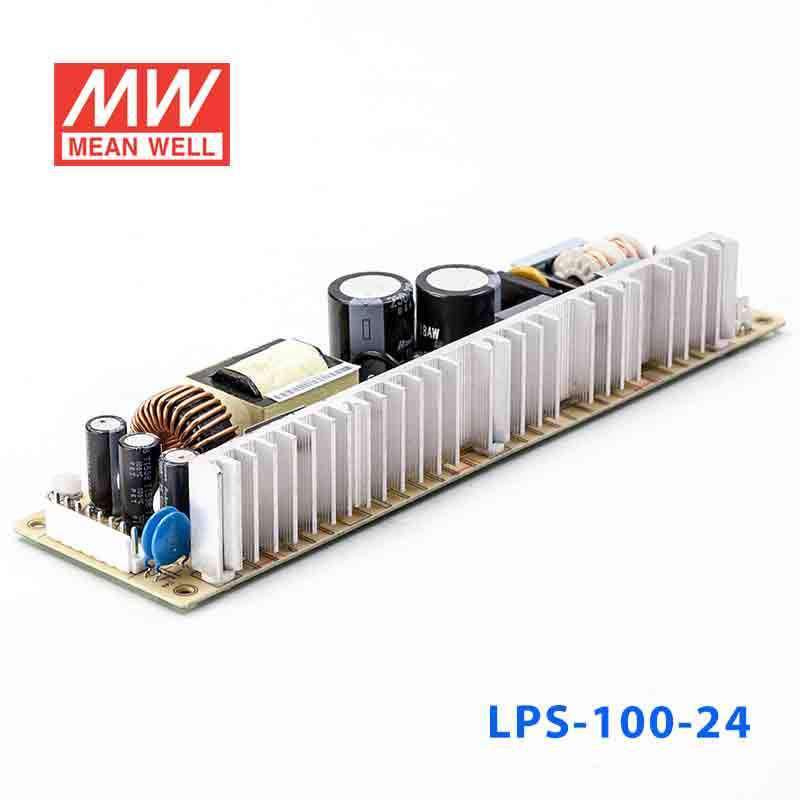

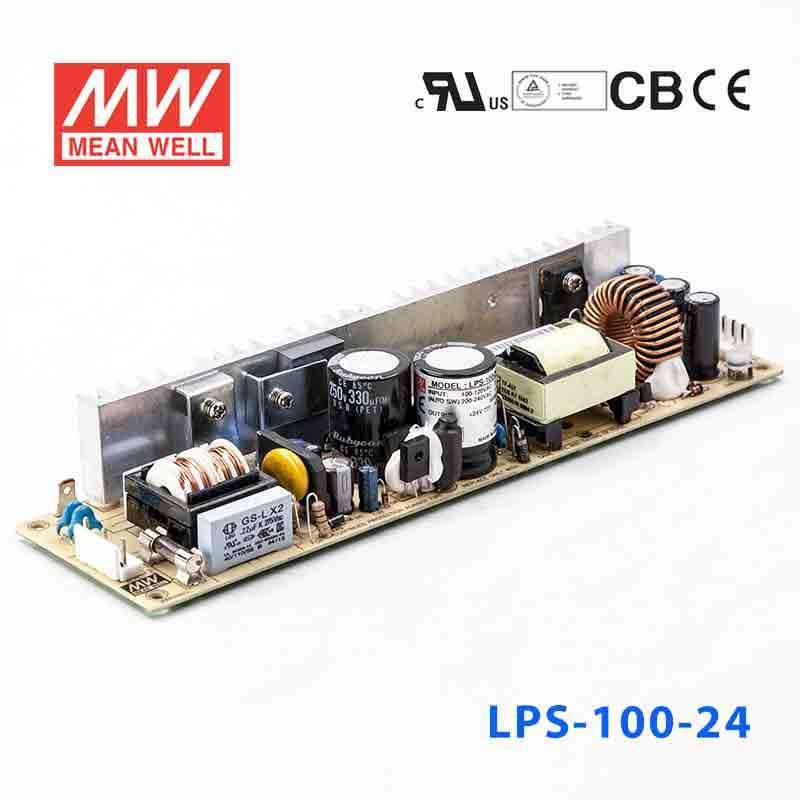

Mean Well LPS-100-24 Power Supply 100W 24V 4.2A
Overview
LPS-100-24 is the 24V output model of this series: rated current 4.2A, rated power 100.8W(144W 10s), typical efficiency 80%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fix switching frequency at 134KHz
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 4.2A
- CURRENT RANGE
- 0 ~ 4.2A(6A 10s)
- RATED POWER
- 100.8W(144W 10s)
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 20 ~ 26.4V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 800ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 132VAC / 176 ~ 264VAC auto switch 248 ~ 370VDC [DC input operation possible by connecting AC/N(-), AC/L(+)]
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 80%
- AC CURRENT (Typ.)
- 2.3A/115VAC 1.5A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A/115VAC 60A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 140% (+24V: above 6.5A) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.

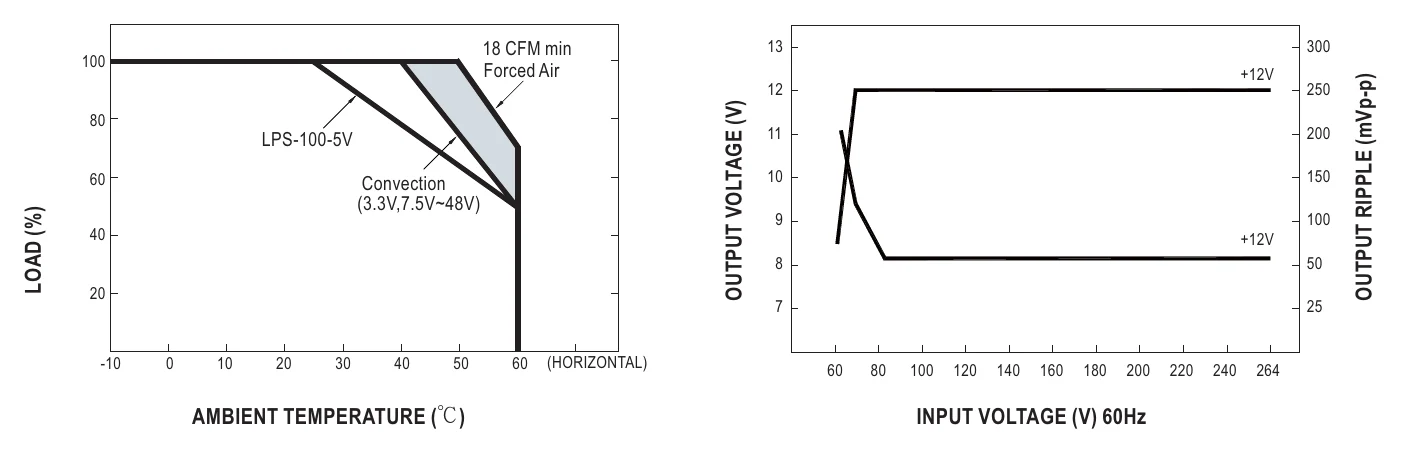

- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2(Note.7),-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2983.9K hrs min. Telcordia SR-332 (Bellcore) ; 342.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 222*62*32mm (L*W*H)
- PACKING
- 0.45Kg; 24pcs/12.5Kg/1.63CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. If the input range 85V-89V, the output load is changed from 0A-rated load, There will be reduced 20V for 1second (LPS-100-24).
- 6. Mounting holes M1 and M2 should be grounded for EMI purposes.
- 7. Testing harmonic current at 90% load.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

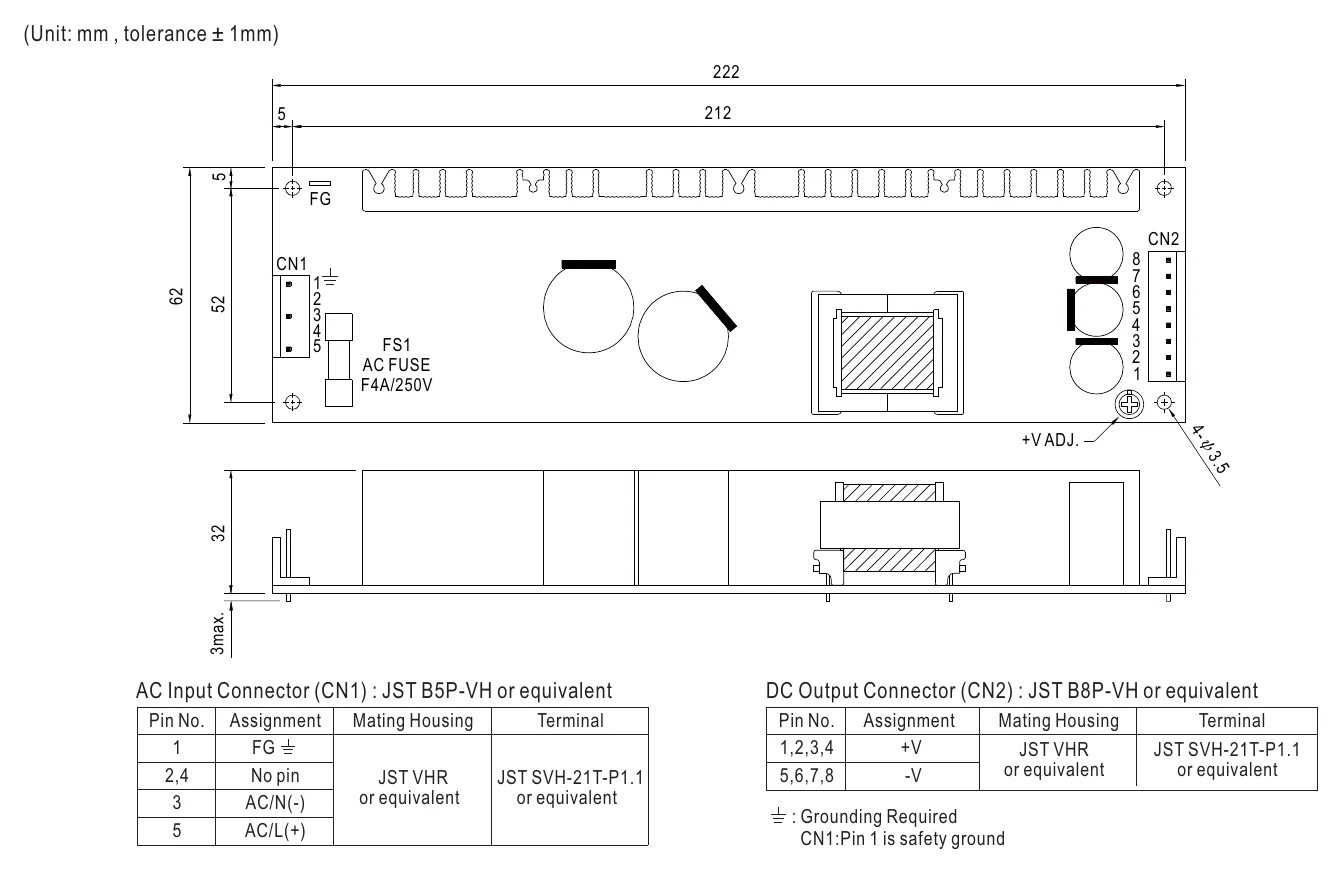

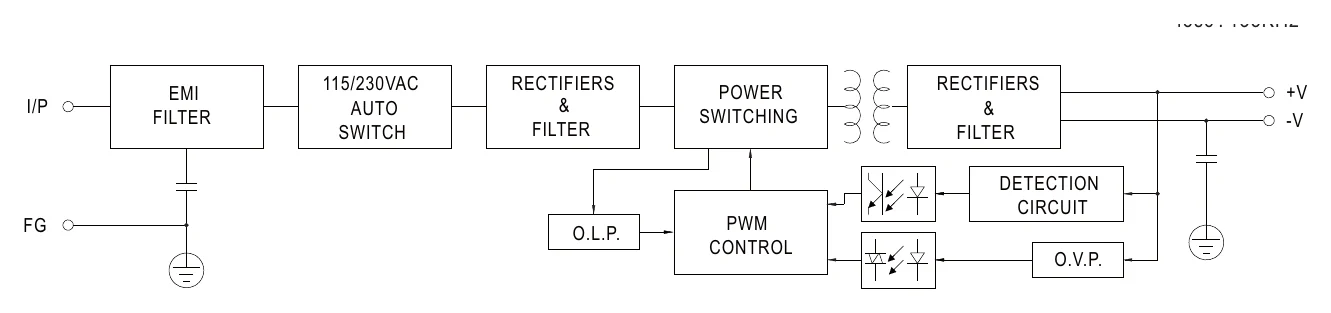

Technical drawings
Downloads
FAQ
Can I use the LPS-100-24 for 24V PLC I/O and industrial control devices?
Yes, this model is a constant voltage 24V supply with up to 4.2A output current. That makes it suitable for 24V control electronics, PLC-related loads, and panel devices that stay within its 100.8W rating.
Is the LPS-100-24 suitable for 24V automation sensors, relays, and actuators?
It can be used for 24V automation loads when the combined demand does not exceed 4.2A. Because it is a constant voltage unit, it is intended for equipment designed around a fixed 24V DC input.
Can this power supply run a 24V embedded or industrial communications device?
Yes, if the device requires 24V DC and its total draw stays within 100.8W. The 88-132VAC / 176-264VAC auto-switching input also supports deployment in facilities with different AC mains standards.
Is the LPS-100-24 a fit for compact 24V machine-control enclosures?
The unit measures 222.0 x 62.0 x 32.0 mm and weighs 0.45 kg. Those dimensions can make it practical where a 24V, 4.2A source is needed inside a tighter enclosure footprint.
Can the LPS-100-24 be used outside or in wet locations?
The listed operating temperature is -10°C to +60°C, but the provided specifications do not include an IP rating. On the basis of the listed data, it is better suited to protected indoor equipment areas than directly exposed outdoor conditions.
