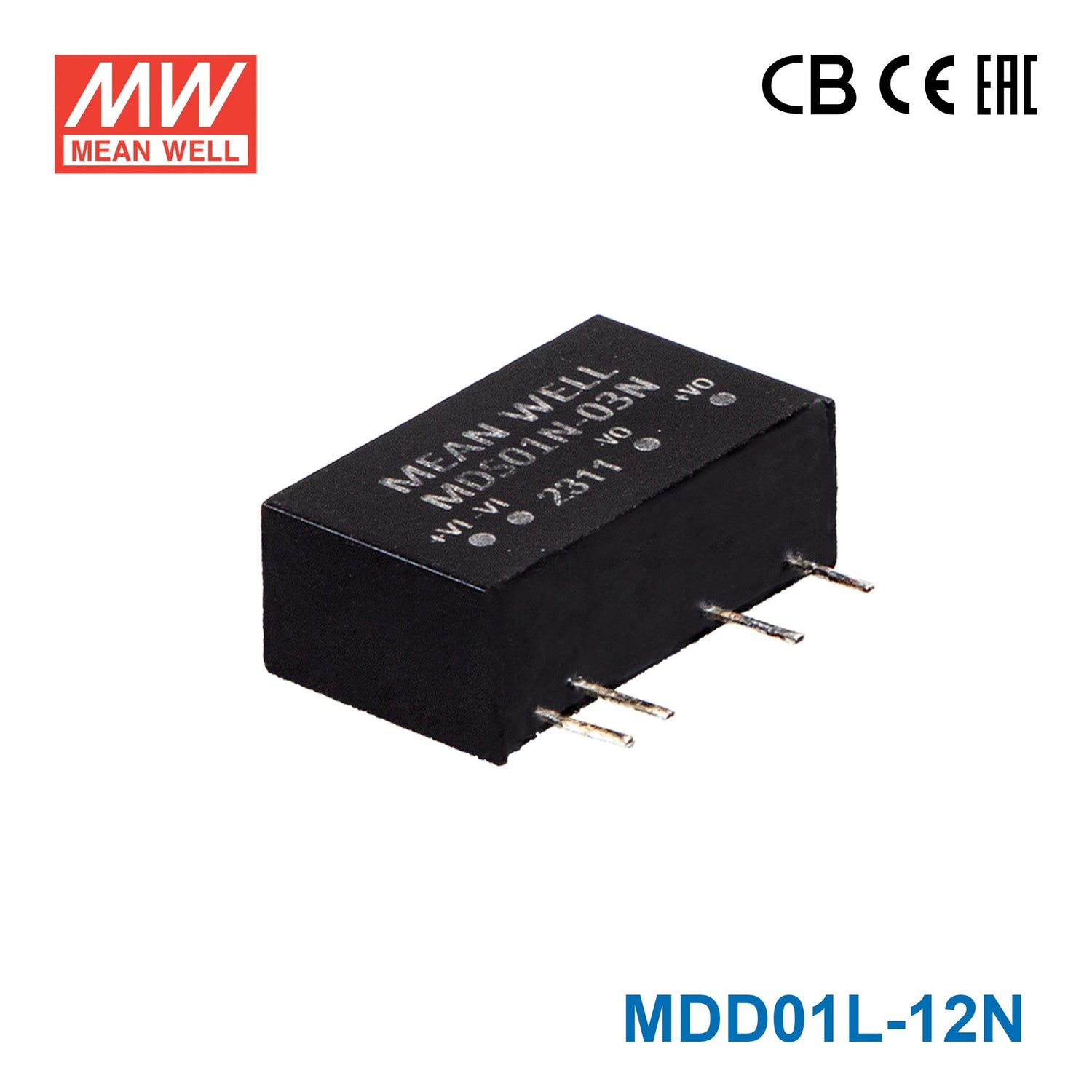

Mean Well MDD01L-12N SIP Package DC-DC Converter- 1W - ±12V Out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDD01L-12N SIP Package DC-DC Converter- 1W - ±12V Out
Description
Description
Features:
- SIP7 package with international standard pinout
- Operating temperature range -40 ~ +95°C
- Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- Low patient leakage current <2μA
- Protections: Short circuit (Continuous)
- 6KVDC hight I/O isolation (Reinforced insulation)
- Low cost
- 3 years warranty
General Specification
Input Voltage (Vdc)
5V (4.5 ~ 5.5V) | 12V (10.8 ~ 13.2V) | 24 (21.6 ~ 26.4V)
Output Voltage (Vdc)
1 Vo: 3.3V / 5V / 12V / 15V
2 Vo: ±5V / ±12V / ±15V
Overload Protection
Shut down the output when rated power≥102%, auto recovers
Operating Temperature
-40 ~ + 95°C
Short Circuit Protection
Continuous protection for a long time
Safety Certificate
CB / UL / EAC / CE / UKCA (62368-1 + 60601-1)
Dimension (LxWxH)
19.7 x 7.1 x 11.5 mm
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.03 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well MDD01L-12N typically used for?
The MDD01L-12N is a 1W SIP7 DC-DC converter designed for low-power isolated voltage conversion in compact equipment. It is a practical fit for medical, industrial, and control-board applications where reinforced isolation, small size, and a regulated ±12V output are important.
Is the MDD01L-12N suitable for medical or safety-sensitive equipment?
Yes. The product data lists medical safety approval to IEC60601-1 with 1xMOPP/2xMOOP and a low patient leakage current below 2μA. It also lists safety certifications including CB, UL, EAC, CE, and UKCA.
What are the key output and protection specs for the MDD01L-12N?
This model is a 1W converter with a ±12V output and a rated current of 31mA. The series data also lists continuous short-circuit protection and overload shutdown with automatic recovery, which supports fault tolerance in low-power designs.
Can the MDD01L-12N operate in demanding temperature conditions?
The specified operating temperature range is -40°C to +95°C. That wide range makes it suitable for equipment exposed to cold starts or elevated internal temperatures, provided the full system stays within its thermal limits.
What makes the MDD01L-12N different from a basic low-power DC-DC converter?
A key differentiator is its 6KVDC input-to-output isolation with reinforced insulation in a compact SIP7 package. The listed medical approvals, low leakage current, continuous short-circuit protection, and 3-year warranty make it more specialized than a generic low-cost converter.
