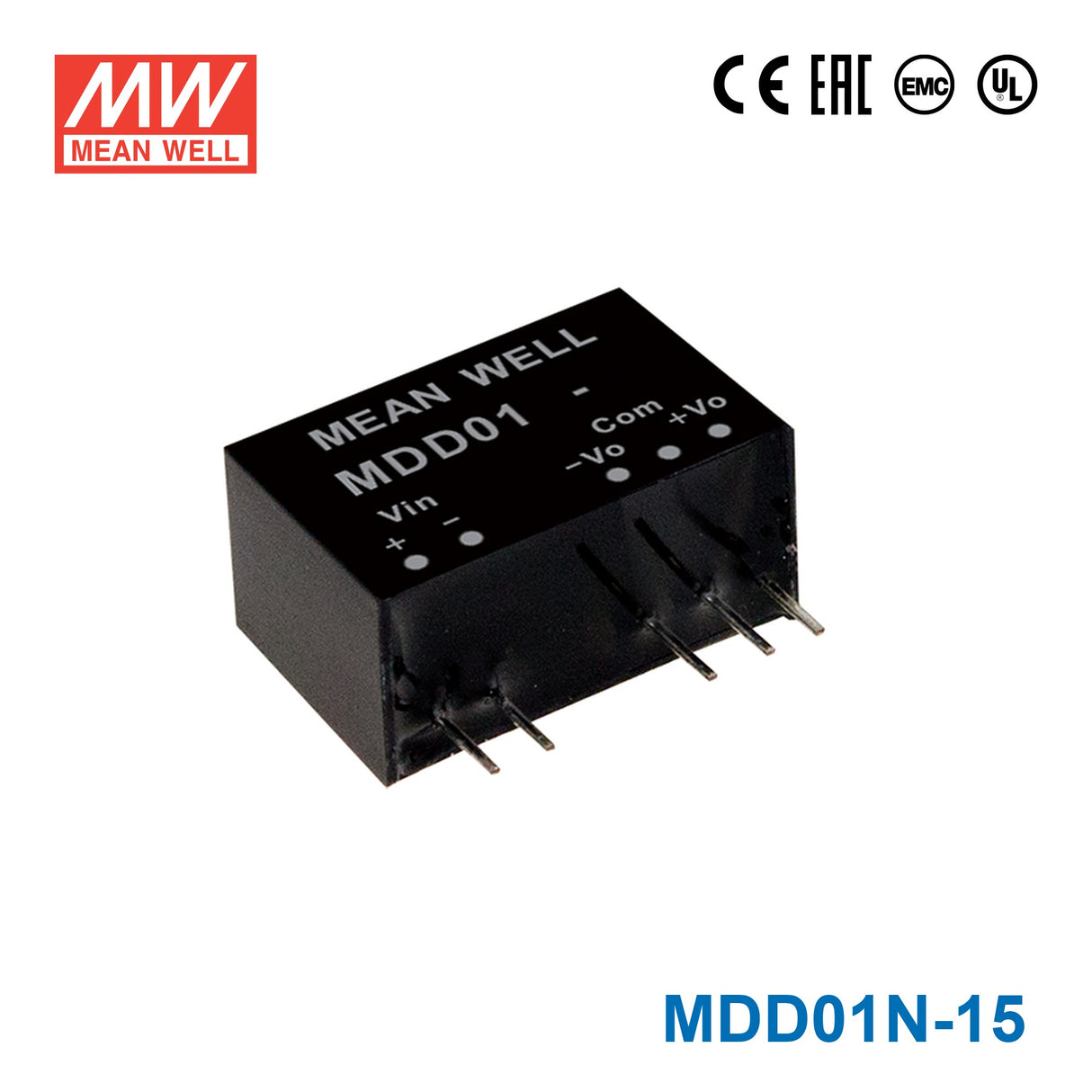

Mean Well MDD01N-15 DC-DC Converter - 1W - 21.6~26.4V in ±15V out
Description
Description
Features
| SI7 package with international standard pinout |
| Operating temperature range -40~+85℃ |
| 4:1 wide input range |
| Medical safety approved(2xMOPP) according to IEC60601-1 |
| Low patient leakage current <5µA |
| Protections: Short circuit(Continuous)/Overload |
| 6KVDC or 4.2KVAC high I/O isolation(Reinforced isolation) |
| Low cost |
| 3 years warranty |
General Specification
| Voltage accuracy | ±5.0% |
| Efficiency | 82% |
| Short circuit protection | 3-second max |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55011 class A, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.02% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 19.5*9.8*12.5mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.03 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EAC,EMC,LVD,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.49 in
-
Height0.39 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDD01N-15 to generate a low-power plus/minus 15V rail from a 24V-class source?
Yes, this converter is designed for applications with a 21.6~26.4V input that need a constant-voltage ±15V output. Its 1W rating and 0.03A output current make it suitable for small analog or interface sections rather than larger devices.
Is the MDD01N-15 appropriate for industrial analog conditioning or instrumentation circuits?
It is a fit for low-power instrumentation, conditioning, or signal-interface circuits that need ±15V from a 24V-class supply. The available output current is 0.03A, so it is intended for light auxiliary loads.
Would this model work in embedded test, control, or measurement electronics with tight board space?
Yes, the package is only 19.5 × 12.5 × 9.8 mm and weighs 0.0042 kg, which helps in compact embedded assemblies. It is best used where the load fits within the 1W output capability and requires ±15V.
How does the MDD01N-15 differ from the other MDD01N converters in the same series?
The listed siblings are MDD01N-05 at 5V and 100A, MDD01N-05N at 5V and 9A, MDD01N-09 at 9V and 0.06A, MDD01N-12 at 12V and 0.04A, MDD01N-12N at 12V and 9A, and MDD01N-15N at 15V and 9A. The MDD01N-15 itself is the 15V version with a 0.03A output current, and all listed units are 1W models.
Is the MDD01N-15 suitable for outdoor use or wide-temperature industrial enclosures?
The specified operating temperature range is -40°C to +85°C, so it can support equipment used in broad temperature conditions. The provided specs do not include an IP rating, so exposed outdoor, wet, or washdown use is not explicitly defined.
